Product Overview

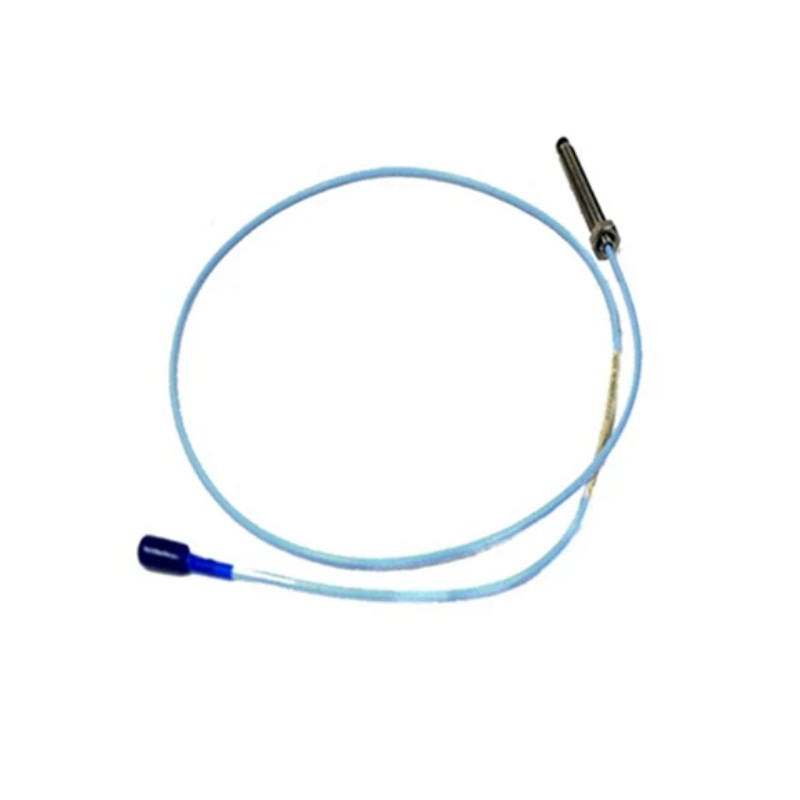

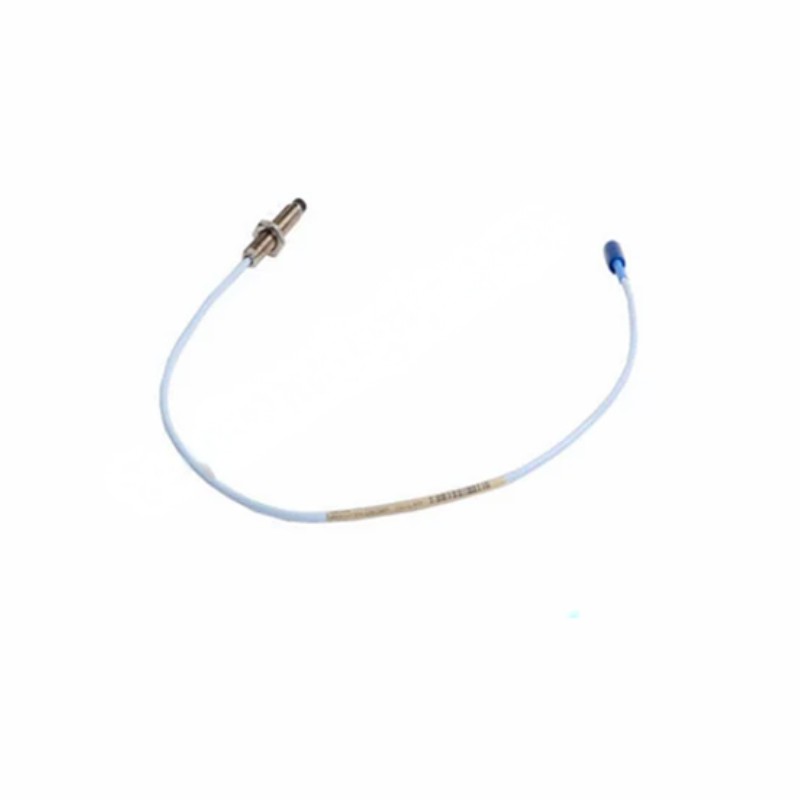

The Bently Nevada 330703-000-178-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision non-contact sensor engineered for continuous machinery condition monitoring in industrial environments. As part of the proven 3300 XL 11 mm Proximity Transducer System, this probe provides accurate shaft vibration and displacement measurements with an extended linear sensing range, making it well suited for demanding rotating equipment applications.
This configuration features an M14 × 1.5 threaded probe body, 178 mm overall case length, 1.0 m standard cable, and a Miniature Coaxial ClickLoc connector. Its durable stainless steel construction and dependable measurement performance make it an excellent choice for long-term industrial monitoring systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-178-10-02-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Series | 3300 XL 11 mm |
| Measurement Principle | Eddy Current Non-Contact Measurement |
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 |
| Armor Option | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 178 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc® Connector |
| Cable Type | Standard Cable |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 11 mm Proximity Transducer System |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Agency Approval | Standard (Option 00) |
