Overview

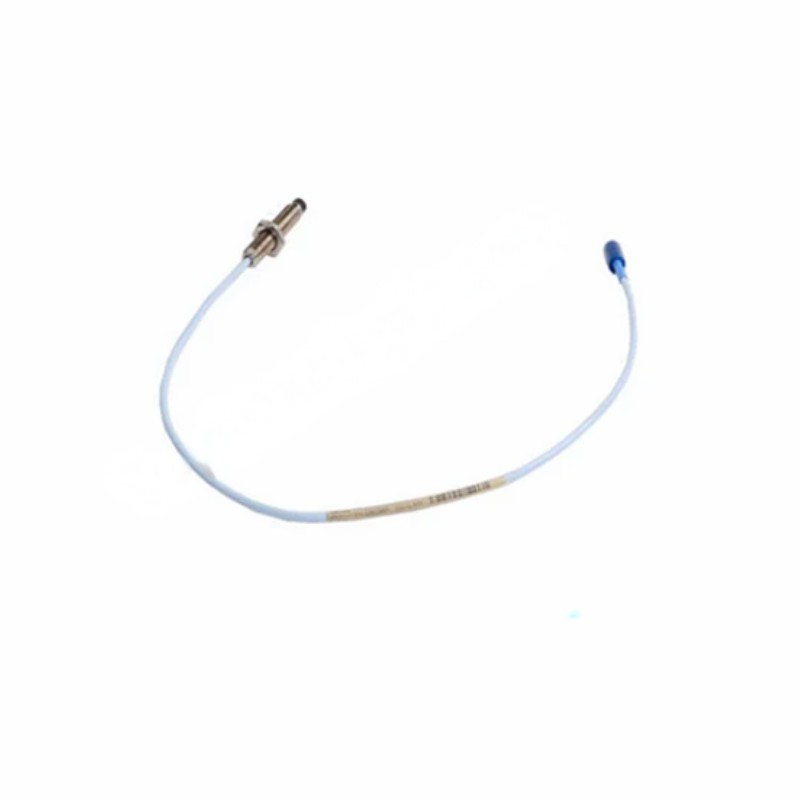

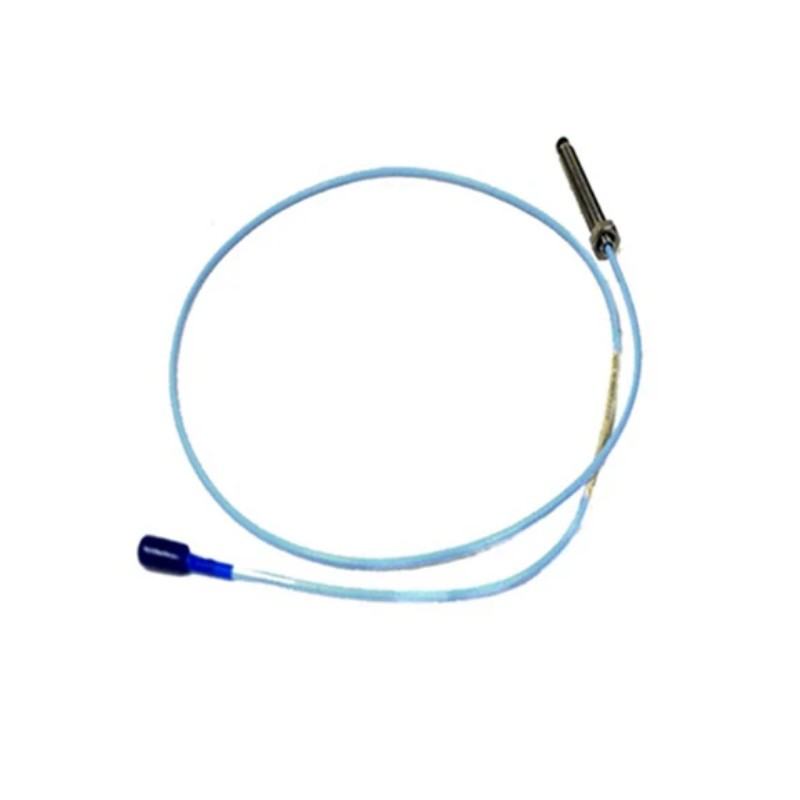

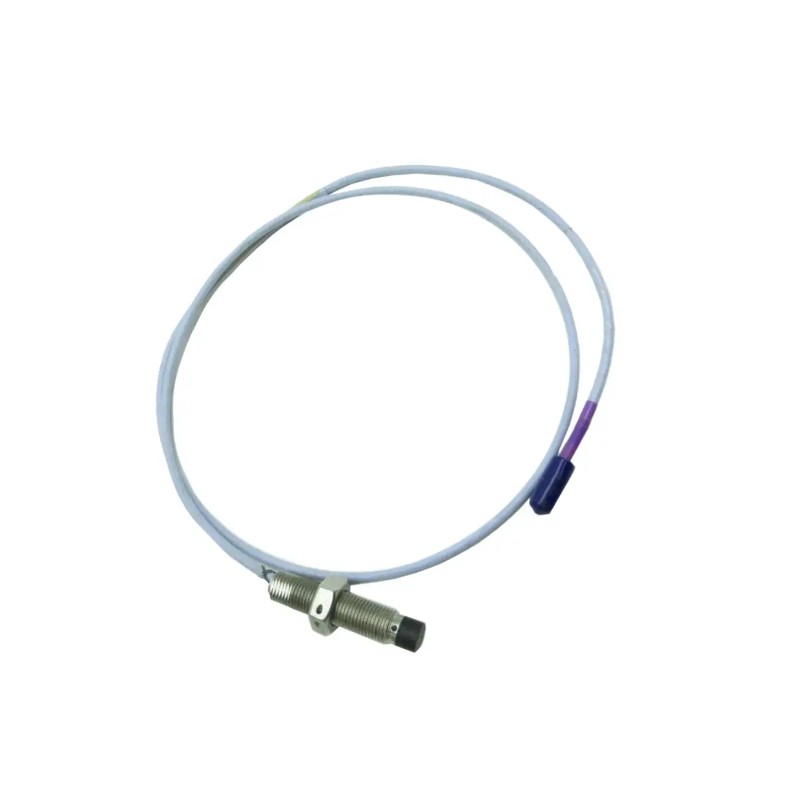

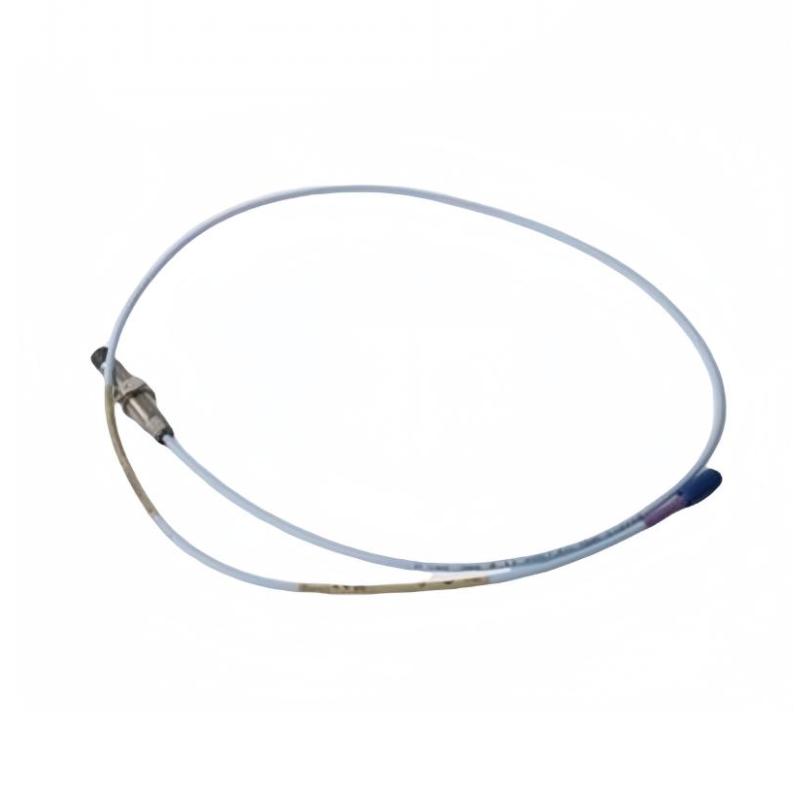

The Bently Nevada 330703-000-100-10-11-CN 3300 XL 11 mm Proximity Probe is a precision non-contact sensor developed for continuous machinery condition monitoring in industrial environments. As a member of the 3300 XL 11 mm Proximity Transducer System, this probe is designed to provide accurate shaft vibration and displacement measurements while maintaining excellent long-term stability.
This configuration features an M14 × 1.5 threaded probe body, 100 mm case length, 1.0 m FluidLoc cable, and a Miniature Coaxial ClickLoc connector with connector protector. The CN approval option makes this model suitable for installations requiring applicable regional hazardous-area certification.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-100-10-11-CN |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Series | 3300 XL 11 mm |
| Measurement Principle | Eddy Current Non-Contact Measurement |
| Thread Type | M14 × 1.5 |
| Armor Option | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 100 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc® Cable |
| Connector Type | Miniature Coaxial ClickLoc® Connector with Connector Protector |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 11 mm Proximity Transducer System |
| Agency Approval | CN (ATEX / IECEx / NEPSI Configuration) |
