Product Overview

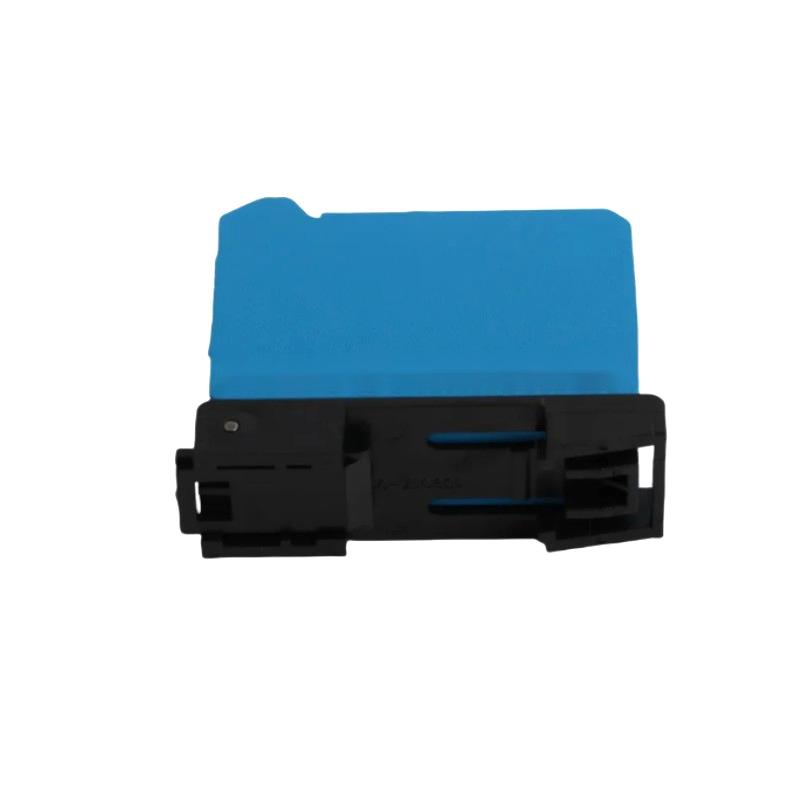

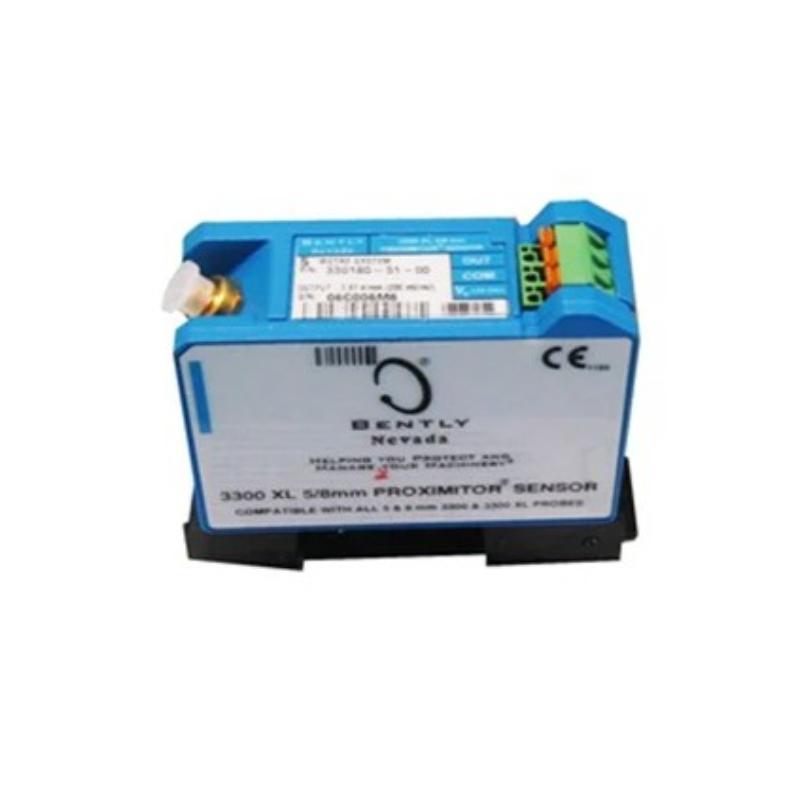

The Bently Nevada 330180-X1-00 with 149032-08 configuration (3300 XL 8mm Proximitor Sensor) is a high-performance signal conditioning module designed for precision machinery condition monitoring. As part of the widely adopted 3300 XL 8mm proximity transducer system, it converts probe signals into stable, linear outputs for vibration and shaft position measurement in rotating equipment.
Engineered for industrial reliability, this Proximitor sensor supports long-term operation in harsh environments where accurate real-time machinery diagnostics are critical. Its modular design allows seamless integration with standard 3300 XL probes and extension cables, ensuring consistent measurement accuracy across a wide range of industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 330180-X1-00 / 149032-08 |
| Series | 3300 XL 8mm System |
| Input Type | Eddy current proximity probe signal |
| Output | Linearized voltage signal proportional to gap |
| Operating Voltage | -24 VDC nominal |
| Load Resistance | 10 kΩ typical |
| System Compatibility | 3300 XL 8mm probes & extension cables |
| Mounting Type | Panel mount / DIN rail compatible (variant dependent) |
| Housing Material | Aluminum alloy |
| Operating Temperature | -51°C to +100°C (typical system range) |
| Storage Temperature | -51°C to +105°C |
| Signal Bandwidth | Suitable for vibration and position monitoring |
| Calibration Target | AISI 4140 steel (standard) |
