Overview

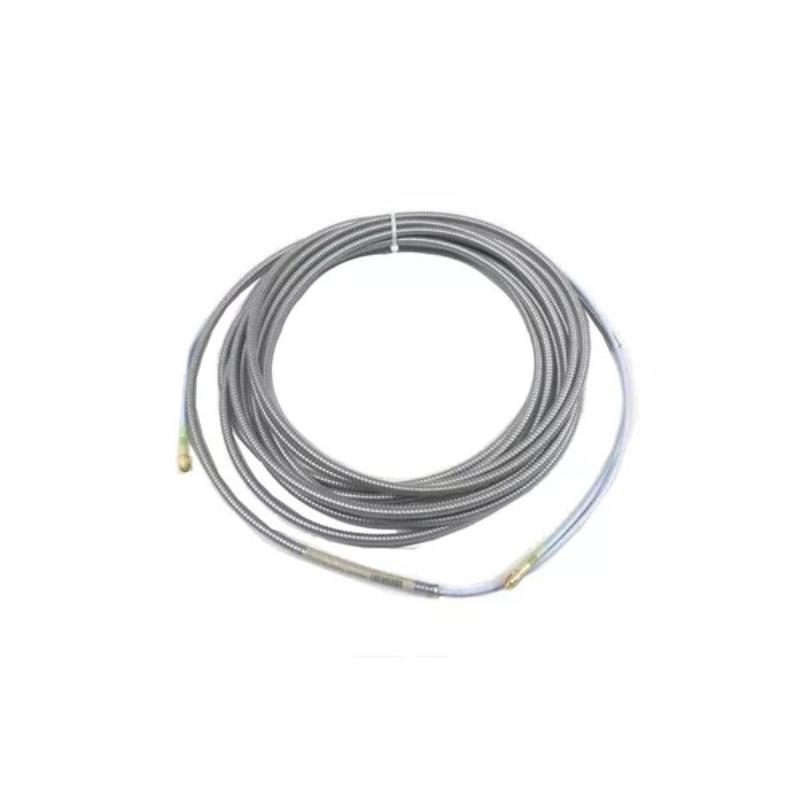

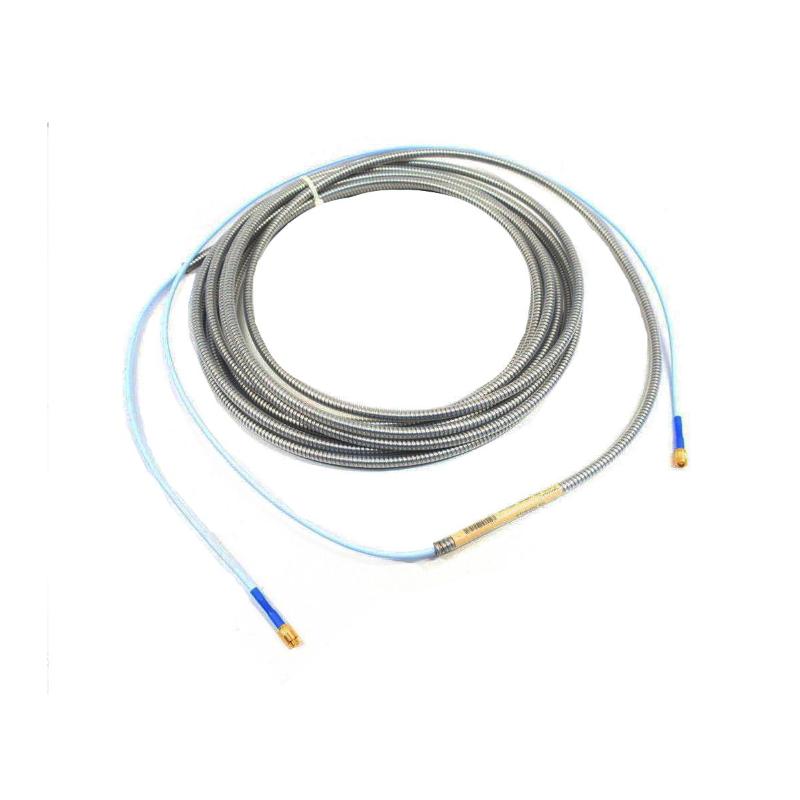

The Bently Nevada 330130-065-01-05 is a 3300 XL Standard Extension Cable designed for the 3300 XL 8 mm Proximity Transducer System. It connects a compatible 3300 XL proximity probe to a 3300 XL Proximitor Sensor, maintaining the calibrated electrical characteristics required for accurate shaft vibration and shaft position monitoring. This model features an armored cable for enhanced mechanical protection and is certified for use in approved hazardous locations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Standard Extension Cable |
| Manufacturer | Bently Nevada |
| Model | 330130-065-01-05 |
| Product Series | 3300 XL |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 6.5 m (21.3 ft) |
| Cable Construction | Armored cable |
| Cable Type | 75 Ω triaxial cable |
| Connector Type | Miniature ClickLoc coaxial connectors |
| Characteristic Impedance | 75 Ω |
| Agency Approval | 05 – CSA, ATEX, IECEx approvals |
