Overview

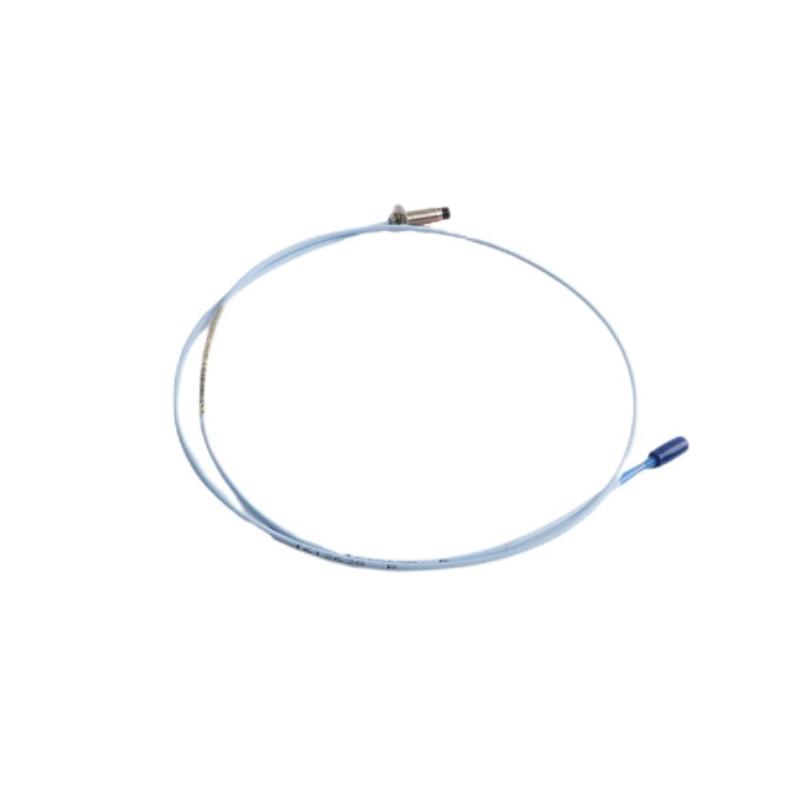

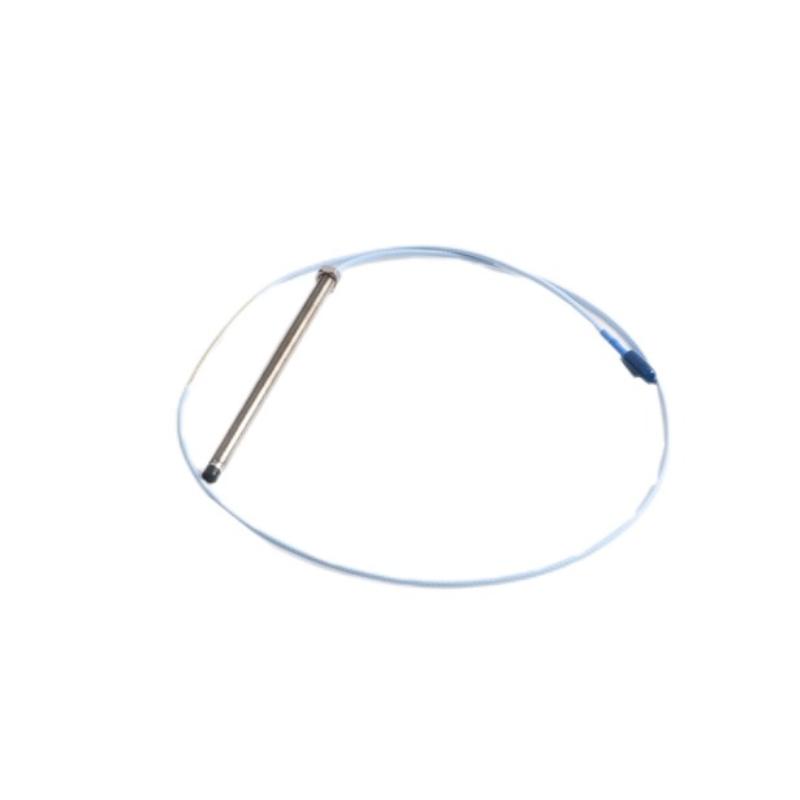

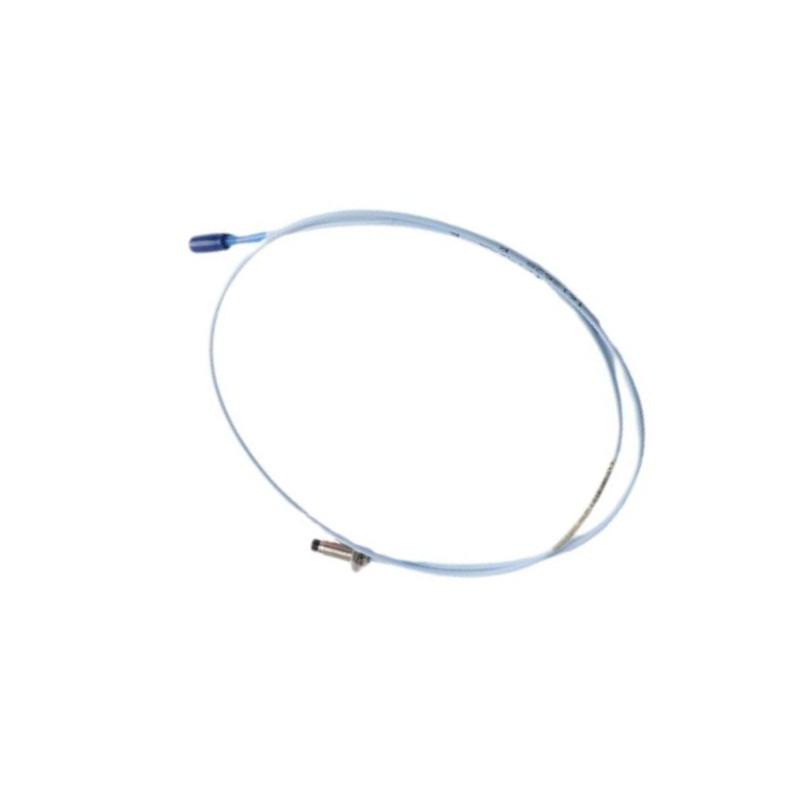

The Bently Nevada 330104-13-20-10-02-00 is a 3300 XL 8 mm metric armored eddy-current proximity probe designed for non-contact measurement of shaft vibration, shaft position, radial displacement, and rotor motion in rotating machinery. It is intended for use with a compatible 3300 XL Proximitor Sensor and extension cable as part of the 3300 XL 8 mm Proximity Transducer System.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-Current Proximity Probe (Metric) |
| Manufacturer | Bently Nevada |
| Model | 330104-13-20-10-02-00 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Size | M10 × 1 |
| Mounting Style | Metric, armored |
| Unthreaded Length | 130 mm |
| Overall Case Length | 200 mm |
| Integral Cable Length | 1.0 m (3.3 ft) |
