Heavy-Duty Differential Expansion Monitoring for Large Turbomachinery

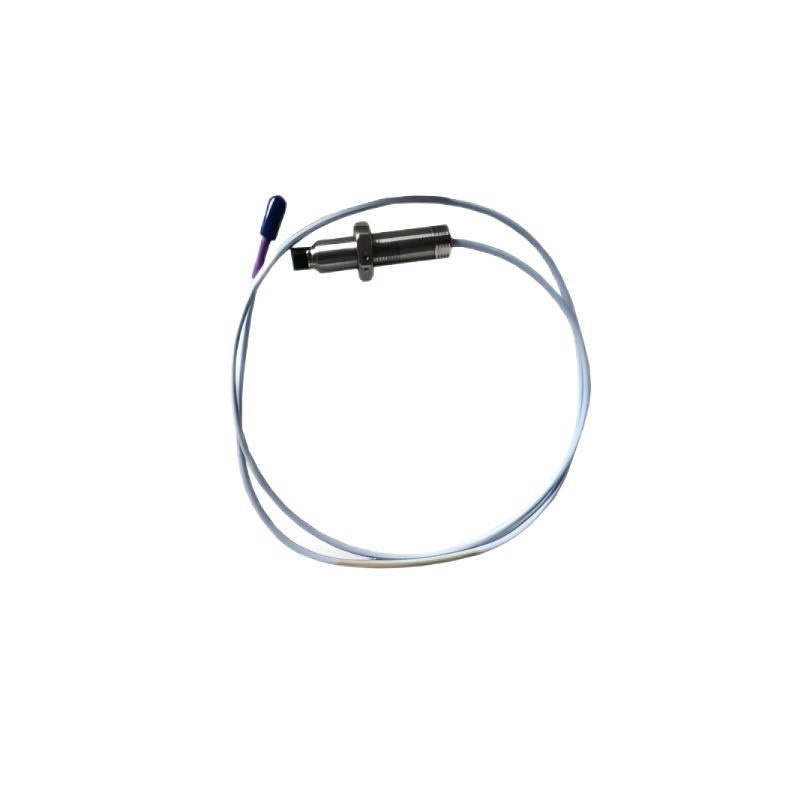

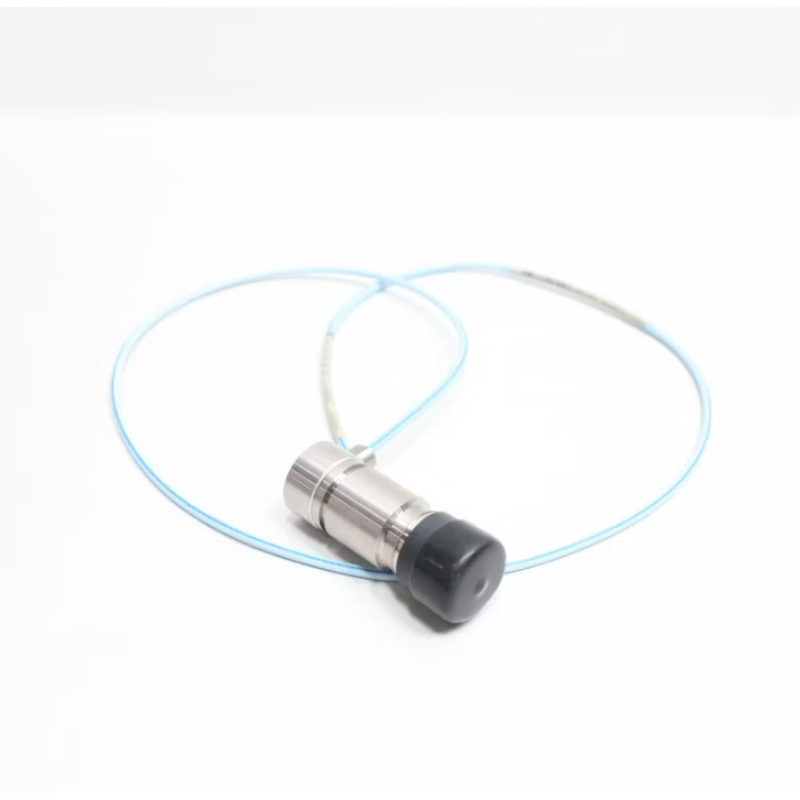

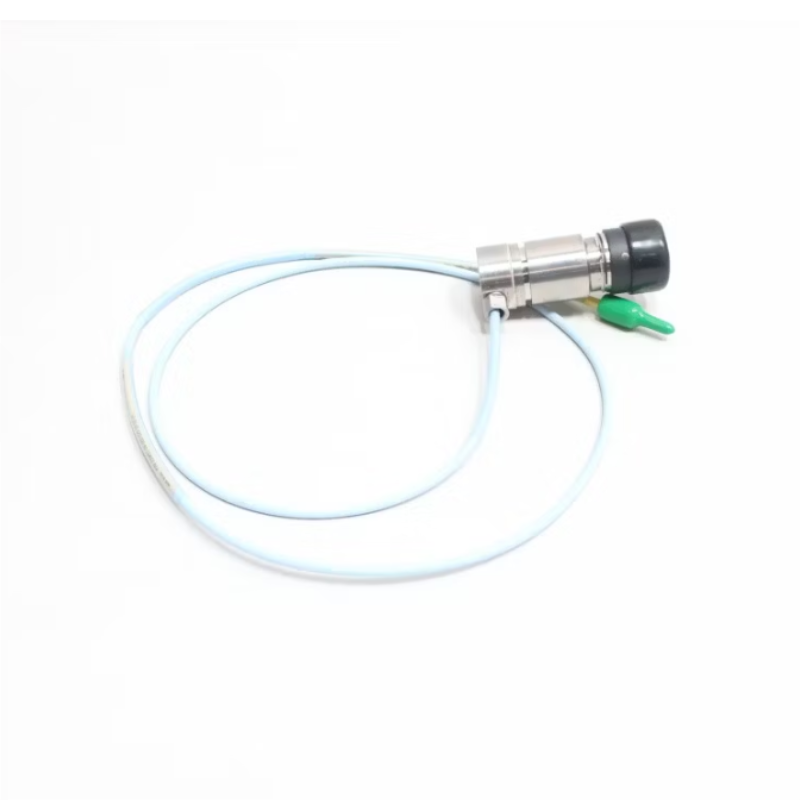

The Bently Nevada 330851-04-00-60-10-01-05 3300 XL 25 mm Proximity Transducer Assembly is a high-performance industrial sensing solution engineered for accurate differential expansion, shaft position, and vibration measurements on large rotating equipment.
As part of the 3300 XL 25 mm Transducer System, this assembly is specifically designed for steam turbine generators, compressors, and critical machinery operating under demanding temperature and environmental conditions. The system combines a 25 mm proximity probe, extension cable, and 3300 XL Proximitor® sensor to deliver stable measurements over extended operating periods. The 3300 XL 25 mm system is widely used for differential expansion monitoring on mid-size to large steam turbine generators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3300 XL 25 mm Proximity Transducer Assembly |
| Model Number | 330851-04-00-60-10-01-05 |
| Product Series | 3300 XL 25 mm Transducer System |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Diameter | 25 mm |
| Primary Measurements | Differential expansion, shaft position, displacement, vibration |
| Probe Style | Smooth side-exit industrial configuration |
| Total System Length | 1.0 m configuration |
| Cable Type | FluidLoc® PFA insulated triaxial cable |
| Armor Option | Stainless steel armor |
| Probe Body Material | AISI 304 stainless steel |
| Probe Tip Material | PEEK high-temperature polymer |
| Continuous Temperature Rating | Up to 200°C |
| Intermittent Temperature Rating | Up to 250°C |
| Environmental Protection | High EMI/RFI immunity |
| Approximate Dimensions | 180 × 45 × 45 mm (configuration dependent) |
| Approximate Weight | 0.25–0.45 kg |
