Bently Nevada 330901-51-82-10-02-00 3300 XL Proximitor Sensor

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Bently Nevada 330901-51-82-10-02-00 3300 XL Proximitor Sensor

Name: Bently Nevada 330901-51-82-10-02-00 3300 XL Proximitor Sensor
Brand: Bently Nevada PLC
SKU: 9157
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330901-51-82-10-02-00
Product Origin:USA
Product Dimensions:114 mm × 114 mm × 51 mm
Product Weight:0.45kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Compact Sensor Technology for Tight Machinery Installations

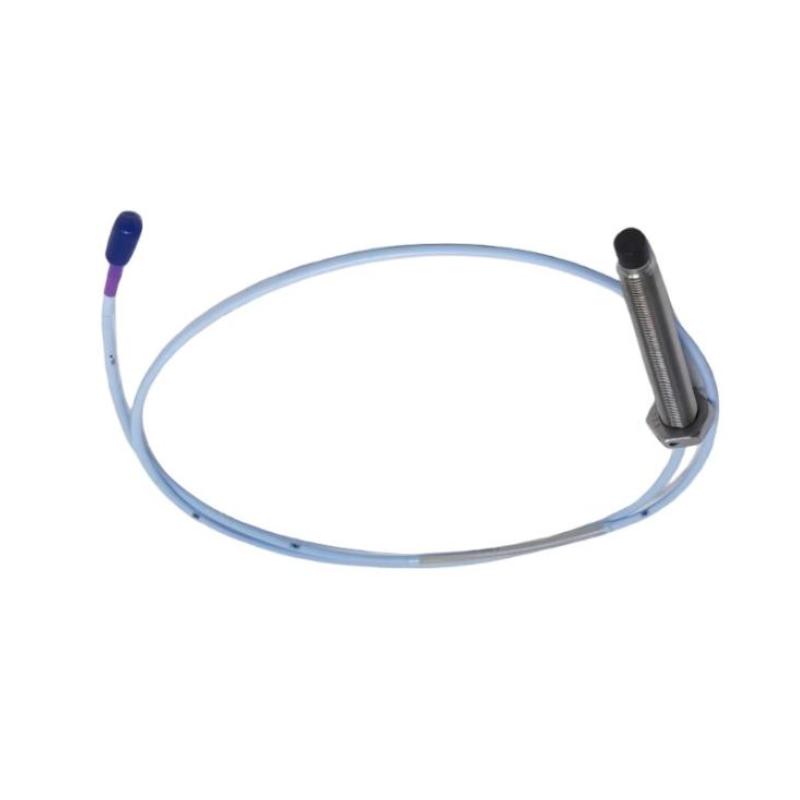

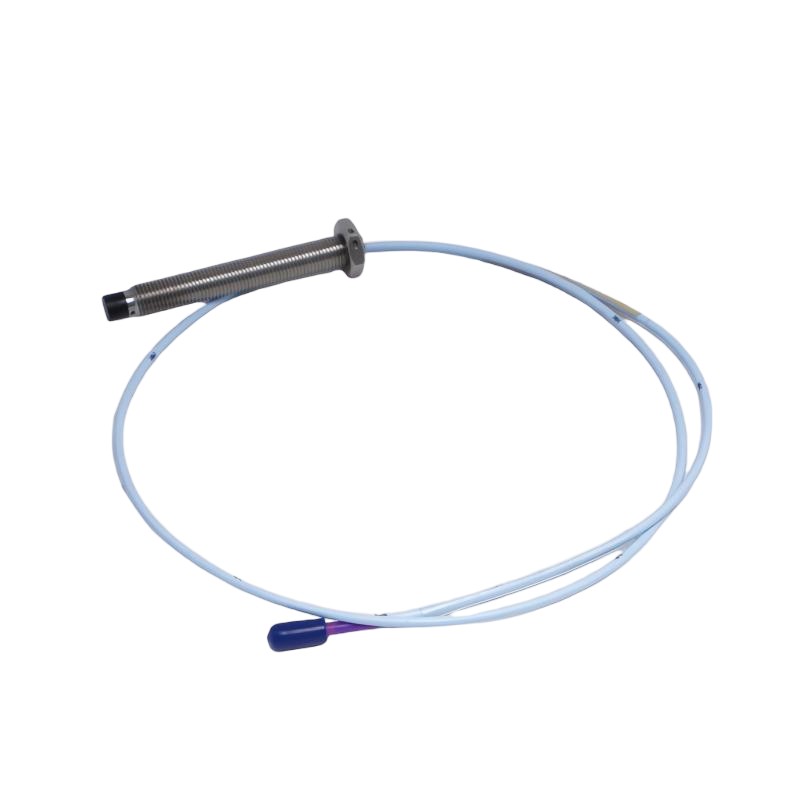

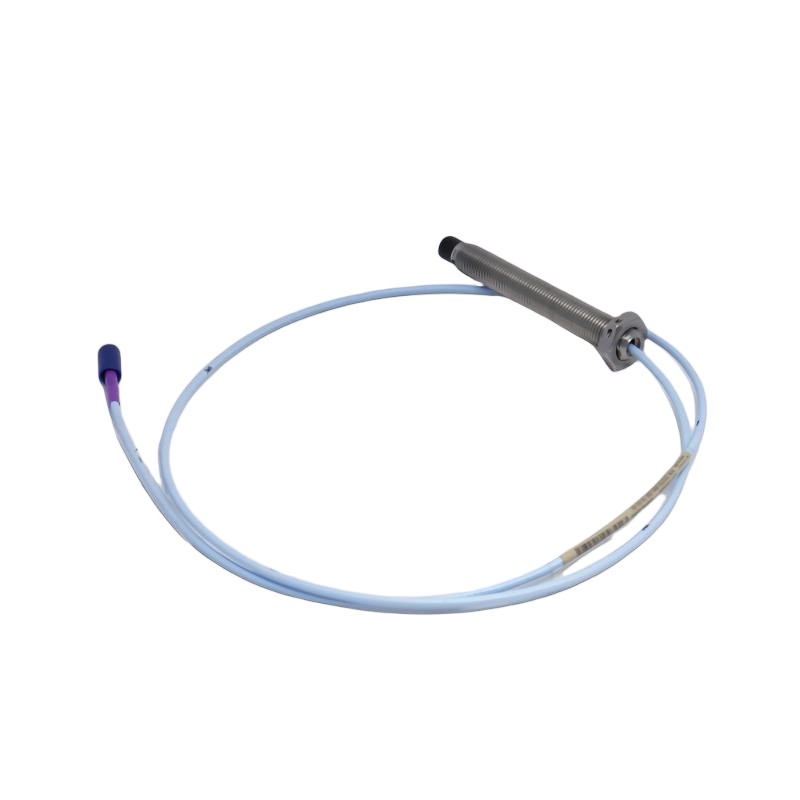

The Bently Nevada 330901-51-82-10-02-00 3300 NSv Proximity Probe is a precision non-contact eddy-current sensor engineered for rotating equipment where conventional 8 mm probe systems cannot be installed because of mechanical space limitations.

As part of the 3300 NSv (Narrow Side View) Transducer System, this probe delivers reliable measurements of shaft vibration, shaft position, and displacement while maintaining a compact footprint. The NSv platform is particularly suitable for compressors, small-shaft machines, auxiliary turbines, pumps, and high-speed industrial equipment operating in demanding environments.

Technical Specifications

Parameter	Specification
Product Type	3300 NSv Proximity Probe
Model Number	330901-51-82-10-02-00
Product Series	3300 NSv Transducer System
Measurement Technology	Eddy-current non-contact sensing
Probe Design	NSv (Narrow Side View) compact probe
Probe Body Material	AISI 304 stainless steel
Probe Tip Material	Polyphenylene Sulfide (PPS)
Cable Length	1.0 m integrated cable
Connector Type	Miniature coaxial ClickLoc® connector
Cable Type	Standard industrial cable
Operating Temperature	-34°C to +177°C
Environmental Protection	High EMI/RFI immunity
Primary Measurements	Shaft vibration, radial position, axial position
System Compatibility	3300 NSv extension cables and 3300 NSv Proximitor® sensors
Approximate Dimensions	Configuration dependent
Approximate Weight	0.15–0.35 kg

Applications

Centrifugal air compressor monitoring
Refrigeration compressor protection
Process gas compressor vibration measurement
Electric motor shaft monitoring
Industrial gearbox condition monitoring
Process pump protection systems
Auxiliary turbine equipment
OEM machinery packages
Manufacturing automation systems
Predictive maintenance programs

Advantages

Compact design for limited installation spaces
Accurate non-contact measurement technology
Excellent resistance to EMI and industrial noise
Durable stainless-steel construction
Stable long-term measurement performance
Designed for continuous 24/7 operation
Suitable for small shaft applications
Reliable performance in harsh environments
Supports predictive maintenance strategies
Proven compatibility with NSv machinery protection systems

Technical FAQs

1. What does NSv stand for?

NSv stands for Narrow Side View, a design optimized for restricted installation spaces.

2. What does this probe measure?

It measures shaft vibration, shaft displacement, and shaft position without physically contacting the rotating surface.

3. Can it be used with standard 3300 XL 8 mm systems?

No. NSv probes require matching NSv extension cables and NSv Proximitor® sensors.

4. What does the “10” option usually indicate?

It generally represents a 1.0-meter integrated cable configuration.

5. Is this suitable for small shafts?

Yes. NSv systems are ideal for shafts smaller than 51 mm (2 inches).

6. Can it operate continuously?

Yes. It is designed for continuous industrial monitoring applications.

7. Is it suitable for high-speed equipment?

Yes. It is commonly used on compressors, turbines, pumps, and motors.

8. Is it resistant to electrical interference?

Yes. It offers excellent EMI/RFI immunity.

9. Does it require additional components?

Yes. A complete NSv system requires a probe, extension cable, and Proximitor® sensor with matched electrical lengths.

10. Why is system matching important?

Incorrectly mixing components can create calibration errors and inaccurate measurements.
