Compact Precision Sensor for Tight-Space Machinery Protection

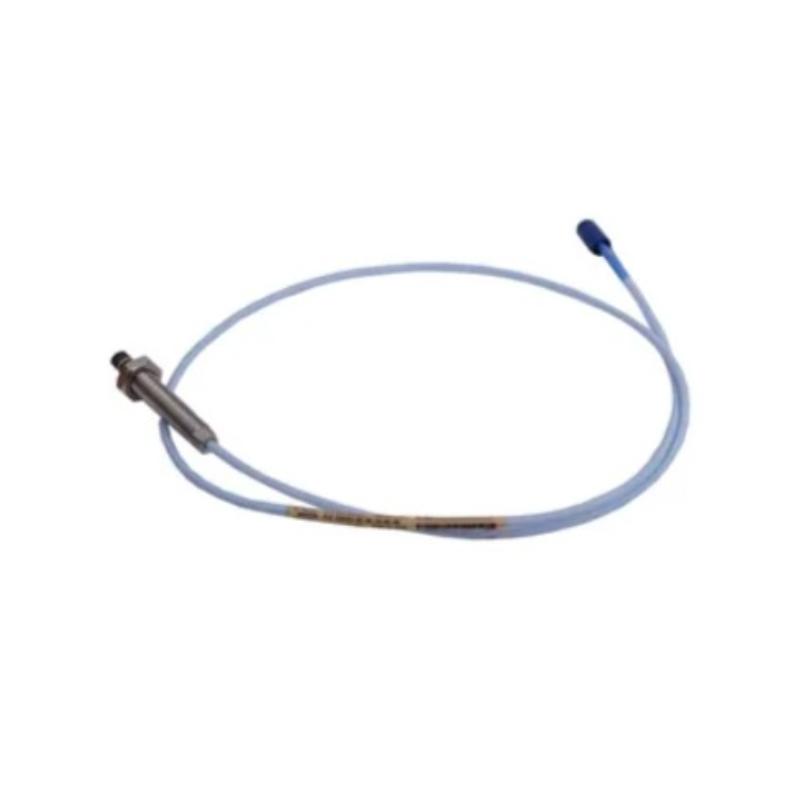

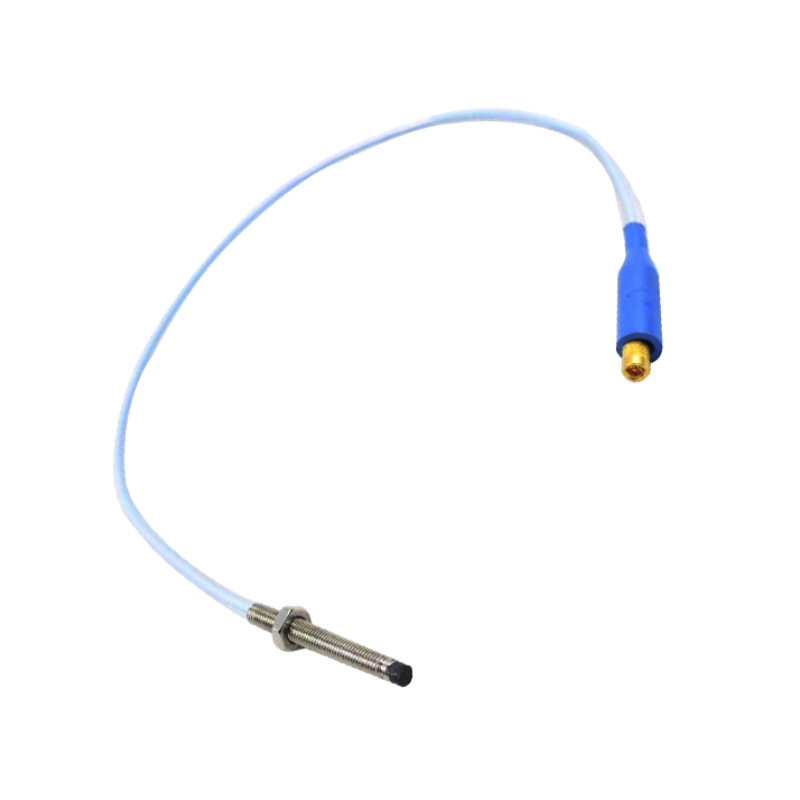

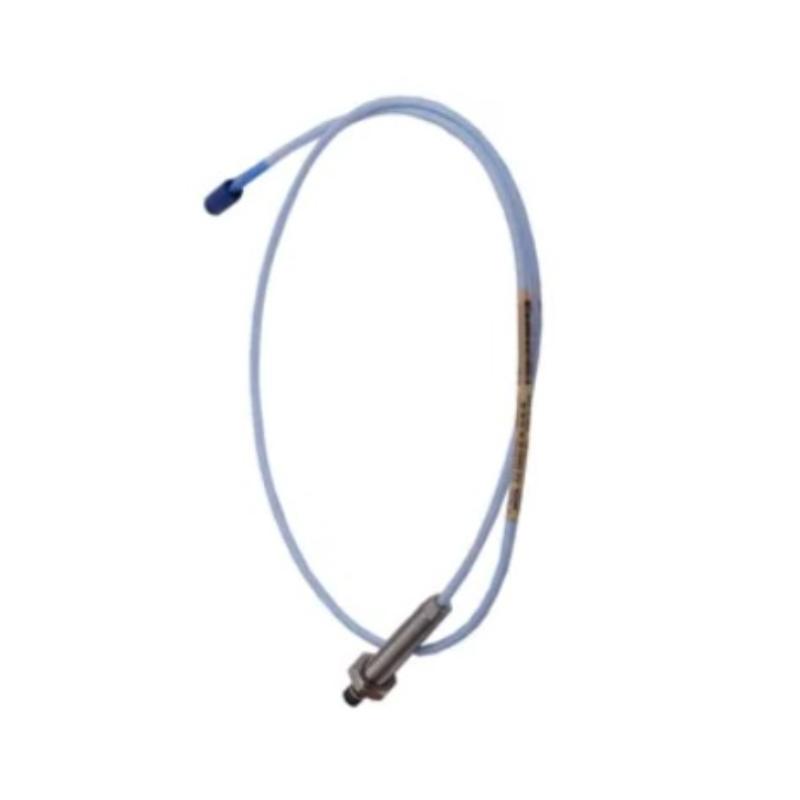

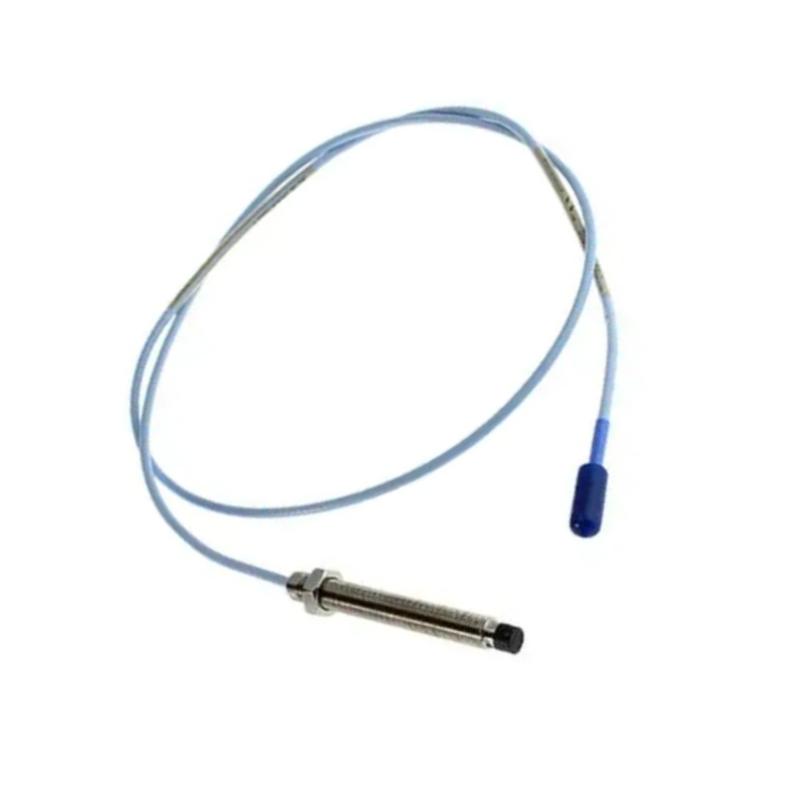

The Bently Nevada 330901-03-26-10-02-00 3300 NSv Proximity Probe is a high-performance non-contact eddy-current sensor engineered for rotating machinery applications with limited installation space. As a member of the 3300 NSv (Narrow Side View) Transducer System, it delivers accurate measurements of shaft vibration, radial position, and shaft displacement while maintaining a compact mechanical footprint.
Designed for industrial reliability, this probe is ideal for equipment where traditional 8 mm proximity probes cannot be installed due to mechanical constraints. It is commonly deployed in compressors, electric motors, pumps, gearboxes, and auxiliary turbine systems that require continuous condition monitoring and predictive maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3300 NSv Proximity Probe |
| Model Number | 330901-03-26-10-02-00 |
| Product Series | 3300 NSv Transducer System |
| Measurement Technology | Eddy-current non-contact sensing |
| Probe Design | NSv (Narrow Side View) compact probe |
| Probe Diameter | 5 mm |
| Probe Material | Stainless steel |
| Probe Configuration | Industrial threaded mounting |
| Cable Length | 1.0 m integrated cable |
| Connector Type | Miniature ClickLoc® connector |
| Operating Temperature | -52°C to +177°C |
| Environmental Protection | High EMI/RFI immunity |
| Primary Measurements | Shaft vibration, radial position, axial position |
| System Compatibility | 3300 NSv Extension Cable and Proximitor® Sensor |
| Approximate Dimensions | Configuration dependent (compact industrial profile) |
| Approximate Weight | 0.20–0.35 kg |
