High-Reliability Vibration Monitoring for Predictive Maintenance Systems

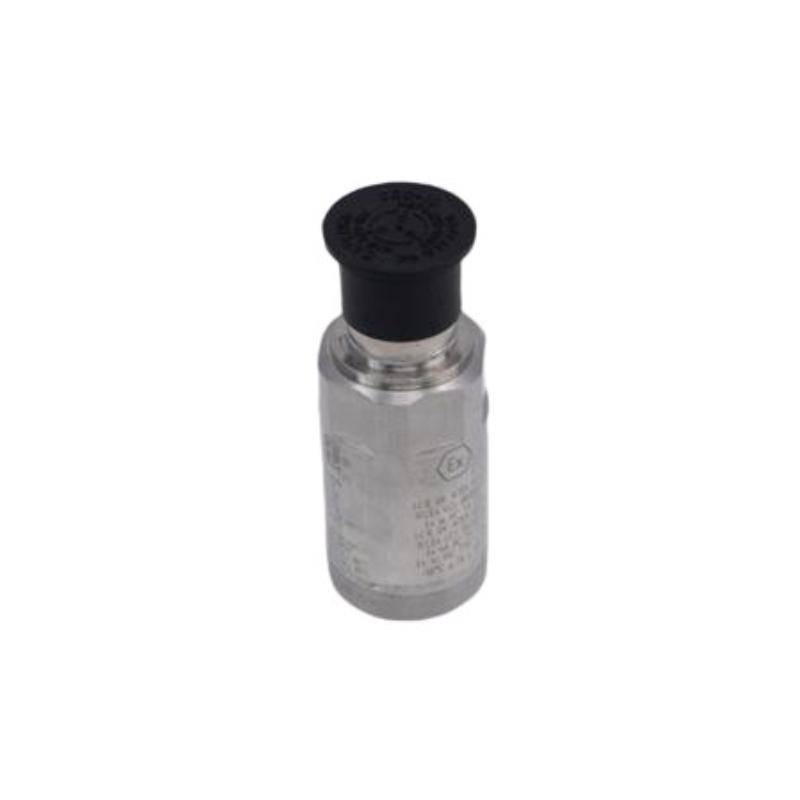

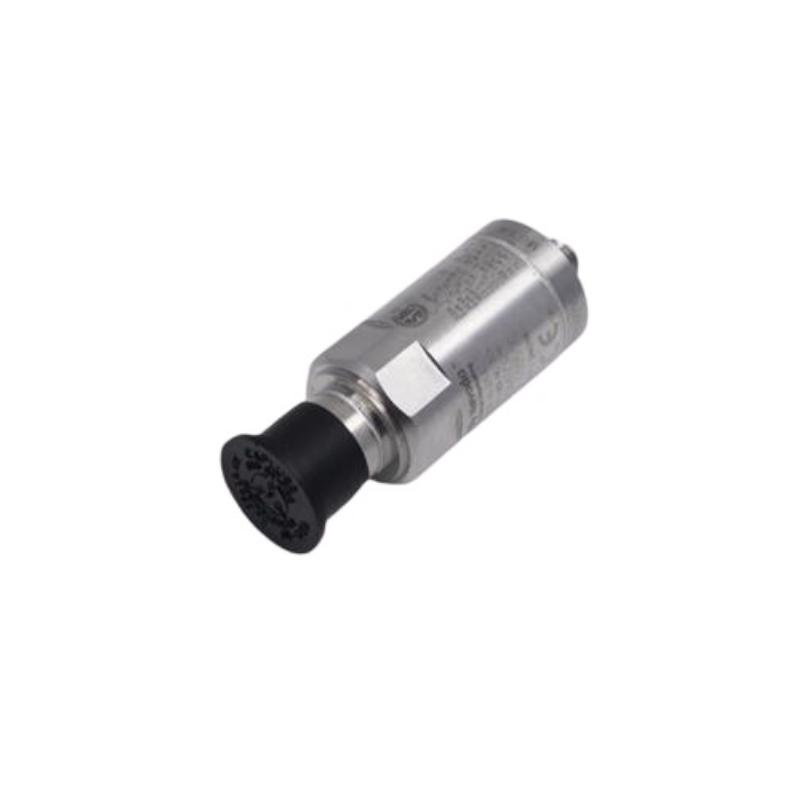

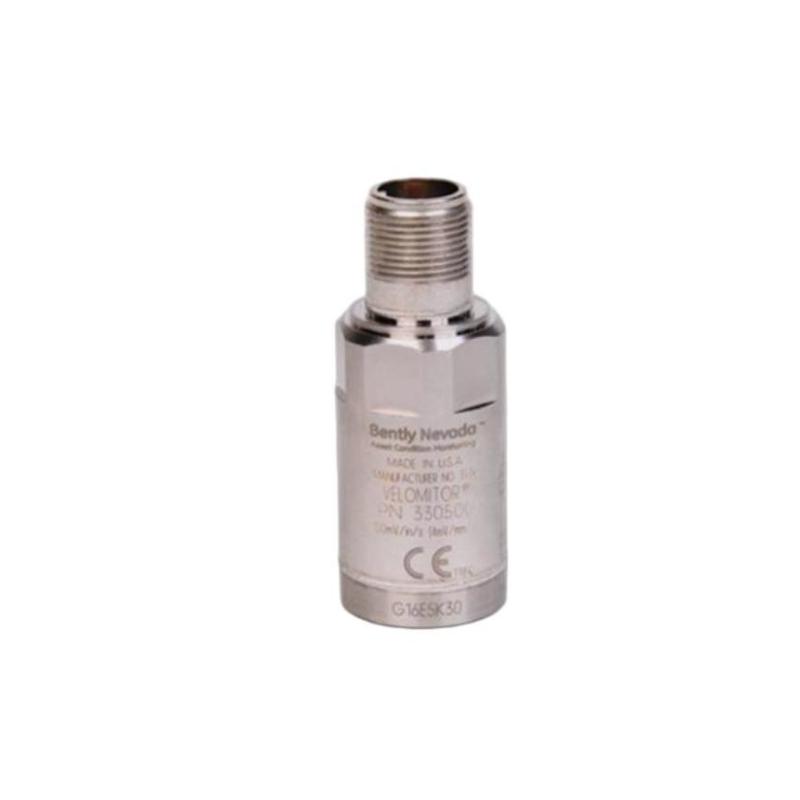

The Bently Nevada 330500-01-05 Velomitor Piezoelectric Velocity Sensor is a rugged, industrial-grade vibration measurement device designed for continuous monitoring of rotating machinery. As part of the well-established 330500 Velomitor® series, it uses integrated piezoelectric accelerometer technology to provide accurate velocity readings of bearing housings, machine casings, and structural components.
Built for harsh industrial environments, this sensor supports predictive maintenance strategies by delivering stable, real-time vibration data that helps identify early signs of mechanical faults such as imbalance, misalignment, looseness, or bearing wear.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Product Type | Velomitor Piezoelectric Velocity Sensor |
| Model Number | 330500-01-05 |
| Series | 330500 Velomitor® |
| Measurement Type | Absolute vibration velocity |
| Sensing Technology | Integrating piezoelectric accelerometer |
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Response | 4.5 Hz to 5 kHz (±3 dB) / 6 Hz to 2.5 kHz (±0.9 dB) |
| Maximum Velocity Range | Up to 1270 mm/s (50 in/s peak) |
| Housing Material | 316L stainless steel |
| Electrical Connector | 2-pin sealed industrial connector |
| Operating Temperature | -55°C to +121°C |
| Shock Resistance | Up to 5000 g peak |
| Mounting Type | Stud-mounted (machine casing / bearing housing) |
| Cable Length Capability | Up to 305 m (1000 ft) |
| Weight | Approx. 142 g |
| Dimensions | Approx. 25.3 mm diameter × 63.2 mm height |
Industrial Applications
The 330500-01-05 is widely used in industries where machinery reliability and uptime are critical:
-
Steam and gas turbines
-
Centrifugal and axial compressors
-
Large industrial pumps
-
Electric motors and generators
-
Cooling tower fans and blowers
-
Gearboxes and drive trains
-
Petrochemical processing plants
-
Power generation facilities
-
Water and wastewater systems
-
Heavy manufacturing operations
Its continuous vibration monitoring capability supports early fault detection and condition-based maintenance strategies.
Key Advantages
Solid-State Reliability Design
No moving mechanical parts, significantly improving long-term durability and measurement stability.
High Sensitivity and Accuracy
Delivers precise vibration velocity readings across a wide frequency range for reliable diagnostics.
Harsh Environment Capability
316L stainless steel construction and wide temperature tolerance ensure operation in extreme conditions.
Predictive Maintenance Enablement
Helps detect developing mechanical issues before they escalate into costly failures.
Flexible Installation
Can be mounted in various orientations without affecting measurement performance.
Long-Distance Signal Transmission
Supports extended cabling for large industrial installations.
Technical FAQs
1. What does the 330500-01-05 measure?
It measures absolute vibration velocity from machine housings and structural surfaces.
2. What technology does it use?
It uses a piezoelectric integrating accelerometer with built-in electronics.
3. Is it suitable for continuous monitoring?
Yes, it is designed for 24/7 industrial condition monitoring.
4. Does it have moving parts?
No, it is a solid-state sensor with no mechanical wear components.
5. What machines typically use it?
Turbines, compressors, pumps, motors, and fans.
6. Can it be installed in any orientation?
Yes, it supports vertical, horizontal, or angled mounting.
7. What is its main advantage over traditional velocity probes?
Higher reliability and no mechanical degradation over time.
8. Is it suitable for harsh environments?
Yes, it is built for extreme industrial conditions including high vibration and temperature.
9. Does it require calibration?
Factory calibration is provided; periodic system verification is recommended.
10. Is it still widely used today?
Yes, it remains a standard sensor in Bently Nevada condition monitoring systems.
1. What does the 330500-01-05 measure?
It measures absolute vibration velocity from machine housings and structural surfaces.
2. What technology does it use?
It uses a piezoelectric integrating accelerometer with built-in electronics.
3. Is it suitable for continuous monitoring?
Yes, it is designed for 24/7 industrial condition monitoring.
4. Does it have moving parts?
No, it is a solid-state sensor with no mechanical wear components.
5. What machines typically use it?
Turbines, compressors, pumps, motors, and fans.
6. Can it be installed in any orientation?
Yes, it supports vertical, horizontal, or angled mounting.
7. What is its main advantage over traditional velocity probes?
Higher reliability and no mechanical degradation over time.
8. Is it suitable for harsh environments?
Yes, it is built for extreme industrial conditions including high vibration and temperature.
9. Does it require calibration?
Factory calibration is provided; periodic system verification is recommended.
10. Is it still widely used today?
Yes, it remains a standard sensor in Bently Nevada condition monitoring systems.
