Reliable Motor Protection for Industrial Drive Systems with Proven ABB Engineering

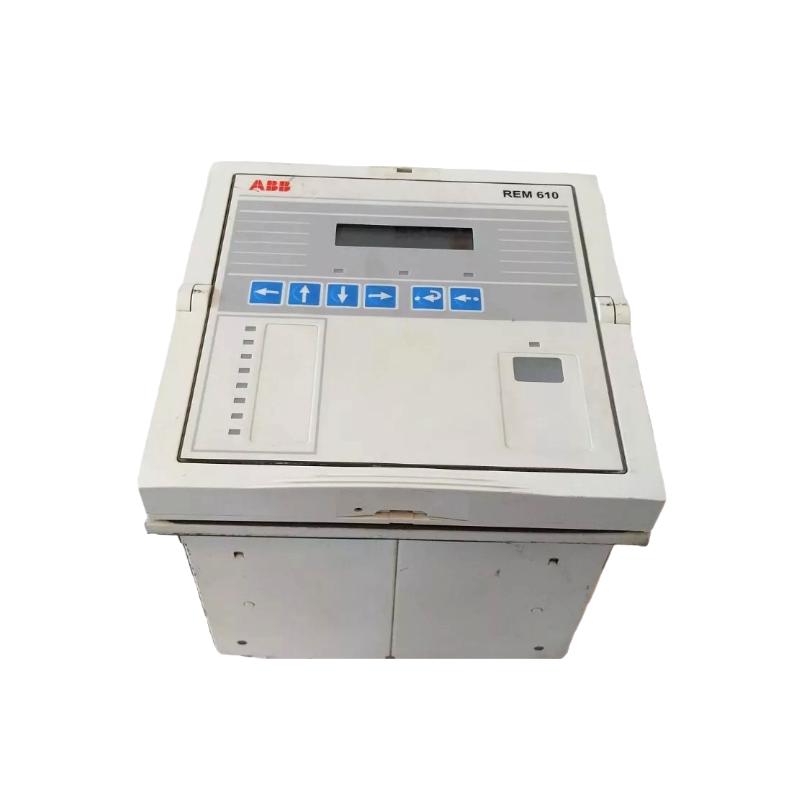

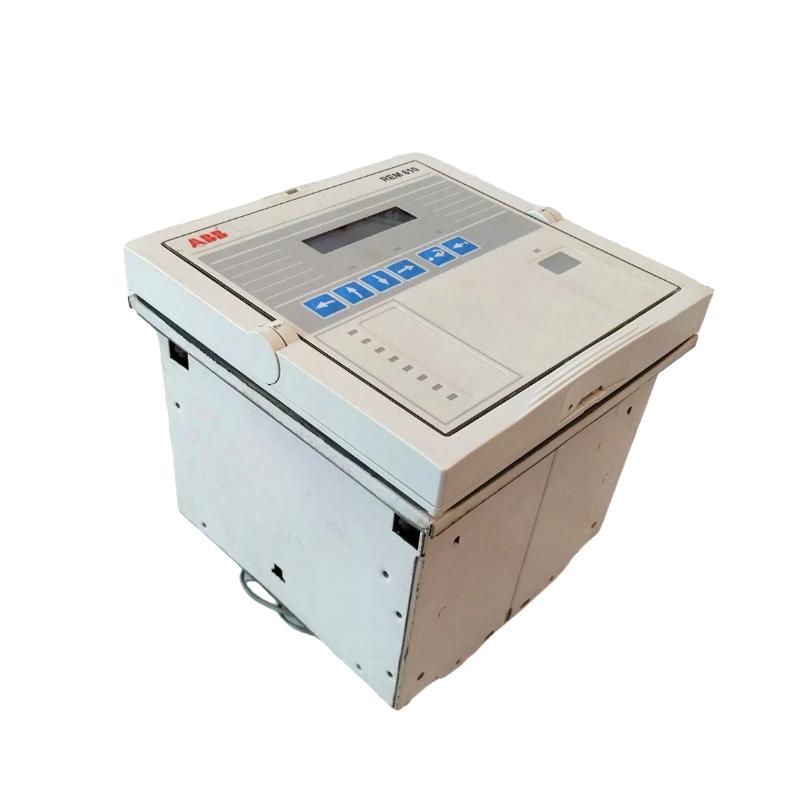

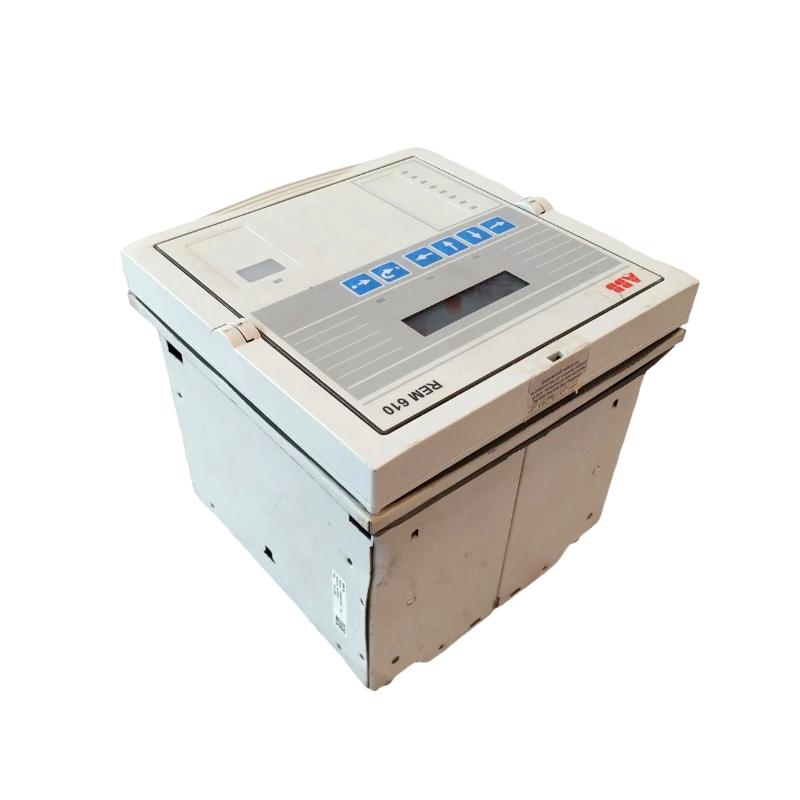

The ABB REM610B11HCHR Motor Protection Relay is a robust numerical protection device designed to safeguard low- and medium-voltage asynchronous motors in demanding industrial environments. As part of ABB’s REM610 protection platform, it delivers comprehensive motor monitoring, fault detection, and control functions to ensure stable and safe operation of critical rotating equipment.
This model is widely used in process industries where continuous motor operation is essential, offering a balance of protection accuracy, system integration capability, and operational reliability. The included 12-month warranty further supports industrial deployment confidence in maintenance and replacement scenarios.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Series | REM610 |
| Product Type | Motor Protection Relay |
| Model Number | REM610B11HCHR |
| Application | AC induction motor protection & control |
| Auxiliary Supply | 100–240 V AC / 110–250 V DC (system dependent) |
| Protection Functions | Thermal overload, overcurrent, short circuit, phase loss, unbalance |
| Motor Types | Asynchronous (induction) motors |
| Communication | Modbus RTU (variant dependent) |
| Display | LCD interface for real-time monitoring |
| Mounting | Panel-mounted (flush installation) |
| Dimensions | 177 × 177 × 149.3 mm |
| Weight | Approx. 3.5 kg |
| Operating Temperature | -20°C to +60°C |
| Standards | IEC-compliant industrial protection relay design |
| Warranty | 12 months |
Industrial Applications
The REM610B11HCHR is widely deployed across industrial sectors where motor reliability directly impacts production continuity:
-
Industrial pumps and compressor systems
-
Conveyor and material handling systems
-
HVAC and ventilation motor control
-
Mining and mineral processing equipment
-
Water and wastewater treatment plants
-
Cement, steel, and paper production lines
-
General-purpose industrial motor control centers (MCCs)
-
Heavy-duty automation systems
Its ability to detect early-stage electrical and thermal abnormalities helps prevent costly motor damage and unplanned downtime.
Key Advantages
Comprehensive Motor Protection
Provides multi-layer protection including thermal overload, phase failure, and electrical fault detection to safeguard critical motors.
Stable Industrial Operation
Designed for continuous-duty environments with strong resistance to electrical disturbances and harsh operating conditions.
Clear Local Diagnostics
Integrated display enables real-time monitoring of motor status, faults, and operating parameters.
Easy System Integration
Supports standard industrial communication interfaces for connection to PLC and SCADA systems.
Reduced Downtime Risk
Fast fault detection and trip response help isolate issues before they escalate into equipment failure.
Service-Friendly Design
Panel-mounted modular structure allows straightforward replacement and maintenance in control cabinets.
Technical FAQs
1. What is the main function of the ABB REM610B11HCHR?
It protects industrial motors by detecting electrical and thermal faults and issuing trip commands when necessary.
2. What type of motors can it protect?
It is designed primarily for asynchronous (induction) AC motors.
3. Does it support overload protection?
Yes, it includes thermal overload protection based on motor operating conditions.
4. Can it detect phase loss?
Yes, it provides phase failure and phase imbalance protection functions.
5. Is this relay suitable for high-voltage transmission systems?
No, it is intended for motor-level protection in industrial distribution systems.
6. Does it support communication with PLC systems?
Yes, Modbus RTU support is typically available depending on configuration.
7. What happens when a fault occurs?
The relay triggers an alarm and can issue a trip signal to disconnect the motor from supply.
8. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial operation.
9. Can it be used in harsh environments?
Yes, it is engineered for industrial environments with temperature and electrical stress tolerance.
10. Is this model still widely used?
Yes, it remains common in industrial motor protection and retrofit applications.
