High-Speed Transmission Line Protection for Modern Power Grids

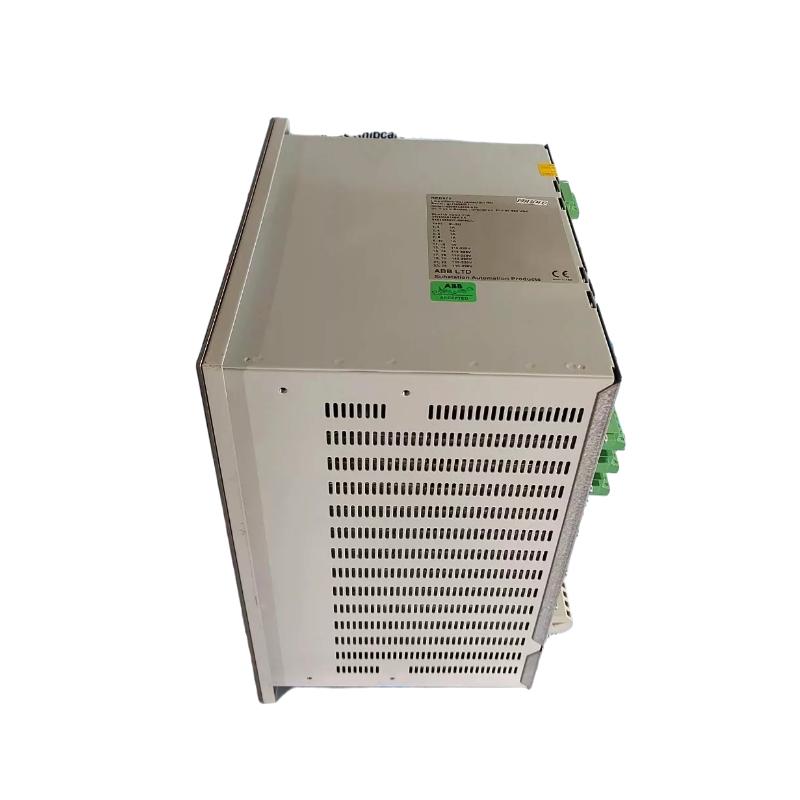

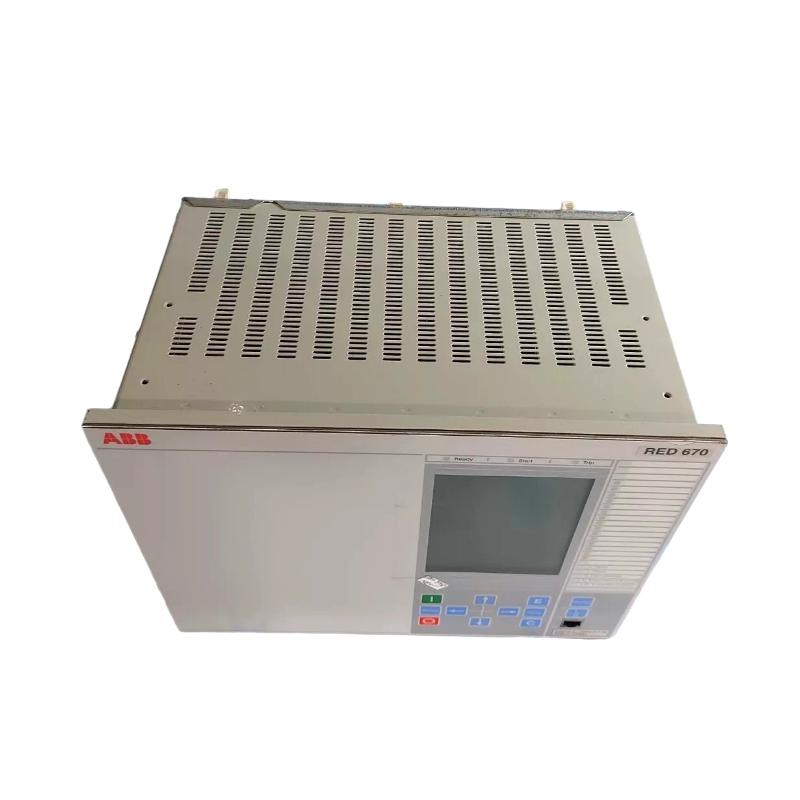

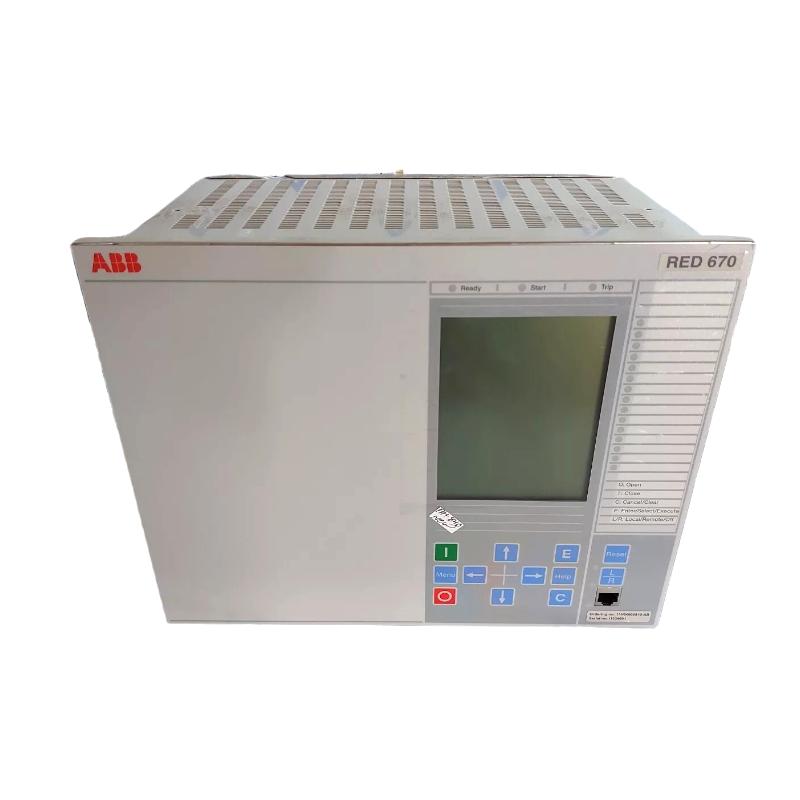

The ABB RED670 1MRK002810-AC Line Differential Protection Relay is a premium Intelligent Electronic Device (IED) from ABB’s Relion® 670 series, engineered to deliver ultra-fast, selective, and highly reliable protection for overhead transmission lines and underground cables. Designed for utility-scale power systems, it ensures rapid fault detection and isolation to maintain grid stability and minimize equipment damage.
Built on ABB’s advanced protection platform, the RED670 combines high-speed line current comparison, IEC 61850 communication, and adaptive protection algorithms to deliver secure and dependable performance in complex transmission networks.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Series | Relion® 670 |
| Product Type | Line Differential Protection Relay / IED |
| Model Number | RED670 |
| Product ID | 1MRK002810-AC |
| Protection Function | 87L Line Differential Protection |
| Application | Transmission & sub-transmission lines |
| Rated Frequency | 50 / 60 Hz |
| Auxiliary Supply | 100–240 V AC / 110–250 V DC |
| Communication | IEC 61850, Ethernet, optional legacy protocols |
| CT Inputs | 1A / 5A configurable |
| Protection Speed | Sub-cycle tripping (very high-speed operation) |
| Mounting | 19-inch rack-mounted unit |
| Dimensions | Approx. 448 × 266 × 242 mm |
| Weight | Approx. 8.0–8.5 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity | Up to 95% non-condensing |
Application Areas
The RED670 is widely deployed in critical energy infrastructure:
-
High-voltage transmission lines
-
Sub-transmission networks
-
Utility substations
-
Renewable energy grid connections (wind/solar farms)
-
Interconnectors between regional grids
-
Industrial power distribution hubs
-
Railway and traction power systems
-
Cross-border power transmission systems
Its high selectivity makes it especially valuable where grid stability and fault isolation speed are mission-critical.
Key Advantages
Ultra-Fast Fault Clearance
Sub-cycle operation enables near-instantaneous tripping, protecting expensive transmission assets.
High Selectivity Protection
Differential principle ensures only faults within the protected zone trigger trips.
IEC 61850 Digital Integration
Seamless communication with modern digital substations and SCADA systems.
Advanced Communication Synchronization
Ensures accurate data exchange between line ends using fiber or multiplexed communication.
High Reliability in Harsh Environments
Designed for extreme temperature ranges and demanding utility conditions.
Reduced Grid Downtime
Fast isolation minimizes cascading outages and system instability.
Technical FAQs
1. What is the main function of the RED670?
It provides high-speed line differential protection for transmission and sub-transmission lines.
2. What type of faults does it detect?
It detects internal line faults such as phase-to-phase and phase-to-ground faults.
3. Is it suitable for distribution networks?
It is primarily designed for transmission-level systems, not low-voltage distribution.
4. How fast is its operation?
It operates in sub-cycle time, enabling very fast fault clearance.
5. Does it require communication between line ends?
Yes. It requires a communication link (fiber or network) to compare current values.
6. What protocol does it use?
It supports IEC 61850 for modern digital substations.
7. Is it a standalone device?
Yes, but it must be integrated into a substation protection system.
8. What happens if communication fails?
Backup protection functions typically ensure continued system safety.
9. Can it be used in renewable energy plants?
Yes, it is widely used in wind and solar grid integration systems.
10. Is it still widely used today?
Yes, it remains a key protection device in modern and legacy transmission networks.
