Core Power and Control Coordination Board for ABB Industrial Drive Systems

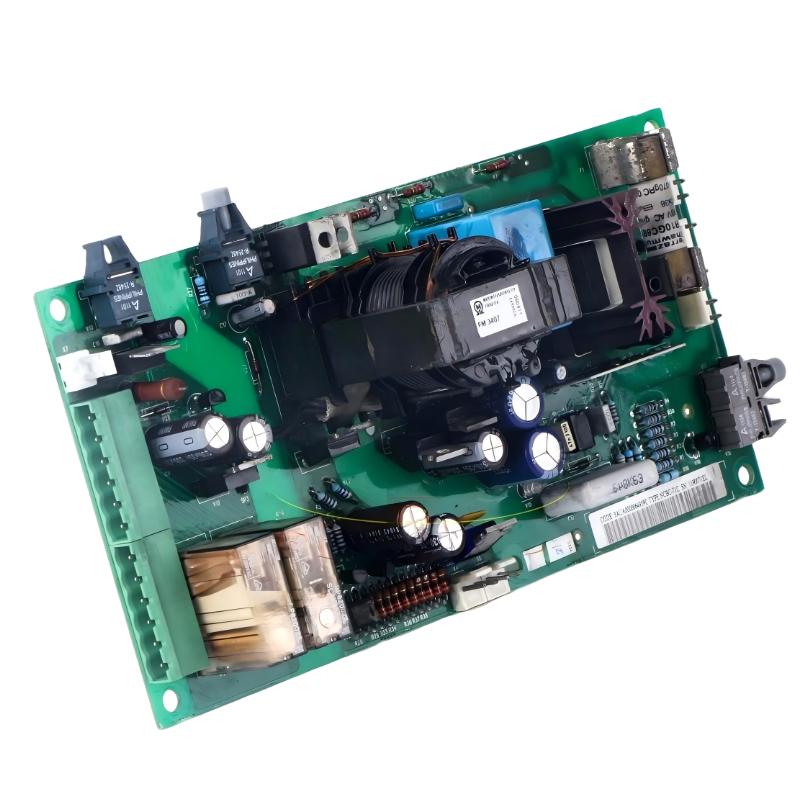

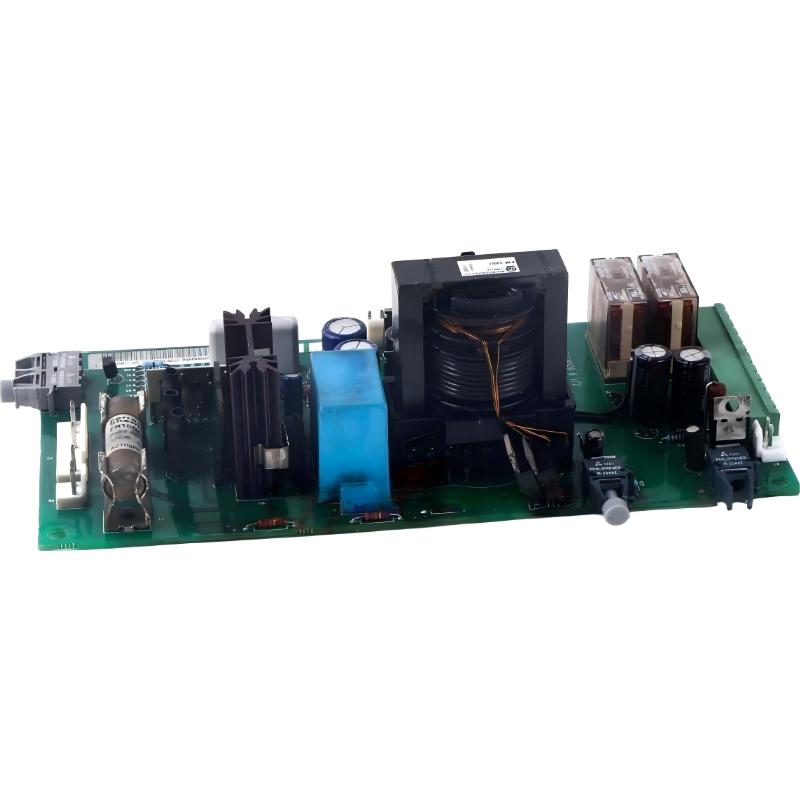

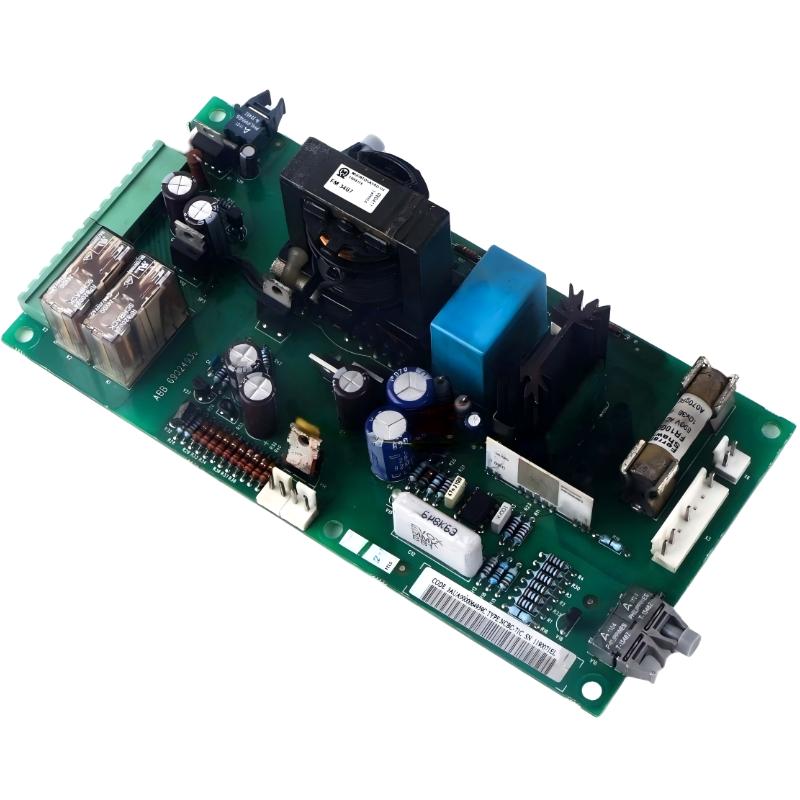

The ABB NCBC-71C 3AUA0000064959 Drive Control Board is a high-reliability internal module designed for ABB ACS800 series frequency converters. It plays a critical role in coordinating power distribution, control logic interface, and internal signal routing between key subsystems of the drive, ensuring stable and synchronized operation under demanding industrial conditions.
As part of ABB’s modular drive architecture, the NCBC-71C is widely used in high-power industrial applications where uptime, precision control, and electrical stability are essential. It is commonly installed alongside other ACS800 control and power boards to form a complete inverter control system.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Type | Drive Control Board / Power Interface Board |
| Model Number | NCBC-71C |
| Product ID | 3AUA0000064959 |
| Compatible Series | ABB ACS800 |
| Function | Internal power distribution + control signal routing |
| Input Voltage | 24 V DC (control system supply) |
| Power Role | Auxiliary/control power management |
| Communication | Internal drive backplane signal interface |
| Protection Class | IP20 (installed inside drive enclosure) |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | Internal PCB module |
| Weight | Approx. 0.4 kg |
| Dimensions | Approx. 170 × 120 × 40 mm |
System FunctioIndustrial Applications
The NCBC-71C is commonly used in high-demand industrial environments where continuous operation is critical:
- ABB ACS800 industrial drive systems
- Heavy-duty conveyor systems
- Mining and mineral processing equipment
- Oil & gas pumping stations
- Steel and cement production lines
- Marine propulsion and auxiliary systems
- Paper and pulp manufacturing
- Industrial HVAC and compressor systems
- Large-scale water treatment plants
- Retrofit and maintenance of legacy ABB drives
Its robust design supports long-term operation in electrically noisy and thermally stressful environments.
Key Advantages
Stable Internal Power Distribution
Ensures consistent and reliable delivery of auxiliary and control power to all critical drive subsystems.
High System Synchronization
Maintains accurate timing and communication between inverter, rectifier, and control sections.
Industrial-Grade Reliability
Designed for continuous duty operation in harsh industrial environments with minimal failure risk.
Seamless ACS800 Integration
Fully optimized for ABB ACS800 platform architecture, ensuring predictable performance.
Reduced Downtime in Maintenance
Modular design allows fast replacement and restoration of drive operation.
Strong Electrical Noise Immunity
Built to withstand EMI conditions common in high-power industrial installations.
Technical FAQs
1. What is the main function of the NCBC-71C board?
It manages internal power distribution and control signal coordination within ABB ACS800 drive systems.
2. Is this a complete drive unit?
No. It is only an internal control/power board, not a full VFD.
3. Can it be used outside ABB systems?
No. It is designed exclusively for ABB ACS800 drive architecture.
4. What happens if the board fails?
The drive may lose internal communication or fail to start due to missing control signals or power distribution.
5. Is it interchangeable with NCBC-61C?
They are related but not always interchangeable due to system configuration differences.
6. Does it handle motor output power?
No. It does not switch motor power directly; it supports internal control functions only.
7. What is its operating environment range?
It typically operates between -20°C and +60°C in industrial environments.
8. Can it be repaired?
In most cases, replacement is preferred due to PCB-level integration complexity.
9. What industries commonly use it?
Heavy industry, energy systems, manufacturing, marine, and process automation sectors.
10. Is it still widely used today?
Yes. It remains common in ACS800 legacy systems and industrial maintenance markets.
