High-Performance Control Core for ABB ACS580 Drive Systems

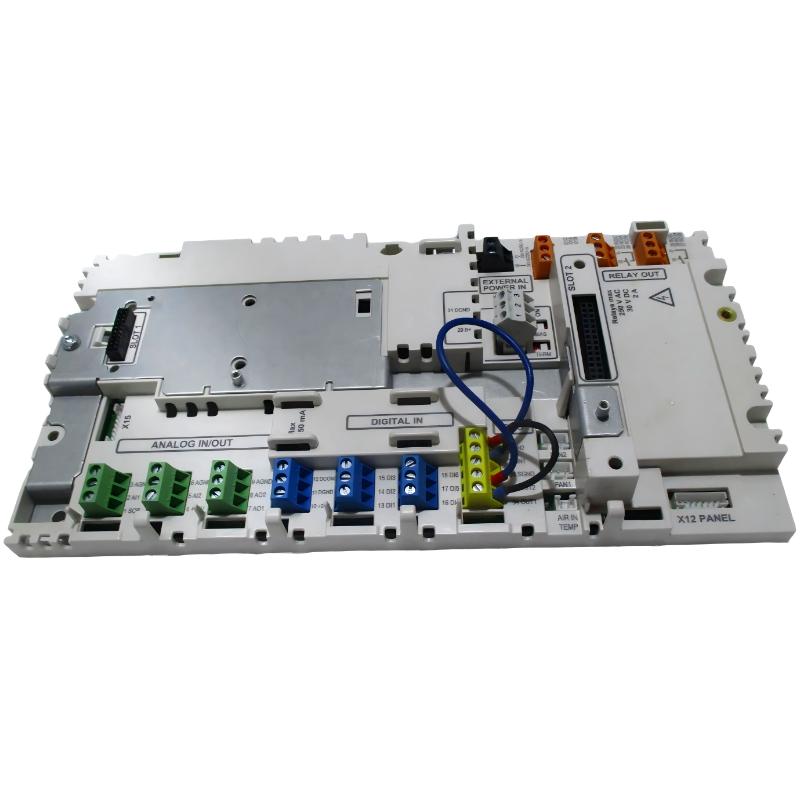

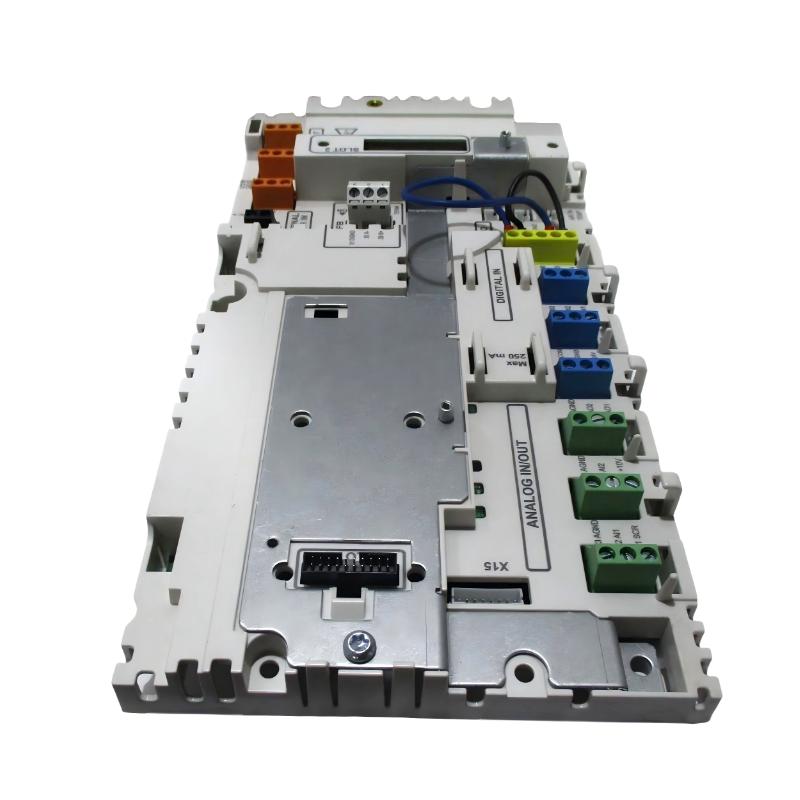

The ABB CCU-24-S 3AXD50000034659 Control Unit is an advanced industrial drive control module designed for ABB ACS580 frequency converter systems. It serves as the central processing unit of the drive, managing motor control algorithms, communication protocols, system diagnostics, and operational logic.
Engineered for precision and reliability, this control unit enables seamless integration between hardware and software layers within ABB drive architectures. It plays a critical role in ensuring stable motor performance, energy-efficient operation, and intelligent automation control across a wide range of industrial applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Type | Control Unit / Drive Control Board |
| Model Number | CCU-24-S |
| Product ID | 3AXD50000034659 |
| Compatible Series | ABB ACS580 |
| Function | Main drive control processor |
| Input Voltage | 380–480 V AC (drive system dependent) |
| Control Supply | 24 V DC internal logic supply |
| Communication Interfaces | Modbus RTU / optional fieldbus modules |
| Control Architecture | Vector control compatible |
| Operating Temperature | -20°C to +55°C |
| Protection Class | IP20 (inside drive enclosure) |
| Mounting Type | Internal drive-mounted module |
| Dimensions | 273 × 139 × 50 mm |
| Weight | Approx. 0.55 kg |
Role in Industrial Automation Systems
The CCU-24-S control unit acts as the “brain” of the ACS580 drive, coordinating multiple subsystems to ensure smooth and efficient motor operation.
Typical applications include:
-
Industrial pump control systems
-
HVAC and ventilation automation
-
Conveyor and logistics systems
-
Water and wastewater treatment plants
-
Manufacturing and processing equipment
-
Compressor and fan control systems
-
General-purpose industrial machinery
By managing motor speed, torque, and system feedback, it ensures consistent performance even under fluctuating load conditions.
Key Advantages
Centralized Drive Intelligence
Provides real-time processing for motor control, ensuring smooth acceleration, deceleration, and load adaptation.
High System Compatibility
Designed specifically for ACS580 platforms, ensuring seamless hardware and firmware integration.
Stable Industrial Performance
Built for continuous operation in demanding environments with strong resistance to electrical noise and thermal stress.
Efficient Communication Handling
Supports integration with PLC and SCADA systems through standard industrial communication protocols.
Easy Service & Replacement
Modular design allows fast replacement during maintenance, reducing downtime in critical operations.
Optimized Energy Control
Works with ACS580 energy optimization functions to reduce overall power consumption in industrial systems.
Technical FAQs
1. What is the main function of the CCU-24-S?
It serves as the central control unit of the ABB ACS580 drive, managing motor control logic and system operations.
2. Can it operate as a standalone device?
No. It must be installed inside a compatible ABB ACS580 drive system.
3. Is this a PLC?
No. It is a dedicated drive control unit, not a general-purpose PLC.
4. What happens if the control unit fails?
The drive will typically stop operating or trigger a fault condition, as control logic is lost.
5. Is it interchangeable with other ABB control units?
Only within compatible ACS580 configurations; cross-series compatibility is not guaranteed.
6. Does it support communication protocols?
Yes, through integrated and optional communication modules depending on system configuration.
7. What is its operating environment range?
It is designed for industrial environments between -20°C and +55°C.
8. Is firmware upgrade possible?
Yes, but it must follow ABB-approved tools and procedures for ACS580 systems.
9. Can it be repaired?
In most industrial cases, replacement is preferred over repair due to integrated design.
10. Is it used in new installations today?
Yes, it remains an active core component in ACS580 drive-based systems.
