Introduction

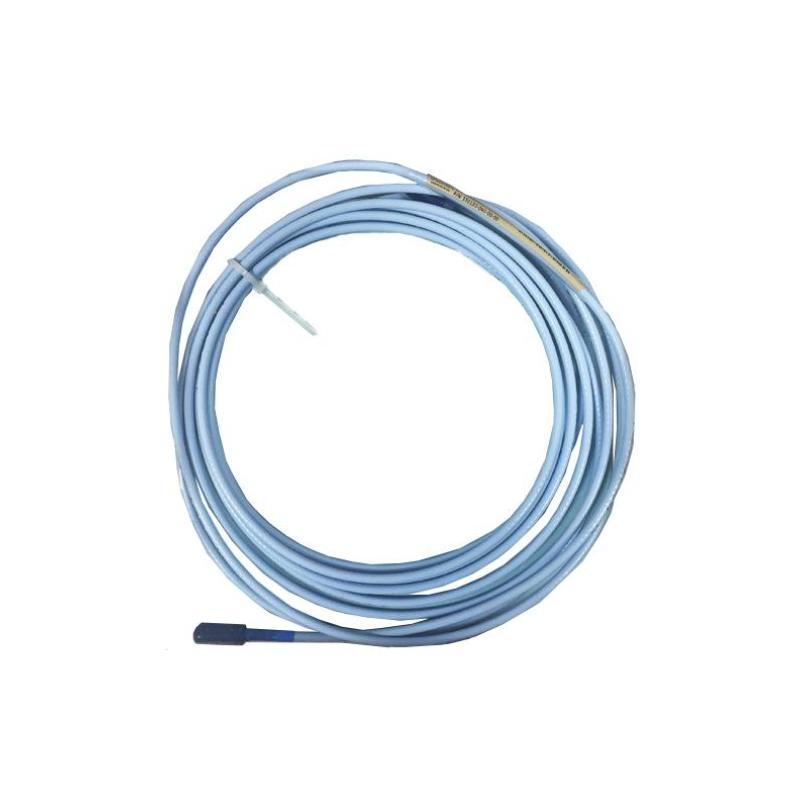

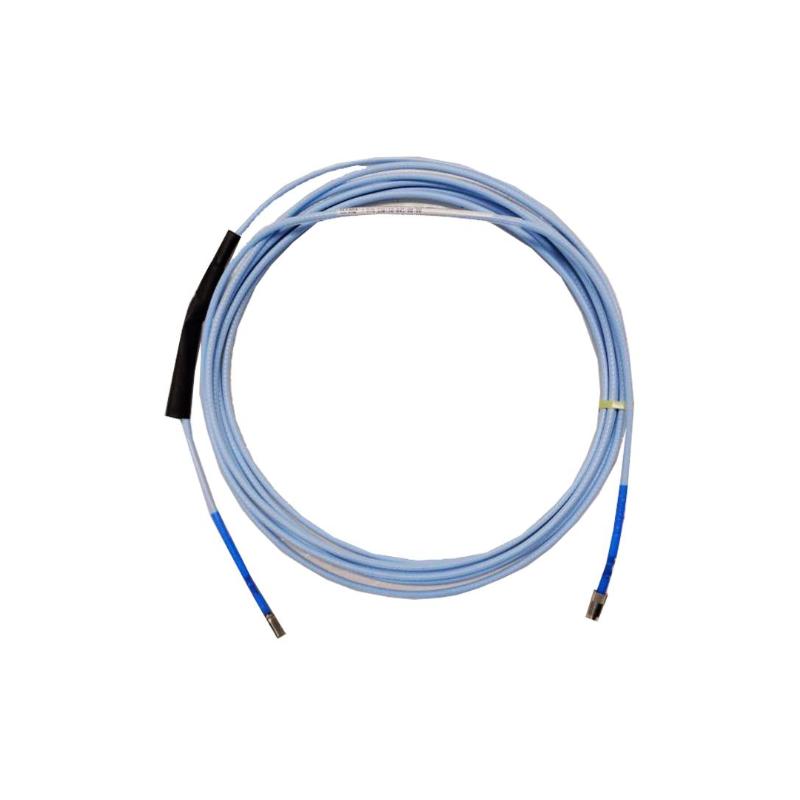

The Bently Nevada 330130-060-01-00 is a 6.0-meter 3300 XL Standard Extension Cable configured with an armored cable construction for applications that demand greater physical protection along the measurement path. Designed for compatible 3300 XL proximity transducer systems, it provides a dependable connection between the proximity probe and Proximitor® sensor while adding an extra layer of protection against installation-related mechanical stress.
The 060 length designation provides a nominal 6.0-meter (19.7-foot) extension, while the 01 cable option identifies the armored configuration. The final 00 indicates that no additional agency approval option is specified for this particular part number.
This configuration is especially useful when a standard unarmored cable may be too exposed to abrasion, contact, or demanding routing conditions. The armored design gives maintenance engineers more flexibility when installing monitoring cables around turbines, compressors, motors, pumps, and other rotating equipment. For replacement projects, it is also a practical choice when the existing system calls for a 6-meter armored 3300 XL extension cable.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Part Number | 330130-060-01-00 |
| Product Series | 3300 XL |
| Product Type | Standard Extension Cable |
| Cable Length | 6.0 m (19.7 ft) |
| Length Option | 060 |
| Cable Option | 01 – Armored cable |
| Agency Approval Option | 00 – Not required |
| Cable Construction | Armored extension cable |
| Cable Insulation / Jacket | FEP or PFA protective construction |
| Nominal Cable Type | 75 Ω extension cable |
| Maximum Cable Diameter | Approximately 7.67 mm (0.302 in) at the armored section |
| Cable Diameter Without Armor | Approximately 3.7 mm (0.15 in) maximum |
| Approx. Cable Mass | Approximately 0.204 kg |
| Cable Mass Rate | Approximately 34 g/m |
| Cable Length Tolerance | +20%, -0% |
| Typical Application | 3300 XL proximity measurement systems |
| Power Requirement | Passive cable assembly |
Applications
Rotating Machinery Condition Monitoring
The 330130-060-01-00 is designed for use in proximity measurement arrangements associated with rotating machinery. It can form part of systems monitoring shaft vibration, radial position, displacement, or other mechanical conditions.
Turbine Installations
Turbines often require monitoring cables to pass through machinery areas where physical protection is important. The armored configuration provides a more robust cable route than an unarmored standard cable, making it a practical option for suitable turbine-monitoring installations.
Compressor and Pump Monitoring
Compressors, pumps, and similar rotating assets frequently have complicated cable-routing requirements. The 6-meter length provides useful installation reach, while the armor helps protect the cable where it may be exposed to mechanical contact.
Motor and Generator Systems
The cable can be incorporated into compatible 3300 XL proximity-monitoring arrangements used around motors, generators, and other critical rotating equipment.
Maintenance and Retrofit Work
For an existing 3300 XL installation requiring a 6-meter armored extension, the 330130-060-01-00 provides a clearly defined replacement option. Matching the complete part number is preferable to selecting a cable solely according to physical length.
Industrial Cable Routing
The armored construction is particularly valuable where the cable route passes through areas with increased risk of abrasion, accidental contact, or other mechanical hazards.
Advantages
Armored Protection for Demanding Installations
The most notable feature of the 330130-060-01-00 is its armored cable construction. The protective armor helps shield the underlying cable from mechanical damage, making this version more suitable for exposed or physically demanding routing conditions.
6-Meter Installation Reach
With a nominal length of 6.0 meters, this model offers a useful compromise between installation flexibility and cable management. It can accommodate machinery layouts that require more distance than shorter extension configurations without moving unnecessarily into much longer cable lengths.
FEP/PFA Protective Construction
The armored configuration uses a protective FEP or PFA-type construction around the cable. These materials are well suited to demanding industrial environments and provide a robust outer structure for the measurement cable.
Controlled Electrical Characteristics
The extension cable is part of the 3300 XL proximity measurement architecture, where cable characteristics contribute to the overall electrical performance of the measurement chain. Using the specified cable configuration helps maintain the intended relationship between the probe, extension cable, and Proximitor® sensor.
Compact Compared with Heavy Industrial Cabling
Although armored, the cable remains relatively compact, with a maximum armored diameter of approximately 7.67 mm. This allows it to provide additional protection without requiring the large cable envelope associated with some heavy-duty industrial wiring.
Practical Spare-Part Selection
For maintenance departments, the exact 330130-060-01-00 configuration provides a convenient reference when replacing an existing 6-meter armored extension. Keeping the correct cable option in stock can reduce troubleshooting and replacement time during planned or corrective maintenance.
Technical FAQs
1. What is the Bently Nevada 330130-060-01-00?
The 330130-060-01-00 is a 3300 XL Standard Extension Cable with a 6.0-meter length and armored cable construction.
2. What does “060” represent?
The 060 portion of the part number identifies the nominal 6.0-meter (19.7-foot) cable length.
3. What does the “01” cable option mean?
The 01 option specifies the armored cable configuration. It provides additional mechanical protection compared with the standard unarmored cable option.
4. What does the final “00” indicate?
The final 00 identifies the agency-approval option as not required for this particular configuration.
5. Is the 330130-060-01-00 suitable for outdoor installation?
The cable is designed for industrial machinery-monitoring applications, but suitability for a specific outdoor environment depends on routing, exposure, connectors, temperature, moisture, chemicals, and the requirements of the complete monitoring system. The installation should be evaluated rather than assuming that the armored construction alone makes every outdoor application suitable.
6. What is the diameter of the armored cable?
The maximum outside diameter of the armored section is approximately 7.67 mm (0.302 in). The underlying cable itself is approximately 3.7 mm (0.15 in) in maximum diameter.
7. How much does the 330130-060-01-00 weigh?
The cable mass is approximately 34 g/m, resulting in a calculated physical cable weight of about 0.204 kg for a 6-meter length. Shipping weight may be higher because it can include packaging and other materials.
8. Does the armored version provide electrical shielding?
The armor is primarily part of the cable's physical protection and overall construction. Electrical performance depends on the complete 3300 XL cable design, conductors, insulation, and system configuration. The cable should therefore be treated as a specified 3300 XL measurement component rather than simply as a generic shielded wire.
9. Can this cable replace a 330130-060-00-00?
It may be a suitable alternative when the application benefits from armored protection, but it should not be treated as an automatic drop-in replacement simply because both models are 6 meters long. The cable option, installation requirements, system configuration, and original equipment specifications should all be checked.
10. What should be verified before ordering the 330130-060-01-00?
Confirm the complete part number, required 6-meter length, armored cable option, approval requirements, compatible proximity probe, Proximitor® sensor, and total electrical system length. Correct matching of these elements is important for maintaining the intended 3300 XL proximity measurement configuration.
