High-Precision IGBT Control Board for Industrial Drive Systems

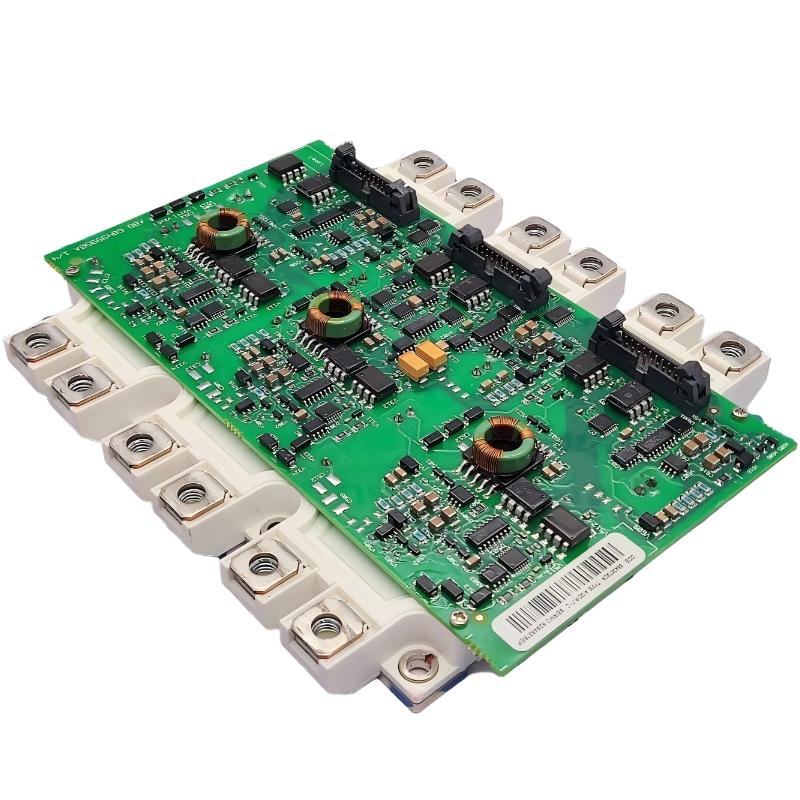

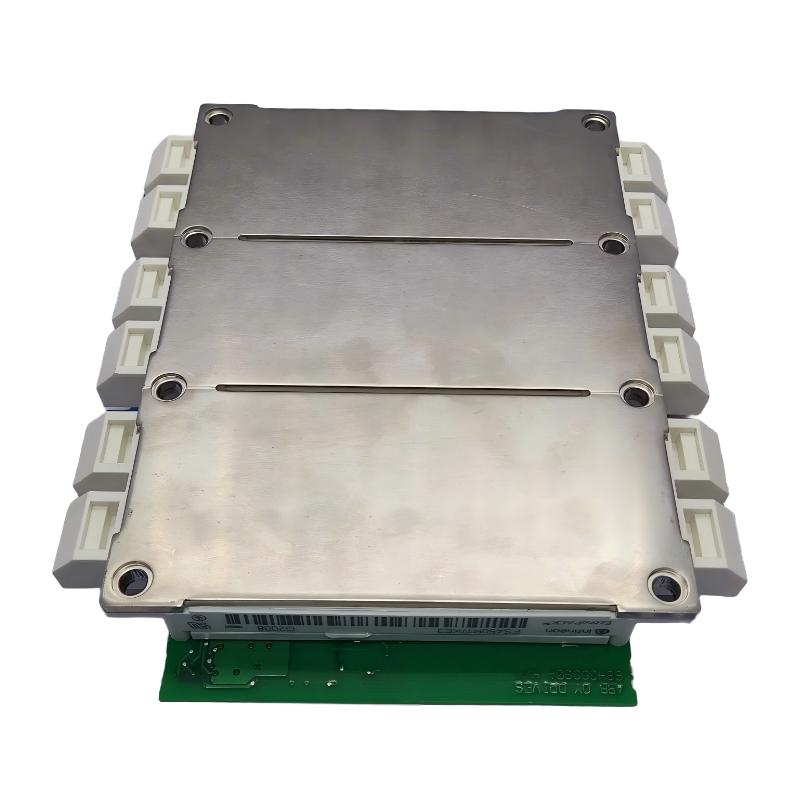

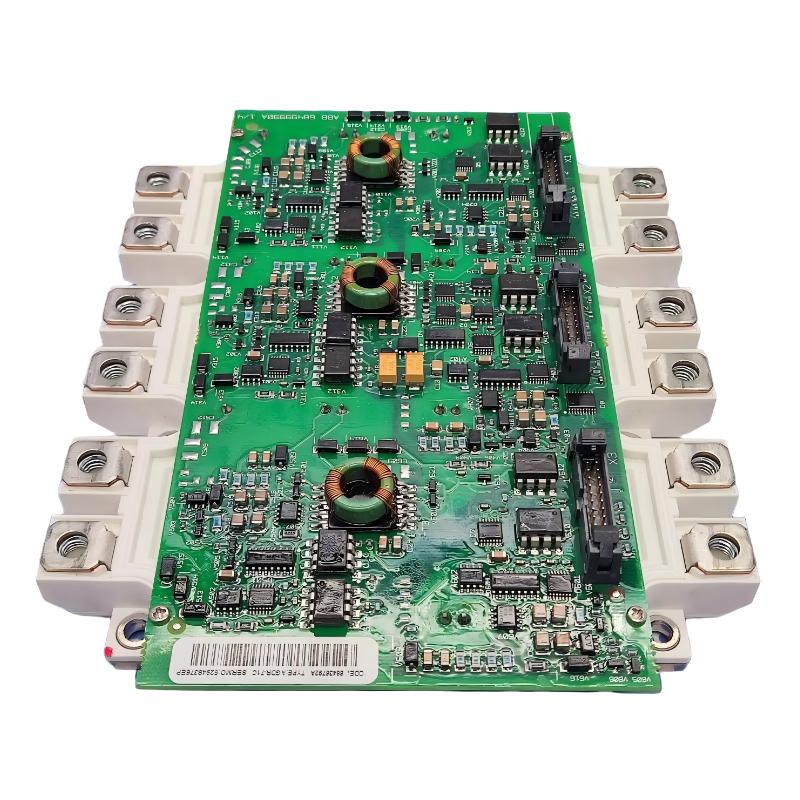

The ABB AGDR-71C 68439990A Inverter Driver Board is a specialized industrial control module designed for high-performance power electronics and motor drive systems. Engineered for demanding automation environments, this driver board is responsible for precise IGBT switching control, ensuring stable motor operation, efficient power conversion, and reliable torque regulation in ABB industrial drive assemblies.
Built with ABB’s industrial-grade design philosophy, the AGDR-71C integrates advanced control circuitry to support high-power applications such as pumps, conveyors, CNC systems, robotics, and heavy-duty production machinery. Its robust architecture makes it a widely used replacement component in ABB drive repair and maintenance operations.
Technical Specifications Overview
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Type | Inverter Driver Board / IGBT Control Module |
| Model Number | AGDR-71C |
| Part Number | 68439990A |
| Alternate Code | 68436770A |
| Function | IGBT gate driver / inverter control |
| Input Voltage | 380–480 V AC system dependent |
| Control Method | PWM / digital drive control |
| Output Role | IGBT switching signal regulation |
| Cooling Method | Enclosure-integrated thermal dissipation |
| Operating Temperature | -20°C to +60°C |
| Installation Type | Internal drive-mounted PCB module |
| Protection Class | IP20 (inside drive enclosure) |
| Dimensions | Approx. 125 × 90 × 70 mm |
| Weight | Approx. 1.0–1.5 kg |
Industrial Applications
The AGDR-71C inverter driver board is used in ABB drive systems across multiple industrial sectors where precise motor control is critical.
Typical applications include:
-
Industrial motor drive systems (ABB inverter platforms)
-
CNC machining equipment
-
Conveyor and material handling systems
-
Pump and compressor control units
-
Robotic automation systems
-
Production line machinery
-
Heavy-duty industrial fans and ventilation systems
-
Retrofitting and repair of ABB ACS drive series
Its role is essential in maintaining accurate switching control of power semiconductors, directly influencing motor performance and system stability.
Key Performance Advantages
Precise Power Switching Control
Ensures accurate IGBT gate drive signals for stable inverter operation and smooth motor performance.
High System Reliability
Designed for continuous industrial duty cycles with strong resistance to electrical and thermal stress.
OEM-Level Compatibility
Engineered specifically for ABB drive architectures, ensuring seamless integration in original systems.
Efficient Energy Conversion
Optimizes switching efficiency to reduce power losses in high-load applications.
Robust Industrial Design
Built to withstand harsh electrical environments commonly found in factory automation systems.
Maintenance and Retrofit Friendly
Widely used as a replacement component in ABB drive repair markets, supporting long-term system lifecycle extension.
Technical FAQs
1. What is the main function of the AGDR-71C board?
It controls IGBT switching signals inside ABB inverter systems to regulate motor speed and torque.
2. Can this board operate independently?
No. It must be installed inside a compatible ABB drive system.
3. What equipment typically uses this module?
It is commonly found in ABB industrial frequency converters and drive assemblies.
4. Is it a complete VFD?
No. It is only a driver/control board, not a full variable frequency drive.
5. What happens if the board fails?
The drive may stop functioning, trigger fault codes, or lose motor control capability.
6. Can it be repaired?
In most industrial cases, replacement is preferred over repair due to circuit complexity.
7. Is it compatible with all ABB drives?
No. It is designed for specific ABB drive models only.
8. Does it handle high voltage directly?
No. It controls gate signals; power switching is handled by IGBT power modules.
9. What industries use this component most?
Manufacturing, automation, CNC machining, robotics, and process industries.
10. Is this still commonly used today?
Yes. It is widely used in maintenance, refurbishment, and legacy ABB drive systems.
