Advanced Industrial Motion Control with Premium Performance

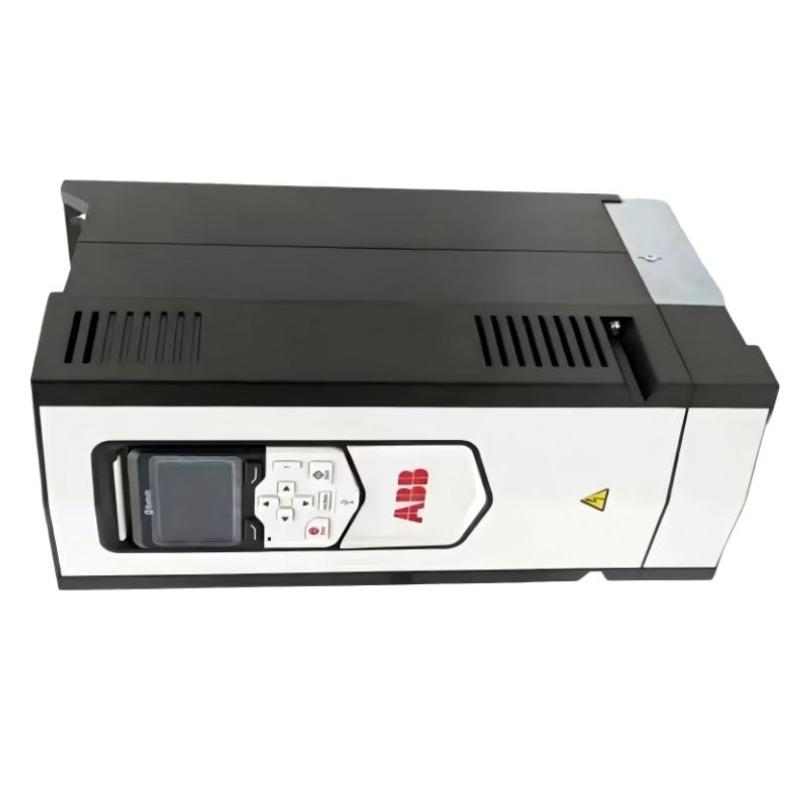

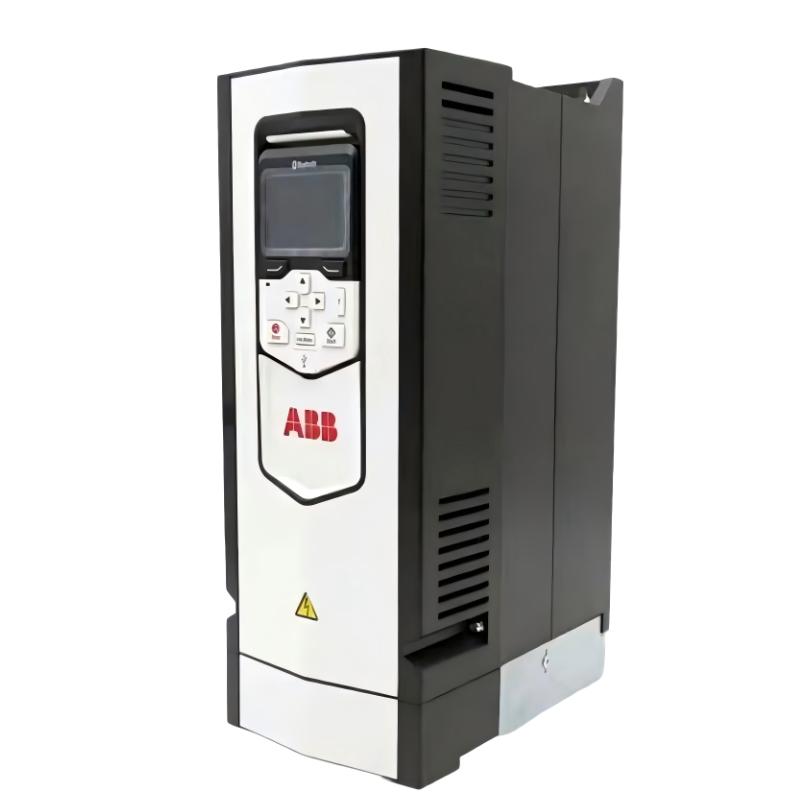

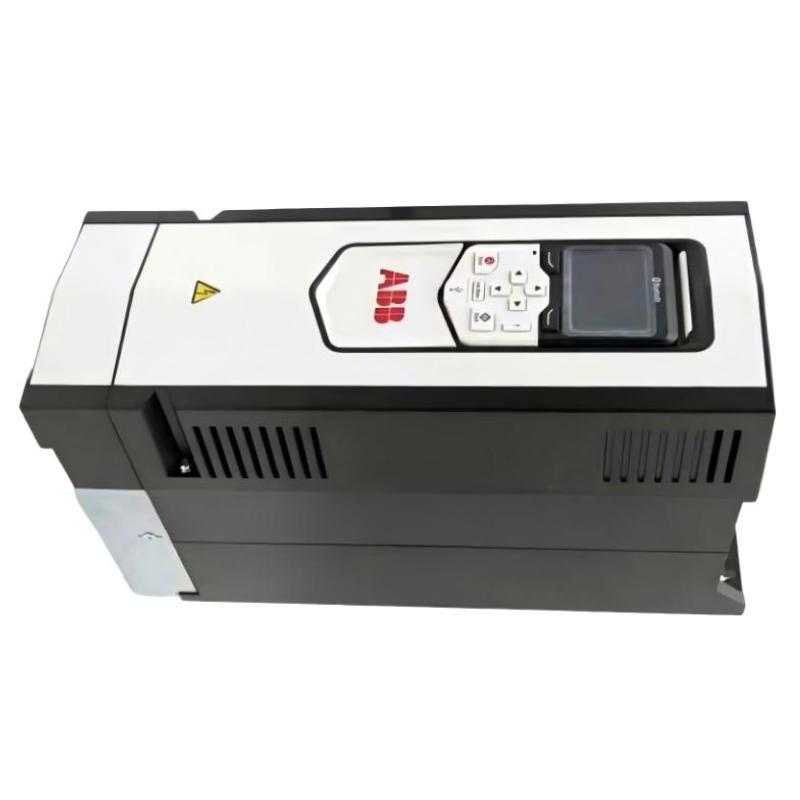

The ABB ACS880-01-09A4-3 Variable Frequency Drive is a compact yet powerful industrial drive engineered to deliver precise motor control, maximum process efficiency, and exceptional operational flexibility. Designed under ABB's all-compatible drive architecture, this model combines advanced Direct Torque Control (DTC) technology with integrated safety and communication capabilities to support demanding industrial environments.
With its intelligent design and built-in functionality, the ACS880-01-09A4-3 minimizes installation complexity while offering superior performance for both standard and mission-critical applications. Its compact footprint makes it an excellent choice for machine builders, system integrators, and industrial facilities seeking long-term reliability and scalable automation solutions.
Product Technical Profile
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Series | ACS880 |
| Product Type | Variable Frequency Drive (VFD) |
| Model Number | ACS880-01-09A4-3 |
| Product ID | 3ABD00035963-D |
| Rated Motor Power | 4 kW (5 HP) |
| Rated Output Current | 9.4 A |
| Input Voltage | 380-415 V AC |
| Input Phase | 3-Phase |
| Input Frequency | 47.5-63 Hz |
| Frame Size | R1 |
| Enclosure Rating | IP21 |
| Control Technology | Direct Torque Control (DTC) |
| Safety Feature | Safe Torque Off (STO) |
| Cooling Method | Forced Air Cooling |
| Mounting Method | Wall Mount |
| Operating Temperature | -15°C to +40°C |
| Maximum Installation Altitude | 1000 m without derating |
| Communication Expansion | Multiple optional fieldbus adapters |
| Dimensions | 260 × 203 × 161 mm |
| Weight | Approximately 4.5 kg |
Industrial Applications That Benefit Most
The ACS880-01-09A4-3 is engineered for versatile industrial deployment across numerous sectors.
Typical applications include:
-
Conveyor systems
-
Mixers and agitators
-
Industrial pumps
-
Ventilation fans
-
Compressors
-
Packaging equipment
-
Material handling systems
-
Food processing machinery
-
Water and wastewater treatment systems
-
Automotive production lines
-
Test benches
-
Extruders
Its adaptability allows engineers to standardize motor control solutions across multiple machines within a facility. ABB specifically positions the ACS880 family for industries including mining, metals, chemicals, marine, food and beverage, power generation, and manufacturing.
Why This Drive Stands Out
Premium Direct Torque Control
ABB's DTC technology delivers highly responsive motor performance without requiring complex tuning procedures.
Compact Footprint
The wall-mounted design saves valuable cabinet space while simplifying installation.
Integrated Safety
Safe Torque Off (STO) functionality comes standard, reducing external safety hardware requirements.
Universal Motor Compatibility
Supports induction motors, permanent magnet motors, and synchronous reluctance motors.
Future-Ready Connectivity
Easily integrates into existing automation systems through optional communication modules.
Reduced Engineering Time
Many essential functions are already built into the drive, minimizing external component requirements.
Technical FAQs
1. What motor size can this drive control?
This model is designed for motors up to 4 kW (5 HP).
2. Which voltage systems are supported?
It operates on 380-415V three-phase AC power systems.
3. What is Direct Torque Control (DTC)?
DTC is ABB's advanced motor control technology that provides fast and precise torque response without requiring encoder feedback in many applications.
4. Does this drive include safety functions?
Yes. Safe Torque Off (STO) is integrated as a standard feature.
5. Is this drive suitable for pumps and fans?
Yes. It is widely used for pumps, fans, compressors, and numerous industrial machines.
6. Can it communicate with PLC systems?
Yes. Optional communication adapters support various industrial protocols and automation platforms.
7. Is wall mounting supported?
Yes. The ACS880-01 series is designed primarily for wall-mounted installations.
8. Can additional I/O modules be added?
Yes. Expansion modules are available for enhanced system integration.
9. What routine maintenance is recommended?
Inspect cooling fans, clean air passages, verify terminal connections, and monitor operating temperatures regularly.
10. Is this model suitable for harsh industrial environments?
Yes. The ACS880 family is specifically engineered for demanding industrial sectors requiring continuous operation.
