Intelligent Industrial Power Built for Modern Automation

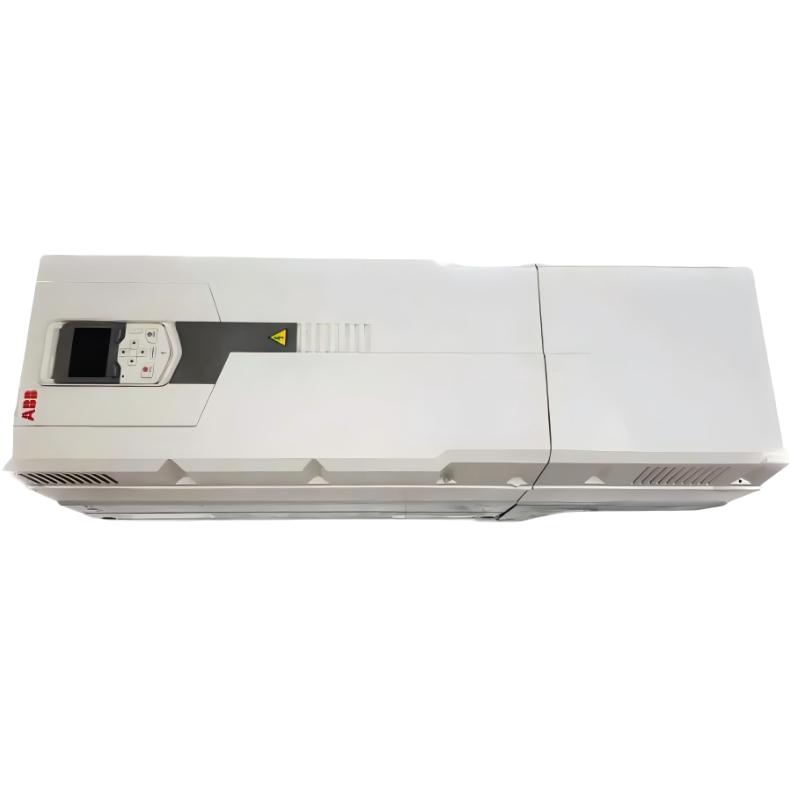

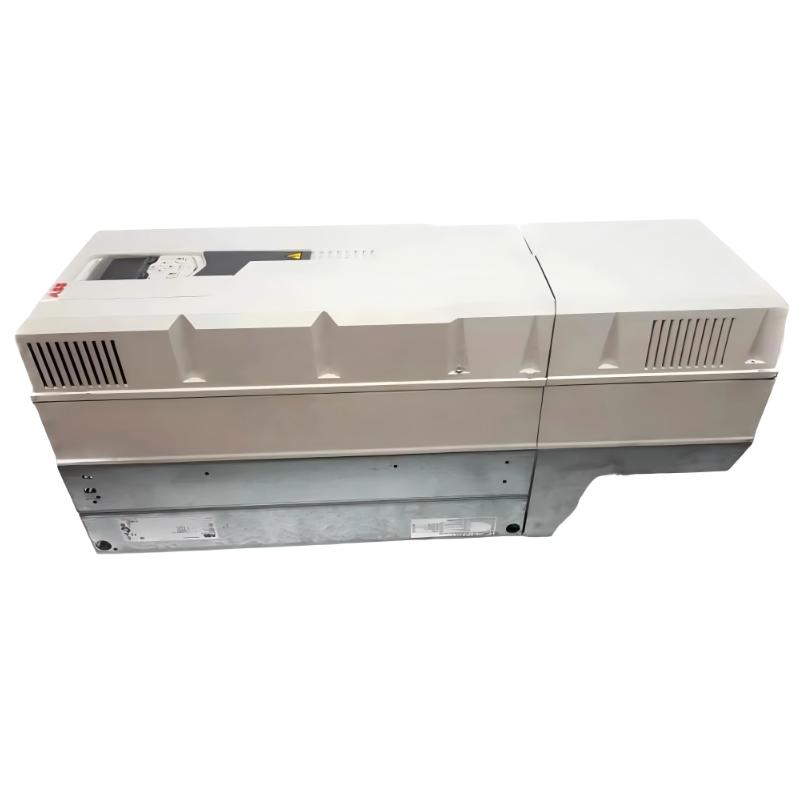

The ABB ACS580-01-206A-4 Variable Frequency Drive is a high-performance AC general purpose drive engineered to simplify industrial motor control while maximizing energy efficiency and process reliability. Designed for demanding environments, this drive delivers exceptional performance for both variable torque and constant torque applications.
As part of ABB's next-generation all-compatible drive platform, the ACS580 series integrates advanced control features, intuitive commissioning tools, and robust hardware into one complete solution. With a powerful 110 kW capacity, this drive enables operators to optimize productivity while reducing energy consumption and maintenance costs. ABB describes the ACS580 as a plug-and-play drive with built-in features that simplify installation and operation across numerous industries.
Product Performance Parameters
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Series | ACS580 |
| Product Type | Variable Frequency Drive (VFD) / AC General Purpose Drive |

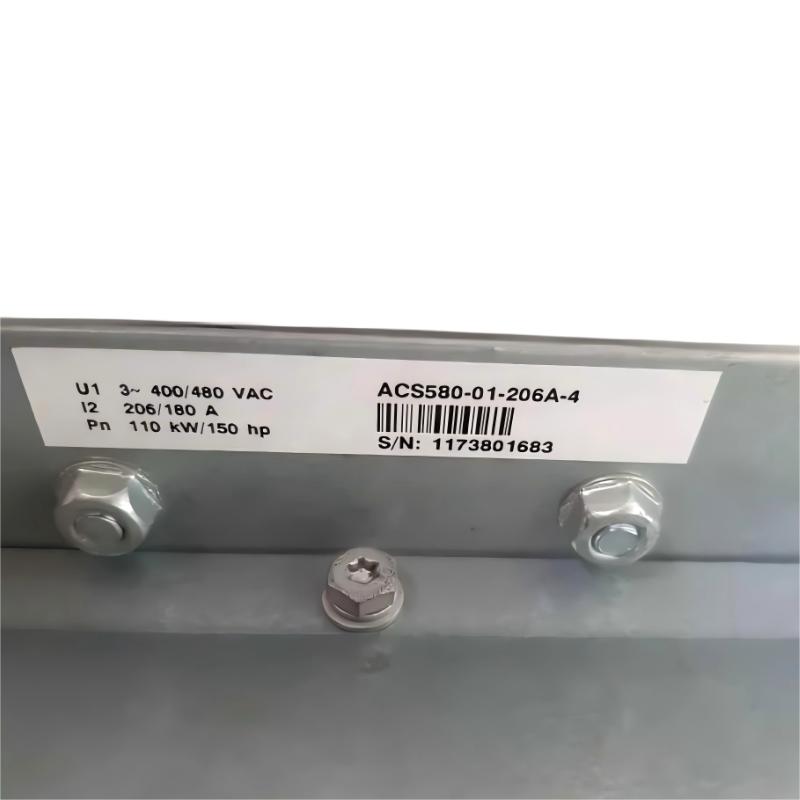

| Model Number | ACS580-01-206A-4 |
| Product ID | 3ABD00045439-D |
| Rated Motor Power | 110 kW (150 HP) |
| Rated Output Current | 206 A |
| Input Voltage | 380-480 V AC |
| Input Phase | 3-Phase |
| Input Frequency | 47.5-63 Hz |
| Enclosure Rating | IP21 |
| Mounting Type | Wall Mounted |
| Frame Size | R7 |
| Communication | Integrated Modbus RTU and expandable fieldbus options |
| Cooling Method | Forced Air Cooling |
| Ambient Operating Temperature | -15°C to +40°C without derating |
| Maximum Installation Altitude | 1000 m without derating |
| Dimensions | 798 × 350 × 395 mm |
| Weight | Approximately 42 kg |
Industrial Applications Across Multiple Sectors
The ACS580-01-206A-4 is engineered to support a wide variety of industrial processes.
Common applications include:
-
Centrifuges
-
Conveyors
-
Pumps
-
Fans
-
Compressors
-
Extruders
-
Mixers
-
Material handling systems
-
Food and beverage processing
-
Textile manufacturing
-
Agricultural machinery
-
Water treatment facilities
Its flexible architecture allows engineers to standardize motor control solutions across entire production facilities. ABB specifically positions the ACS580 for both variable and constant torque applications in multiple industries.
Core Advantages That Drive Productivity
One Drive for Multiple Applications
A single drive platform can support numerous machine types, simplifying inventory management and reducing engineering complexity.
Built-In Intelligence
Essential features come standard, minimizing the need for external accessories.
Faster Commissioning
Setup assistants and intuitive menus shorten deployment time.
Excellent Energy Efficiency
Optimized motor control reduces electricity consumption and operating expenses.
Rugged Industrial Design
Built for continuous operation in demanding environments.
Scalable Connectivity
Easily integrates with PLC, SCADA, and factory automation systems.
Technical FAQs
1. What motor size can this drive operate?
It is designed for motors up to 110 kW (150 HP).
2. Which voltage range does it support?
It operates on 380-480V three-phase AC power systems.
3. Is this drive suitable for both pumps and conveyors?
Yes. It is designed for both variable torque and constant torque applications.
4. Does it include communication capabilities?
Yes. Built-in Modbus RTU is included, with optional fieldbus expansion modules available.
5. Is this an HVAC-specific drive?
No. It is a true general purpose industrial drive suitable for multiple industries.
6. Does it require additional option cards for basic operation?
No. Many essential functions are integrated as standard equipment.
7. What protection rating does it have?
The standard enclosure is IP21 for indoor industrial installations.
8. Can this drive operate continuously?
Yes. It is engineered for continuous industrial duty cycles.
9. What maintenance is recommended?
Inspect cooling fans, remove dust buildup, verify electrical connections, and periodically monitor system performance.
10. Are there any installation best practices?
Use proper grounding, shielded control cables, and maintain adequate ventilation around the drive to minimize electrical noise. Industrial users frequently discuss grounding and shielding practices when deploying ACS580 systems.
