Precision Motor Control for Compact Industrial Applications

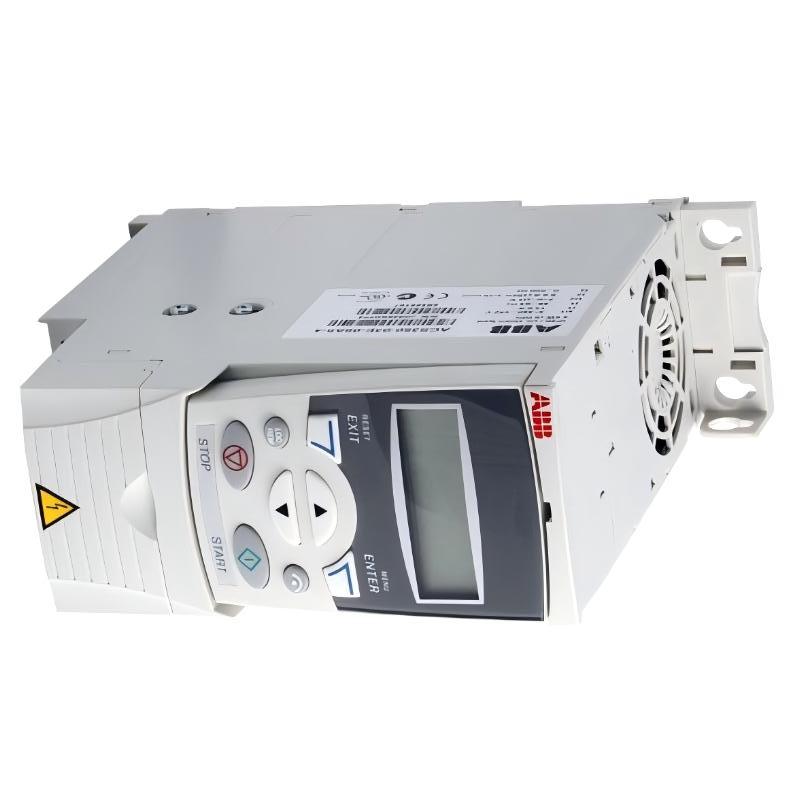

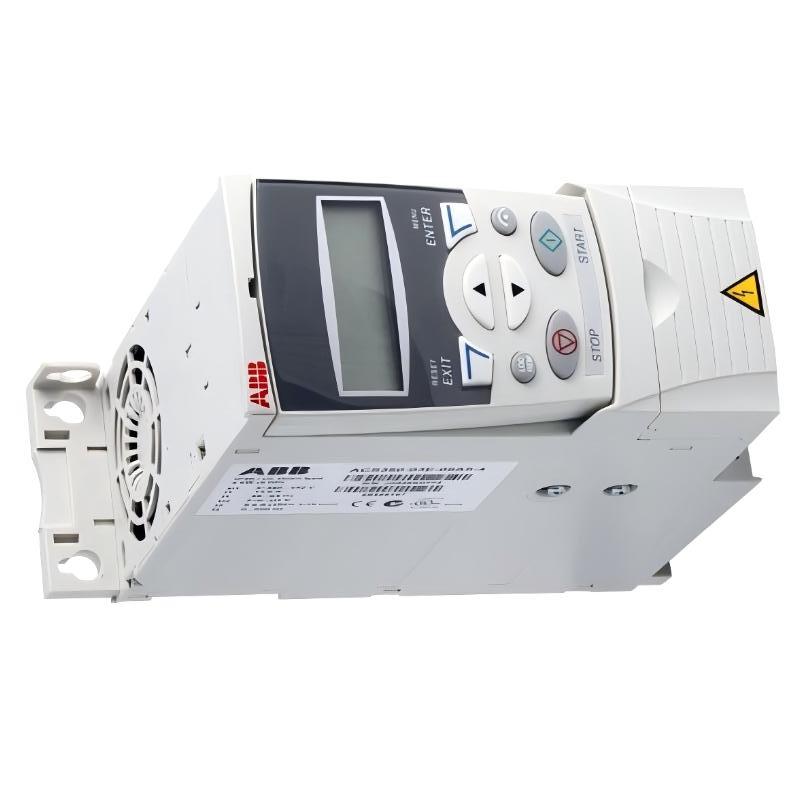

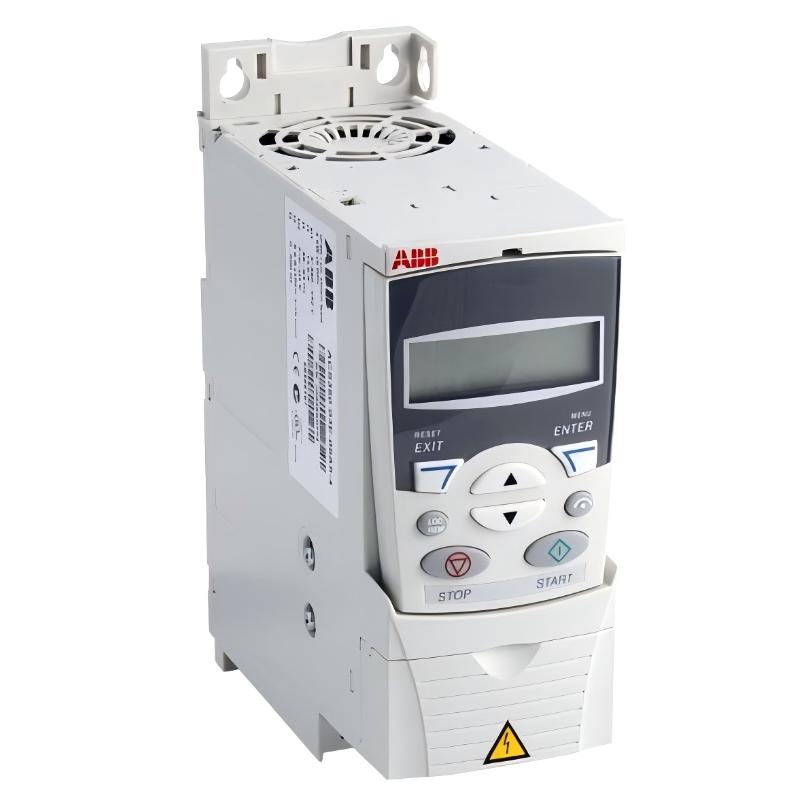

The ABB ACS350-03E-03A3-4 General Machinery Drive is a versatile variable frequency drive (VFD) engineered for OEMs, machinery builders, and industrial automation environments that demand reliable motor control within a compact footprint. Designed as part of ABB's well-established ACS350 series, this drive delivers efficient speed regulation, simplified commissioning, and dependable operation for various general-purpose machinery applications. It supports 380-480V three-phase power systems and provides optimized energy performance for small to medium-duty industrial processes.
Its user-friendly architecture, integrated control features, and robust protection capabilities make it an excellent choice for manufacturers seeking long-term operational stability and reduced maintenance requirements.
Product Data Overview
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Product Series | ACS350 |
| Product Type | General Machinery Drive |
| Model Number | ACS350-03E-03A3-4 |
| Product ID | 68468116 |
| Rated Motor Power | 1.1 kW (1.5 HP) |
| Input Voltage | 380-480 V AC |
| Input Phase | 3-Phase |
| Output Current (Continuous) | 3.3 A |
| Maximum Output Current | 5.8 A |
| Input Current | 6 A |
| Output Frequency Range | 0-500 Hz |
| Protection Class | IP20 |
| Ambient Operating Temperature | Up to 40°C rated operation |
| Mounting Method | Wall or cabinet mounting |
| Dimensions | 70 × 169 × 161 mm |
| Weight | Approximately 1.2 kg |
| Control Method | Scalar and Vector Control |
Typical Industrial Applications
The ACS350-03E-03A3-4 is widely adopted across multiple sectors where precise motor control and energy efficiency are essential.
Suitable applications include:
-
Conveyor systems
-
Packaging machines
-
Material handling equipment
-
Pumps and booster systems
-
Industrial fans and ventilation units
-
Food processing equipment
-
Textile machinery
-
Woodworking machines
-
Assembly line automation
-
General manufacturing systems
Its flexible configuration allows seamless integration into both new installations and retrofit projects.
Why Engineers Choose This Drive
Compact Design
Its narrow frame allows installation inside crowded electrical cabinets without sacrificing performance.
Easy Commissioning
Simple parameter setup reduces engineering time and accelerates machine deployment.
Energy Efficient Operation
Variable speed control minimizes unnecessary energy consumption compared to fixed-speed motor systems.
Reliable Motor Protection
Integrated protective functions help safeguard equipment from overload, overvoltage, undervoltage, and overheating conditions.
Flexible Control Capability
Supports both scalar and vector motor control methods for diverse industrial applications.
Cost-Effective Ownership
Lower energy usage, reduced wear on mechanical components, and simplified maintenance contribute to a lower total cost of ownership.
Technical FAQs
1. What type of motor can this drive control?
It is primarily designed for standard three-phase AC induction motors and supports various industrial motor applications.
2. What is the rated motor capacity?
The drive supports motors up to 1.1 kW (1.5 HP).
3. Is this drive suitable for cabinet installation?
Yes. The IP20 enclosure is specifically intended for installation inside electrical control cabinets.
4. Does it support vector control?
Yes. Both scalar and sensorless vector control functions are available.
5. What input voltage does it require?
It operates on a 380-480V three-phase AC power supply.
6. Can this drive be used for pump applications?
Yes. It is commonly used for pumps, fans, and fluid handling systems.
7. Does it include built-in protection features?
Yes. Multiple protective functions are integrated to protect both the drive and connected motor equipment.
8. Can it be mounted on a wall?
Yes. Wall mounting and cabinet mounting options are supported.
9. Is this model still widely used in industrial facilities?
Yes. Many facilities continue to operate ACS350 systems, particularly in legacy machinery and retrofit projects, although newer ABB drive families are also available. Some distributors indicate successor products may be recommended for new projects.
10. What maintenance is typically required?
Routine inspection should include cleaning ventilation paths, checking terminal tightness, monitoring operating temperatures, and verifying overall system performance.
