High-Reliability 50 mm Proximity Probe for Critical Turbomachinery Monitoring

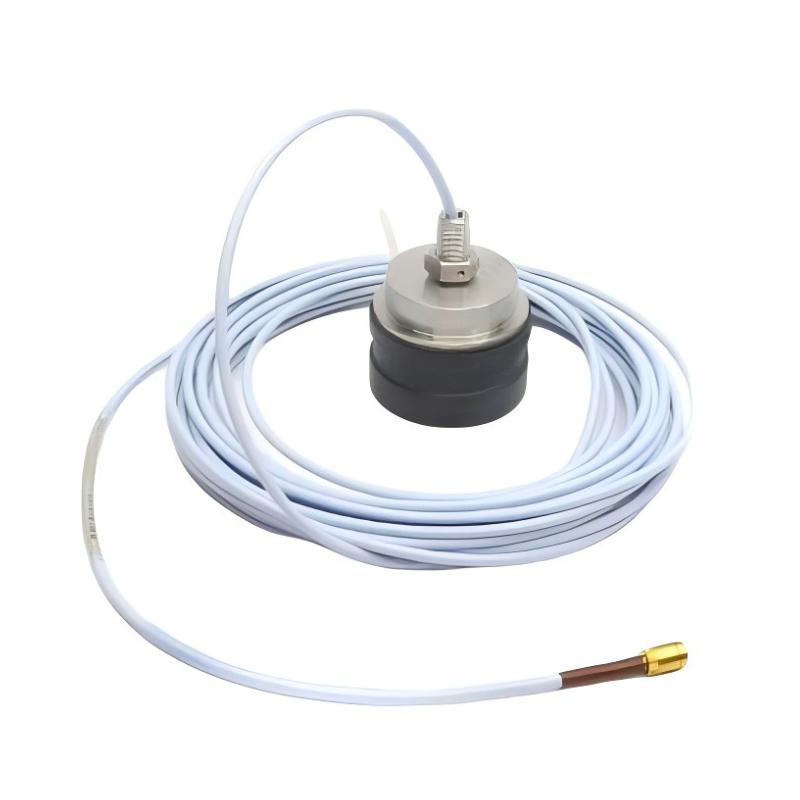

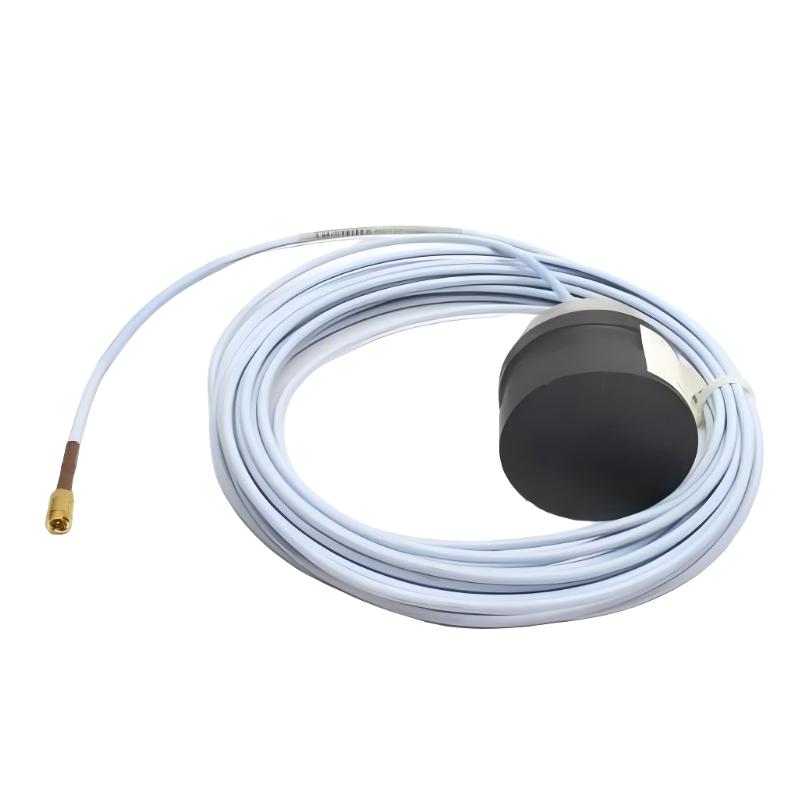

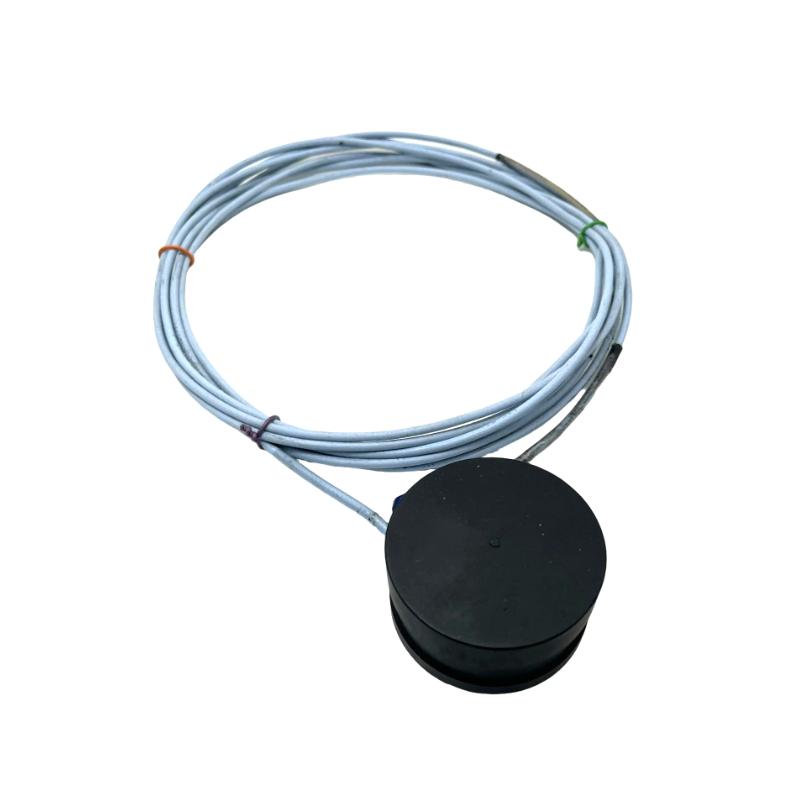

The Bently Nevada 330876-03-90-00-05 3300 XL 50 mm Eddy-Current Proximity Probe is a precision non-contact sensor designed for accurate measurement of shaft displacement, vibration, and differential expansion in large rotating machinery systems. It is part of the 3300 XL 50 mm transducer system, widely used in turbine supervisory instrumentation (TSI) applications across power generation and heavy industry.
This configuration is engineered for harsh operating environments where long cable routing, high temperatures, and electromagnetic interference demand stable and reliable signal performance. It is commonly deployed in steam turbines, compressors, hydro turbines, and generator systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3300 XL 50 mm Eddy-Current Proximity Probe |
| Model Number | 330876-03-90-00-05 |
| System Series | 3300 XL 50 mm Transducer System |
| Measurement Principle | Eddy-current non-contact sensing |
| Probe Diameter | 50 mm |
| Primary Measurements | Shaft vibration, displacement, differential expansion |
| Case Style | Side-exit industrial housing |
| Cable Length | 9.0 m (typical “90” configuration) |
| Cable Type | High-temperature FluidLoc® triaxial cable |
| Armor | FluidLoc high-temperature cable protection |
| Connector System | ClickLoc® industrial connectors |
| Operating Temperature | -35°C to +200°C continuous |
| Short-Term Temperature | Up to +250°C |
| Output Compatibility | 3300 XL Proximitor® systems |
| Approximate Dimensions | ~160–180 mm probe assembly length |
| Approximate Weight | ~0.27–1.5 kg (configuration dependent) |
| Sensing Range | Up to ~27.9 mm linear range (system dependent) |
