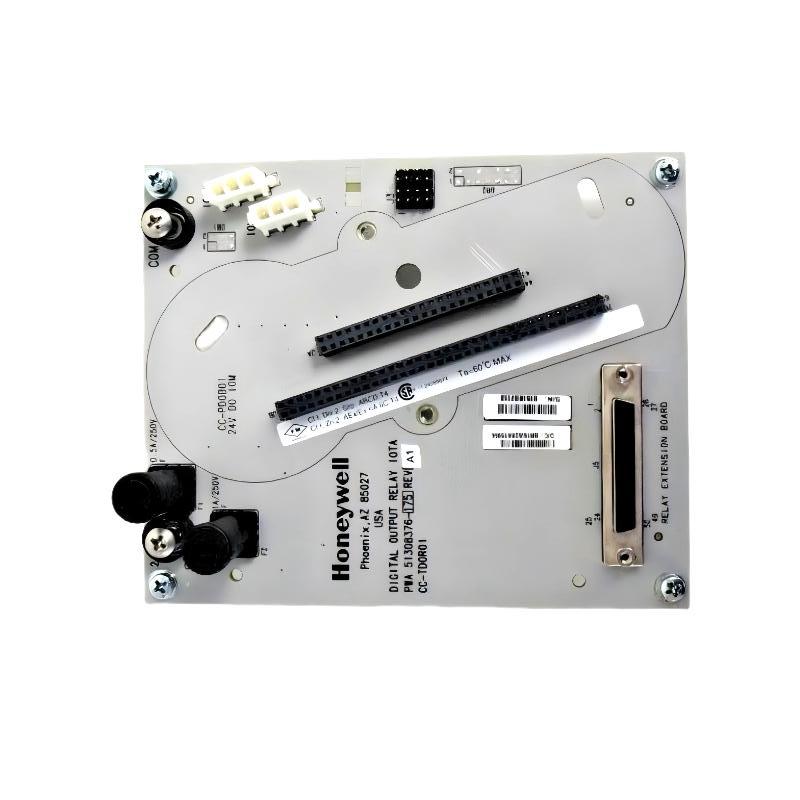

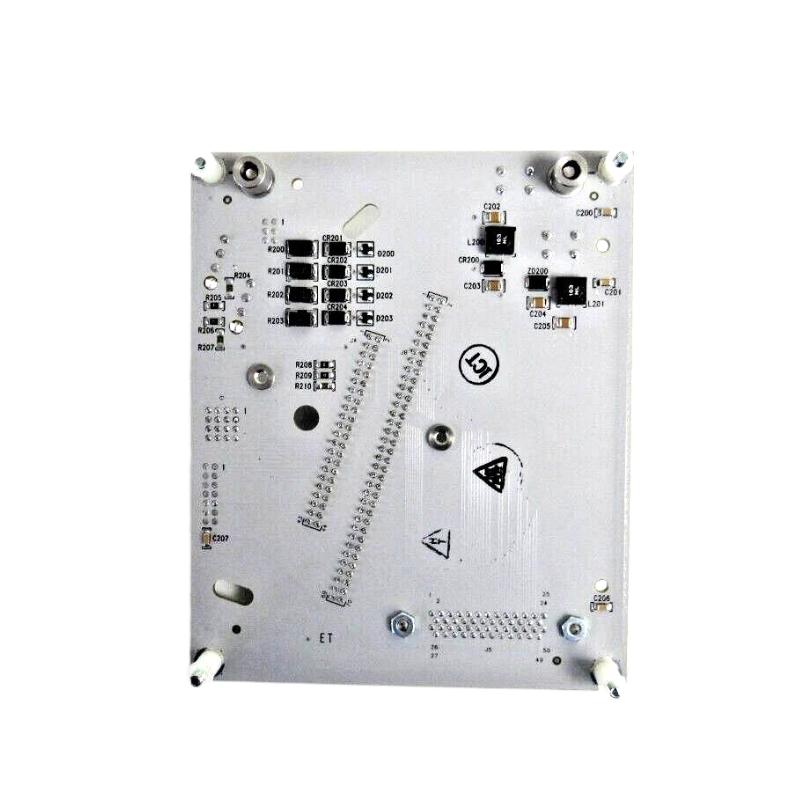

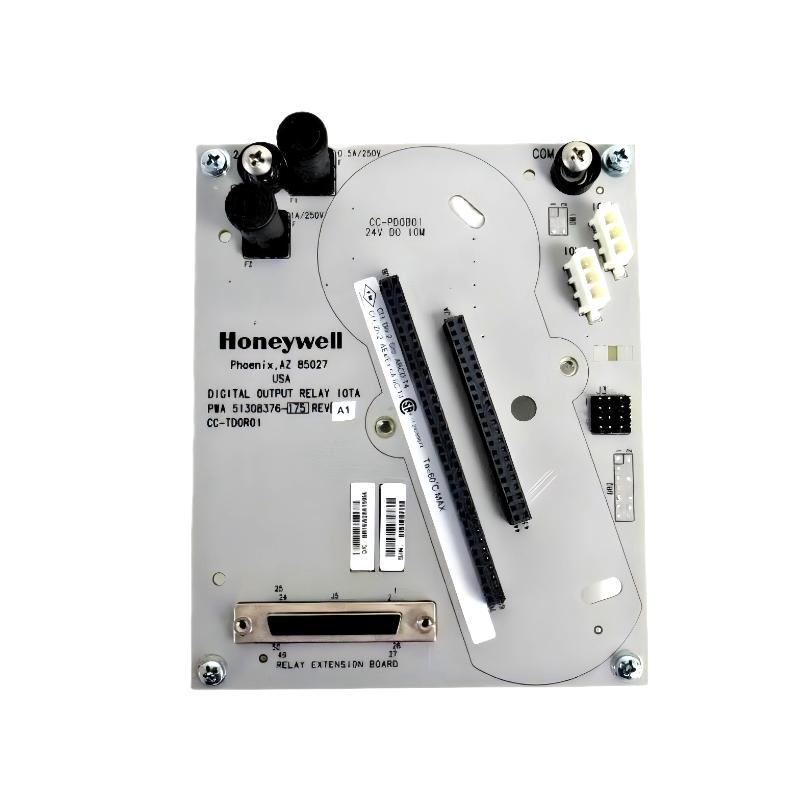

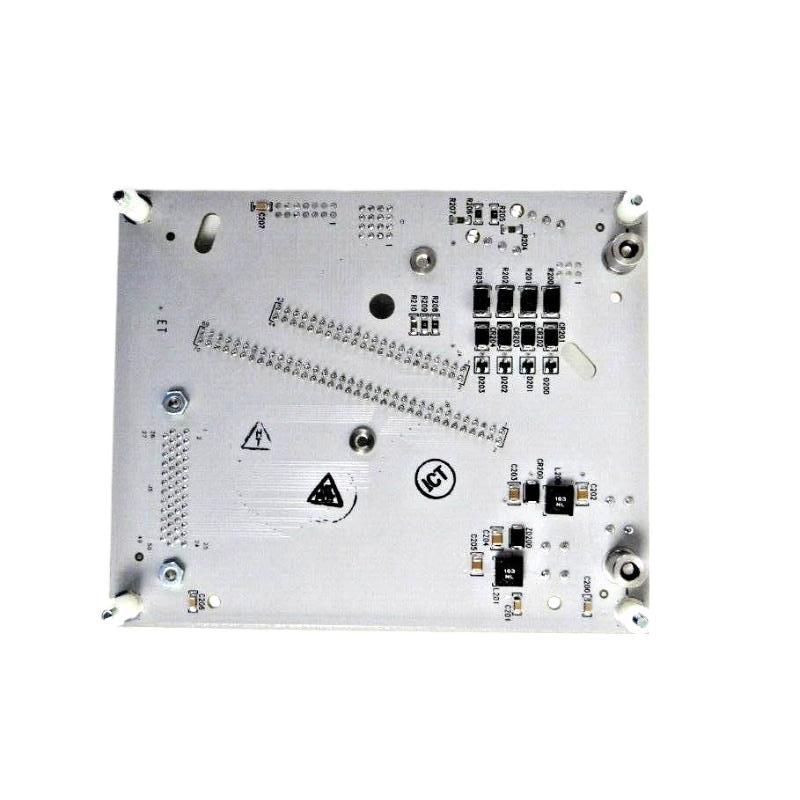

Honeywell CC-TD0R01 51308376-175 Digital Output Module

Brand:Honeywell DCS
Item No.:CC-TD0R01
Product Origin:USA
Product Dimensions:242 x 50 x 110 mm
Product Weight:0.45 kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

Introduction

The Honeywell CC-TD0R01 51308376-175 Digital Output Module is an essential part of Honeywell's C300 Control System, providing reliable and precise digital output control for a variety of field devices. This module is used in industrial automation systems to drive devices such as valves, actuators, relays, and motors, ensuring precise control in real-time applications. The CC-TD0R01 is perfect for industries where automation and efficient control of field devices are critical, including oil & gas, chemical processing, manufacturing, and power generation. By ensuring reliable output control, the module improves system efficiency, reliability, and safety, supporting continuous operation in demanding environments.

Technical Specifications

SpecificationDetails
ModelHoneywell CC-TD0R01 51308376-175
TypeDigital Output Module
Dimensions242 x 50 x 110 mm
Weight0.45 kg
Power Supply24V DC (Nominal)
Output TypeDigital (Relay/Actuator Control)
Number of Outputs8 Digital Outputs
Output Voltage24V DC (Nominal)
Mounting TypeDIN Rail Mounting
Operating Temperature Range-20°C to 70°C
CertificationsCE, RoHS, UL


Applications

The Honeywell CC-TD0R01 51308376-175 Digital Output Module is ideal for applications requiring precise control of digital output devices in various industries. Key applications include:

  • Oil & Gas: Controls valves, actuators, and other field devices used in exploration, refining, and pipeline operations to ensure accurate and reliable process control.

  • Chemical Processing: Manages the operation of devices such as mixers, pumps, and safety equipment in chemical plants, optimizing production efficiency and safety.

  • Power Generation: Powers field devices such as actuators and valves in power plants, improving the operation of turbines, generators, and boilers.

  • Manufacturing: Drives conveyor belts, actuators, and other machinery in automated production lines, enhancing system efficiency, safety, and throughput.

  • Water Treatment: Ensures smooth operation of pumps, valves, and other devices critical to water purification and distribution systems.

  • Building Management: Controls HVAC systems, lighting, and other building management devices, optimizing energy use and occupant comfort in facilities.


Advantages

  • Precise Digital Output Control: The CC-TD0R01 ensures accurate and reliable digital output control, enabling precise operation of actuators, valves, and other critical field devices.

  • Space-Saving Design: The compact design of the module allows for easy integration into control panels and automation systems, even in space-constrained environments.

  • Wide Operating Temperature Range: The module operates effectively in temperatures ranging from -20°C to 70°C, making it suitable for use in diverse industrial environments.

  • Energy Efficient: The module operates on a 24V DC nominal power supply, ensuring efficient energy consumption while maintaining consistent performance.

  • Durable and Reliable: Built with industrial-grade materials, the module ensures durability and reliable operation in harsh environments.

  • Global Certifications: The CE, RoHS, and UL certifications guarantee compliance with international safety, environmental, and quality standards.

  • Flexible Installation: The DIN rail mounting feature simplifies installation, reducing setup time and allowing for easy integration into existing systems.

  • Enhanced System Efficiency: The module contributes to system efficiency by providing precise control over digital output devices, improving process automation and control.

  • Versatile Application: The CC-TD0R01 can be used in a wide range of industries, including oil & gas, chemical processing, manufacturing, and power generation, offering flexibility in digital output control.

  • Improved Safety and Control: By providing accurate output control, the module ensures better safety, preventing malfunctions or errors in field devices and maintaining system integrity.


Technical FAQs

  1. What is the main function of the Honeywell CC-TD0R01 Digital Output Module?
    The CC-TD0R01 provides precise digital output control for field devices such as actuators, valves, and relays, ensuring reliable and accurate operation in industrial systems.

  2. What is the power supply requirement for the Honeywell CC-TD0R01 module?
    The module operates on a 24V DC nominal power supply, ensuring stable and energy-efficient performance.

  3. How is the Honeywell CC-TD0R01 mounted?
    The module is designed for DIN rail mounting, making it easy to integrate into existing control panels and systems.

  4. What is the operating temperature range of the Honeywell CC-TD0R01 module?
    The module operates effectively in temperatures ranging from -20°C to 70°C, ensuring reliable performance in various industrial environments.

  5. What certifications does the Honeywell CC-TD0R01 module have?
    The CC-TD0R01 is certified for CE, RoHS, and UL, meeting international standards for safety, environmental compliance, and quality.

  6. How many outputs does the Honeywell CC-TD0R01 module provide?
    The module provides 8 digital outputs, allowing it to control multiple field devices simultaneously.

  7. How does the Honeywell CC-TD0R01 improve system efficiency?
    The module improves system efficiency by providing precise control over field devices, enhancing automation, process reliability, and overall system performance.

  8. Can the Honeywell CC-TD0R01 module be used in harsh environments?
    Yes, the module is built to withstand industrial environments and is reliable even in challenging conditions, making it suitable for demanding applications.

  9. What types of devices can the Honeywell CC-TD0R01 module control?
    The module can control various digital output devices, including actuators, valves, relays, and other field devices in industrial control systems.

  10. What industries can benefit from the Honeywell CC-TD0R01 module?
    Industries such as oil & gas, chemical processing, manufacturing, power generation, and water treatment can benefit from the module’s ability to provide precise control over digital output devices.
