High-Integrity Signal Extension for Critical Turbomachinery Systems

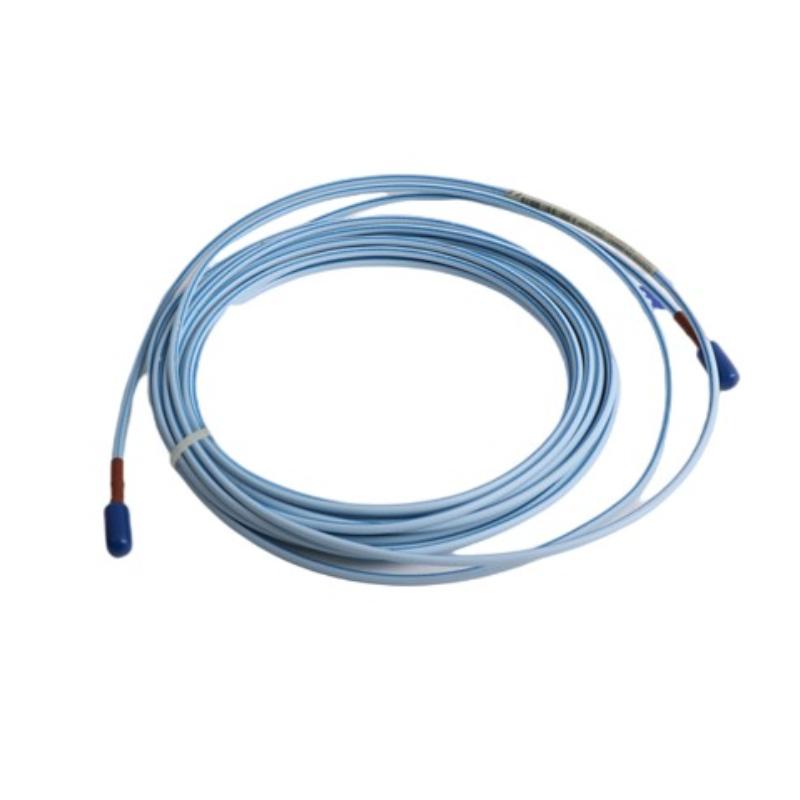

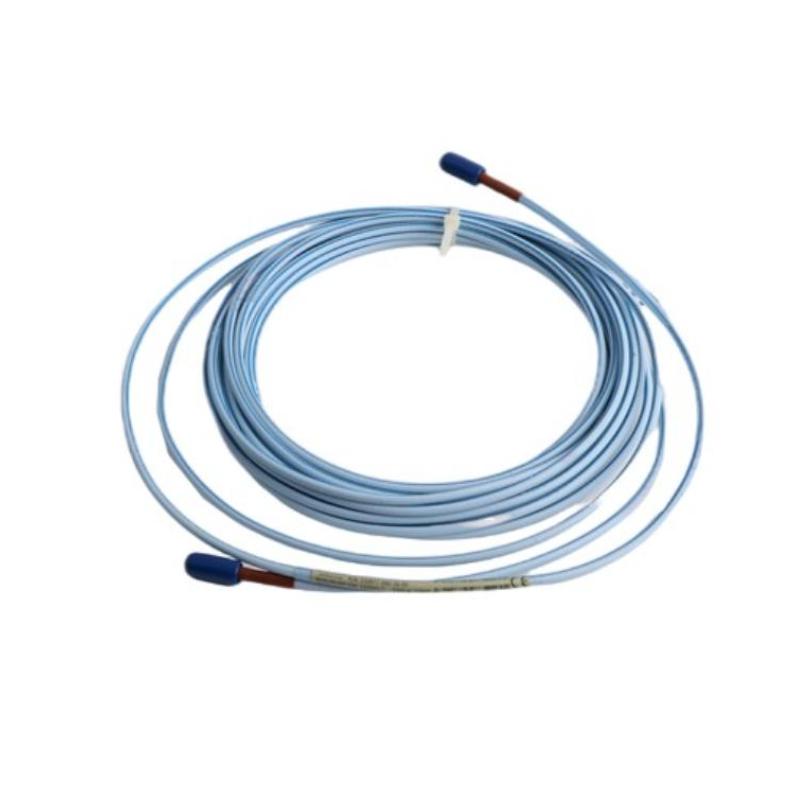

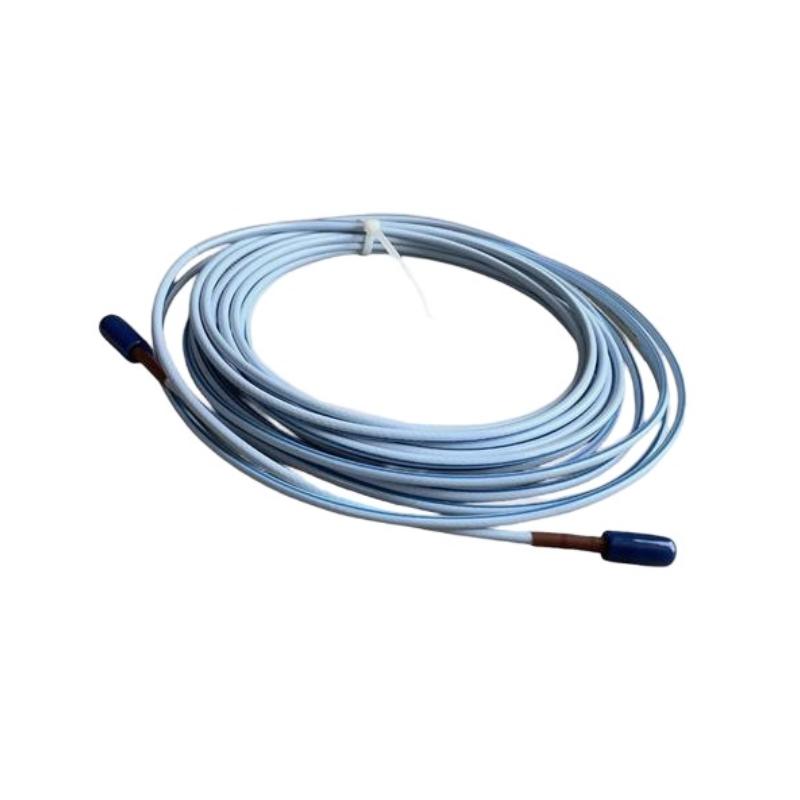

The Bently Nevada 330877-080-37-05 3300 XL 50 mm Extension Cable is a high-reliability interconnect component designed for use within the 3300 XL 50 mm proximity transducer system. It ensures stable, low-noise transmission between proximity probes and Proximitor® sensors, supporting accurate measurement of shaft vibration, displacement, and differential expansion in large rotating machinery.
Built for harsh industrial environments, this extension cable is optimized for long-distance routing, strong electromagnetic interference resistance, and continuous 24/7 operation in turbine supervisory instrumentation systems. It is widely used across power generation and heavy industry where signal integrity is critical to machine protection and operational safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 3300 XL 50 mm Extension Cable |
| Model Number | 330877-080-37-05 |
| System Series | 3300 XL 50 mm Transducer System |
| Function | Signal transmission between probe and Proximitor® sensor |
| Cable Length | 8.0 m (approx.) |
| Cable Type | 75 Ω triaxial low-noise cable |
| Insulation Material | PFA (Perfluoroalkoxy) |
| Shielding | EMI-resistant industrial shielding |
| Jacket Type | FluidLoc® environmental protection |
| Cable Construction | Armored industrial-grade design |
| Connector Type | ClickLoc® system connectors |
| Operating Temperature | -51°C to +200°C |
| Capacitance | ~69.9 pF/m typical |
| System Compatibility | 3300 XL 50 mm transducer systems |
| Approximate Dimensions | Length-dependent configuration |
| Approximate Weight | ~1.5–2.5 kg |
