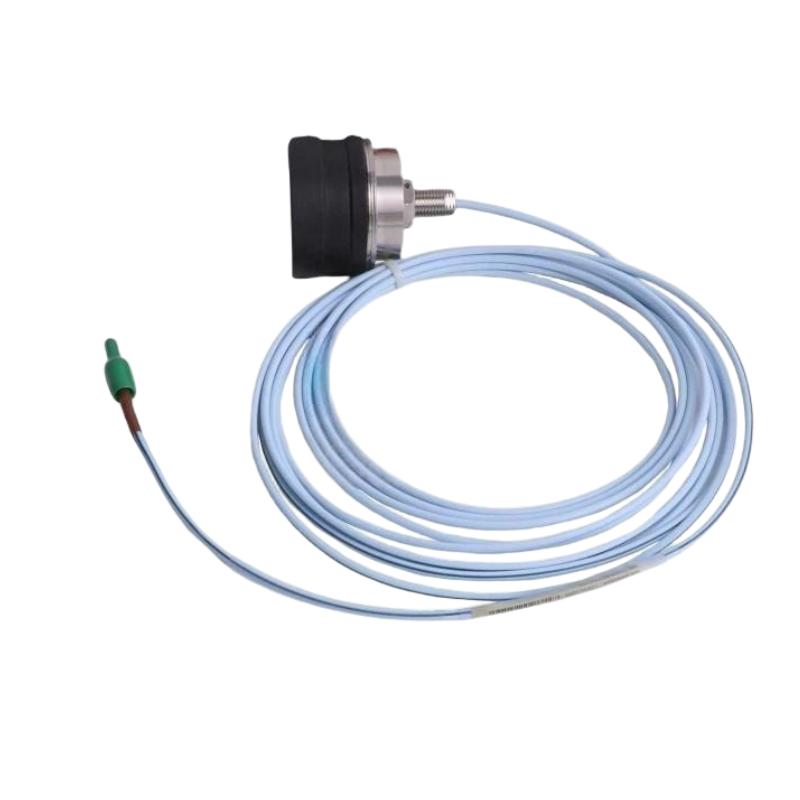

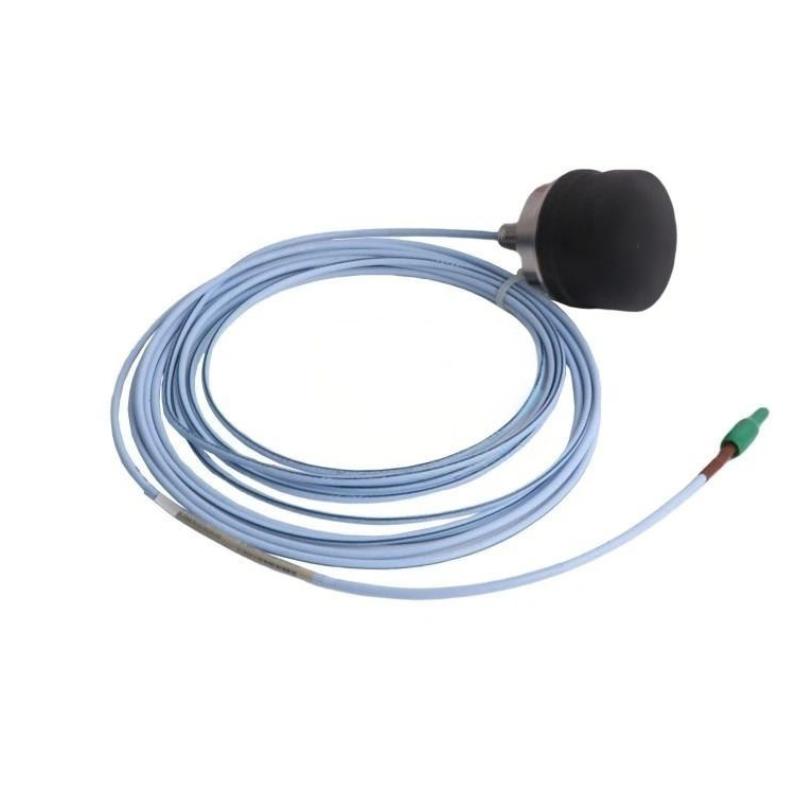

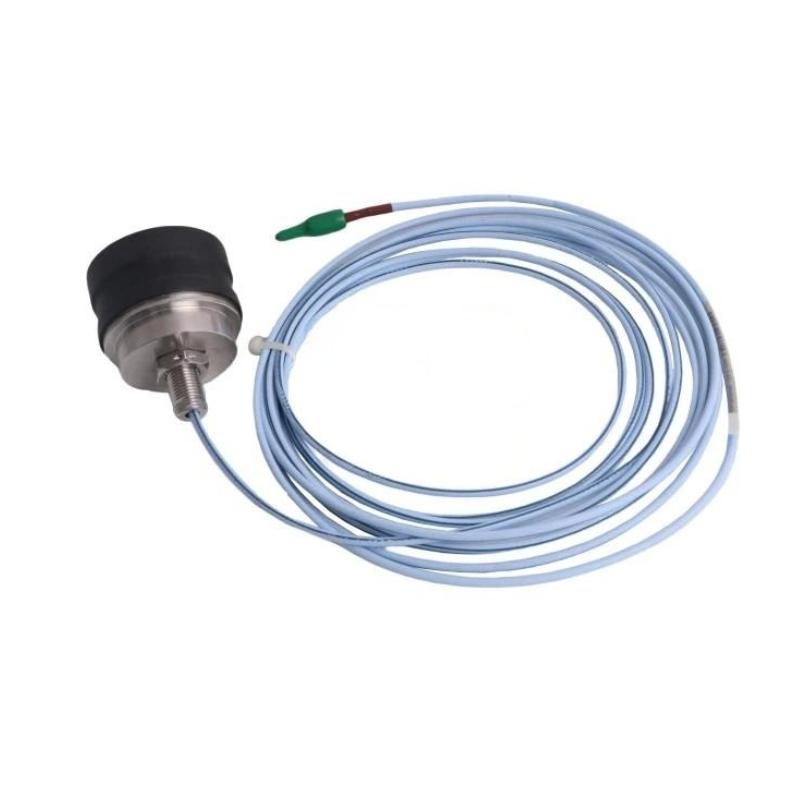

Bently Nevada 330876-02-90-01-00 3300 XL 50 mm Eddy-Current Probe

Name: Bently Nevada 330876-02-90-01-00 3300 XL 50 mm Eddy-Current Probe
Brand: Bently Nevada PLC
SKU: 9071
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330876-02-90-01-00
Product Origin:USA
Product Dimensions:Total Length : 9.0 meters
Product Weight:2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

High-Performance Differential Expansion Sensor for Large Turbomachinery

The Bently Nevada 330876-02-90-01-00 3300 XL 50 mm Eddy-Current Probe is a heavy-duty non-contact transducer designed for precise measurement of shaft displacement, vibration, and differential expansion in large rotating machinery. As part of the 3300 XL 50 mm transducer system, it is engineered specifically for steam turbines, hydro turbines, compressors, and large generator applications where long-range, high-stability measurement is required.

This probe is optimized for harsh industrial environments where temperature fluctuations, vibration, and long cable runs demand exceptional signal stability and mechanical durability. It provides reliable continuous monitoring, making it a core component in turbine supervisory instrumentation and predictive maintenance systems.

Technical Specifications

Parameter	Specification
Product Type	3300 XL 50 mm Eddy-Current Proximity Probe
Model Number	330876-02-90-01-00
System Series	3300 XL 50 mm Transducer System
Measurement Technology	Eddy-current non-contact sensing
Probe Diameter	50 mm
Primary Measurement	Shaft vibration, displacement, differential expansion
Cable Length	9.0 m (approx.)
Cable Type	High-temperature FluidLoc® triaxial cable
Armor	Armored cable configuration
Output Signal	Compatible with 3300 XL Proximitor® system
Housing Material	Stainless steel
Environmental Protection	High resistance to EMI, oil, moisture, and vibration
Operating Temperature	-35°C to +200°C (continuous)
Short-Term Temperature	Up to +250°C
Approximate Dimensions	50 mm probe head × ~150–170 mm assembly length
Approximate Weight	~0.8–1.5 kg

Applications

This probe is widely used in:

Steam turbine differential expansion (DE) measurement
Large hydro turbine rotor monitoring
Centrifugal and axial compressor vibration monitoring
Generator shaft displacement tracking
Industrial gearbox condition monitoring
Oil & gas turbomachinery protection systems
Petrochemical plant rotating equipment
Power generation turbine supervisory instrumentation (TSI) systems
Heavy-duty industrial drive systems
Marine propulsion machinery monitoring

Advantages

Extended 50 mm sensing capability for large rotor systems
High stability under thermal and mechanical stress
Designed for long cable routing in turbine halls
Excellent EMI/RFI noise resistance
Rugged stainless-steel industrial construction
Stable output for continuous 24/7 monitoring
High-temperature FluidLoc® cable protection
Supports predictive maintenance strategies
Proven reliability in critical turbomachinery environments
Seamless integration with 3300 XL monitoring systems

Technical FAQs

1. What is the main function of this probe?

It measures shaft position, vibration, and differential expansion in large rotating machines.

2. Why is a 50 mm probe used?

It provides a longer linear measurement range suitable for turbine-scale motion.

3. Does this probe work alone?

No, it must be used with a compatible extension cable and Proximitor® sensor.

4. What does the “90” code usually indicate?

It typically corresponds to a long cable configuration (commonly around 9 meters).

5. Is this probe suitable for steam turbines?

Yes, it is specifically designed for steam turbine DE applications.

6. Can it handle high temperatures?

Yes, it supports continuous high-temperature turbine environments.

7. Is it a contact-based sensor?

No, it uses eddy-current non-contact measurement.

8. What industries use this probe?

Power generation, oil & gas, petrochemical, marine, and heavy industry.

9. Is it suitable for continuous operation?

Yes, it is designed for 24/7 monitoring systems.

10. What is the benefit of the 3300 XL system?

It provides high-accuracy, long-range vibration and displacement monitoring for critical assets.
