Heavy-Duty Non-Contact Monitoring for Large Turbomachinery

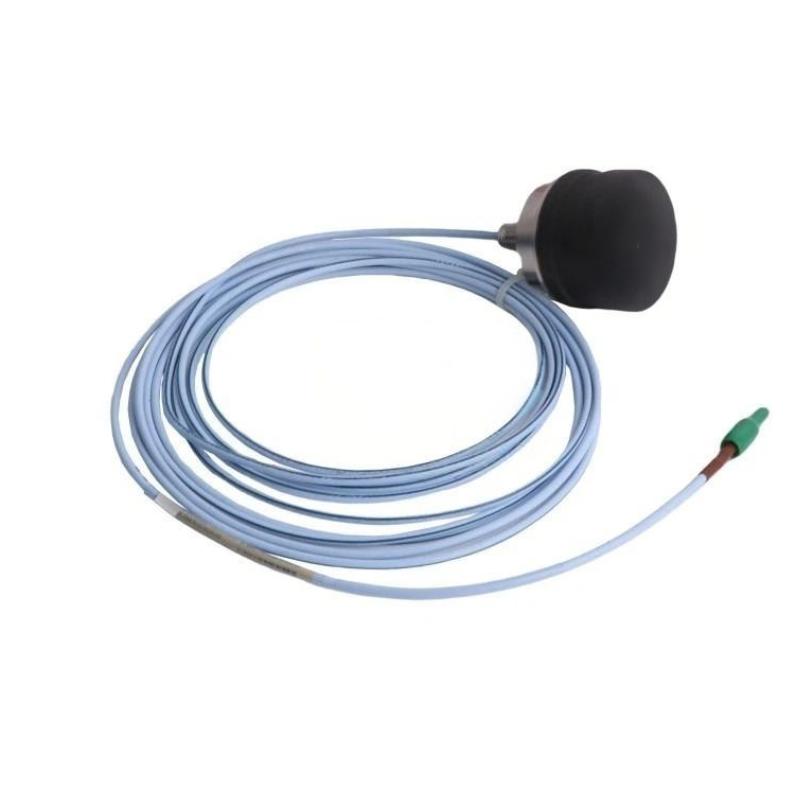

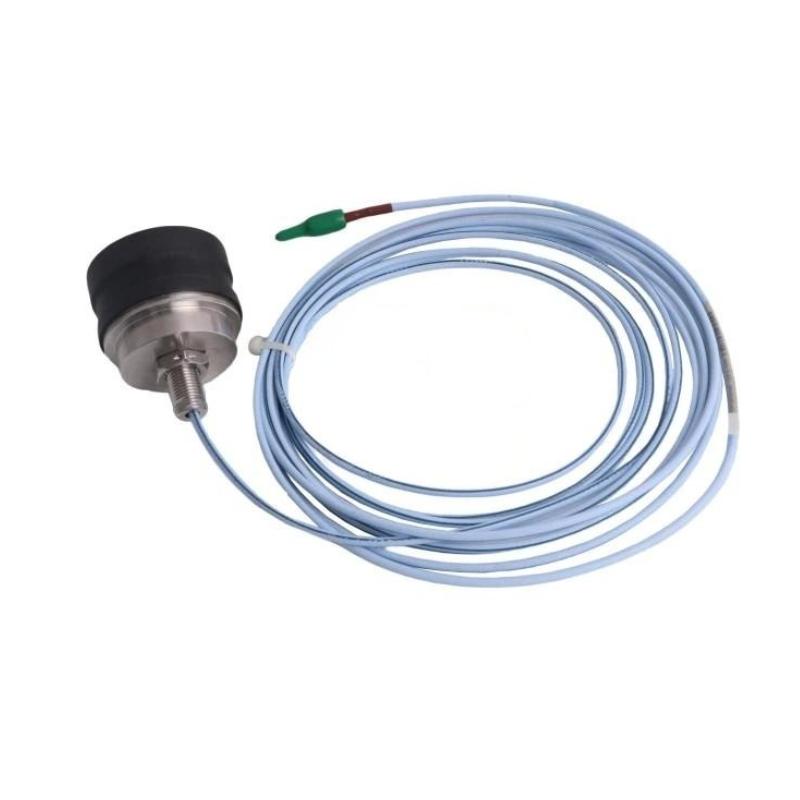

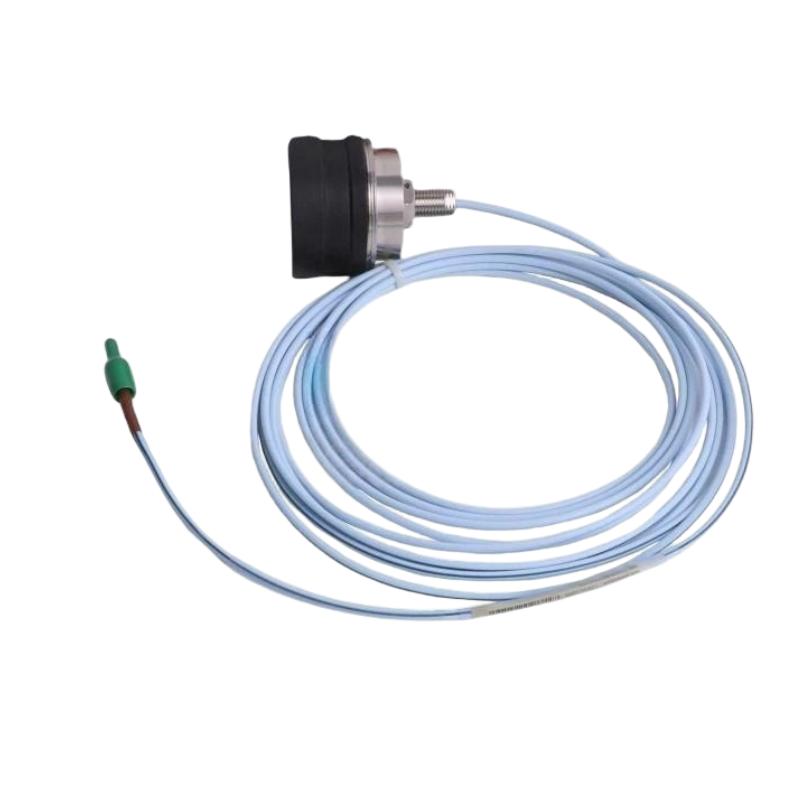

The Bently Nevada 330876-01-90-00-00 3300 XL 50 mm Eddy-Current Probe is a premium industrial sensor designed for highly accurate non-contact measurement of shaft displacement, differential expansion, and rotor position in large rotating machinery. As part of the 3300 XL 50 mm Transducer System, this probe is specifically engineered for applications where standard 8 mm or 25 mm probes do not provide sufficient measurement range.
Built to withstand demanding industrial environments, this large-diameter probe delivers exceptional stability, durability, and long-term performance. It is widely installed in steam turbines, hydro turbines, large compressors, and generator systems that require continuous machinery protection and precise condition monitoring.
Its advanced eddy-current technology helps operators detect mechanical abnormalities early, reducing unplanned downtime and extending equipment life.
Engineering Specifications — Performance & Physical Data
| Parameter | Details |
|---|---|
| Product Type | 3300 XL 50 mm Eddy-Current Probe |
| Model Number | 330876-01-90-00-00 |
| Product Series | 3300 XL 50 mm Transducer System |
| Measurement Technology | Non-contact eddy-current sensing |
| Probe Diameter | 50 mm |
| Primary Measurements | Differential expansion, shaft displacement, rotor position, vibration |
| Probe Construction | Industrial heavy-duty design |
| Cable Length | 9.0 m (29.5 ft) |
| Armor Option | Non-armored cable |
| Approval Option | Standard industrial version |
| Cable Type | 75 Ω triaxial low-noise cable |
| Housing Material | Stainless steel |
| Probe Tip Material | High-temperature engineering polymer |
| Continuous Operating Temperature | -35°C to +200°C |
| Short-Term Temperature Capability | Up to +250°C |
| Approximate Probe Dimensions | 50 mm sensing diameter × 160 mm overall assembly length |
| Approximate Weight | 0.9–1.5 kg |
