Introduction

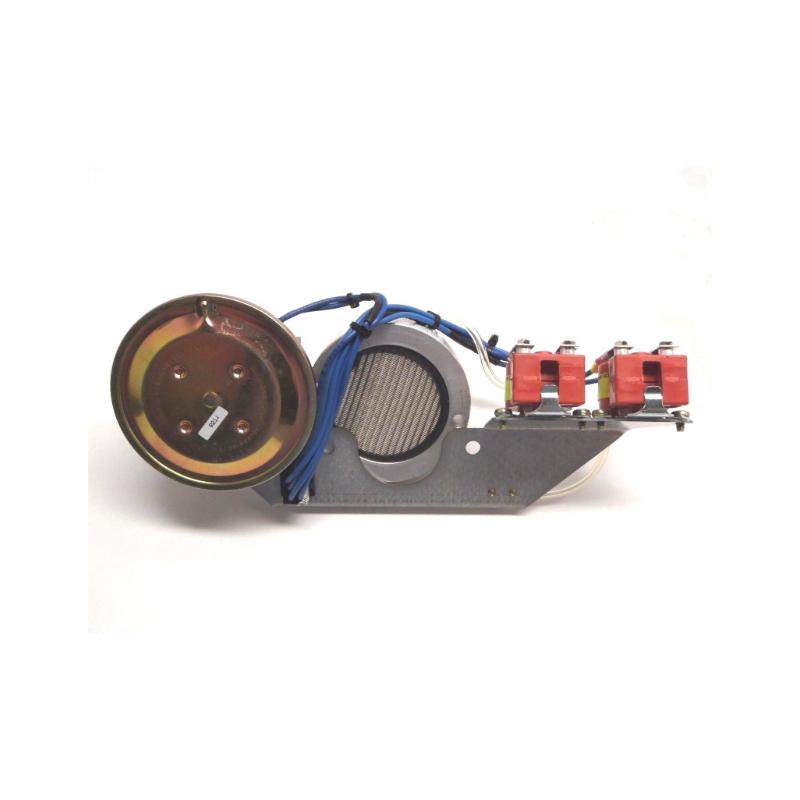

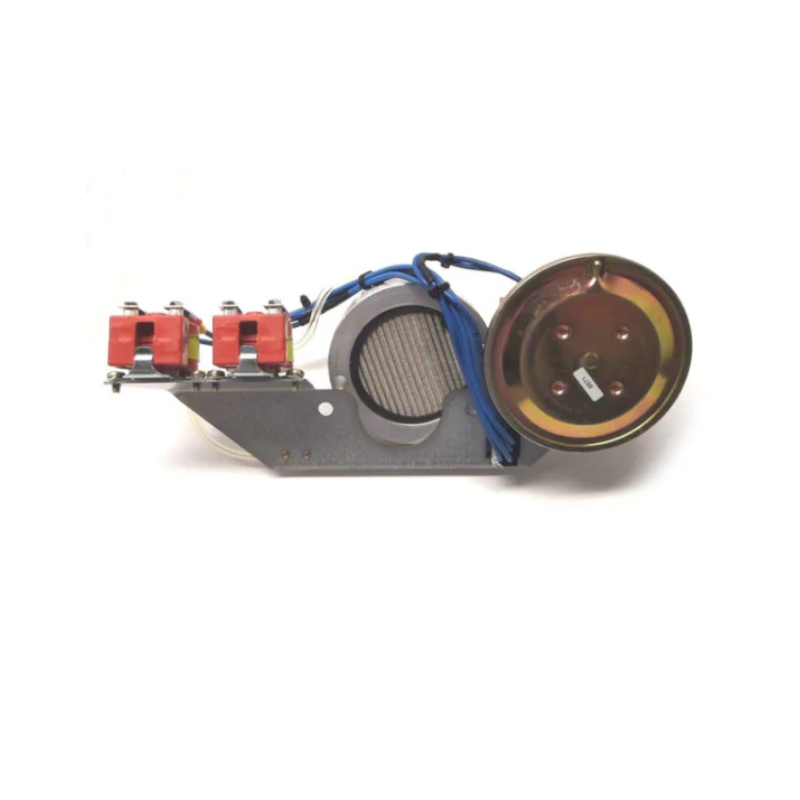

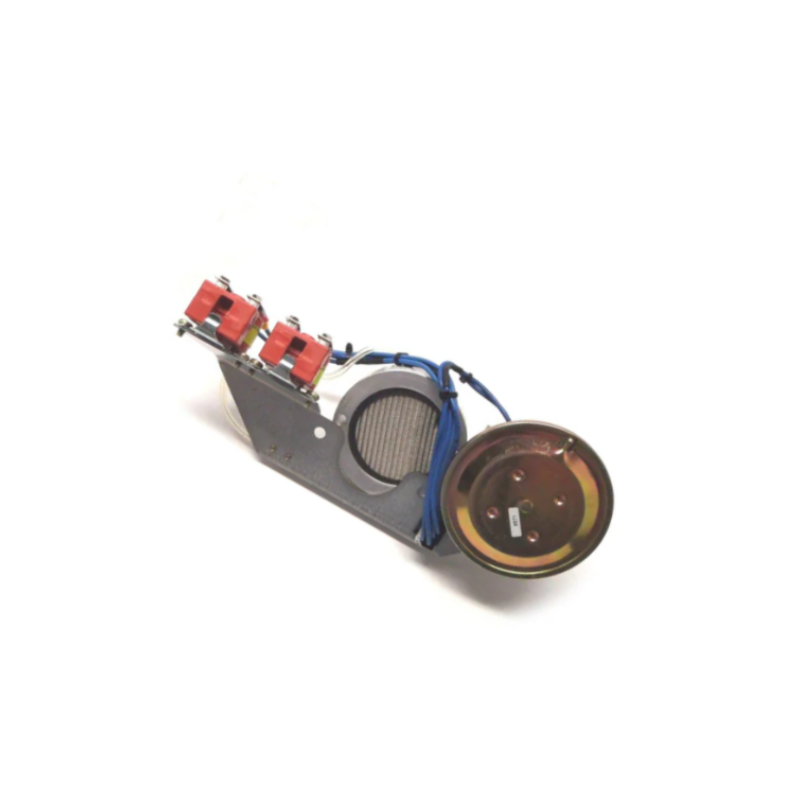

The ABB 3HNM00272-1 Purge Sensor is an industrial-grade monitoring device designed to supervise purge gas flow conditions within automated control and safety-critical systems. It plays a key role in ensuring that protective gas environments remain stable, helping industrial equipment operate safely in areas where contamination, gas buildup, or environmental instability must be controlled.
Engineered for reliability and fast response, this sensor is commonly used in ABB-driven automation setups where continuous environmental monitoring directly impacts system safety and process integrity.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | 3HNM00272-1 |
| Product Type | Purge Sensor |
| Function | Gas flow / purge monitoring |
| Output Signal | 4–20 mA analog signal |
| Power Supply | 24 V DC ±10% |
| Current Consumption | ≤ 25 mA |
| Measuring Range | 0–10 m/s (adjustable) |
| Response Time | < 1 second |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0–95% RH (non-condensing) |
| Protection Rating | IP65 |
| Housing Material | Industrial stainless steel / reinforced enclosure |
| Mounting Type | Wall or panel mounting |
| Dimensions (H×W×D) | 100 mm × 60 mm × 40 mm |
| Weight | ~0.2 kg |
Applications
The ABB 3HNM00272-1 sensor is used in environments where purge gas control is essential for operational safety and equipment protection:
-
Industrial automation safety systems
-
Gas purge monitoring systems
-
Power generation facilities
-
Chemical processing plants
-
Oil & gas instrumentation systems
-
Hazardous environment control cabinets
-
Turbine and compressor protection systems
-
Process safety interlock systems
Technical FAQs
Q1: What is the main function of this sensor?
A: It monitors purge gas flow to ensure safe operating conditions in industrial systems.
Q2: What output signal does it provide?
A: It provides a standard 4–20 mA analog signal.
Q3: What is the power requirement?
A: It operates on 24V DC industrial power supply.
Q4: Is it suitable for harsh environments?
A: Yes, it has IP65 protection for dust and water resistance.
Q5: What industries use this sensor?
A: Oil & gas, power plants, chemical processing, and industrial automation.
Q6: What is the response time?
A: Less than 1 second for fast detection.
Q7: Can it be panel mounted?
A: Yes, it supports wall and panel installation.
Q8: What is the measuring range?
A: Typically 0 to 10 m/s, depending on configuration.
Q9: Is it compatible with PLC systems?
A: Yes, via standard 4–20 mA input modules.
Q10: What is its primary safety role?
A: It ensures purge systems maintain safe environmental conditions to prevent hazardous buildup.
