Dependable Vibration Measurement for Critical Rotating Assets

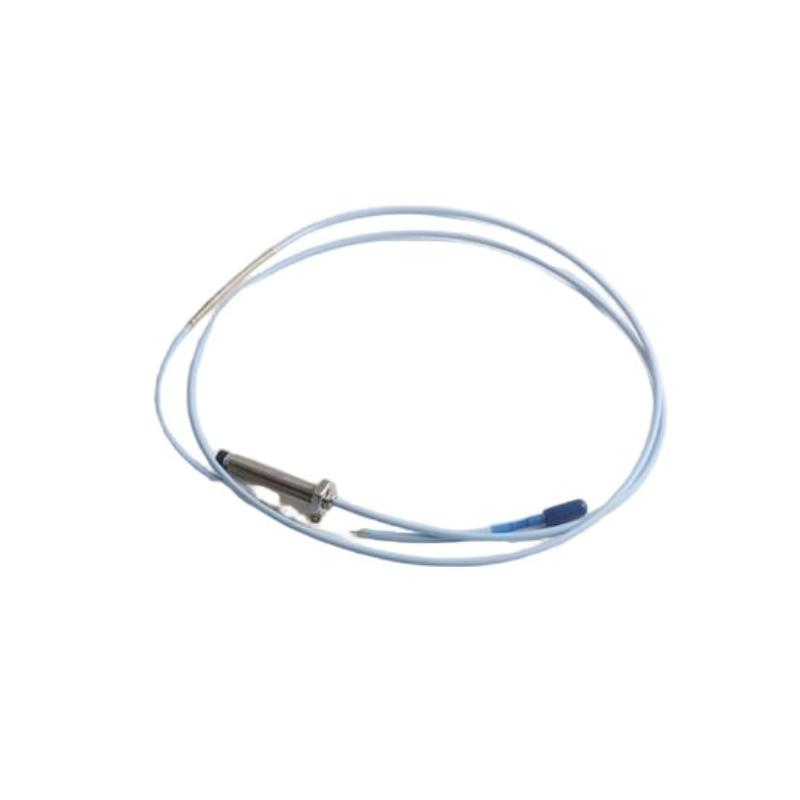

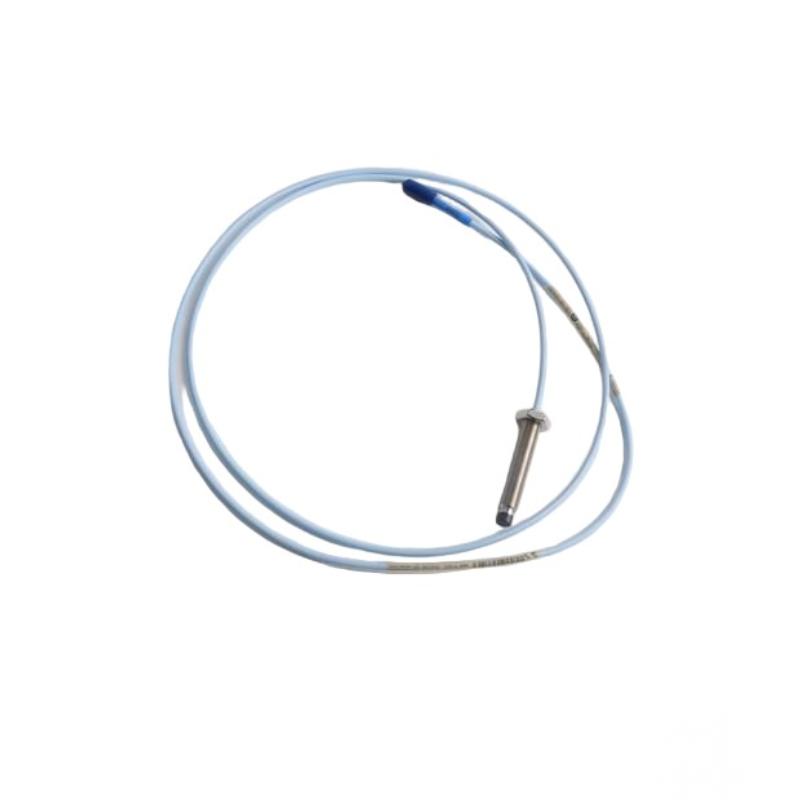

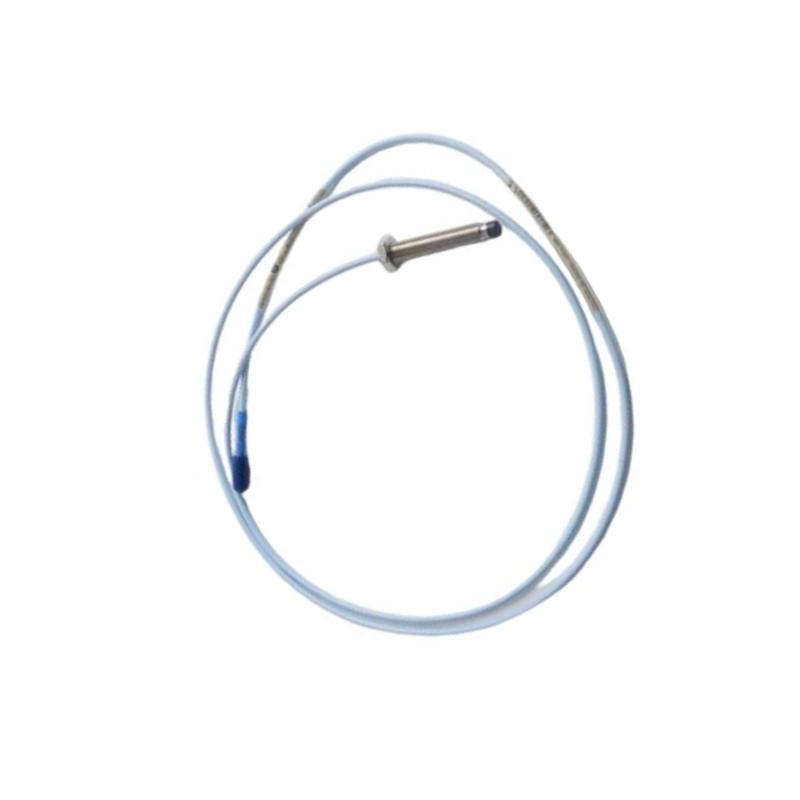

The Bently Nevada 330103-10-15-10-02-05 3300 XL 8 mm Proximity Probe Metric is a premium non-contact eddy current sensor engineered to provide highly accurate measurements of shaft vibration, radial displacement, and axial position. As part of the industry-leading 3300 XL 8 mm Proximity Transducer System, this probe delivers excellent linearity, thermal stability, and long-term reliability, making it an ideal solution for continuous machinery protection and predictive maintenance in demanding industrial environments. It is fully compatible with 3300 XL Proximitor® Sensors and extension cables for seamless system integration.
Designed with an M10 × 1 metric thread, 100 mm unthreaded section, 150 mm overall case length, 1.0-meter standard cable, Miniature Coaxial ClickLoc™ connector, and CSA, ATEX, IECEx approvals, this model offers an excellent balance of installation flexibility, measurement precision, and certified operational safety for hazardous industrial locations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330103-10-15-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe Metric |
| Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 Metric |
| Probe Configuration | Without Armor |
| Unthreaded Length | 100 mm |
| Overall Case Length | 150 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | CSA, ATEX, IECEx |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Dimensions | 150 mm Probe Case Length; 1.0 m Cable Length |
| Approximate Weight | 0.32 kg |
