High-Precision Synchronization Control for Industrial Power Systems

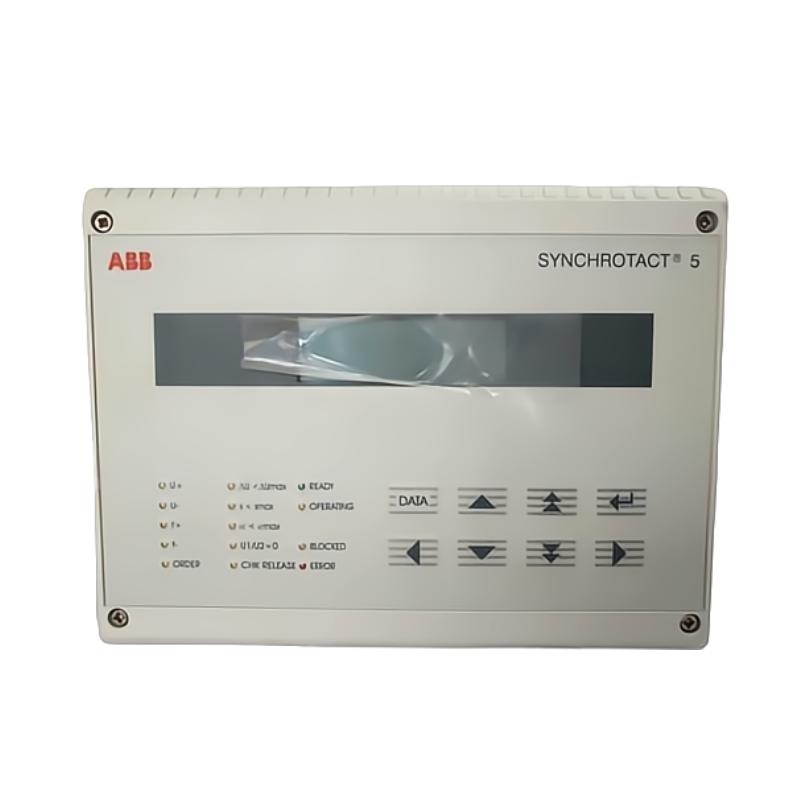

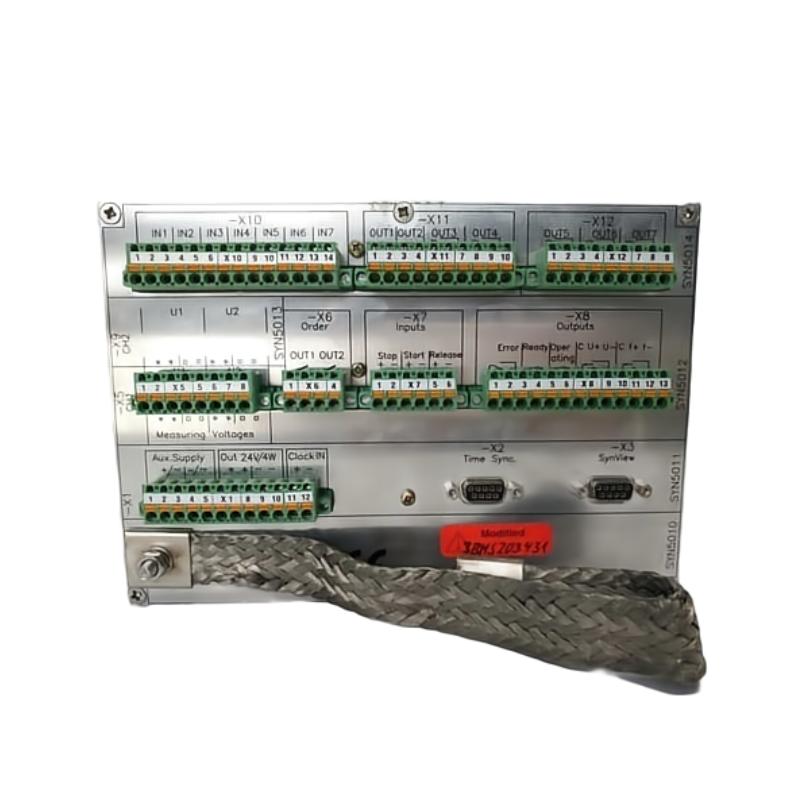

The ABB SYN 5202A-Z V211 3BHB006715R0211 Synchronizing Device is an industrial-grade control unit designed to manage precise synchronization between generators, busbars, and power systems. As part of ABB’s SYNCHROTACT family, it supports accurate monitoring of voltage, frequency, and phase alignment to ensure stable and coordinated system operation.
Built for modern power infrastructure and industrial automation environments, this synchronizing device is widely used in applications where reliable power coupling and controlled switching are essential for continuous and efficient operation.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model Number | SYN 5202A-Z V211 |

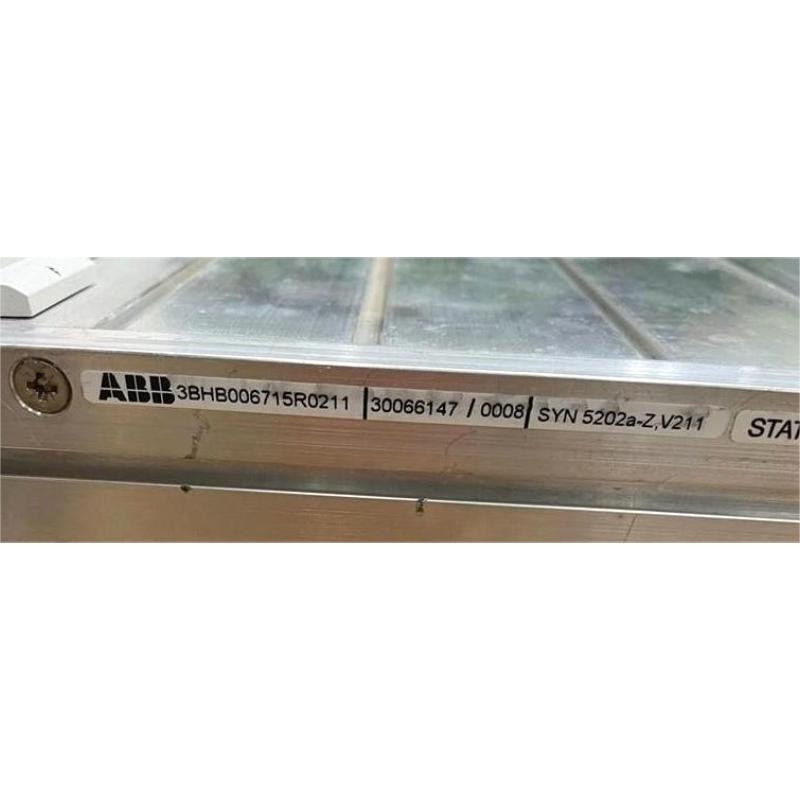

| Part Number | 3BHB006715R0211 |
| Product Type | Automatic Synchronizing Device |
| System Series | SYNCHROTACT 5 |
| Function | Synchronization and Paralleling Control |
| Auxiliary Voltage AC | 100–230 V AC |
| Auxiliary Voltage DC | 24–250 V DC |
| Rated Frequency | 50 / 60 Hz |
| Measurement Frequency Range | 10–100 Hz |
| Input Voltage Range | 50–130 V AC |
| Phase Angle Range | -179° to +180° |
| Operating Temperature | +5°C to +70°C |
| Mounting Type | Panel / Cabinet Integration |
| Approx. Dimensions | 300 × 220 × 120 mm |
| Approx. Weight | 3.0–3.5 kg |
| Country of Origin | Switzerland |
Application Areas
Power Generation Systems
Used for controlled synchronization of generators before connection to electrical grids, ensuring stable system operation.
Utility and Substation Infrastructure
Supports safe and coordinated paralleling of busbars and transmission lines in utility networks.
Industrial Drive Systems
Applied in medium-voltage drive environments requiring synchronized power switching and stable operation control.
Oil, Gas, and Process Industries
Suitable for continuous operations where stable electrical synchronization is critical to production continuity.
Renewable Energy Systems
Used in hybrid and renewable installations such as wind and hydro systems for grid integration control.
Key Performance Advantages
Accurate Synchronization Control
Ensures precise alignment of voltage, frequency, and phase angle before system connection.
Stable System Operation
Helps maintain consistent electrical conditions during generator or grid coupling processes.
Industrial Reliability Design
Built for long-term performance in demanding industrial environments with continuous operation requirements.
Flexible Power Compatibility
Supports a wide range of auxiliary voltage inputs for adaptable system integration.
Efficient System Coordination
Enhances synchronization accuracy across multiple power sources and system configurations.
ABB Engineering Quality
Designed according to ABB industrial automation and power system standards for dependable performance.
Technical FAQs
1. What is the main function of the SYN 5202A-Z V211?
It provides automatic synchronization control for generators and power systems by aligning electrical parameters.
2. Where is this device commonly used?
It is used in power plants, substations, and industrial automation systems.
3. Is it suitable for continuous operation?
Yes, it is designed for long-term industrial use.
4. What voltage ranges does it support?
It supports 100–230 V AC and 24–250 V DC auxiliary power ranges.
5. What frequency systems are compatible?
It operates with both 50 Hz and 60 Hz systems.
6. Does it require programming?
No direct programming is required; it operates through system-level configuration.
7. Can it be used for generator synchronization?
Yes, it is commonly used for generator-to-grid synchronization.
8. What industries use this device?
Energy, utilities, manufacturing, mining, and process industries.
9. What role does it play in system stability?
It helps maintain controlled synchronization conditions for stable operation.
10. Why is this model widely used?
Because of its reliable performance, precise control capability, and compatibility with ABB systems.
