ABB TPU2 ART.NR 3HNE00313-1 Teaching Pendant

Name: ABB TPU2 ART.NR 3HNE00313-1 Teaching Pendant
Brand: ABB PLC
SKU: 8807
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:TPU2 ART.NR 3HNE00313-1
Product Origin:Sweden (SE)
Product Dimensions:120 x 75 x 50 mm
Product Weight:1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

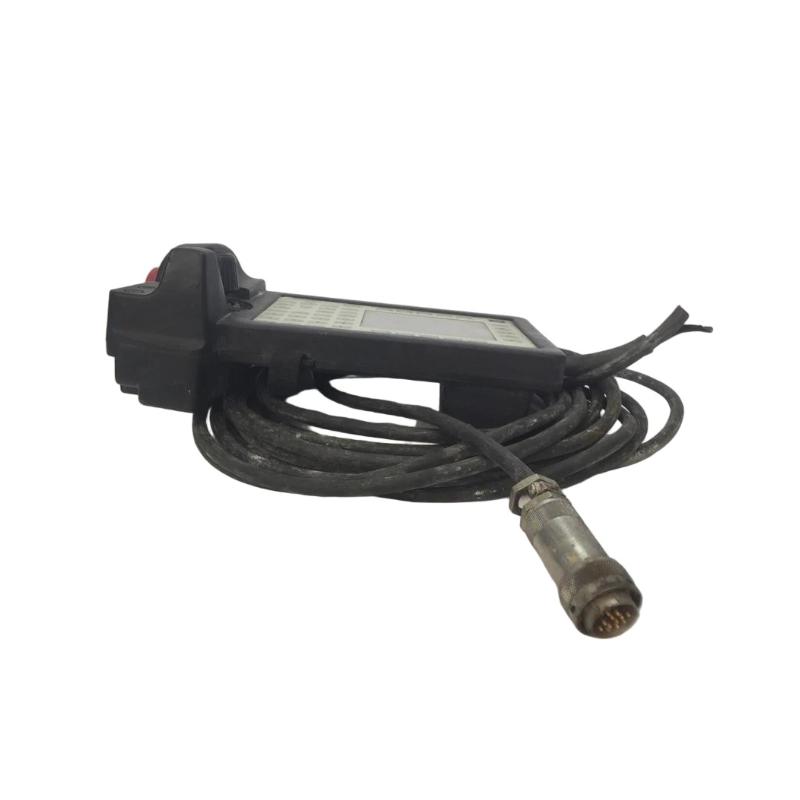

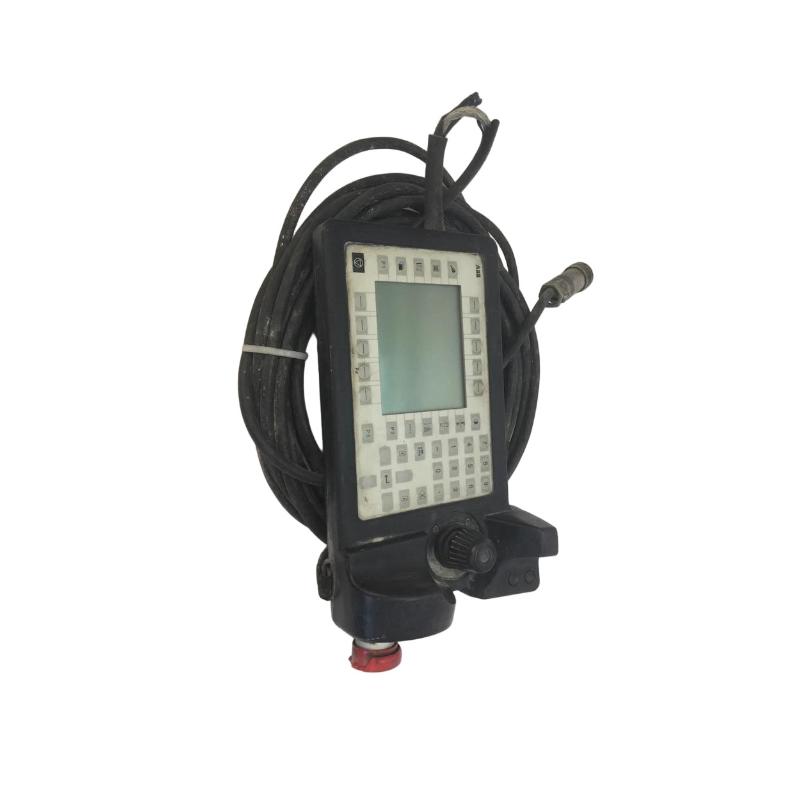

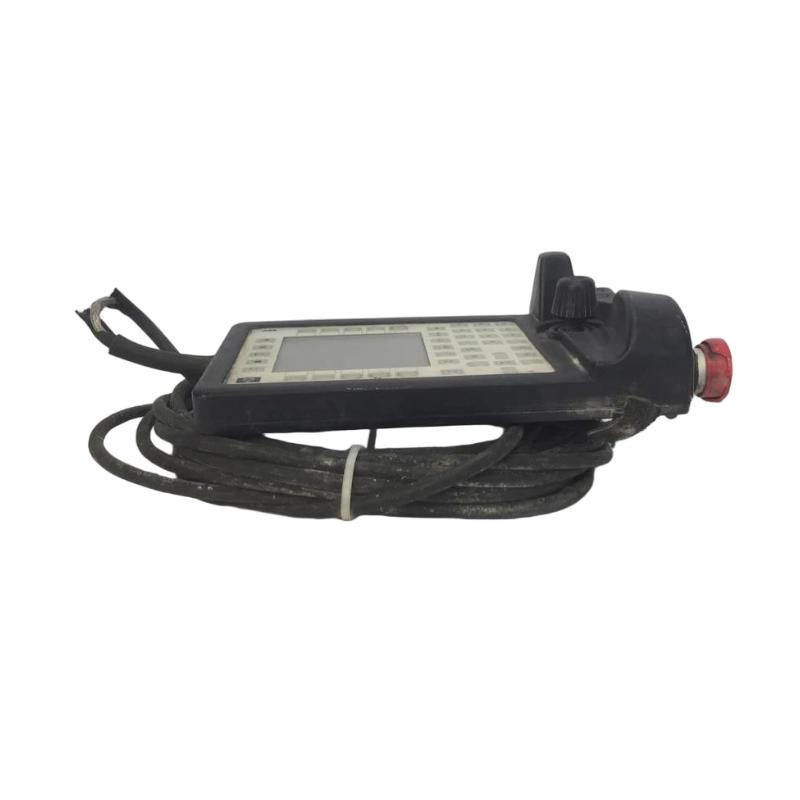

The ABB TPU2 Teach Pendant (ART.NR 3HNE00313-1) is a handheld robot programming and operation interface designed for ABB industrial robot controllers such as S4C and S4C+ systems. It allows operators and engineers to manually teach robot positions, create motion paths, monitor system status, and perform safe manual jogging of robotic arms directly from the shop floor.

This device is a critical Human-Machine Interface (HMI) component in ABB robotics ecosystems, combining real-time control, safety functions, and programming capability in a rugged handheld unit built for industrial environments.

It is widely used in automotive manufacturing, welding cells, material handling systems, and general automation lines where precise robot teaching and adjustment are required.

Technical Specifications

The TPU2 teach pendant provides direct interaction with ABB robot controllers through a dedicated communication cable and control interface.

Parameter	Specification
Model	TPU2 Teach Pendant
ABB Article Number	3HNE00313-1
Type	Robot Teach Pendant / Programming Unit
System Compatibility	ABB S4C / S4C+ robot controllers
Function	Robot programming, manual jogging, system monitoring
Display	LCD display with backlight
Input Interface	Keypad + function keys + joystick
Safety Features	Emergency stop + enabling switches
Communication	Dedicated robot controller cable (CAN-based system)
Power Supply	24 VDC (controller supplied)
Cable Length	Typically 10 m standard (varies by configuration)

Applications

The ABB TPU2 teach pendant is used in a wide range of robotic automation environments where manual teaching and system interaction are required:

Industrial robot programming and path teaching
Automotive welding and assembly lines
Machine tending and material handling systems
Packaging and palletizing automation
CNC integration with robotic cells
Maintenance and troubleshooting of ABB robot systems
Offline-to-online program adjustment and calibration

It is especially valuable during commissioning phases where precise robot positioning and motion tuning are required.

Advantages

Intuitive handheld control for ABB robot programming
Integrated safety system with emergency stop and enabling switches
Real-time jogging and motion teaching capability
Rugged industrial design suitable for harsh environments
Clear LCD interface for system messages and diagnostics
Direct compatibility with ABB S4C / S4C+ robot platforms
Improves commissioning speed and operational efficiency
Ergonomic layout designed for long-term operator use

Technical FAQs

1. What is the main function of the TPU2 teach pendant?
It is used to program, teach, and manually control ABB industrial robots.

2. Which robot systems is it compatible with?
Primarily ABB S4C and S4C+ controllers.

3. Can it run the robot automatically?
No, it is used for manual control and programming, not autonomous operation.

4. Does it include an emergency stop?
Yes, it includes a dedicated emergency stop button for safety.

5. What is the purpose of the joystick?
It allows precise manual jogging of robot axes.

6. Is it required for robot operation?
It is essential for teaching and maintenance, especially in manual mode.

7. What is its approximate weight?
Around 0.9 kg excluding cable.

8. Does it support modern ABB robots?
No, it is mainly used with older S4C/S4C+ generations.

9. Can it be replaced with software tools?
Simulation tools exist, but real robot teaching typically still requires a physical pendant.

10. Is it durable for industrial use?
Yes, it is designed for continuous use in harsh manufacturing environments.
