Introduction

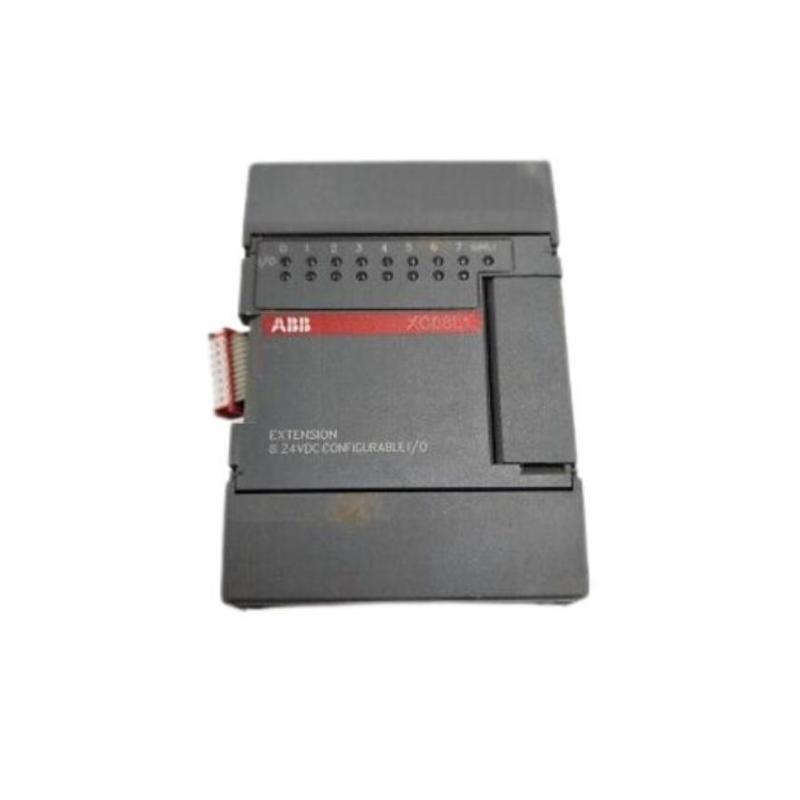

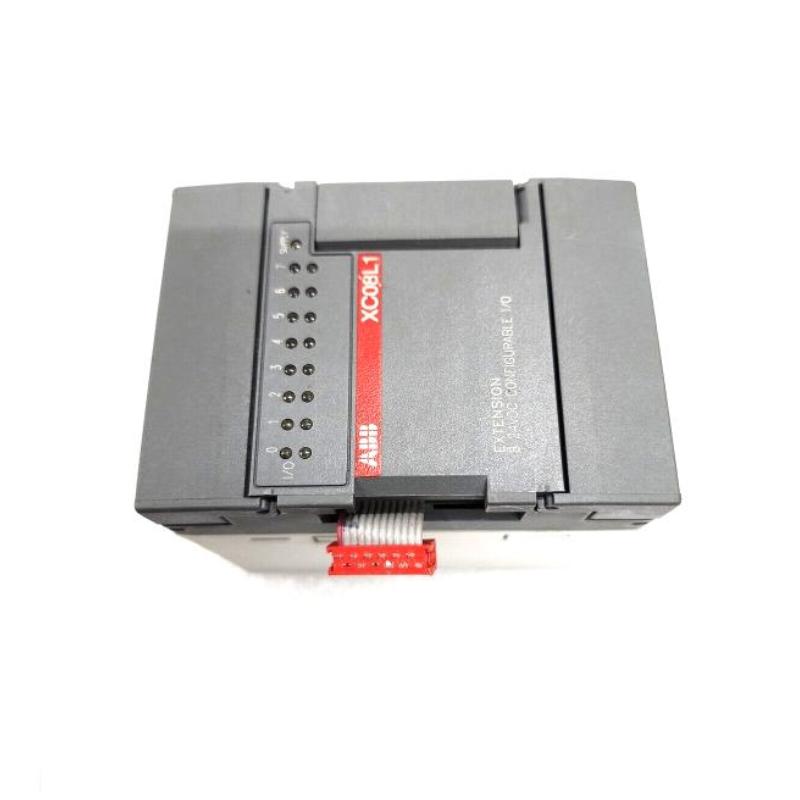

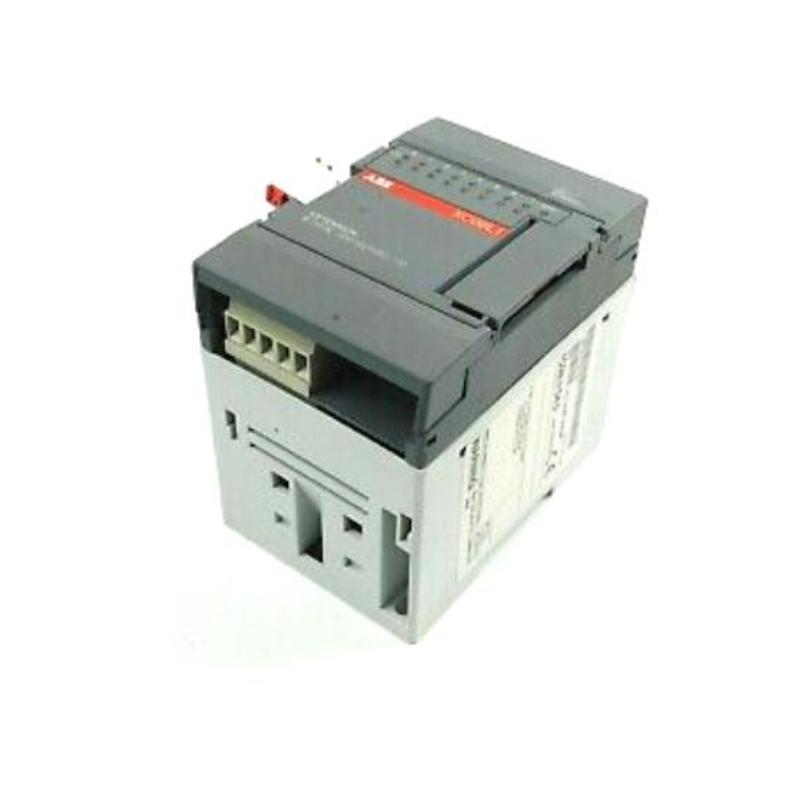

The ABB XC08L1 (1SBP260102R1001) is a compact digital I/O extension module used in ABB Advant Controller 31 / Advant OCS automation systems. It is designed to expand the number of field input and output points, allowing flexible adaptation of control systems in industrial automation environments.
This module supports configurable I/O mode operation, meaning each channel can be defined as either an input or output depending on application requirements. This flexibility makes it a cost-efficient and scalable solution for machine control, process automation, and distributed I/O architectures.
Built for industrial reliability, the XC08L1 is commonly used in environments where stable 24V DC signal handling and modular system expansion are required.
Technical Specifications
The XC08L1 provides flexible digital signal processing with configurable channel architecture.
| Parameter | Specification |
|---|---|
| Model | XC08L1 |
| ABB Part Number | 1SBP260102R1001 |
| Type | Digital I/O Extension Unit |
| System Platform | ABB Advant Controller 31 / Advant OCS |
| Function | Configurable digital input/output expansion |
| Channels | 8 configurable I/O points |
| Input Type | 24V DC digital input (0–24V, ~5 mA) |
| Output Type | 24V DC transistor output (up to ~0.5 A) |
| Configuration | Per-channel selectable I/O mode |
| Power Supply | 24V DC external supply |
| Installation | DIN rail / cabinet mounting |
