Industrial-Grade Sensing Solution with Certified Configuration Options

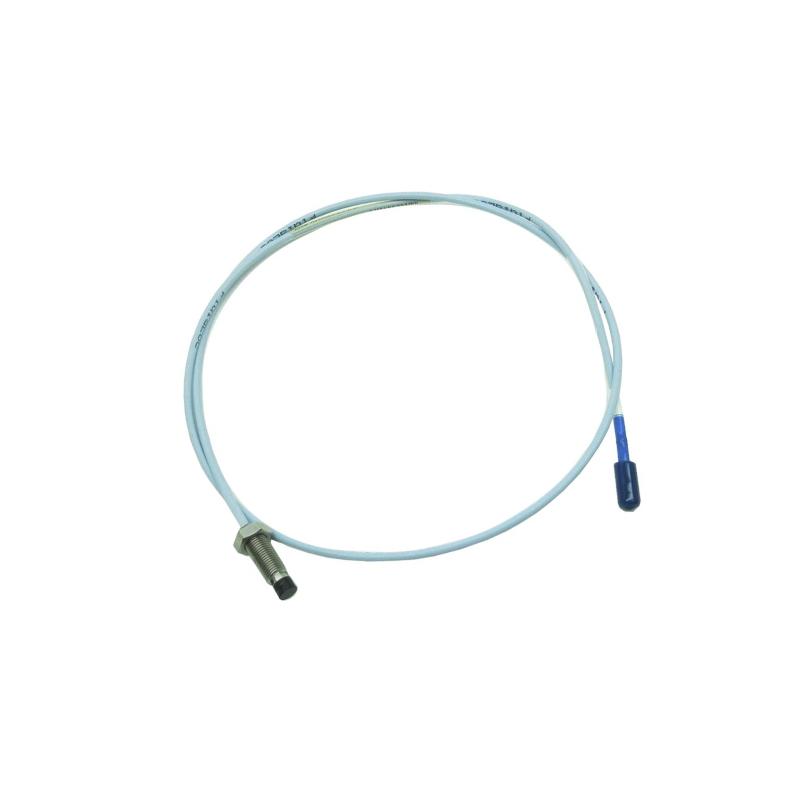

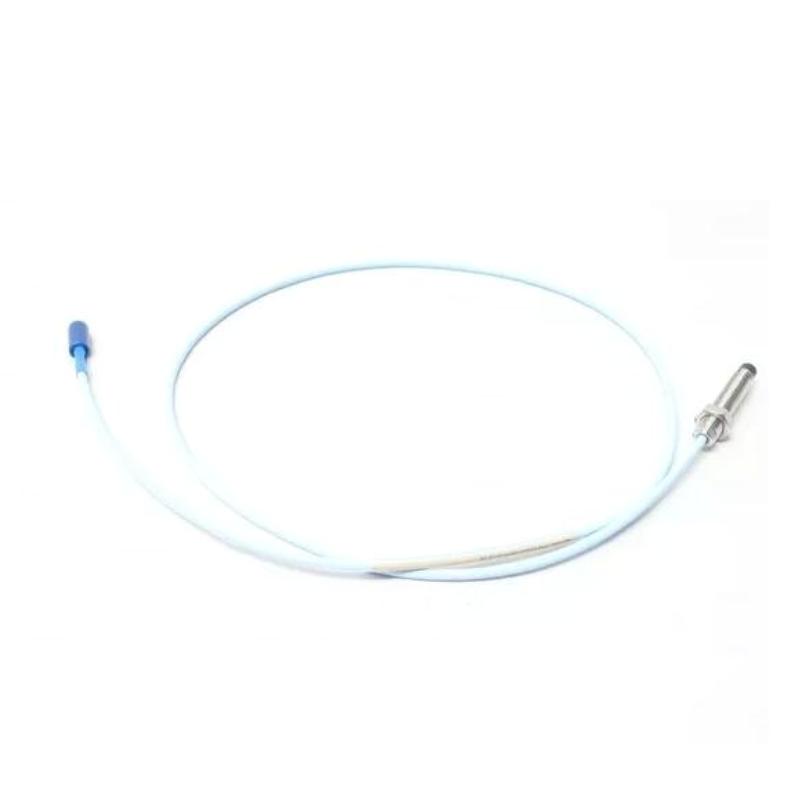

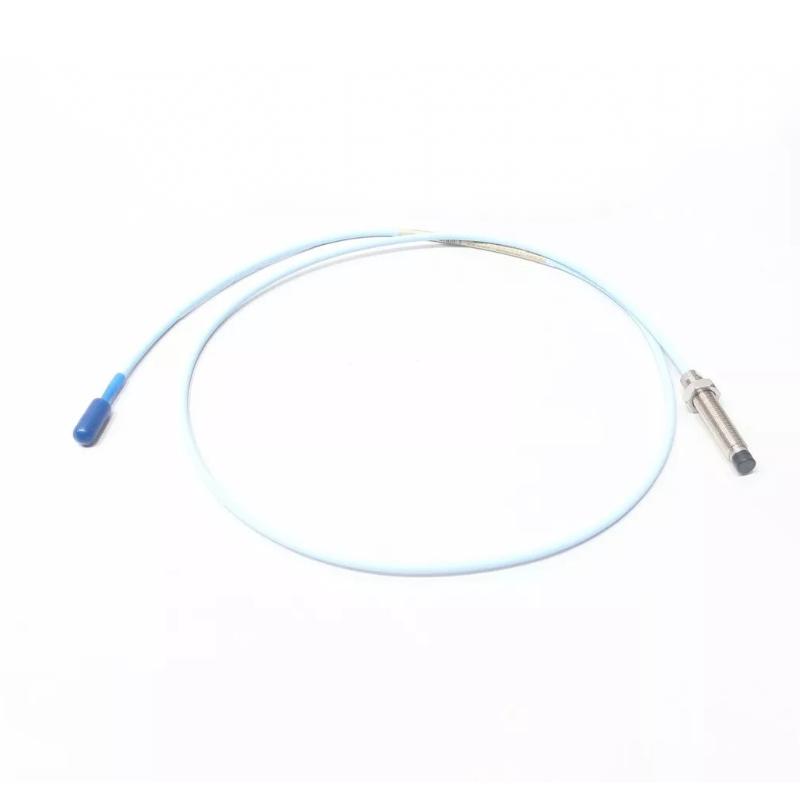

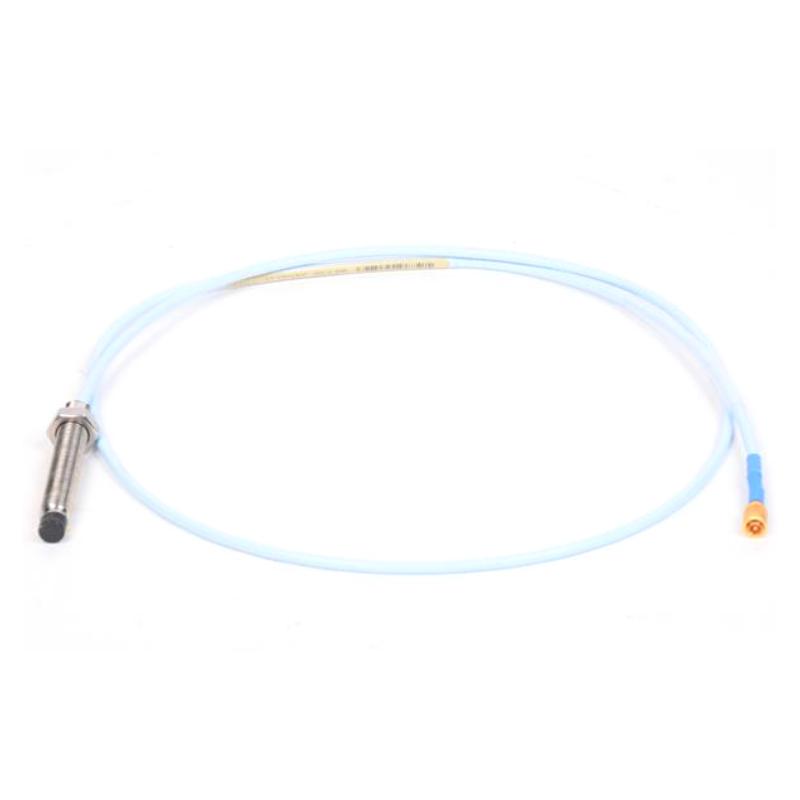

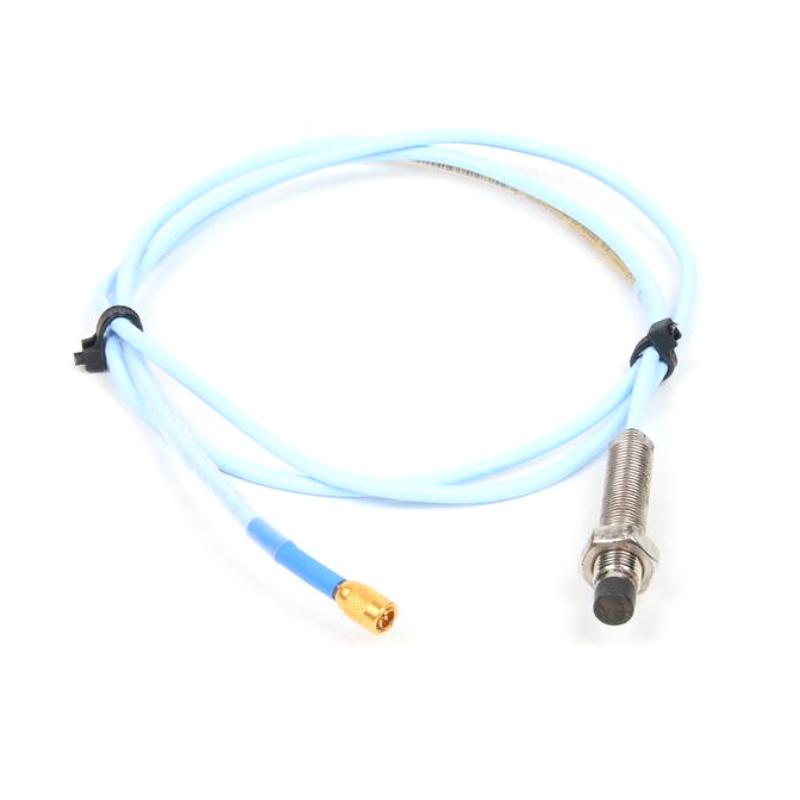

The Bently Nevada 330101-00-20-10-02-CN 3300 XL 8 mm Proximity Probe is a precision eddy current sensor designed for high-accuracy vibration and shaft position monitoring in rotating machinery systems. As part of the 3300 XL platform, this CN-variant configuration is engineered for region-specific compliance requirements while maintaining the same high measurement stability and reliability standards.
Built for continuous industrial operation, it is widely used in turbines, compressors, pumps, and other critical assets where stable monitoring data is essential for predictive maintenance and machinery protection strategies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-20-10-02-CN |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current Sensing |
| Thread Type | 3/8-24 UNF |
| Case Length | 2.0 in (approx.) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | ClickLoc coaxial connector |
| Cable Type | Industrial shielded cable |
| Probe Material | Stainless steel housing |
| Tip Material | PPS (polyphenylene sulfide) |
| Operating Temperature | -51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL system |
| Weight | ~0.323 kg |
| Output Signal | Vibration & displacement signal |
| Environmental Resistance | Oil, dust, and moisture resistant |
