Introduction

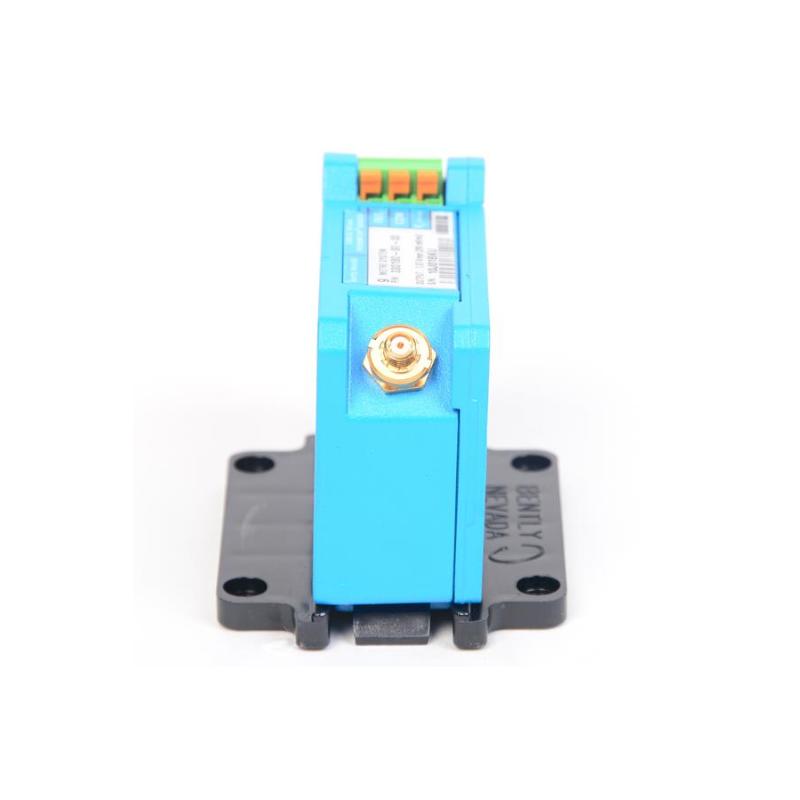

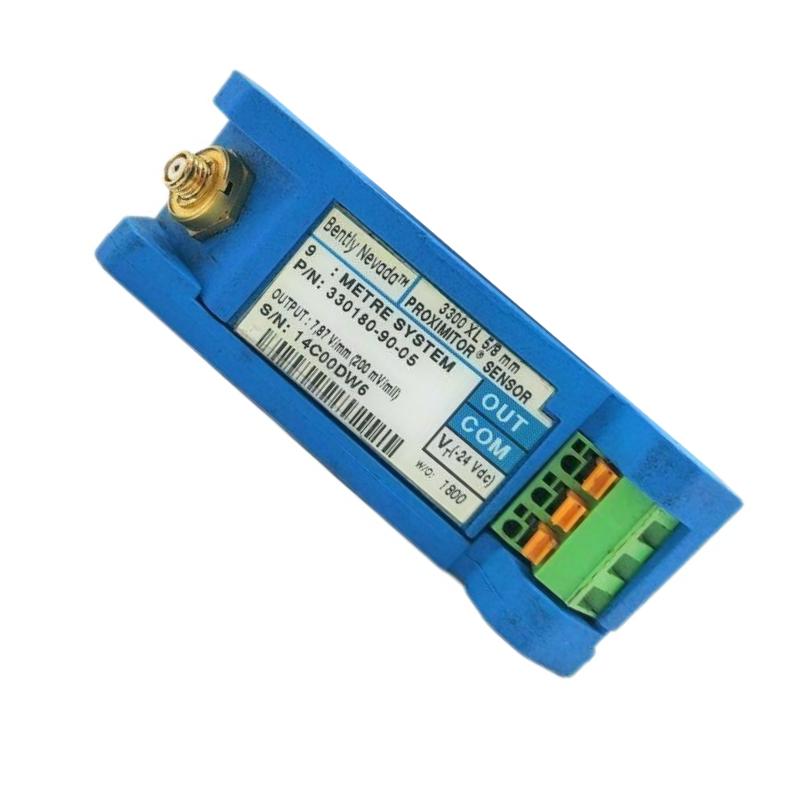

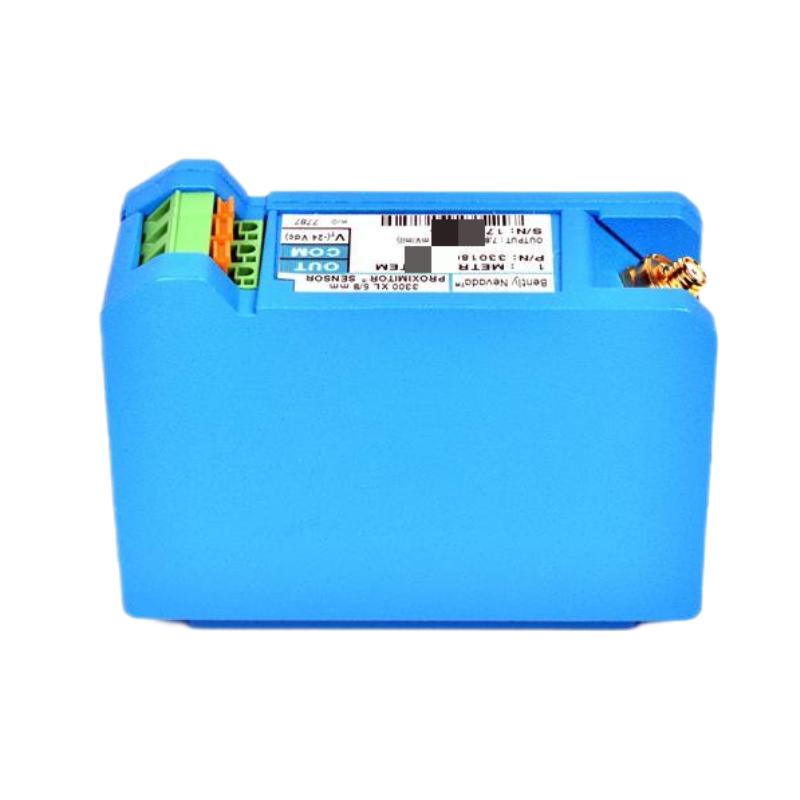

The Bently Nevada 330180-90-R0 belongs to the 3300 XL 8mm proximity transducer family and is used as the signal-conditioning element in a complete proximity measurement system. The Proximitor Sensor works with a compatible probe and extension cable to convert eddy-current sensing information into a usable electrical output for machinery monitoring.
The 330180-90 configuration is associated with the 9.0 m (29.5 ft) system-length, panel-mount arrangement, making it a practical choice where the monitoring electronics need to be installed farther from the machine. The 3300 XL platform is designed for non-contact measurement of shaft position and dynamic vibration on rotating machinery. The 330180 family is also widely identified as the successor to earlier 3300-series Proximitor configurations.
The R0 suffix should be treated as part of the complete ordering code. Because this exact suffix is not consistently documented in publicly available technical listings, replacement work should match the installed unit's complete part number and approval configuration rather than assuming that every 330180-90 variant is interchangeable.
Technical Specifications
The 330180-90 family is intended for a 9.0 m complete transducer system with panel mounting. The system normally consists of a compatible 8 mm proximity probe, extension cable, and Proximitor Sensor. Public product listings confirm the 330180-90 family as a 3300 XL Proximitor configuration.
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model | 330180-90-R0 |
| Product Type | 3300 XL 8mm Proximitor / Proximity Sensor |
| Series | 3300 XL |
| System Length | 9.0 m (29.5 ft) |
| Mounting Configuration | Panel mount |
| Measurement Principle | Eddy-current, non-contact |
| System Configuration | Probe + extension cable + Proximitor Sensor |
| Compatible Probe Family | 3300 XL 8mm and compatible 3300-series probes |
| Typical Proximitor Housing | Aluminum |
| Typical Housing Dimensions | Approximately 81.3 × 61.2 × 63.5 mm |
| Typical Proximitor Weight | Approximately 246 g |
| Complete System Weight | Approximately 0.7 kg, depending on configuration |
| Supply Voltage | Approximately -17.5 to -26 Vdc without barriers |
| Maximum Current Consumption | Approximately 12 mA |
| Nominal Output Resistance | Approximately 50 Ω |
Applications
Steam Turbine Monitoring
The 3300 XL 8mm transducer architecture is well suited to turbine applications requiring continuous shaft vibration and position measurement. The 9.0 m system configuration provides useful flexibility when the monitoring cabinet is not located immediately beside the machine.
Gas Turbine Monitoring
Compatible turbine installations can use proximity transducers to monitor shaft movement and rotor behavior. The Proximitor provides the electrical interface between the machine-side probe and monitoring system.
Compressor Monitoring
High-speed compressors benefit from non-contact shaft measurement, particularly where rotor dynamics and bearing behavior need to be continuously observed.
Generator Monitoring
The sensor can form part of a generator shaft-monitoring system, providing conditioned proximity signals for vibration and position analysis.
Fluid-Film Bearing Machines
The 3300 XL 8mm system is particularly appropriate for machinery using fluid-film bearings. Shaft displacement information can be used to evaluate rotor operating behavior and support machinery protection.
Keyphasor Applications
When paired with a correctly selected probe and monitoring system, the transducer architecture can also provide shaft reference information for speed and phase measurements.
Machinery Protection Systems
The Proximitor is an important signal-conditioning element between the proximity probe and downstream machinery protection equipment, allowing the monitoring system to receive a stable representation of shaft movement.
Retrofit Installations
The 330180 family is useful for replacement and modernization work involving existing 3300-series machinery-monitoring systems. The 9.0 m panel-mount configuration is particularly useful where the existing cabinet arrangement requires a longer system length.
Advantages
Extended 9.0 m Configuration
The 9.0 m system length provides substantially more routing flexibility than shorter configurations. This is useful when the proximity probe is installed on machinery some distance from the monitoring cabinet.
Panel-Mount Arrangement
The 330180-90 configuration is designed around a panel-mounted Proximitor, making it convenient for control cabinets and centralized machinery-monitoring panels.
Non-Contact Measurement
Eddy-current technology measures shaft movement without mechanical contact. This is particularly valuable on high-speed rotating equipment where conventional contact-based sensing would be unsuitable.
Stable Signal Conditioning
The Proximitor converts the probe's eddy-current response into an electrical signal suitable for downstream monitoring equipment, supporting both shaft-position and vibration measurements.
3300 XL 8mm Platform
The 3300 XL architecture provides a coordinated probe, extension-cable, and Proximitor solution rather than requiring users to assemble an unrelated combination of components.
Compact Construction
The Proximitor's approximately 81.3 × 61.2 × 63.5 mm housing provides a relatively small footprint for machinery-monitoring cabinets.
Low Current Requirement
The sensor's maximum current consumption is approximately 12 mA, making it practical for integration into compatible monitoring circuits.
Proven Replacement Family
The 330180 family is widely recognized in industrial spare-parts inventories, with the 330180-90-00, 330180-90-05 and related configurations appearing in machinery-monitoring equipment listings.
Flexible System Integration
The Proximitor can be combined with compatible probes and extension cables to create a complete calibrated transducer system, making it suitable for both new installations and maintenance projects.
Technical FAQs
1. What is the Bently Nevada 330180-90-R0?
It is a 3300 XL 8mm Proximitor Sensor used as the signal-conditioning component of a compatible proximity transducer system. The 330180-90 family is associated with a 9.0 m panel-mounted configuration.
2. What does “90” indicate?
The 90 identifies the 9.0 m system-length and panel-mount configuration within the 330180 family.
3. What does “R0” mean?
R0 is part of the complete ordering designation for this specific unit. Publicly available technical references do not provide sufficiently consistent documentation to assign a definitive engineering meaning to the R0 suffix, so it should be retained exactly when specifying a replacement.
4. Is 330180-90-R0 itself a proximity probe?
No. It is the Proximitor Sensor. A complete system requires a compatible proximity probe and extension cable.
5. What is the system length?
The 330180-90 configuration is associated with a 9.0 m (29.5 ft) total system length.
6. Is the sensor panel mounted?
Yes. The 90 configuration is the panel-mount version of the 9.0 m 330180 family.
7. What are the approximate dimensions?
The Proximitor housing is approximately 81.3 × 61.2 × 63.5 mm.
8. What is the approximate weight?
The Proximitor Sensor weighs approximately 246 g (0.246 kg). The complete transducer system weighs more because it includes the probe and extension cable.
9. What machinery can use this type of Proximitor?
Typical applications include steam and gas turbines, compressors, generators, motors, pumps, and other rotating machinery where non-contact shaft vibration or position measurement is required.
10. Can 330180-90-R0 be replaced directly by 330180-90-00 or 330180-90-05?
Not automatically. Although the models share the 330180-90 base configuration, the complete suffix can identify different approval or ordering configurations. The installed unit's complete part number, system requirements, and applicable approvals should be checked before selecting a substitute.
