Reliable Vibration Monitoring for High-Performance Industrial Machinery

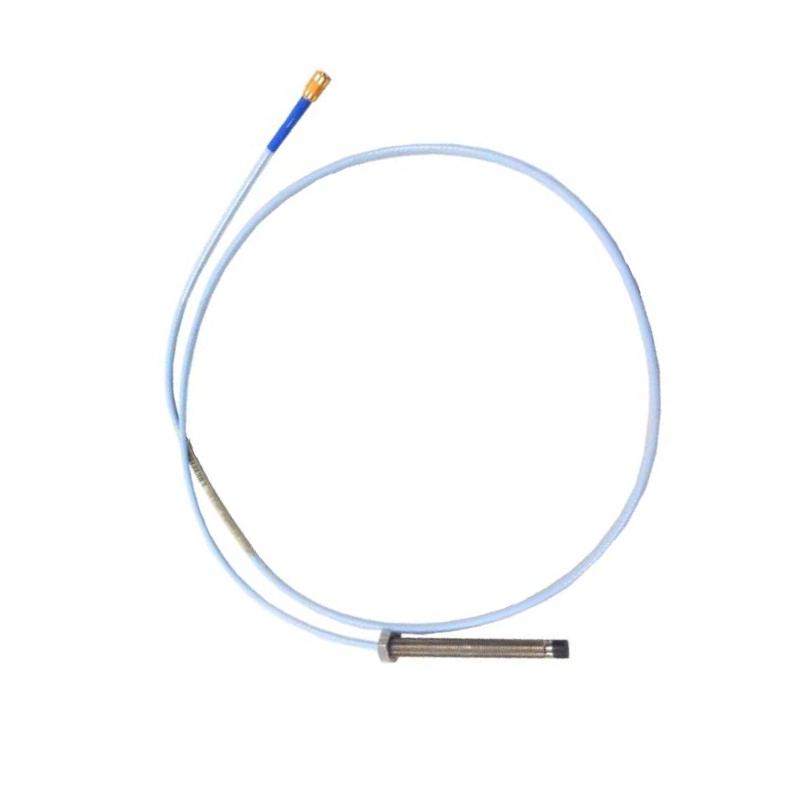

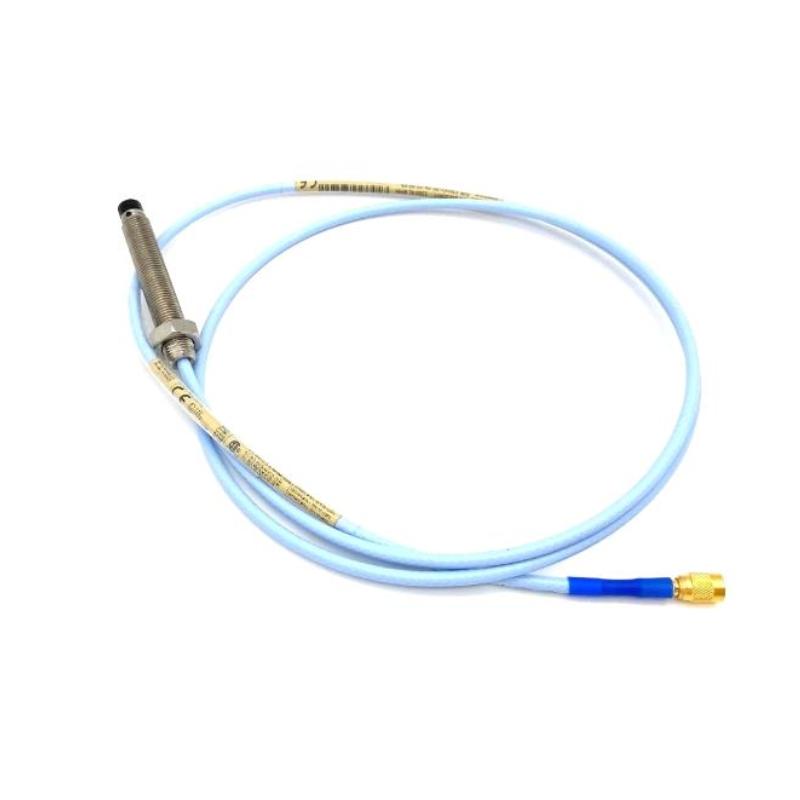

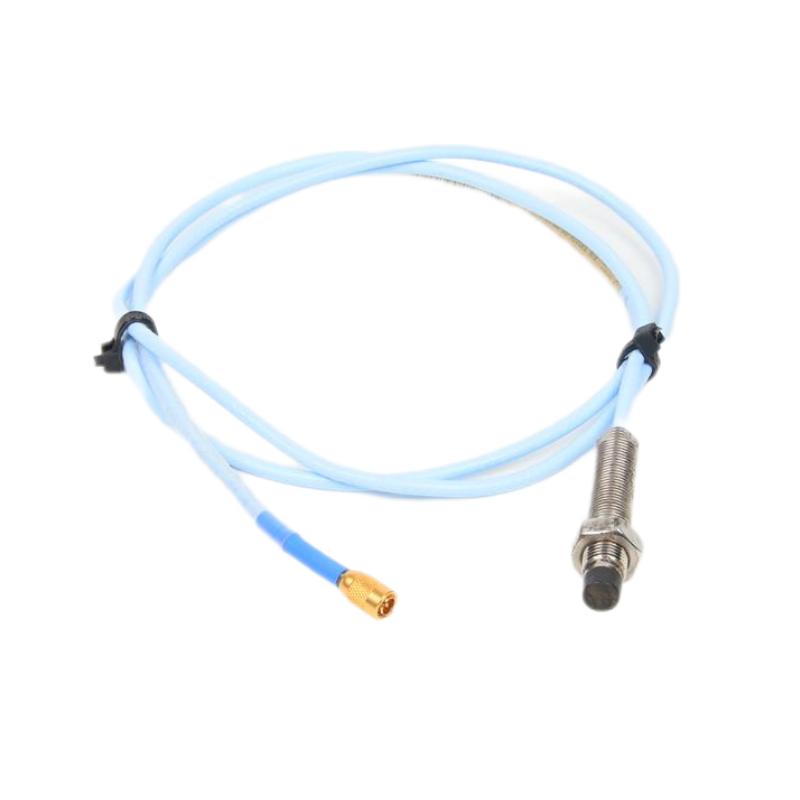

The Bently Nevada 330101-00-13-10-02-05 3300 XL 8mm Proximity Probe is designed to deliver precise shaft vibration and position measurements in demanding industrial applications. As part of the globally recognized 3300 XL series, this probe combines rugged mechanical construction with stable signal performance, making it a preferred solution for rotating equipment protection and condition monitoring systems.
Engineered for continuous operation in harsh environments, the probe supports critical machinery diagnostics by helping operators identify imbalance, misalignment, shaft movement, and mechanical wear before failures occur. Its durable stainless-steel housing and advanced cable technology ensure dependable long-term performance across a wide range of industries.
Detailed Product Specifications
| Specification Item | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-13-10-02-05 |
| Product Series | 3300 XL Series |
| Product Type | 8mm Proximity Probe |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 1.3 in |
| Total Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Probe Case Material | AISI 303 / 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Measurement Technology | Eddy Current Sensing |
| Operating Temperature Range | -51°C to +177°C |
| Minimum Cable Bend Radius | 25.4 mm |
| Approximate Dimensions | 130 × 35 × 35 mm |
| Approximate Weight | 0.323 kg |
| Agency Approval Option | CSA / ATEX / IECEx |
Typical Applications Include
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Electric motors
-
Industrial pumps
-
Gearboxes
-
Petrochemical processing equipment
-
Power generation facilities
-
Oil & gas platforms
-
Heavy manufacturing systems
Its precision sensing capability supports predictive maintenance programs and improves machinery uptime in mission-critical environments.
Performance Highlights
Exceptional Measurement Stability
The probe provides highly accurate and repeatable vibration measurements, supporting advanced machine protection systems and real-time condition monitoring.
Durable Mechanical Design
Manufactured with corrosion-resistant stainless steel and reinforced cable construction, the probe performs reliably under vibration, temperature fluctuations, and industrial contaminants.
Advanced Cable Technology
The integrated CableLoc design improves cable retention strength, reducing the risk of cable separation during installation or operation.
Optimized for Continuous Industrial Use
Its rugged design supports 24/7 industrial operations, helping maintenance teams minimize unexpected downtime and maintenance costs.
Easy System Integration
The standard ClickLoc connector design simplifies installation and enables compatibility with Bently Nevada 3300 XL monitoring systems.
Technical FAQs
1. What is the main purpose of this proximity probe?
The probe is used to monitor shaft vibration and displacement in rotating machinery.
2. Which monitoring systems are compatible with this model?
It is designed for use with Bently Nevada 3300 XL transducer systems.
3. What sensing technology does the probe use?
The probe operates using eddy current sensing technology for non-contact measurements.
4. Is the probe suitable for harsh industrial environments?
Yes, it is engineered for high-temperature and high-vibration industrial applications.
5. What material is used for the probe housing?
The housing is made from AISI 303 or 304 stainless steel.
6. What is the operating temperature range?
The probe supports temperatures from -51°C to +177°C.
7. What industries commonly use this product?
Oil & gas, energy, petrochemical, water treatment, and manufacturing industries widely use this probe.
8. Does the probe support predictive maintenance systems?
Yes, it helps identify early-stage mechanical problems before serious failures develop.
9. What type of connector does this model include?
It features a miniature coaxial ClickLoc connector with standard cable configuration.
10. Why is the 3300 XL series widely trusted?
The series is recognized for durability, measurement precision, and reliable machinery protection performance.
