Introduction

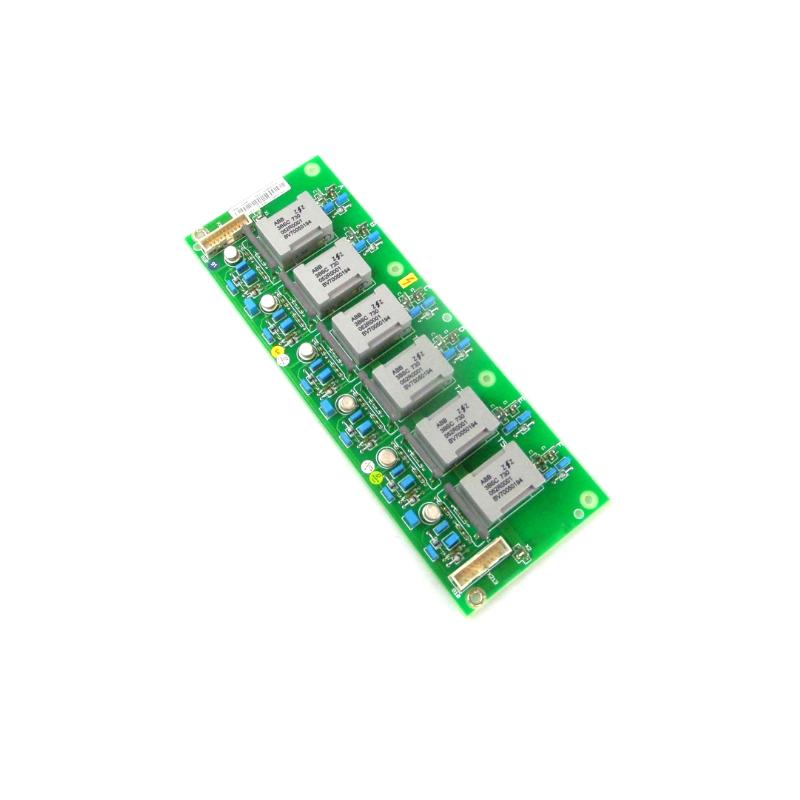

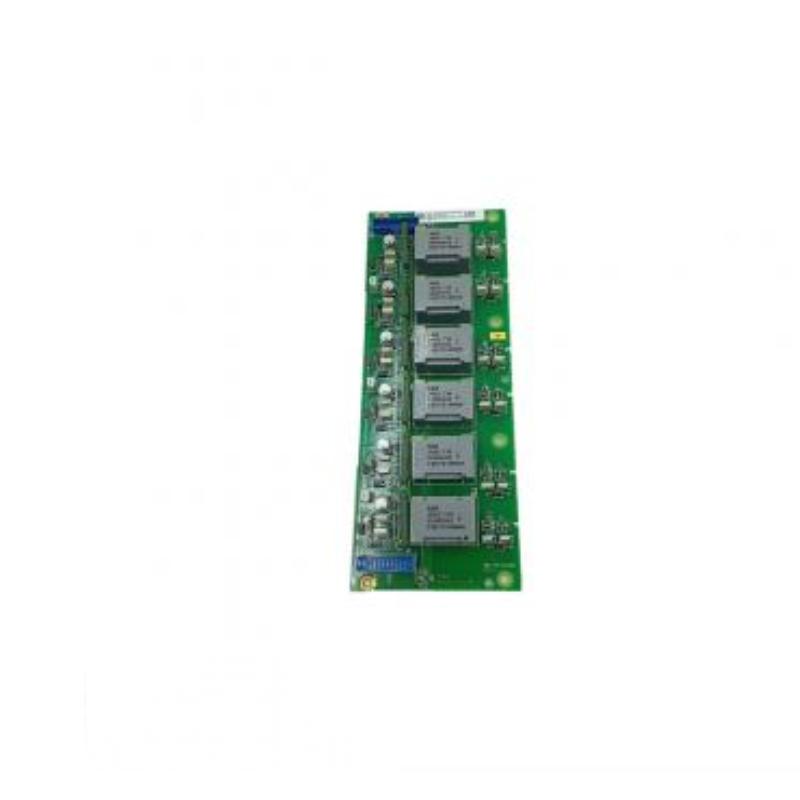

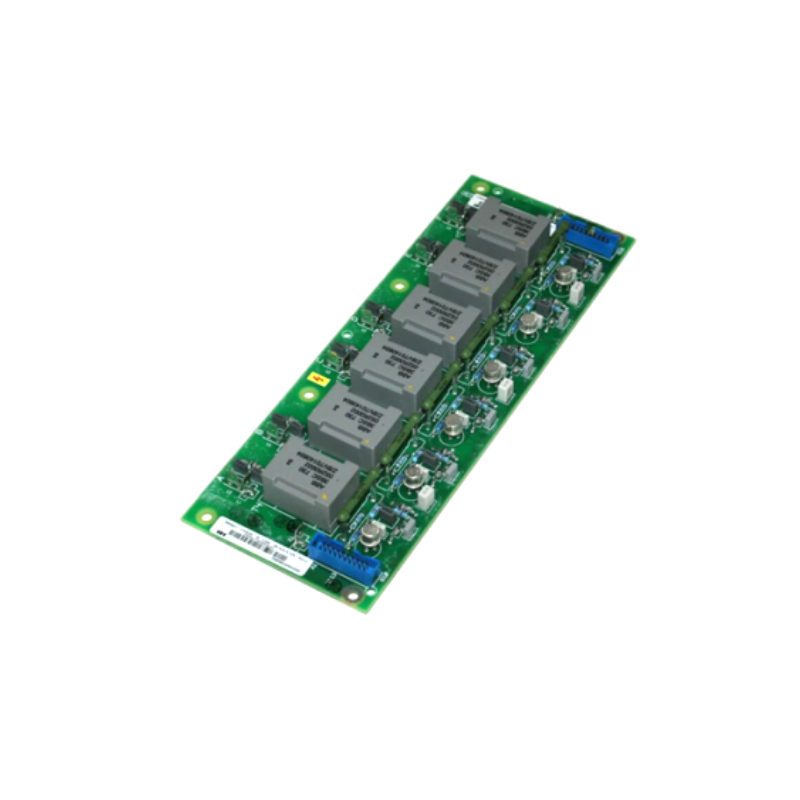

The ABB SDCS-PIN-48-SD 3BSE004939R1012 Inverter Trigger Board is a high-precision pulse control and gate driver interface module used in ABB industrial drive and inverter systems. It is designed to generate and distribute accurately timed firing pulses to power semiconductor devices such as thyristors, ensuring stable inverter operation and controlled power conversion.
As part of ABB’s SDCS drive architecture, this board is commonly found in DC drive rectifier and inverter sections where synchronized triggering, electrical isolation, and signal integrity are critical. It is widely used in maintenance, refurbishment, and lifecycle extension of industrial automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-48-SD |
| Part Number | 3BSE004939R1012 |
| Product Type | Inverter Trigger / Pulse Transformer Board |
| System Compatibility | ABB DCS / SDCS Drive Systems |
| Function | Thyristor gate triggering & pulse isolation |
| Control Type | Phase-controlled firing pulses |
| Isolation Level | High galvanic isolation (kV-class design) |
| Operating Voltage | Low-voltage control interface (system dependent) |
| Operating Frequency | High-speed pulse triggering (drive dependent) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
Applications
The SDCS-PIN-48-SD inverter trigger board is widely used in industrial automation and power electronics systems requiring precise switching control:
-
ABB DC drive inverter and rectifier systems
-
Thyristor-based power conversion units
-
Industrial motor speed control systems
-
Steel, cement, and heavy manufacturing plants
-
Power supply and energy conversion systems
-
High-reliability industrial automation cabinets
-
Retrofit upgrades for legacy ABB drive platforms
Its precise firing control ensures stable power conversion and reduces harmonic distortion in industrial drive systems.
Advantages
-
High-precision pulse triggering for stable inverter operation
-
Excellent electrical isolation for system protection
-
Reliable ABB SDCS compatibility for industrial drive platforms
-
Stable phase-angle control for thyristor-based systems
-
Compact industrial-grade design for cabinet integration
-
Strong noise immunity in harsh electrical environments
-
Long operational lifespan for continuous-duty systems
-
Ideal for retrofit and maintenance applications
This board is especially valuable in systems where accurate triggering directly affects motor performance and process stability.
Technical FAQs
1. What is the main function of SDCS-PIN-48-SD?
It provides pulse triggering and signal isolation for inverter and DC drive systems.
2. Is it a full inverter unit?
No, it is a control and trigger interface board, not a power inverter itself.
3. Which ABB systems use this board?
It is used in ABB SDCS and DCS series drive systems.
4. What devices does it control?
It drives thyristors or power semiconductor switches in converter circuits.
5. What is its weight?
Typically around 0.328 kg to 1 kg depending on configuration.
6. What are its dimensions?
Approximately 18 × 18 × 10 cm.
7. Is it suitable for modern PLC systems?
No, it is primarily used in ABB drive architectures rather than PLC platforms.
8. What is its role in inverter operation?
It ensures correct timing of firing pulses for controlled power conversion.
9. Can it operate in harsh environments?
Yes, it is designed for industrial-grade electrical conditions.
10. Is it used in new installations?
Mostly used for maintenance, replacement, and legacy system support.
