Brand:ABB PLC Item No.:SDCS-PIN-46 3BSE004939R1003 Product Origin:Sweden (SE) Product Dimensions:280 × 110 × 30 mm Product Weight:1kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO Evaluation:

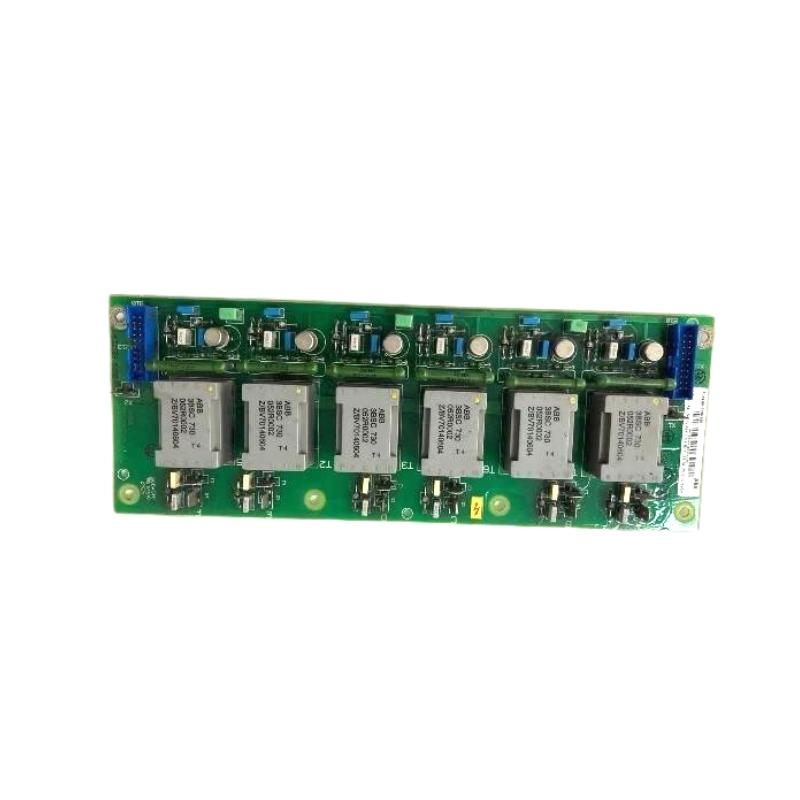

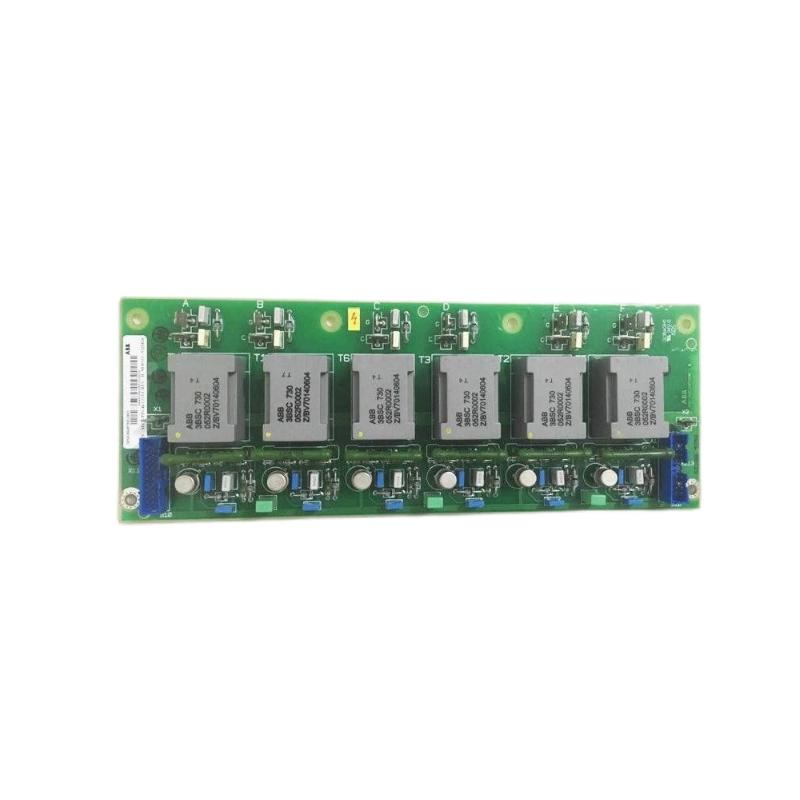

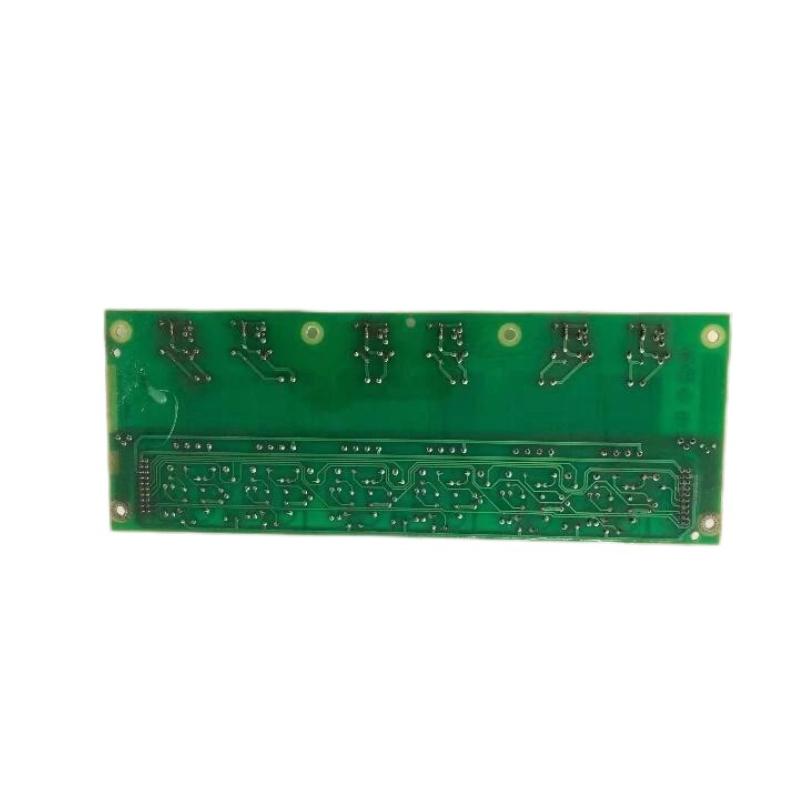

The ABB SDCS-PIN-46 3BSE004939R1003 Pulse Transformer Board is a high-integrity signal isolation and pulse transmission module used within ABB DC drive systems. It is designed to ensure accurate pulse shaping, electrical isolation, and stable signal transfer between control electronics and power conversion sections.
This board is commonly found in ABB’s industrial drive platforms where precision control and electrical robustness are essential. It is especially valued in retrofit and maintenance environments, helping extend the lifecycle of legacy automation systems while maintaining dependable operational performance.
Technical Specifications
Parameter
Specification
Manufacturer
ABB
Model
SDCS-PIN-46
Part Number
3BSE004939R1003
Product Type
Pulse Transformer / Power Interface Board
System Compatibility
ABB DC Drive Systems (SDCS platform)
Function
Pulse isolation and signal transmission
Power Requirement
Low-power control interface module
Operating Voltage
System dependent (typically low-voltage control level)
Operating Temperature
-20°C to +60°C
Storage Temperature
-40°C to +70°C
Communication Interface
Internal drive control bus
Dimensions
~280 × 110 × 30 mm (turn0search1)
Weight
~0.5 kg – 1.8 kg (variant dependent) (turn0search1)
Mounting Type
Control cabinet / drive rack installation
Applications
The SDCS-PIN-46 is widely used in industrial automation systems requiring stable pulse signal conditioning and reliable isolation:
ABB DC drive control systems (SDCS platform)
Industrial motor drive and rectifier control units
Turbine monitoring and protection systems
Steel, mining, and heavy manufacturing automation
Energy generation and process control systems
High-noise industrial electrical environments
Retrofit upgrades for legacy ABB drive installations
Its stable pulse handling ensures accurate timing and reduced signal distortion in demanding environments.
Advantages
High-quality pulse isolation for stable control signal transmission
Strong electrical noise immunity in industrial environments
Reliable ABB system compatibility for SDCS architectures
Enhanced operational stability in continuous-duty systems
Robust industrial-grade construction for long service life
Improved signal accuracy for drive control precision
Ideal for legacy system support and modernization
Reduced system downtime through dependable performance design
This module is often chosen where signal integrity directly impacts production reliability.
Technical FAQs
1. What is the main function of SDCS-PIN-46?
It provides pulse transformation and electrical isolation for ABB DC drive control systems.
2. Is it a power supply module?
No, it is a signal interface and pulse transformer board, not a primary power unit.
3. Which ABB systems use this board?
It is mainly used in ABB SDCS-based DC drive systems.
4. What is its role in a drive system?
It ensures accurate pulse transmission between control and power stages.
5. What is its weight?
Typically between 0.5 kg and 1.8 kg depending on configuration.
6. What are its dimensions?
Approximately 280 × 110 × 30 mm.
7. Is it suitable for new installations?
It is primarily used for maintenance and legacy system upgrades.
8. Does it support external communication protocols?
No, it operates within ABB internal drive communication systems.
9. Can it operate in harsh environments?
Yes, it is designed for industrial-grade conditions with strong noise resistance.
10. What is its expected service life?
With proper use, it can operate reliably for many years in continuous industrial service.
