Introduction

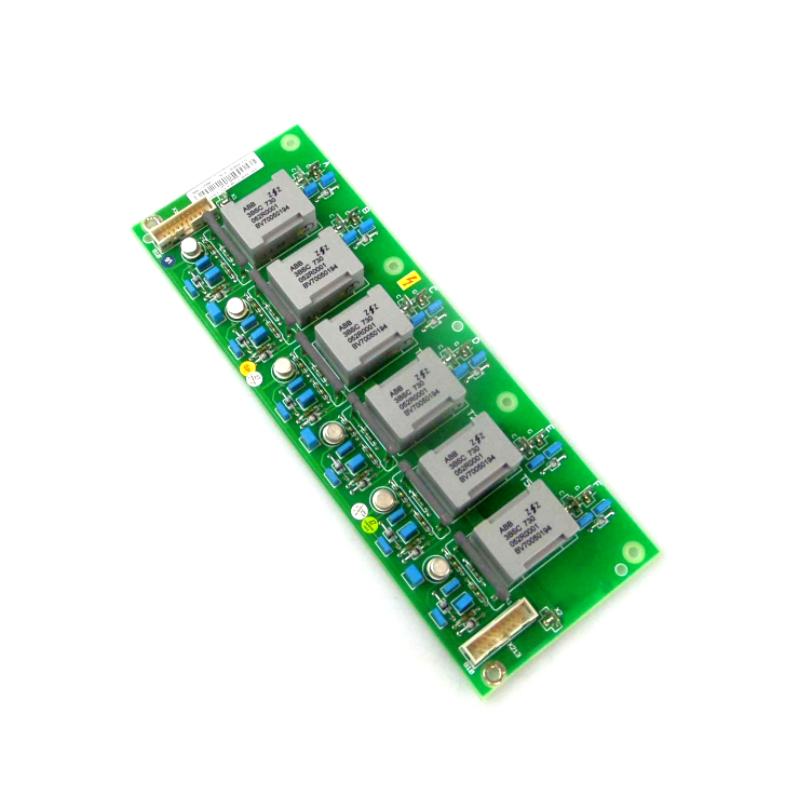

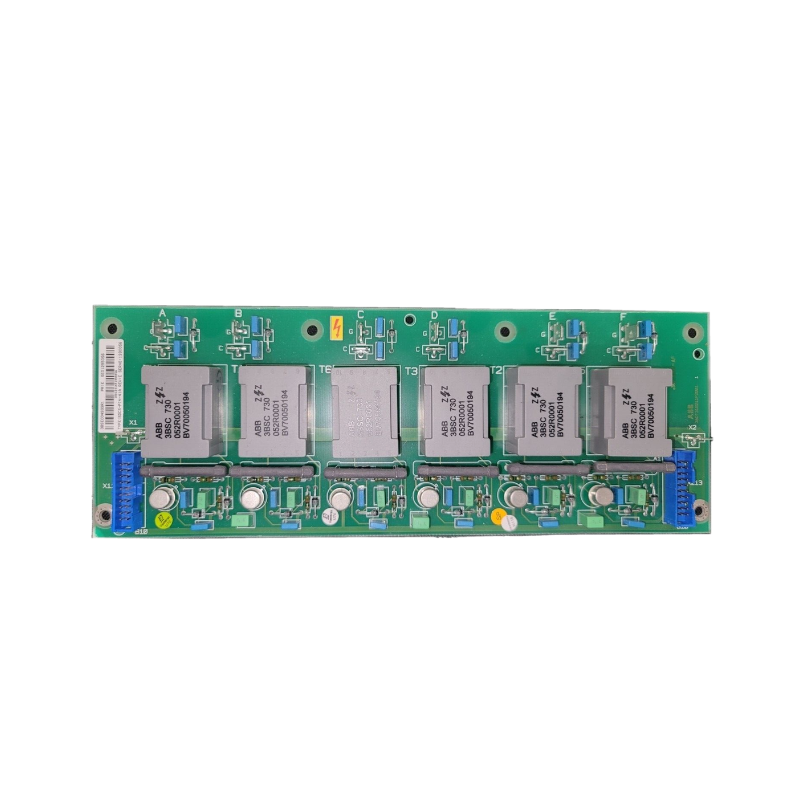

The ABB SDCS-PIN-41A 3ADT220090R0005 Power Interface Board is a specialized pulse transformer and interface module designed for ABB’s DC drive control systems. It plays a key role in signal isolation, power interfacing, and control synchronization within industrial automation environments.
Widely used in legacy ABB drive architectures, this module is valued for its stable electrical performance, robust pulse transmission capability, and long-term operational reliability. It is especially suitable for systems requiring precise control signal conditioning and high immunity to electrical noise in demanding industrial settings.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-41A |
| Part Number | 3ADT220090R0005 |
| Product Type | Pulse Transformer / Power Interface Board |
| System Compatibility | ABB SDCS / DC Drive Systems |
| Function | Signal isolation & pulse transmission |
| Operating Voltage | 12–36 V DC (system dependent) |
| Power Handling | Low-power control interface module |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Communication Interface | Internal drive signal bus |
| Dimensions | ~12.7 × 5.1 × 5.1 cm |
| Weight | ~0.3–0.37 kg |
Applications
The SDCS-PIN-41A is commonly deployed in industrial automation systems where precise signal control and electrical isolation are required:
-
ABB DC drive systems (SDCS platform architecture)
-
Pulse signal transmission in motor control systems
-
Industrial braking and torque control circuits
-
Heavy manufacturing automation lines
-
Energy, metallurgy, and process industries
-
Legacy system maintenance and retrofit upgrades
-
High-noise industrial electrical environments
Its stable pulse handling makes it particularly effective in systems requiring accurate timing and control signal integrity.
Advantages
-
High signal isolation performance for improved system safety
-
Stable pulse transmission in high-noise environments
-
Reliable ABB system integration for SDCS drive platforms
-
Industrial-grade durability for continuous operation
-
Compact modular structure for easy cabinet installation
-
Low failure rate design suitable for long lifecycle systems
-
Strong resistance to electrical interference
-
Ideal for legacy system extension and upgrades
This module is often selected for maintaining precision performance in older but critical ABB drive installations.
Technical FAQs
1. What is the main function of SDCS-PIN-41A?
It provides pulse transformation and signal isolation in ABB DC drive systems.
2. Is it a power supply module?
No, it is an interface and signal conditioning board, not a direct power supply unit.
3. Which systems use this module?
Primarily ABB SDCS DC drive systems and related automation platforms.
4. What is its operating voltage range?
Typically 12–36 V DC depending on system configuration.
5. What is its weight?
Approximately 0.3–0.37 kg.
6. What are its dimensions?
Around 12.7 × 5.1 × 5.1 cm.
7. Can it be used in new installations?
It is mainly intended for legacy system support and retrofit projects.
8. Does it support communication protocols like Ethernet?
No, it operates within internal drive-level signal systems.
9. Is it resistant to industrial interference?
Yes, it is designed for high immunity to electrical noise.
10. What is its expected service life?
With proper installation, it can operate reliably for many years in continuous-duty systems.
