Introduction

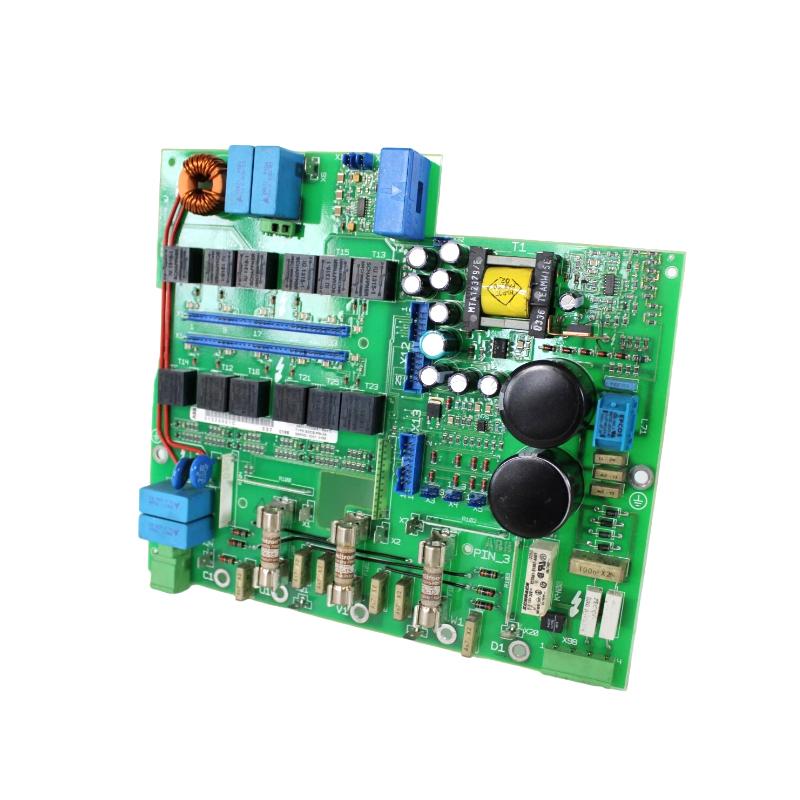

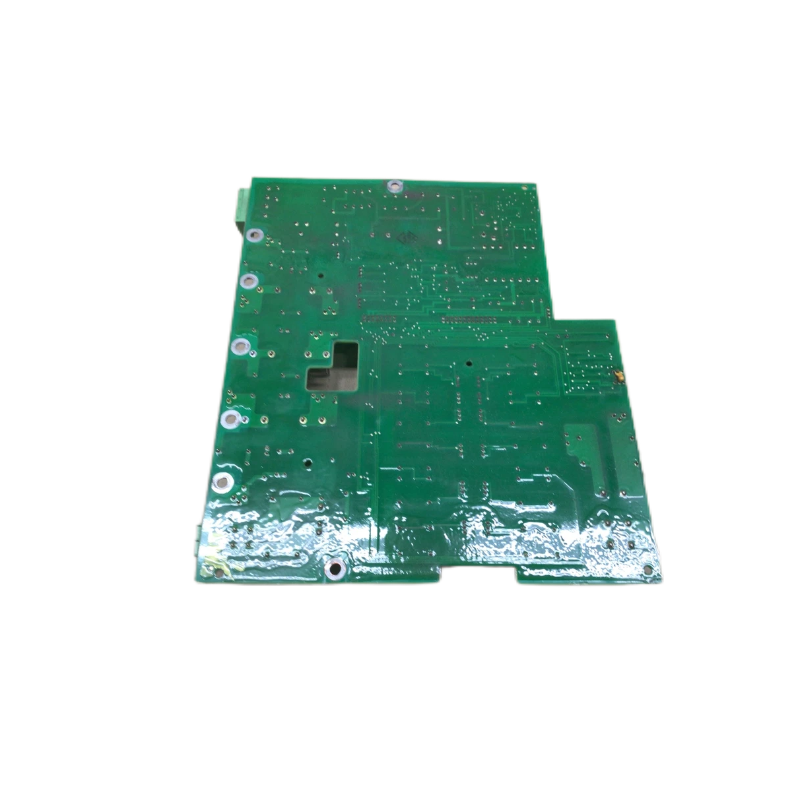

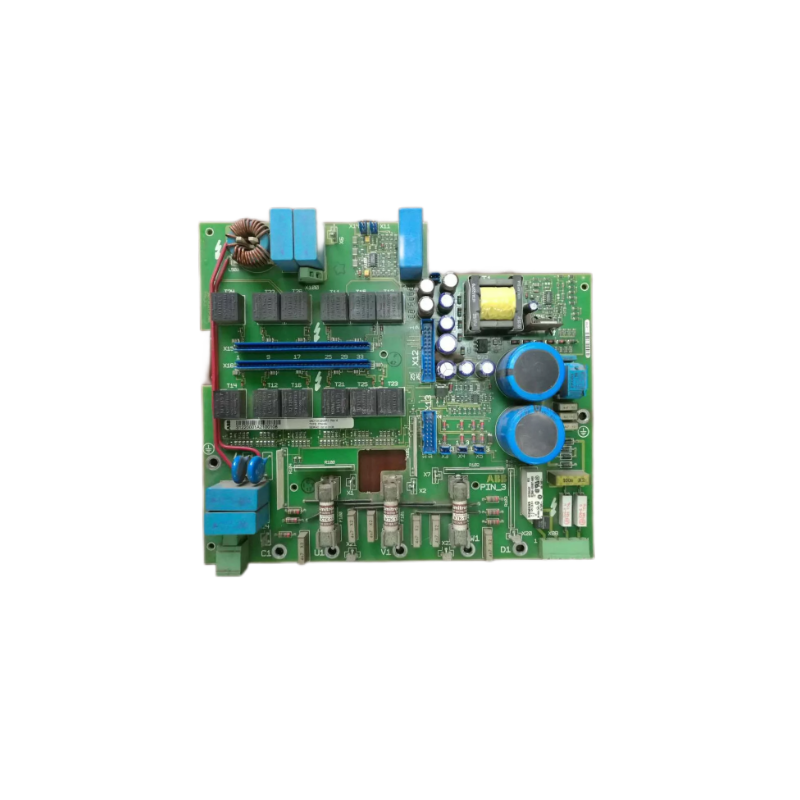

The ABB SDCS-PIN-3A 3ADT312200R1 Power Interface Board is a robust industrial-grade module designed for ABB DC drive systems, particularly within the DCS400 platform architecture. It functions as a critical interface layer that manages power distribution and signal coordination between control electronics and drive power stages.
Built for stability in continuous industrial operations, this board is widely used in modernization and maintenance of legacy automation systems. Its engineering focus is on electrical reliability, noise-resistant signal handling, and seamless integration into ABB’s drive ecosystem, making it a trusted component for long-term industrial performance.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-3A |
| Part Number | 3ADT312200R1 |
| Product Type | Power Interface Board |
| System Compatibility | ABB DCS400 / DC Drive Systems |
| Function | Power and signal interface for drive control |
| Operating Voltage | 24 V DC (control system dependent) |
| Power Consumption | ~6 W |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 140 × 120 × 35 mm |
| Weight | ~0.6–1.0 kg (variant dependent) |
| Mounting Type | DIN rail / cabinet installation |
| Communication | ABB internal drive communication bus |
Applications
The SDCS-PIN-3A is widely deployed in industrial environments requiring precise DC drive coordination and stable power interfacing:
-
ABB DCS400 series DC drive systems
-
Steel production and metal processing lines
-
Paper and pulp manufacturing automation
-
Heavy-duty conveyor and motor control systems
-
Industrial retrofit and upgrade projects
-
Energy and utility process control systems
-
Continuous production machinery environments
Its stability makes it especially valuable in systems where downtime must be minimized.
Advantages
-
High reliability in continuous-duty operation environments
-
Strong compatibility with ABB DCS drive architecture
-
Stable signal conditioning for precise drive control
-
Industrial-grade PCB design for harsh environments
-
Compact structure for easy cabinet integration
-
Low power consumption improves system efficiency
-
Long lifecycle support for legacy ABB systems
-
Reduced maintenance requirements for operational cost savings
This board is frequently chosen for extending the lifespan of older ABB drive installations without requiring full system replacement.
Technical FAQs
1. What is the main function of SDCS-PIN-3A?
It serves as a power and signal interface board within ABB DC drive systems.
2. Which ABB systems use this module?
Primarily ABB DCS400 series and related DC drive platforms.
3. Is it suitable for new installations?
It is mainly used for legacy system maintenance and retrofit projects.
4. What is its operating voltage?
Typically 24 V DC depending on system configuration.
5. What is its power consumption?
Around 6 W under normal operation.
6. What temperature range does it support?
0°C to +55°C operating range.
7. Is it resistant to industrial noise?
Yes, it is designed for stable signal integrity in noisy environments.
8. What type of installation does it require?
It is installed inside control cabinets, usually on DIN rail systems.
9. Can it operate in harsh environments?
Yes, within standard industrial enclosure conditions.
10. What is its expected service life?
With proper operation, it can remain functional for many years in continuous-duty systems.
