Introduction

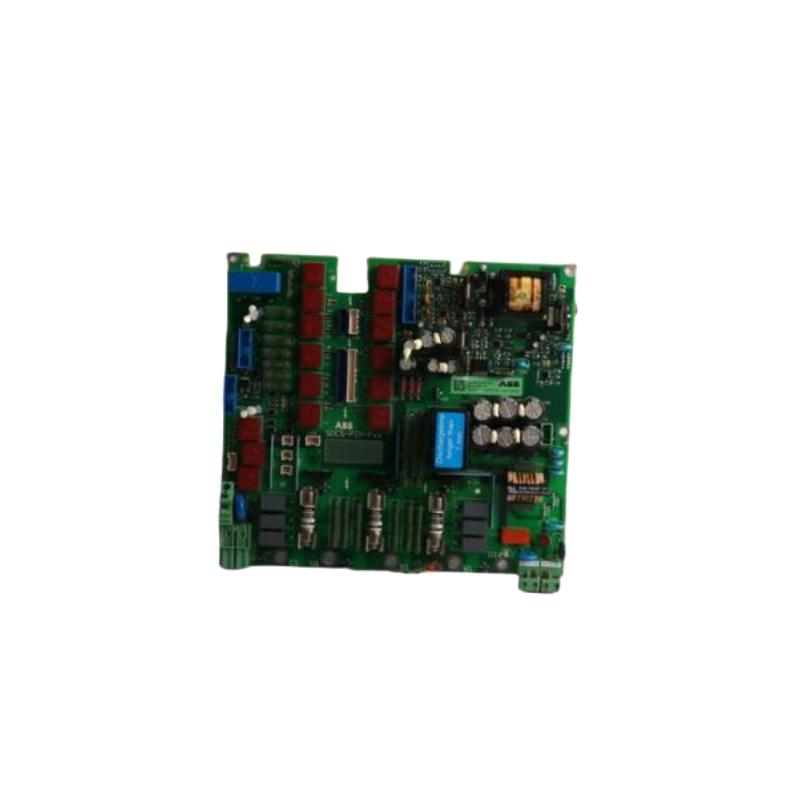

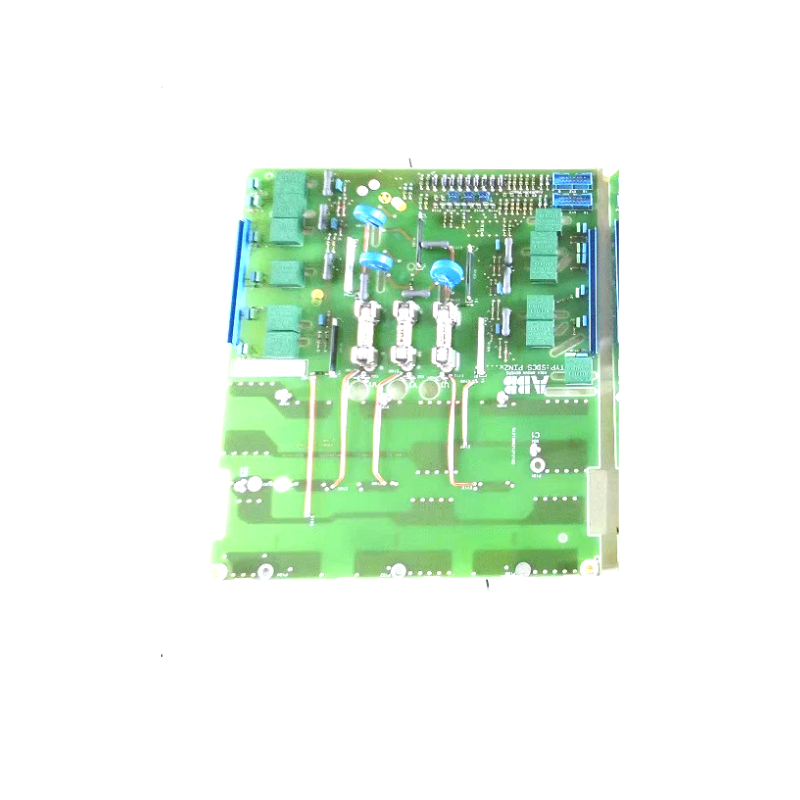

The ABB SDCS-PIN-206B 3ADT312500R0002 Power Interface Board is an industrial-grade interface module designed for ABB DC drive systems, primarily used in DCS500 and DCS600 automation platforms.
As part of the PIN-206B series, this board is engineered to manage power distribution and signal interfacing between control electronics and power conversion stages. It ensures stable operation of drive systems by maintaining clean signal transmission and reliable electrical coordination under heavy industrial loads.
This module is often deployed in high-power converter assemblies where precision control and electrical stability directly impact production continuity and equipment safety.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-PIN-206B |
| Part Number | 3ADT312500R0002 |
| Module Type | Power Interface Board |
| System Compatibility | ABB DCS500 / DCS600 drive systems |
| Function | Power interface & signal distribution |
| Revision | B-series (enhanced interface design) |
| Role in System | Converter interface / control coupling board |
| Protection Features | Electrical isolation, noise suppression, circuit coordination |
| Mounting Type | Rack-mounted industrial PCB module |
| Dimensions (Approx.) | ~280 mm × 253 mm × 53 mm |
| Weight | ~0.8–1.5 kg (varies by configuration; approx. 1.4 kg reported) |
| Operating Environment | Industrial-grade (wide temperature tolerance) |
| Construction | Reinforced PCB for high-power drive systems |
