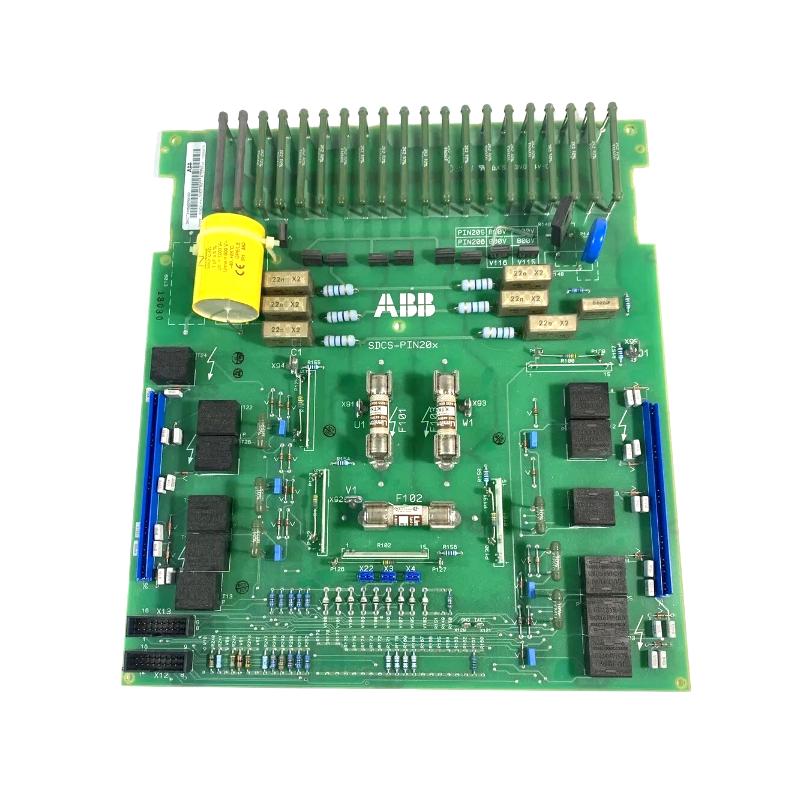

ABB SDCS-PIN-205A 3ADT310500R0102 Interface Board

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

ABB SDCS-PIN-205A 3ADT310500R0102 Interface Board

Name: ABB SDCS-PIN-205A 3ADT310500R0102 Interface Board
Brand: ABB PLC
SKU: 8115
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:ABB PLC
Item No.:SDCS-PIN-205A 3ADT310500R0102
Product Origin:Sweden (SE)
Product Dimensions:180 mm × 120 mm × 40 mm
Product Weight:1kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction

The ABB SDCS-PIN-205A 3ADT310500R0102 Interface Board is a high-reliability industrial power and signal interface module designed for ABB drive control architectures, particularly within DCS500 and related automation platforms.

This upgraded “A-version” of the PIN-205 series is engineered to deliver improved electrical interfacing stability, enhanced signal handling accuracy, and robust protection in demanding industrial environments. It is widely used in systems where consistent power coordination between control boards and drive modules is critical for uninterrupted production performance.

Built with ABB’s industrial design philosophy, this board emphasizes operational stability, fault resistance, and long lifecycle performance, making it a trusted component in legacy and modernized drive systems.

Technical Specifications

Parameter	Specification
Model	SDCS-PIN-205A
Part Number	3ADT310500R0102
Module Type	Interface / Power Interface Board
System Compatibility	ABB DCS500 / DCS600 series
Function	Power distribution & signal interfacing
Board Version	Rev. A (enhanced interface design)
Input Voltage	Industrial DC/AC system dependent
Protection Features	Overvoltage, noise suppression, signal isolation
Mounting Type	Rack-mounted PCB module
Dimensions (Approx.)	180 mm × 120 mm × 40 mm
Weight	~0.7–1.0 kg
Operating Temperature	Industrial-grade wide range (-20°C to +70°C)
Build Standard	High-reliability PCB with reinforced traces

Applications

The SDCS-PIN-205A is used in systems where stable interfacing between control electronics and power modules is essential:

ABB DC drive systems (DCS500 / DCS600 platforms)
Industrial motor control cabinets
Heavy manufacturing and metallurgy systems
Power transmission and conversion units
Automation retrofit and modernization projects

Its role is especially important in ensuring that control signals and power pathways remain stable even under fluctuating load conditions.

Advantages

Enhanced Interface Stability
The “A revision” improves signal clarity and reduces electrical interference between modules.
Strong Industrial Reliability
Designed for continuous operation in high-vibration, high-temperature environments.
Efficient System Integration
Works seamlessly with ABB legacy drive ecosystems without requiring major system redesign.
Improved Electrical Isolation
Helps protect sensitive control electronics from power-side disturbances.
Long Service Lifecycle
Built for long-term industrial deployment with minimal degradation.

Technical FAQs

1. What is the main function of SDCS-PIN-205A?
It acts as a power and signal interface between ABB drive modules and control electronics.

2. What systems is it compatible with?
Primarily ABB DCS500 and DCS600 drive platforms.

3. Is this an upgraded version of SDCS-PIN-205?
Yes, the “A” revision includes improved interface stability and design refinements.

4. What is its typical weight?
Approximately 0.7 to 1.0 kg depending on configuration.

5. Can it be used for system replacement projects?
Yes, it is commonly used in retrofit and modernization of ABB drive systems.

6. Does it require configuration after installation?
Generally no, it operates as a passive interface module.

7. What type of protection does it provide?
It supports electrical isolation and suppression of interference signals.

8. Is it suitable for harsh industrial environments?
Yes, it is designed for high EMI and temperature variation environments.

9. What are failure symptoms?
Signal instability, communication loss, or inconsistent drive behavior.

10. Is calibration required?
No calibration is typically required.
