Product Overview

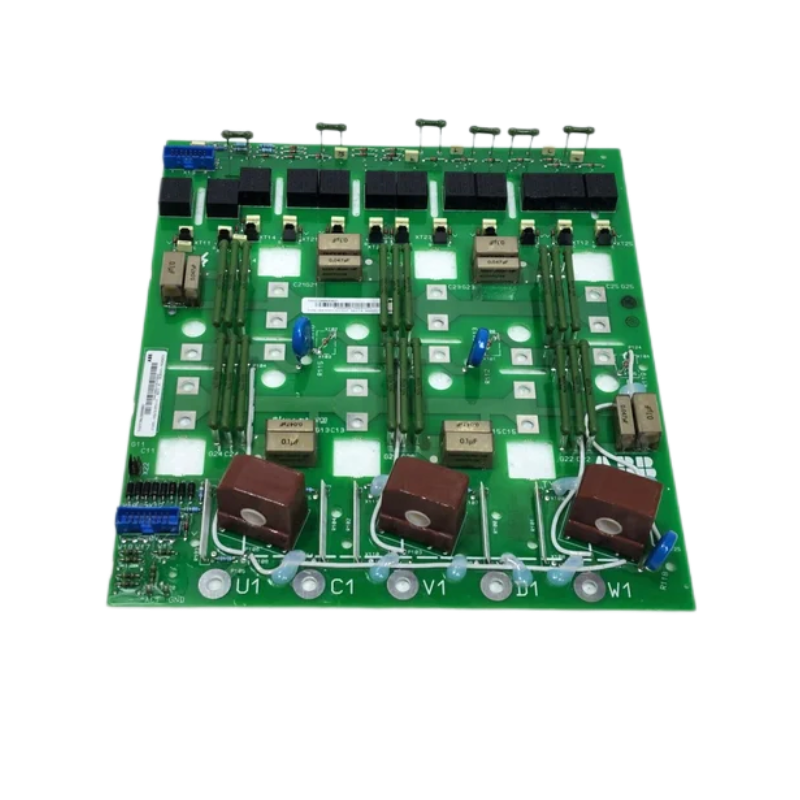

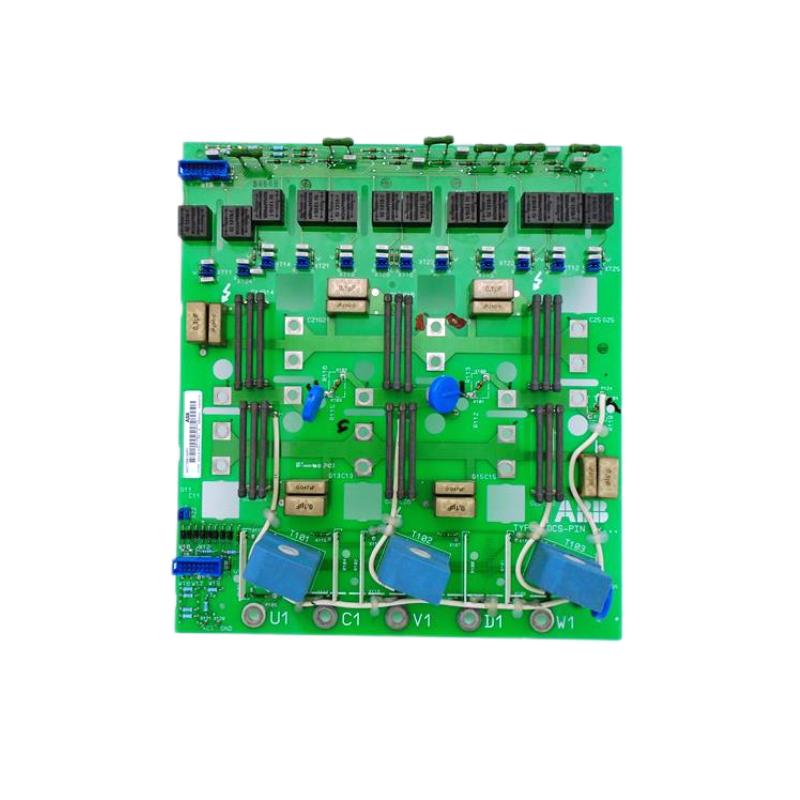

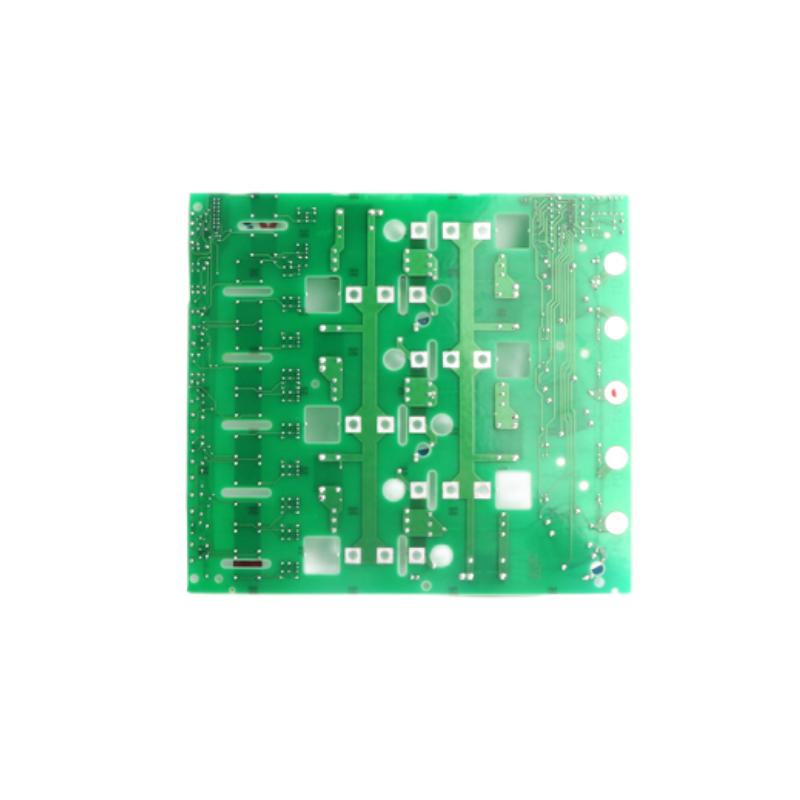

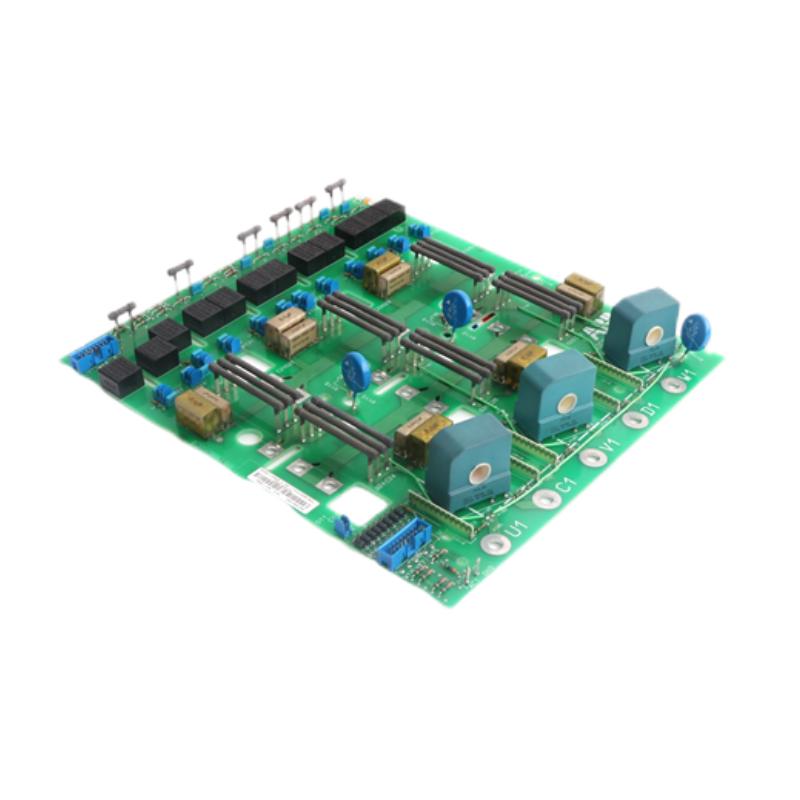

The ABB SDCS-PIN-11 3ADT306100R0001 Power Interface Board is a critical component engineered to ensure stable power distribution and seamless electrical interfacing within ABB industrial drive systems. Designed with precision and durability in mind, this board acts as a central hub for power management, enabling reliable communication and energy transfer between system modules.
Widely used in ABB DCS500 drive platforms, the SDCS-PIN-11 delivers consistent performance under demanding industrial conditions. Its robust architecture and integrated protection mechanisms make it a dependable choice for maintaining operational continuity and minimizing system disruptions.
Technical Specifications
| Parameter | Specification |
|---|
| Model | SDCS-PIN-11 |
| Part Number | 3ADT306100R0001 |
| Module Type | Power Interface Board |
| Function | Power distribution & interface control |
| System Compatibility | ABB DCS500 DC drive systems |
| Input Voltage | 24 V DC |
| Protection Features | Overvoltage, short-circuit, thermal protection |
| Mounting | Rack / drive cabinet installation |
| Dimensions (Approx.) | 210 mm × 140 mm × 45 mm |
| Weight | 0.66 kg |
| Build Standard | Industrial-grade PCB |
| Operating Environment | High-noise industrial environments |
Application Scenarios
The SDCS-PIN-11 Power Interface Board is designed for mission-critical environments where stable power management is essential:
-
DC drive systems in heavy industries
-
Steel and metal processing facilities
-
Cement and mining operations
-
Power generation and energy control systems
-
Automated production lines and industrial plants
It ensures efficient power routing and stable electrical performance across interconnected system modules.
Technical FAQs
1. What is the primary role of the SDCS-PIN-11 board?
It manages power distribution and provides a stable interface between system modules.
2. Which systems is it compatible with?
Primarily ABB DCS500 DC drive systems.
3. What input voltage does it support?
Typically operates with a 24 V DC input.
4. Does it include protection features?
Yes, it offers protection against overvoltage, short circuits, and thermal conditions.
5. Is it suitable for continuous industrial operation?
Yes, it is designed for long-term use in demanding environments.
6. Can it be installed without modifying the system?
Yes, it is designed for direct integration into compatible ABB systems.
7. How does it improve system reliability?
By stabilizing power flow and reducing electrical disturbances.
8. What are signs of a failing board?
Unstable power delivery, system faults, or communication issues.
9. Is it compatible with legacy ABB systems?
Yes, it supports certain legacy DCS platforms, extending system lifecycle.
10. Does it require periodic calibration?
No calibration is generally required after installation.
