Overview of the Module

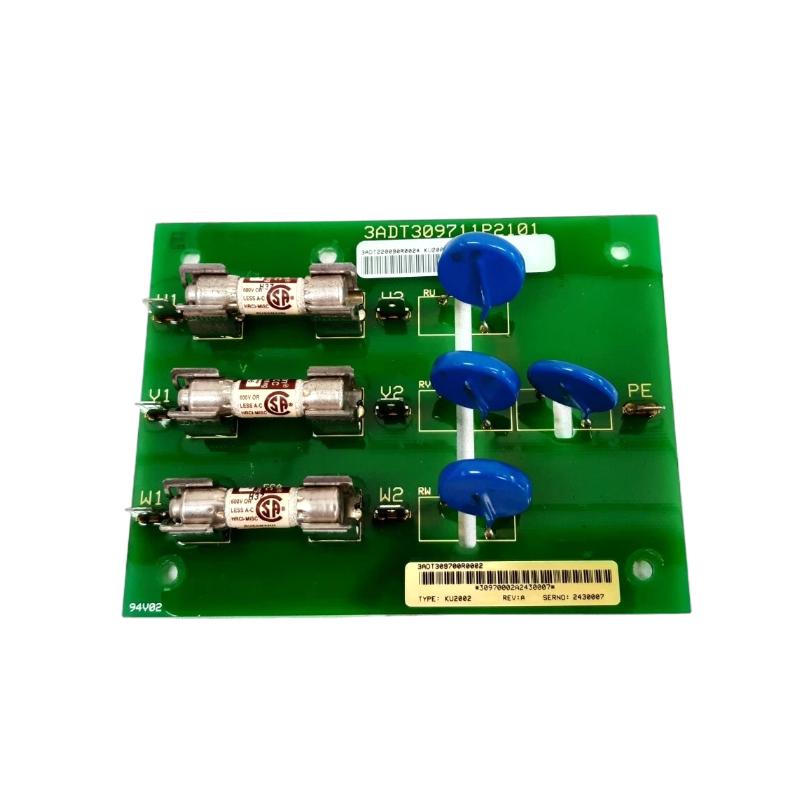

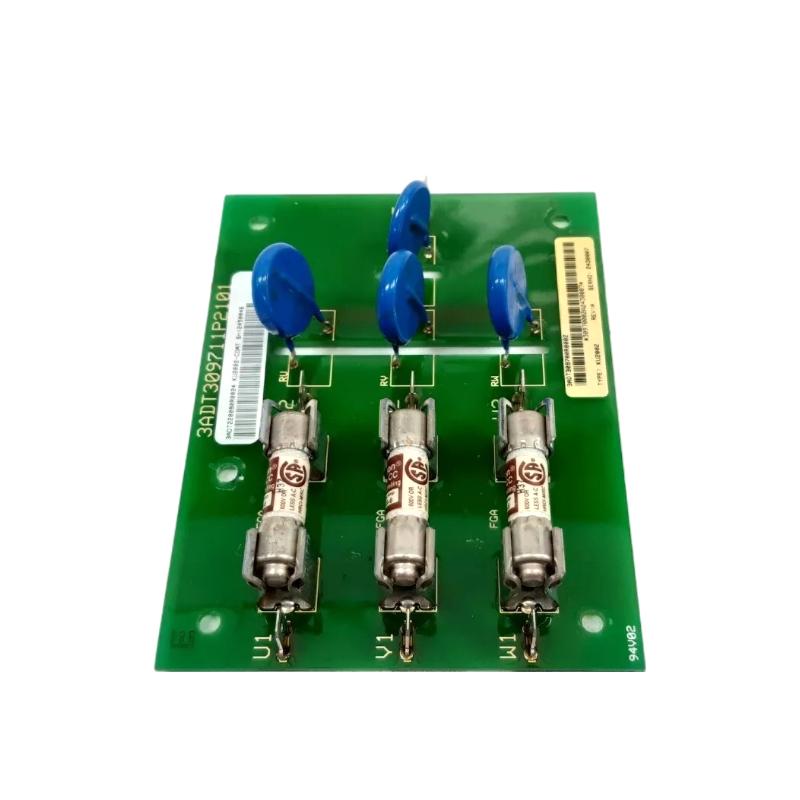

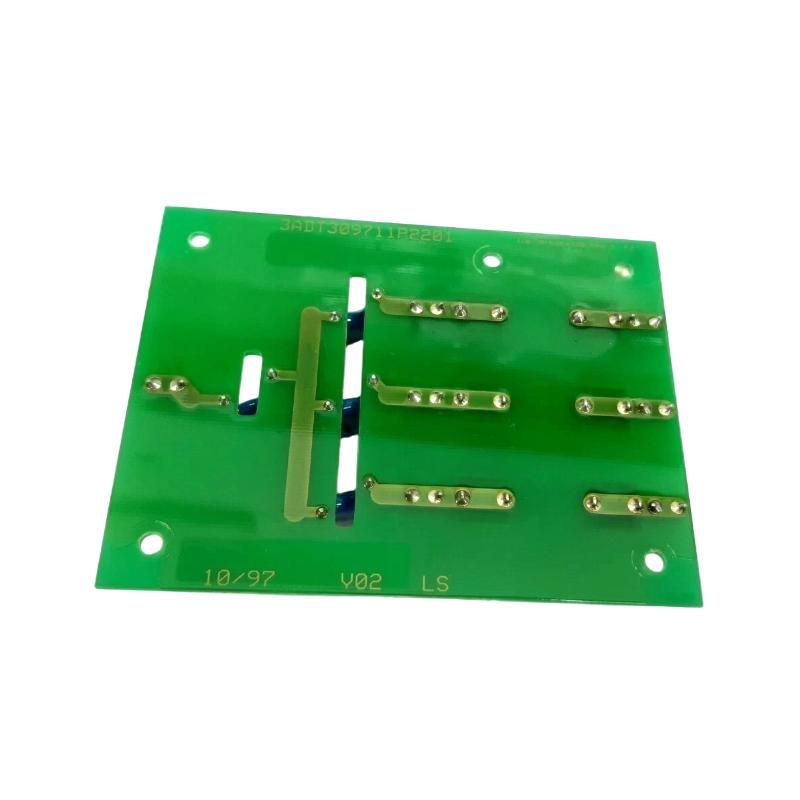

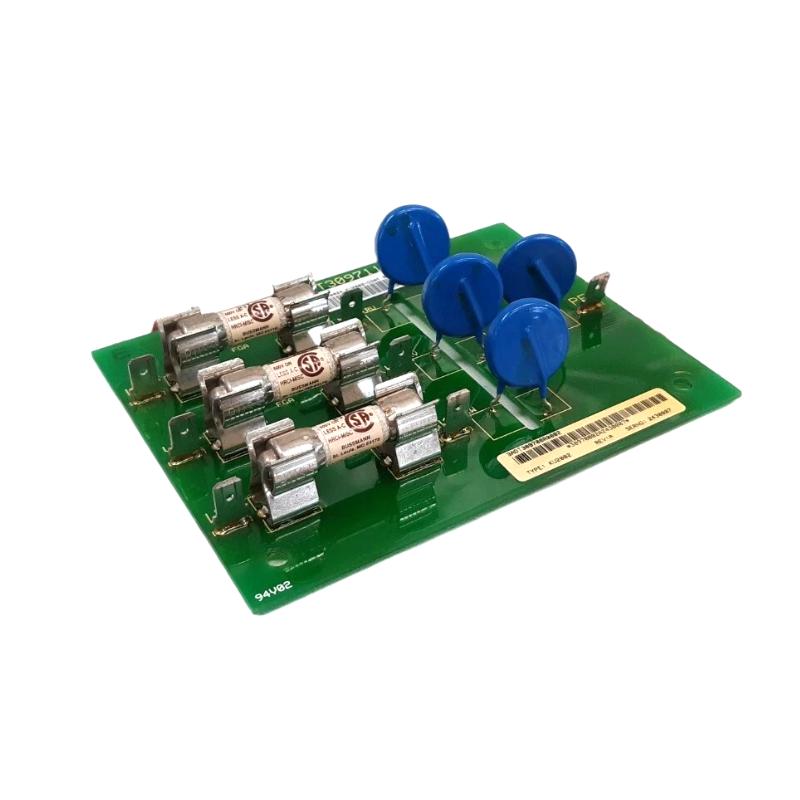

The ABB SDCS-KU2002 3ADT220090R0024 Varistor Board is a specialized protection and control component designed for integration within ABB DCS800 drive systems and associated control units. Engineered as part of the KU2002 series, this board plays a critical role in voltage suppression and circuit stabilization, helping safeguard sensitive electronics from transient overvoltage conditions.
Built with industrial-grade materials and precision circuitry, the SDCS-KU2002 ensures long-term operational reliability in demanding environments. Its compact PCB structure allows seamless installation into existing ABB drive architectures, making it a preferred choice for maintenance upgrades and system optimization.
Technical Specifications
| Parameter | Specification |
|---|
| Model | SDCS-KU2002 |
| Part Number | 3ADT220090R0024 |
| Module Type | Varistor Board |
| Function | Voltage suppression & circuit protection |
| Compatibility | ABB DCS800 / DSU control units |
| PCB Standard | 94V-0 flame-retardant rating |
| Mounting | Plug-in PCB module |
| Dimensions (Approx.) | 160 mm × 100 mm × 25 mm |
Industrial Use Cases
The SDCS-KU2002 Varistor Board is widely deployed in environments where electrical stability and protection are essential:
-
Heavy-duty motor drive systems
-
Metallurgical and steel processing plants
-
Pulp and paper production lines
-
Power generation and energy distribution systems
-
Industrial automation and process control
Its primary role is to absorb voltage spikes and protect downstream control electronics, ensuring continuous system uptime.
Technical Questions & Answers
1. What is the main function of the SDCS-KU2002 board?
It provides voltage surge suppression and protects control circuits from electrical spikes.
2. Is this board compatible with all ABB drives?
It is mainly designed for ABB DCS800 systems and specific DSU control units.
3. What type of protection does it offer?
It uses varistor-based protection to absorb transient overvoltages.
4. Can it be installed without system modification?
Yes, it is designed as a direct replacement or plug-in module.
5. What is the typical lifespan?
Under normal industrial conditions, it offers long operational life with minimal degradation.
6. Does it require calibration after installation?
No calibration is typically required.
7. What happens if the varistor fails?
System protection may be reduced, so replacement is recommended to maintain safety.
8. Is it suitable for high-temperature environments?
Yes, it is designed for industrial temperature ranges.
9. How do I identify a faulty board?
Common signs include system instability or visible PCB damage.
10. Is this an original ABB component?
It is manufactured to ABB specifications and standards for compatibility and performance.
