Introduction

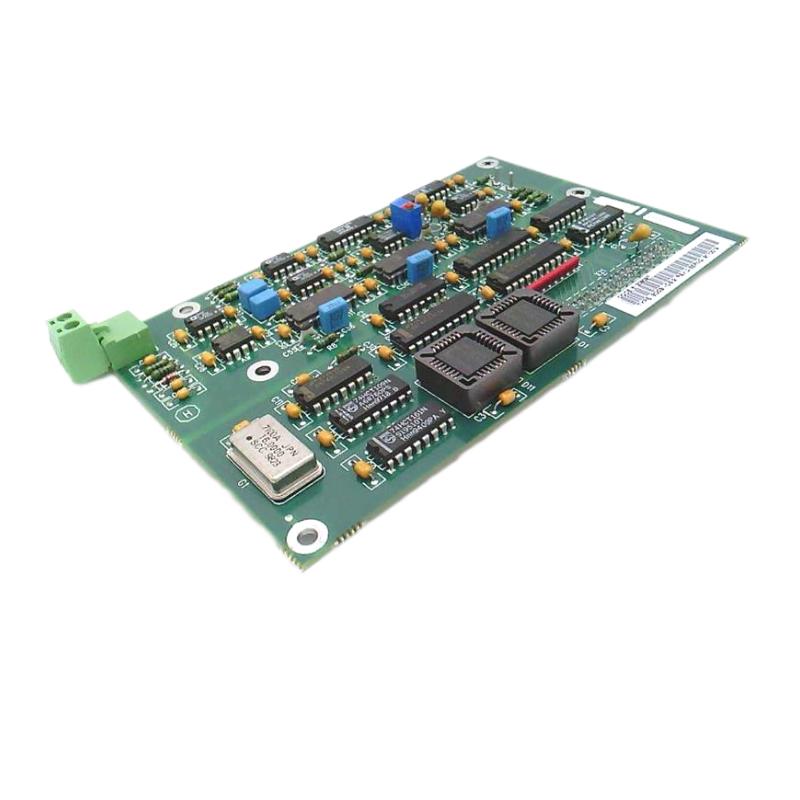

The ABB SDCS-IOE-2 DCF1208097R0001 I/O Expansion Board is a high-reliability industrial interface module designed to extend the input and output capacity of ABB DC drive systems. It is commonly used within ABB DCS500 and DCS600 drive platforms, where additional field signals are required for advanced automation and process control.
Engineered for scalable system architecture, this module allows seamless integration of sensors, interlocks, actuators, and control signals without modifying the core drive configuration. Its robust design ensures stable performance in continuous industrial operations, even in electrically noisy environments.
Technical Specifications
| Parameter | Specification |
|---|
| Model | SDCS-IOE-2 |
| Part Number | DCF1208097R0001 |
| Module Type | I/O Expansion Board |
| System Compatibility | ABB DCS500 / DCS600 DC Drive Systems |
| Function | Digital & analog I/O expansion |
| Input Voltage | 24 V DC (system supplied) |
| Digital Inputs | 8 channels (typical configuration) |
| Digital Outputs | 6 channels (transistor type) |
| Analog Inputs | 2 channels (0–10 V / 4–20 mA) |
| Analog Outputs | 2 channels (0–10 V) |
| Isolation | Up to 500 V electrical isolation |
| Communication | Internal drive backplane bus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Dimensions | Approx. 160 × 160 × 120 mm |
| Weight | Approx. 0.8–1.0 kg |
Applications
The SDCS-IOE-2 is widely used in industrial environments where flexible signal expansion is required for DC drive systems. Common applications include:
-
DC motor control systems in manufacturing plants
-
Steel rolling and metal processing lines
-
Paper and pulp production machinery
-
Conveyor and logistics automation systems
-
Power generation and process control systems
Its ability to expand both digital and analog I/O channels makes it suitable for complex automation architectures requiring precise monitoring and control.
Key Advantages
This expansion board is designed to enhance system scalability while maintaining ABB’s high standards of reliability and control precision.
-
Expands both digital and analog I/O capacity for flexible system design
-
Strong electrical isolation improves noise immunity and operational safety
-
Seamless integration with ABB SDCS and DCS drive platforms
-
Supports mixed signal environments (digital + analog control)
-
Industrial-grade durability for continuous operation
-
Enables cost-effective system upgrades without full controller replacement
Its architecture supports efficient system expansion while maintaining stable communication with the main drive controller.
Technical FAQs
1. What is the main function of the SDCS-IOE-2 module?
It expands input and output capacity in ABB DC drive control systems.
2. Which systems is it compatible with?
It is designed for ABB DCS500 and DCS600 drive platforms.
3. Does it support both analog and digital signals?
Yes, it supports both analog and digital I/O channels for flexible control.
4. What is the typical input voltage?
It operates on 24 V DC supplied by the drive system.
5. How many I/O channels does it provide?
Typically 8 digital inputs, 6 digital outputs, plus analog channels depending on configuration.
6. Does it include electrical isolation?
Yes, it provides up to 500 V isolation between circuits.
7. What communication method does it use?
It connects via the internal ABB drive backplane bus.
8. Is it suitable for harsh environments?
Yes, it is designed for industrial temperature and noise conditions.
9. Can it be used for system upgrades?
Yes, it is commonly used for expanding existing ABB drive systems.
10. What industries commonly use it?
Manufacturing, steel, paper production, energy, and process automation industries.
