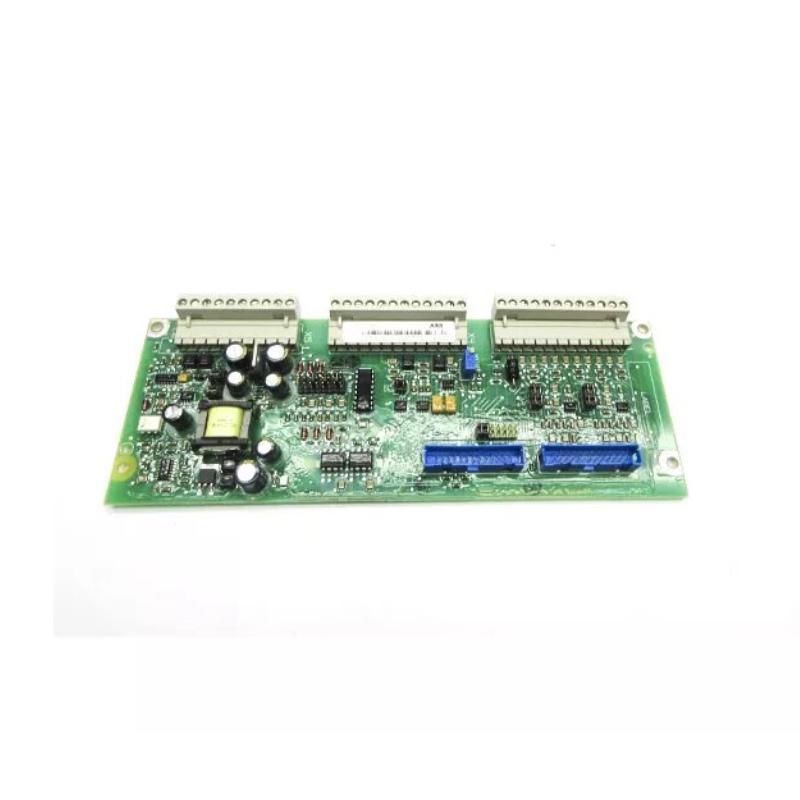

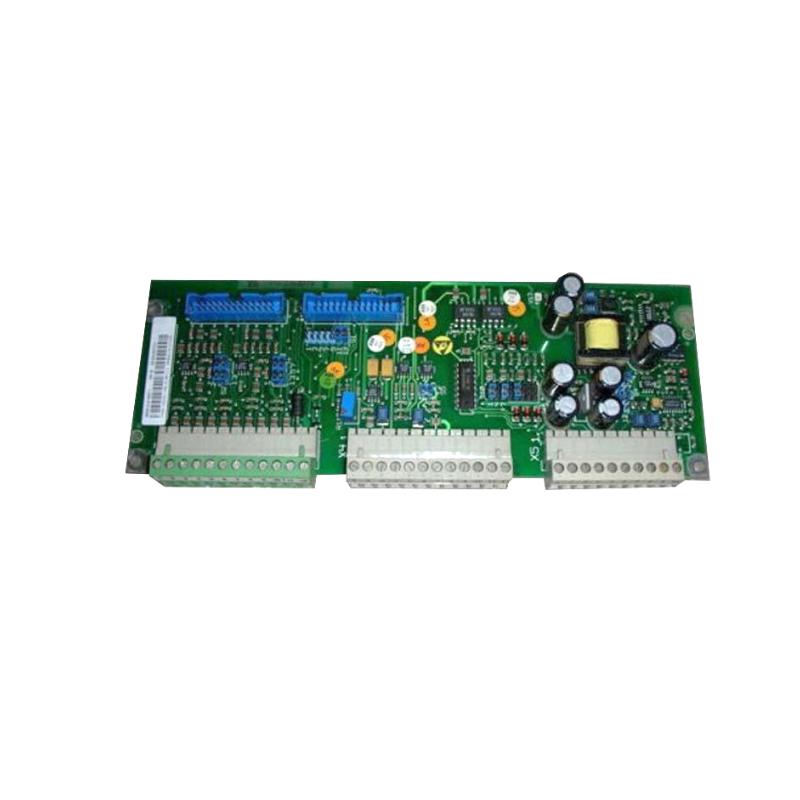

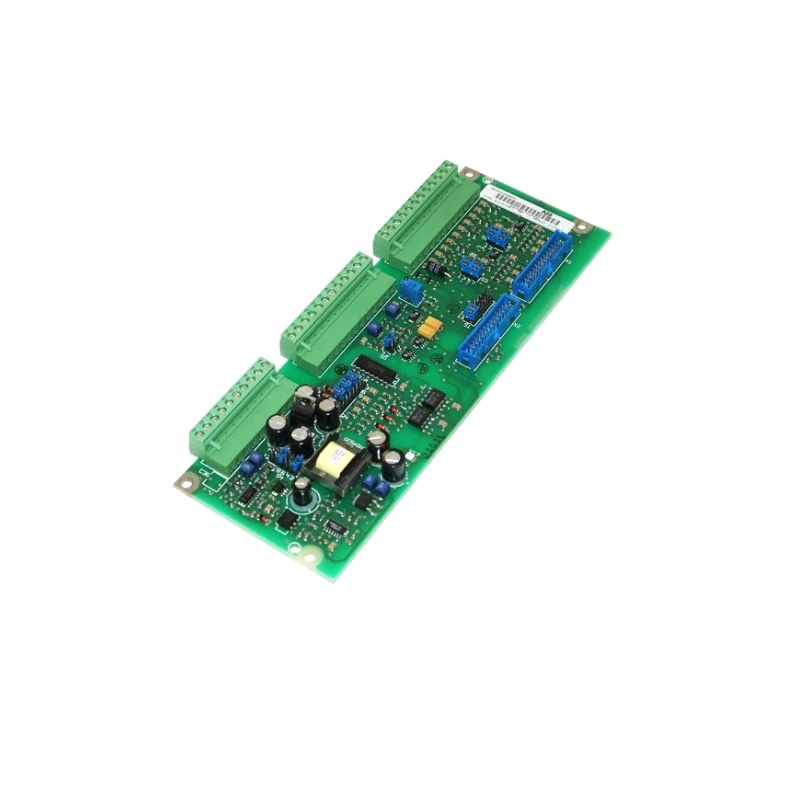

The ABB SDCS-IOB-3 3BSE004086R1 Analog I/O Board is a versatile interface module designed for ABB DC drive and industrial automation systems. It provides reliable handling of both analog input and output signals, acting as a key communication bridge between field instrumentation and drive control units.
Engineered for precision and stability, this board is widely used in ABB SDCS and DCS platforms where accurate signal conversion, noise resistance, and system integration are essential for maintaining smooth industrial operation.
Its modular design supports flexible configuration, making it suitable for both system expansion and retrofit applications in existing industrial setups.
Technical Specifications
| Parameter | Specification |
|---|
| Model | SDCS-IOB-3 |
| Part Number | 3BSE004086R1 |
| Module Type | Analog I/O Board |
| System Compatibility | ABB DCS500 / DCS600 / SDCS platforms |
| Input Type | Analog (voltage / current signals) |
| Output Type | Analog control signals |
| Communication | Drive system backplane interface |
| Signal Processing | Real-time analog conversion |
| Operating Voltage | 24 V DC (system dependent) |
| Channel Configuration | Multi-channel analog I/O (configurable) |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Dimensions | Approx. 148 × 100 × 130 mm |
| Weight | Approx. 0.19 – 0.6 kg |
Industrial Applications
The SDCS-IOB-3 is commonly deployed in industrial environments where precise analog signal control is required for process stability and performance optimization. Typical applications include:
-
DC motor drive systems in manufacturing plants
-
Steel rolling mill automation and control
-
Paper and pulp production lines
-
Energy generation and turbine control systems
-
Conveyor and material handling systems
Its ability to process continuous analog signals makes it essential for fine-tuned control tasks such as speed regulation, torque feedback, and process monitoring.
Key Advantages
This analog I/O board delivers strong performance in both signal accuracy and system integration flexibility, making it a reliable choice for industrial automation upgrades.
-
High-precision analog signal processing for stable control response
-
Strong electrical isolation for improved noise resistance and safety
-
Compact and modular design for easy installation and replacement
-
Seamless integration with ABB SDCS and DCS drive systems
-
Reliable performance in harsh industrial environments
-
Supports both input and output analog signal handling for flexible control architecture
Its design focuses on maintaining signal integrity even in electrically noisy and high-load environments, improving overall system stability.
Technical FAQs
1. What is the main function of the SDCS-IOB-3 module?
It handles analog input and output signals for ABB DC drive systems.
2. Which ABB systems is it compatible with?
It is commonly used in ABB DCS500, DCS600, and SDCS drive platforms.
3. What types of signals does it process?
It processes analog voltage and current signals for control and feedback.
4. Is it suitable for industrial environments?
Yes, it is designed for continuous operation in industrial automation settings.
5. What is its weight?
Approximately 0.19 kg in standard configurations.
6. Does it support both input and output functions?
Yes, it supports analog input and output signal handling.
7. What industries commonly use this module?
Manufacturing, steel production, energy systems, and process automation.
8. Is it easy to integrate into existing systems?
Yes, it uses ABB’s standard SDCS backplane architecture for integration.
9. Does it require frequent maintenance?
No, it is designed for long-term stable industrial operation.
10. What is its main advantage over digital I/O modules?
It enables continuous signal control rather than simple ON/OFF logic.
