Introduction

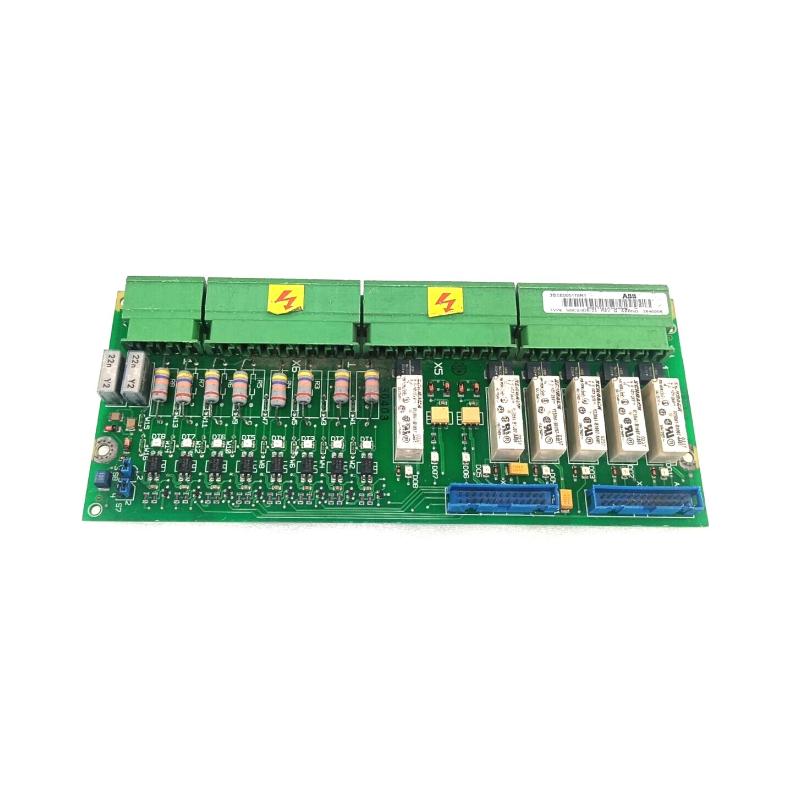

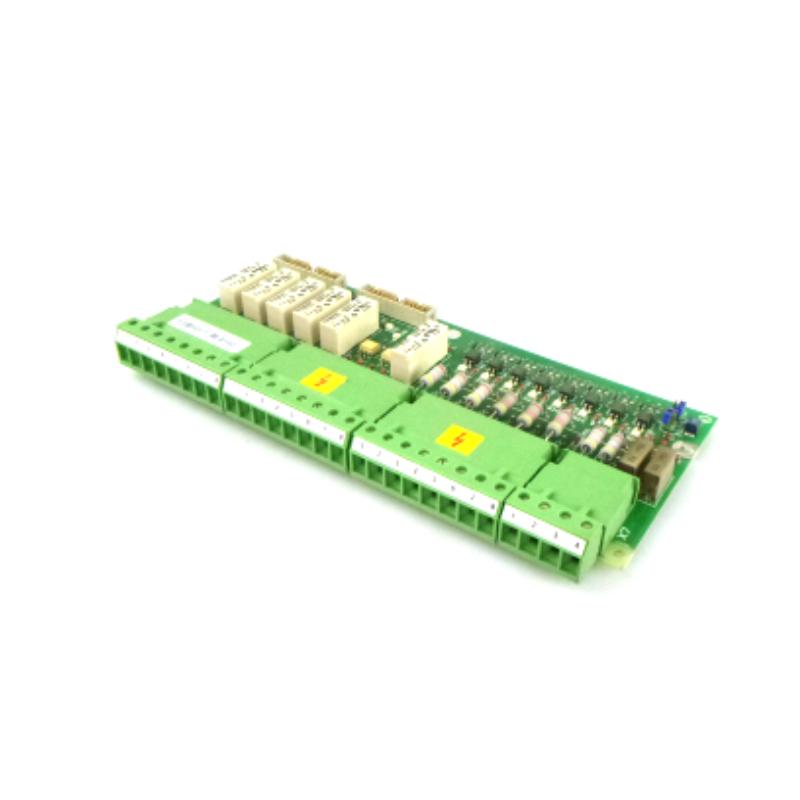

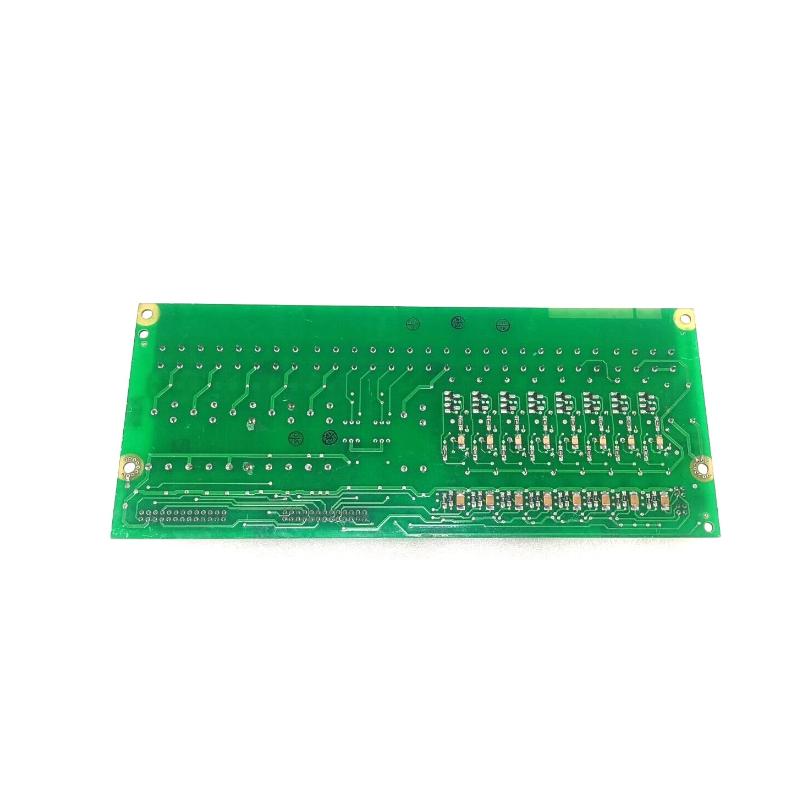

The ABB SDCS-IOB-23 3ADT220090R0023 Digital Connection Board is a high-reliability industrial interface module designed for ABB DC drive and automation systems. It functions as a digital signal hub, enabling smooth and stable communication between controllers and field devices such as sensors, switches, and actuators.
Engineered for demanding environments, this module is widely used in ABB DCS and SDCS drive architectures where precise signal handling, electrical isolation, and system scalability are essential for stable industrial performance.
Technical Specifications
| Parameter | Specification |
|---|
| Model | SDCS-IOB-23 |
| Part Number | 3ADT220090R0023 |
| Module Type | Digital Connection / I-O Interface Board |
| System Compatibility | ABB DCS500 / DCS600 / SDCS platforms |
| Digital Channels | 8 Inputs / 8 Outputs (typical configuration) |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Isolation | Up to 500 V AC isolation |
| Signal Type | Digital ON/OFF signals |
| Communication | System backplane / internal drive bus |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | Approx. 140 × 120 × 30 mm |
| Weight | Approx. 0.3 kg |
Application Scope
This module is commonly deployed in industrial automation systems where reliable digital signal exchange is critical for process control. Typical applications include:
-
DC drive control systems in manufacturing plants
-
Steel and metal processing automation lines
-
Conveyor and logistics systems
-
Paper and pulp production machinery
-
Energy and utility control systems
Its isolated design ensures stable operation even in environments with high electrical noise and vibration.
Key Advantages
The SDCS-IOB-23 is designed to combine durability, flexibility, and stable communication performance in one compact module.
-
Reliable digital input/output handling for industrial control logic
-
Strong electrical isolation (up to 500 V AC) for improved system safety
-
Compact structure for easy installation in ABB drive cabinets
-
Stable performance under harsh industrial conditions
-
Seamless integration with ABB SDCS and DCS platforms
-
Scalable architecture for system expansion and upgrades
Its engineering focus is on ensuring clean signal transmission and consistent control response across automation systems.
Technical FAQs
1. What is the main function of the SDCS-IOB-23 module?
It manages digital input and output signals within ABB DC drive systems.
2. Which ABB systems is it compatible with?
It is used in ABB DCS500, DCS600, and SDCS-based drive platforms.
3. How many channels does it support?
Typically 8 digital inputs and 8 digital outputs depending on configuration.
4. What is the operating voltage?
It operates on standard 24 V DC industrial control signals.
5. Does it support electrical isolation?
Yes, it provides up to 500 V AC isolation between circuits.
6. What is the weight of the module?
Approximately 0.3 kg depending on configuration.
7. Is it suitable for harsh environments?
Yes, it is designed for industrial temperature ranges and high-noise conditions.
8. Can it be expanded in a system?
Yes, it supports modular expansion within ABB drive architectures.
9. What type of signals does it handle?
Digital ON/OFF control signals for automation logic.
10. What industries commonly use it?
Manufacturing, energy, metallurgy, and process automation sectors.
