High-Stability Field Excitation Module for ABB DC Drive Systems

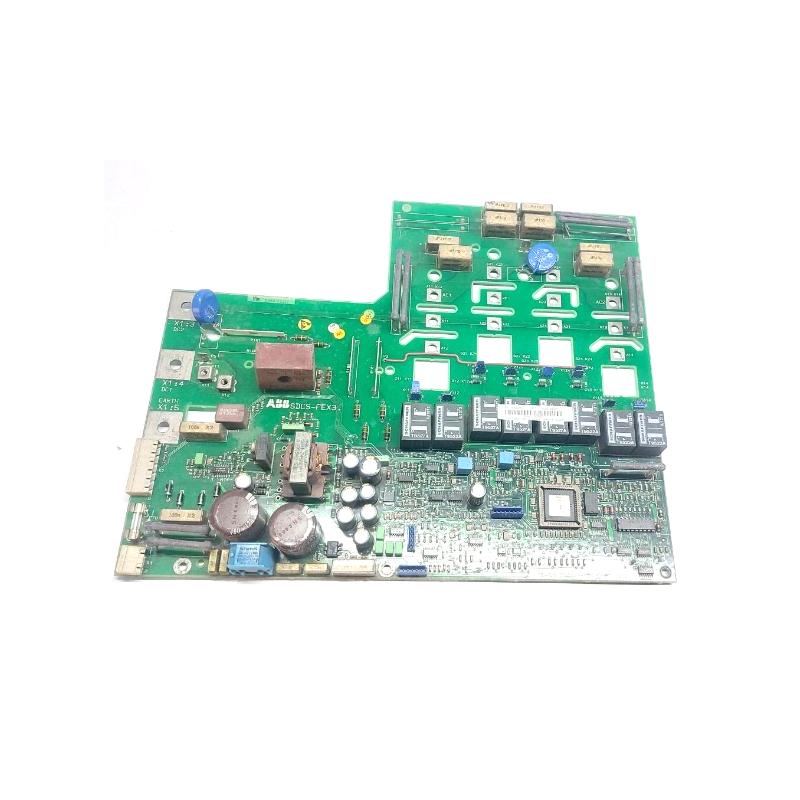

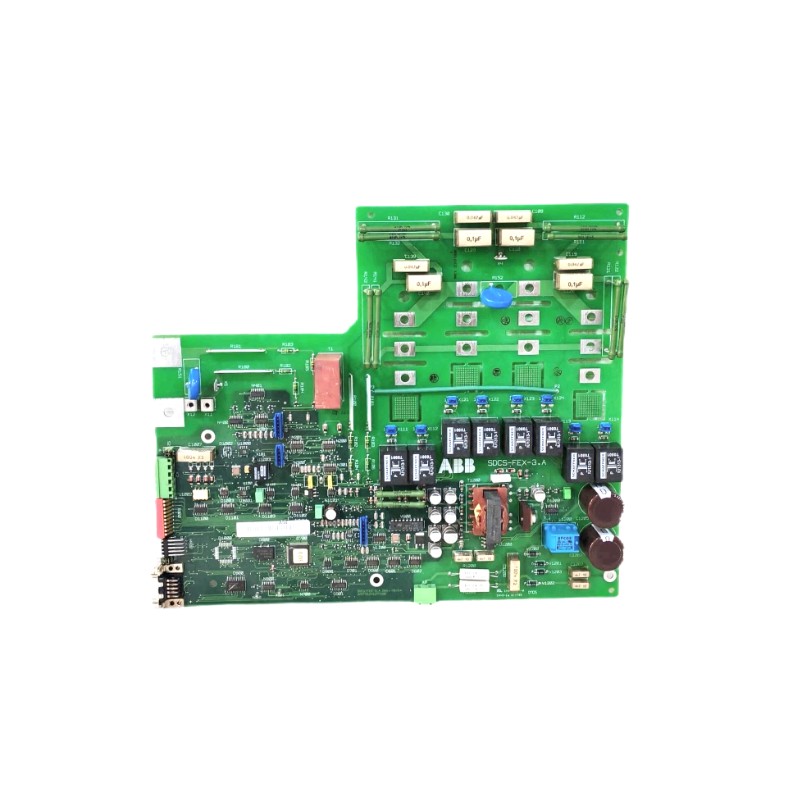

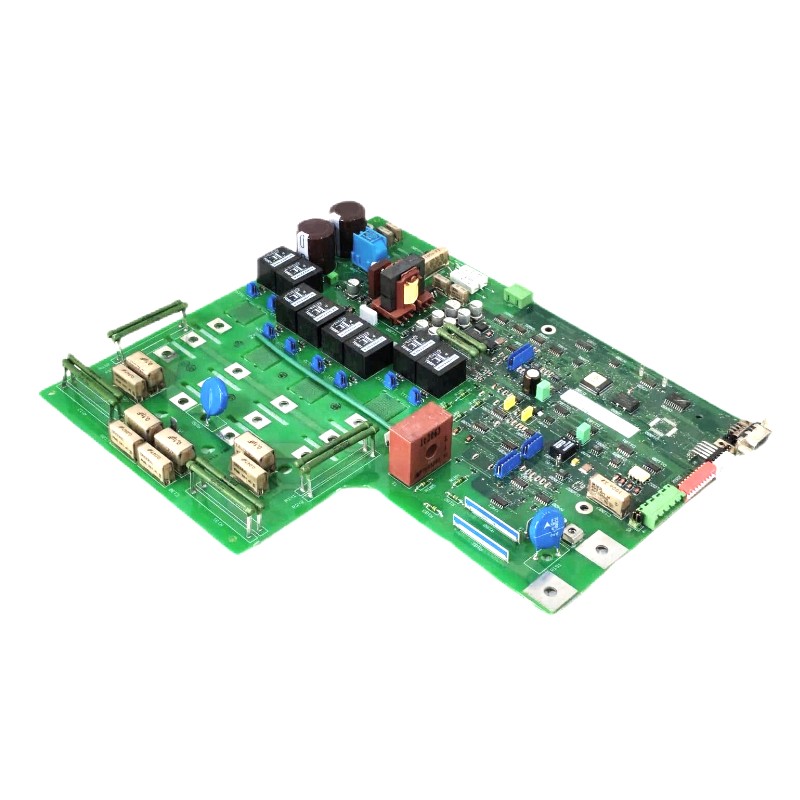

The ABB SDCS-FEX-31 3ADT306800R1 Excitation Plate is an industrial-grade field excitation module designed for ABB DC drive systems, typically used within DCS500 and DCS600 platforms. It is responsible for controlling and stabilizing the field current of DC motors, ensuring accurate torque production, smooth speed regulation, and reliable performance under variable load conditions.
Engineered for demanding industrial environments, this excitation plate plays a key role in maintaining consistent motor magnetization and optimizing overall drive efficiency in continuous-duty operations.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | ABB |
| Model | SDCS-FEX-31 |
| Part Number | 3ADT306800R1 |
| Module Type | Excitation Plate / Field Exciter Board |
| System Compatibility | ABB DCS500 / DCS600 DC Drive Systems |
| Function | DC motor field excitation control |
| Control Method | Closed-loop excitation regulation |
| Power Stage Technology | Thyristor-based field supply control |
| Input Voltage | 3-phase AC supply (system dependent) |
| Output Capability | Controlled DC field current output |
| Protection Functions | Overcurrent, field loss, thermal supervision |
| Communication Interface | Internal drive system bus (SDCS-CON linked) |
| Cooling Method | Cabinet air cooling |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Mounting Type | Drive cabinet internal module |
| Dimensions (approx.) | 200 × 150 × 60 mm |
| Weight | ~0.5 – 1.0 kg |
Application Areas
The SDCS-FEX-31 excitation plate is widely used in DC drive systems where precise field control is essential for process stability. Typical applications include:
-
Steel rolling mills and metal processing lines
-
Paper machine drive systems
-
Cement production equipment
-
Mining and heavy-duty conveyor systems
-
Industrial DC motor speed control systems
It is especially effective in high-load applications where stable torque and fast field response are required.
Key Advantages and Engineering Value
The SDCS-FEX-31 delivers precise and stable field excitation control, ensuring consistent magnetic flux in DC motors even under fluctuating load conditions. This directly improves torque stability and enhances overall drive performance.
Its thyristor-based control architecture provides efficient power handling and reliable operation in high-demand industrial environments. The module is also tightly integrated with ABB’s SDCS control system, enabling coordinated operation with main control and communication boards.
Built-in protection functions such as field loss detection and thermal monitoring improve system safety and reduce the risk of unplanned downtime. Its rugged design ensures long-term durability in continuous industrial use.
Technical FAQs
-
What is the main function of the SDCS-FEX-31?
It controls DC motor field excitation current.
-
Which systems is it used with?
ABB DCS500 and DCS600 DC drive systems.
-
What does it control exactly?
The magnetic field strength of DC motors.
-
Is it a standalone device?
No, it works within a complete drive system.
-
What technology does it use?
Thyristor-based field excitation control.
-
Does it include protection functions?
Yes, including field loss and thermal monitoring.
-
What is its main benefit?
Stable torque and precise speed regulation.
-
Is it suitable for heavy industry?
Yes, it is designed for industrial applications.
-
How is it installed?
Inside ABB drive cabinets as an internal module.
-
What industries use it most?
Steel, paper, mining, and heavy manufacturing sectors.
