High-Precision Field Excitation Control for ABB DC Drive Systems

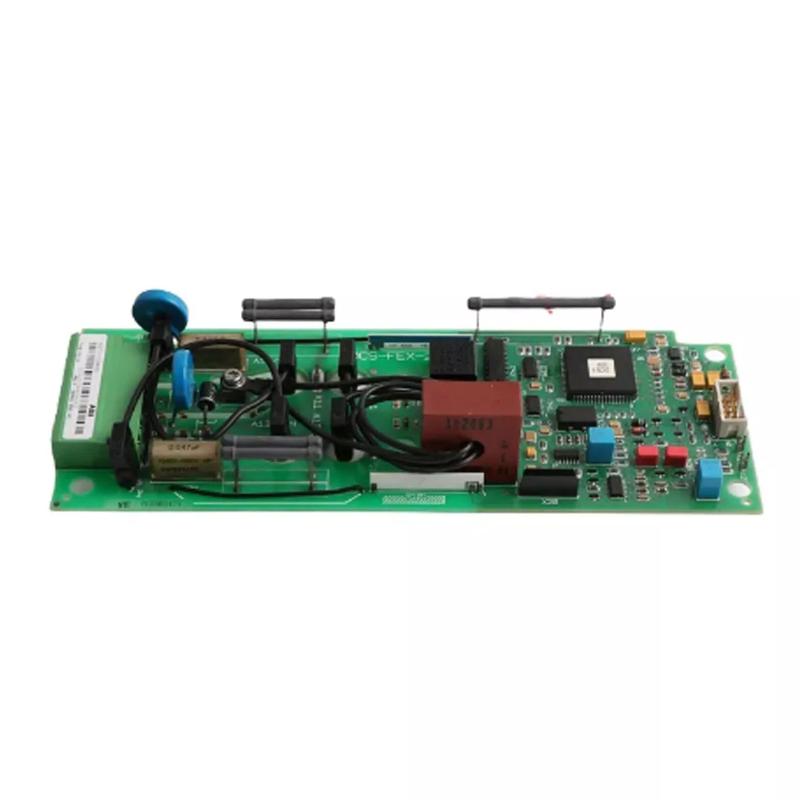

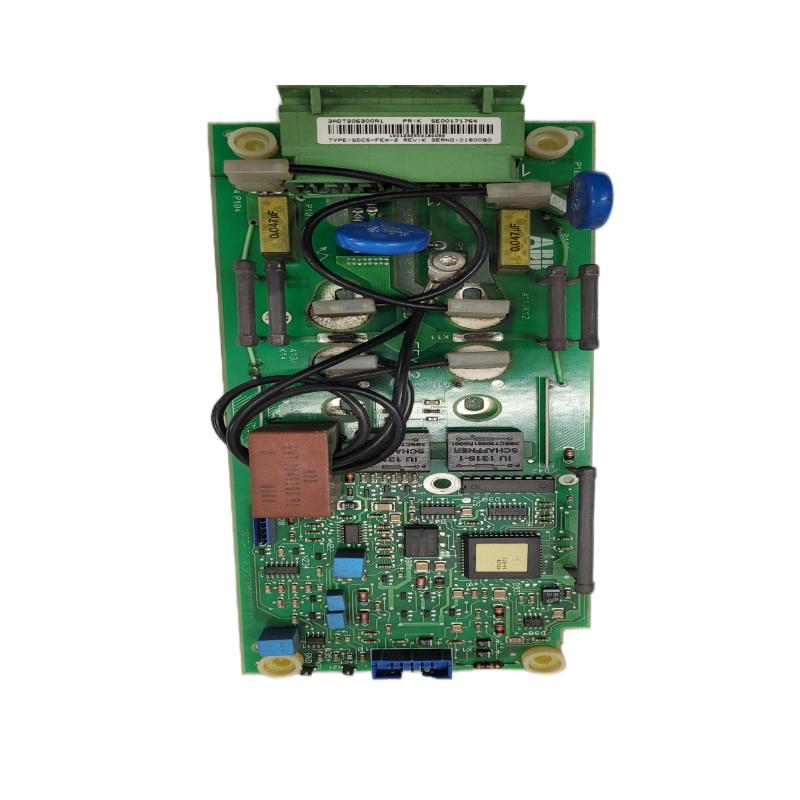

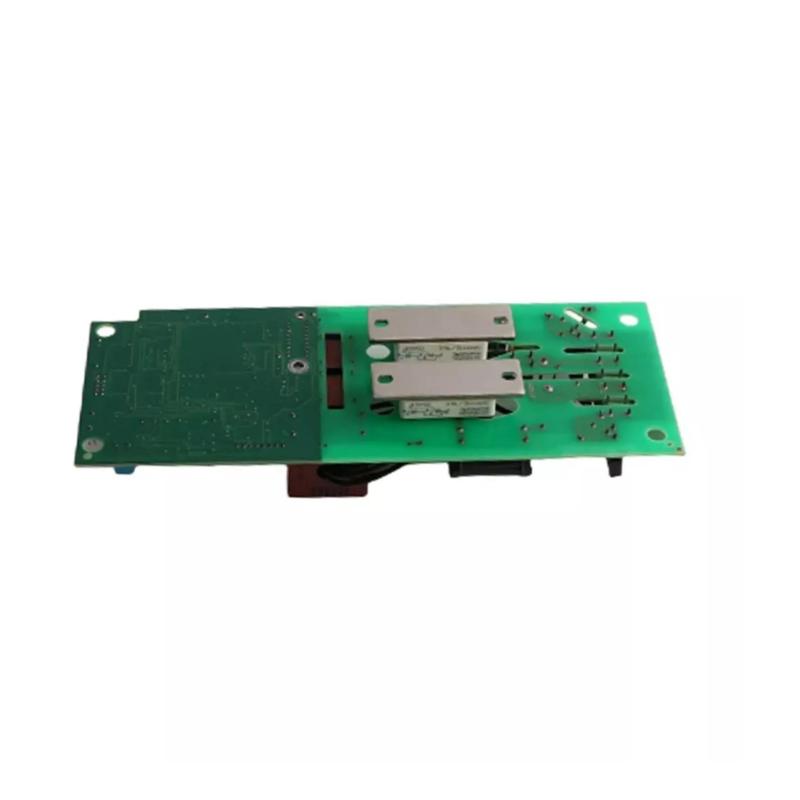

The ABB SDCS-FEX-2 3ADT306300R1 Excitation Controller is an industrial-grade field excitation module designed for ABB DC drive systems such as DCS500 and DCS600 series. It is responsible for regulating the field current of DC motors, ensuring stable torque production, smooth speed regulation, and optimized motor efficiency under dynamic load conditions.
Engineered as part of ABB’s modular drive architecture, this excitation controller works closely with the main converter and control boards to maintain precise magnetic field control—an essential factor in high-performance DC motor applications.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | ABB |
| Model | SDCS-FEX-2 |
| Part Number | 3ADT306300R1 |
| Module Type | Excitation Controller / Field Regulator |
| System Compatibility | ABB DCS500 / DCS600 DC Drive Systems |
| Function | DC motor field current regulation |
| Control Principle | Closed-loop excitation control |
| Power Stage | Thyristor-based field supply |
| Input Voltage | 110–500 V AC (single-phase) |
| Output Capability | Up to ~16 A field current (configuration dependent) |
| Communication Interface | Internal drive system bus (SDCS-CON interface) |
| Protection Functions | Field loss, overcurrent, thermal monitoring |
| Cooling Method | Cabinet air-cooled |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Mounting Type | Internal drive module installation |
| Dimensions (approx.) | Compact plug-in module format |
| Weight | ~0.3–0.6 kg |
Application Areas
The SDCS-FEX-2 is widely used in DC drive systems where stable field control is critical for process performance. Typical applications include:
-
Steel rolling mills and strip processing lines
-
Paper machine drive systems
-
Cement and mining production equipment
-
Crane, hoist, and lifting mechanisms
-
Heavy industrial DC motor speed control systems
It is especially valuable in processes requiring consistent torque at both low and high speeds, where field weakening and strengthening must be tightly controlled.
Key Advantages and Engineering Value
The SDCS-FEX-2 delivers precise and dynamic field current regulation, directly improving DC motor torque stability and speed accuracy. Its closed-loop control design allows the system to respond quickly to load changes, reducing mechanical stress and improving process smoothness.
As part of ABB’s modular DCS architecture, it integrates seamlessly with SDCS-CON control boards and power modules, enabling coordinated system-level operation. Built-in protection functions such as field loss detection and overcurrent monitoring enhance operational safety and reduce downtime risk.
Its compact internal design simplifies installation inside drive cabinets, while its robust industrial construction ensures reliable performance in continuous-duty applications.
Technical FAQs
-
What is the main function of the SDCS-FEX-2?
It regulates field excitation current in DC motors.
-
Which systems is it used with?
ABB DCS500 and DCS600 DC drive systems.
-
What does field excitation control affect?
Motor torque and speed stability.
-
Is it a standalone controller?
No, it works as part of a complete drive system.
-
What type of power input does it use?
Single-phase 110–500 V AC input.
-
What is the typical output current range?
Up to around 16 A depending on configuration.
-
Does it include protection functions?
Yes, including field loss and overcurrent protection.
-
How is it installed?
Internally within ABB drive cabinets.
-
Is it suitable for heavy industry?
Yes, it is designed for demanding industrial environments.
-
What is its key advantage?
Stable and efficient DC motor field control under variable load conditions.
