Core Control Intelligence for ABB Drive Systems

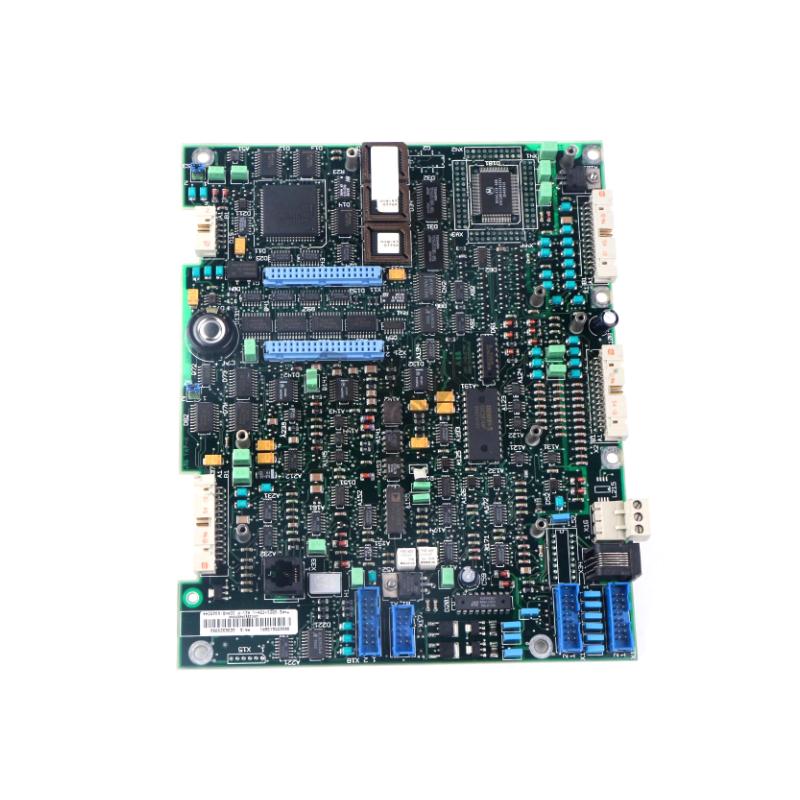

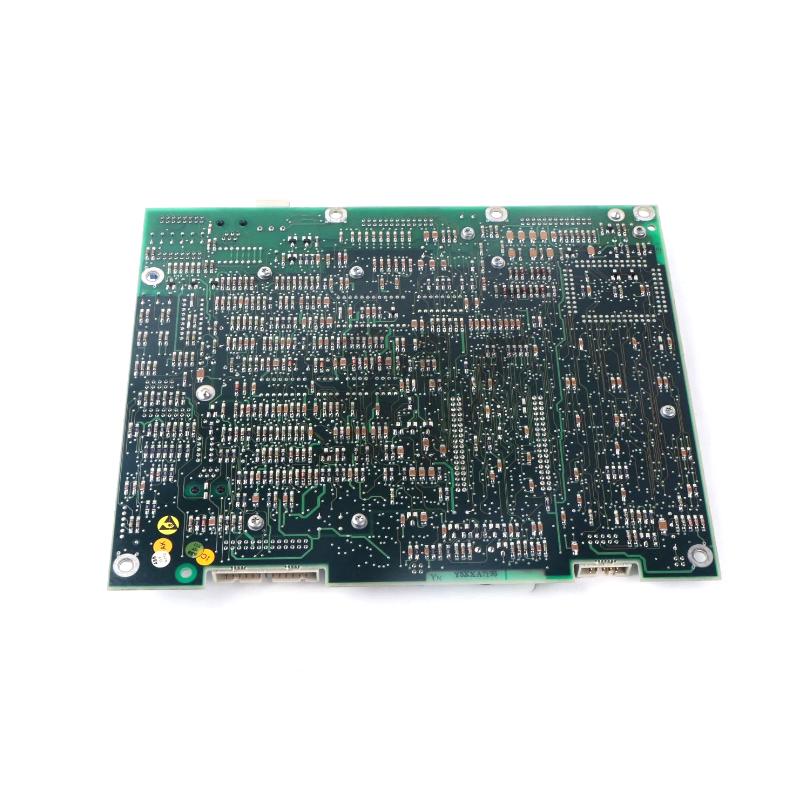

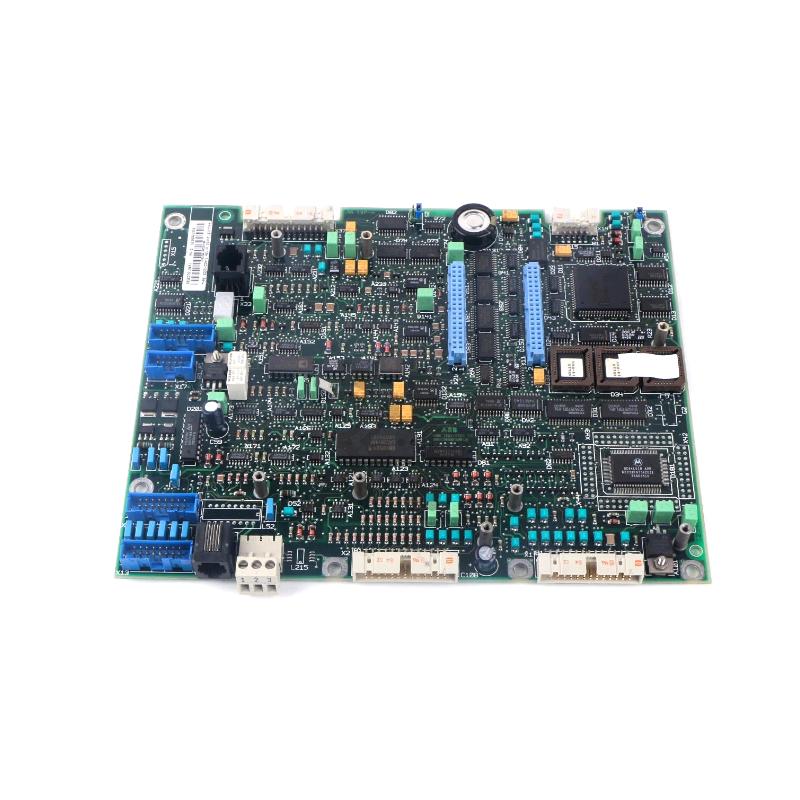

The ABB SDCS-CON-1 3BSE003676R1 Control Board serves as a central processing unit within ABB DCS drive architectures, delivering precise control, monitoring, and coordination of drive operations. Designed for reliability and performance, this board manages key control logic, signal processing, and system communication, making it a fundamental component in maintaining stable and efficient industrial drive functionality.
Its robust engineering ensures consistent performance in demanding environments, supporting both legacy and modern automation systems with seamless integration.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | ABB |
| Model | SDCS-CON-1 |
| Part Number | 3BSE003676R1 |
| Module Type | Control Board |
| Function | Drive control and signal processing |
| Processor Type | Embedded industrial controller |
| Communication Interfaces | Internal bus, serial communication |
| Analog Inputs | Supported (system dependent) |
| Digital Inputs/Outputs | Supported (system dependent) |
| Control Capability | Real-time drive control |
| Power Supply | Internal system supply |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -25°C to +85°C |
| Insulation Voltage | Up to 2000 V |
| Mounting Type | Plug-in / drive-integrated |
| Dimensions (L×W×H) | Approx. 200 × 120 × 40 mm |
| Weight | Approx. 0.3 – 0.6 kg |
Application Areas
The SDCS-CON-1 is widely used in industrial environments where precise drive control is critical. Typical applications include:
-
ABB DCS800 DC drive systems
-
Metal processing and rolling mills
-
Power generation and distribution systems
-
Cement, mining, and heavy industry
-
Conveyor and material handling systems
Its ability to process real-time control signals ensures accurate speed, torque, and system coordination.
Key Advantages and System Value
This control board provides centralized processing and control, enabling efficient management of drive operations. Its real-time response capability ensures precise control over motor performance, improving overall system efficiency.
The board’s integration flexibility allows it to communicate seamlessly with other ABB modules, simplifying system design and expansion. Its durable construction and wide operating temperature range ensure stable performance even in harsh industrial environments.
Additionally, its plug-in design supports easy maintenance and replacement, reducing downtime and operational costs.
Technical FAQs
-
What is the main function of the SDCS-CON-1?
It acts as the central control unit for ABB drive systems.
-
Which systems is it used in?
Primarily ABB DCS drive platforms such as DCS800.
-
Does it handle real-time control?
Yes, it performs real-time processing for drive operations.
-
What types of signals can it process?
Both analog and digital signals depending on system configuration.
-
Is it compatible with other ABB modules?
Yes, it integrates with communication and I/O boards.
-
What is the operating temperature range?
Approximately -10°C to +70°C.
-
How is the module installed?
As a plug-in board within the drive system.
-
Does it require external power?
No, it uses internal system power.
-
Is it suitable for harsh industrial environments?
Yes, it is designed for high reliability and durability.
-
What industries commonly use this board?
Heavy industry, energy, and process automation sectors.
