Industrial Communication Backbone for Drive Control Systems

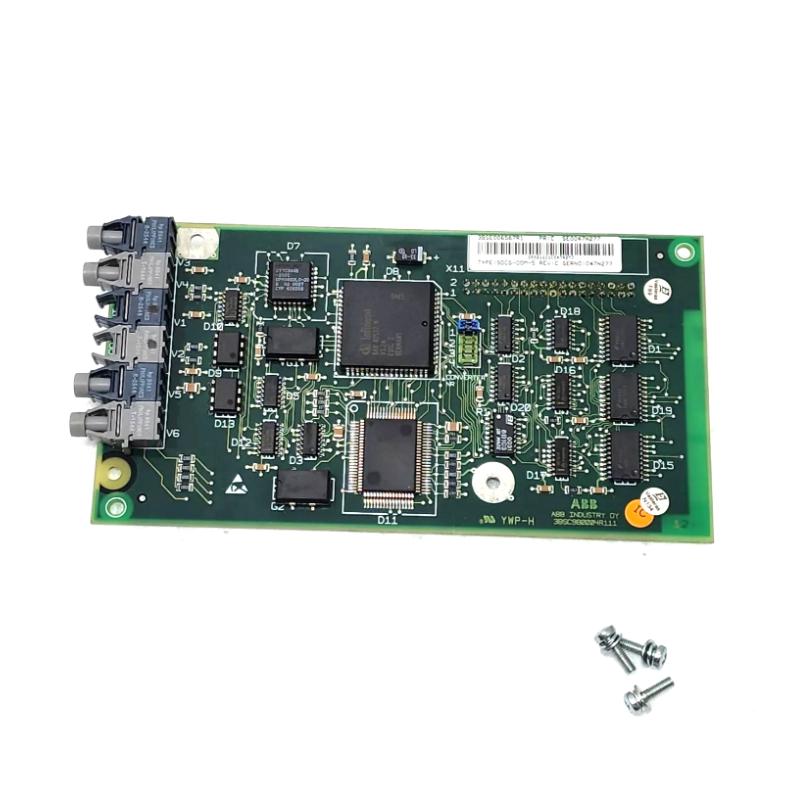

The ABB SDCS-COM-5 3BSE006567R1 Communication Board is a specialized interface module designed for ABB DCS drive systems, particularly within the DCS800 DC drive family. It acts as a critical communication bridge, enabling high-speed and reliable data exchange between drives, PLCs, and higher-level control systems.
Engineered for demanding industrial environments, this board supports multiple communication channels and protocols, ensuring seamless integration across automation architectures. Its robust design and flexible connectivity make it an essential component for maintaining efficient and synchronized drive operations.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | ABB |
| Model | SDCS-COM-5 |
| Part Number | 3BSE006567R1 |
| Module Type | Communication Board |
| Application | ABB DCS / DCS800 Drive Systems |
| Communication Interfaces | Fieldbus, Serial (Modbus), Digital & Analog I/O |
| Digital Inputs | 7 isolated inputs |
| Analog Inputs | 2 channels |
| Communication Channels | Multiple (HDLC, DDCS, serial) |
| Data Transfer Capability | High-speed, configurable |
| Power Supply | 115–230 V AC or low-voltage DC (model dependent) |
| Mounting Type | DIN rail / internal drive integration |
| Operating Temperature | -10°C to +70°C |
| Insulation Voltage | Up to 2000 V |
| Dimensions (H×W×D) | Approx. 156 × 84 × 18 mm |
| Weight | Approx. 0.08 – 0.40 kg |
Applications in Industrial Systems
The SDCS-COM-5 is widely deployed in drive control and automation systems where stable communication is essential. It is commonly used in:
-
DC drive systems (DCS800 series)
-
Process automation lines
-
Power generation and energy systems
-
Metal processing and heavy industry
-
Conveyor and material handling systems
Its ability to handle multiple communication protocols makes it ideal for integrating legacy systems with modern PLC architectures.
Core Advantages and System Value
This communication board delivers strong value through its multi-protocol support and high-speed data exchange capabilities. It enables efficient synchronization between control layers, reducing latency and improving system responsiveness.
Its flexible interface design allows integration with both analog and digital signals, simplifying system expansion. Additionally, the board’s industrial-grade insulation and temperature tolerance ensure reliable operation in harsh environments.
The compact design also supports easy installation within drive systems, helping optimize cabinet space while maintaining high functionality.
Technical FAQs
-
What is the primary function of the SDCS-COM-5?
It enables communication between ABB drives and external control systems.
-
Which systems is it compatible with?
Primarily ABB DCS800 and other ABB DCS drive platforms.
-
What communication protocols are supported?
It supports serial protocols such as Modbus and proprietary ABB channels.
-
Does it support analog and digital signals?
Yes, it includes both analog and digital I/O interfaces.
-
How many input channels are available?
Typically 7 digital inputs and 2 analog inputs.
-
Is it suitable for high-speed communication?
Yes, it is designed for fast and reliable data exchange.
-
What is the operating temperature range?
Approximately -10°C to +70°C depending on configuration.
-
How is the module installed?
It can be mounted internally in drives or on DIN rails.
-
Does it require external power?
Yes, depending on the system, AC or low-voltage DC supply is used.
-
What industries typically use this module?
Heavy industry, energy, automation, and process control sectors.
