High-Density Fast Response Output for Advanced Automation Systems

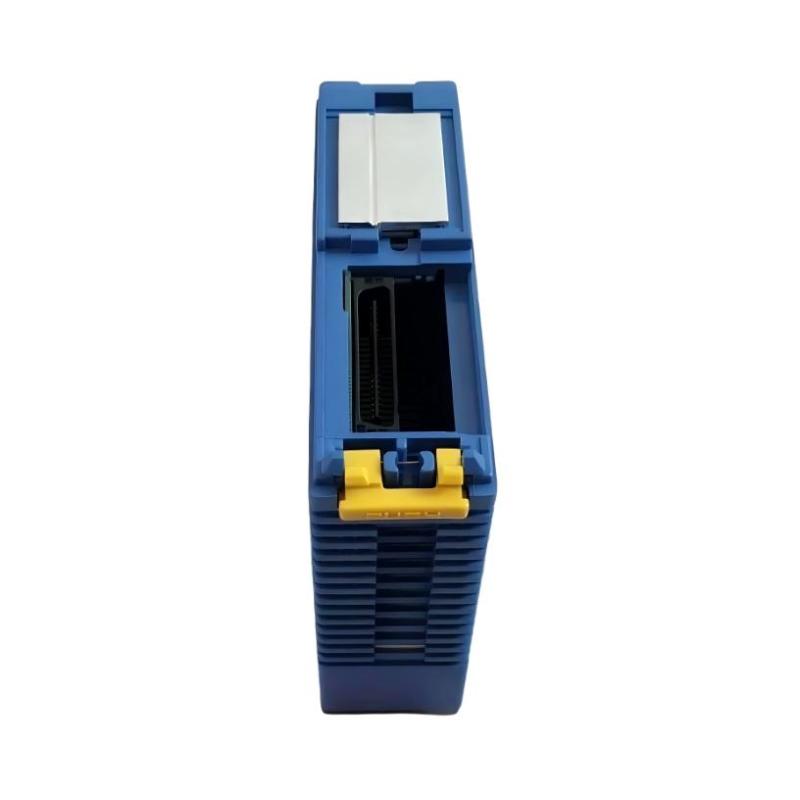

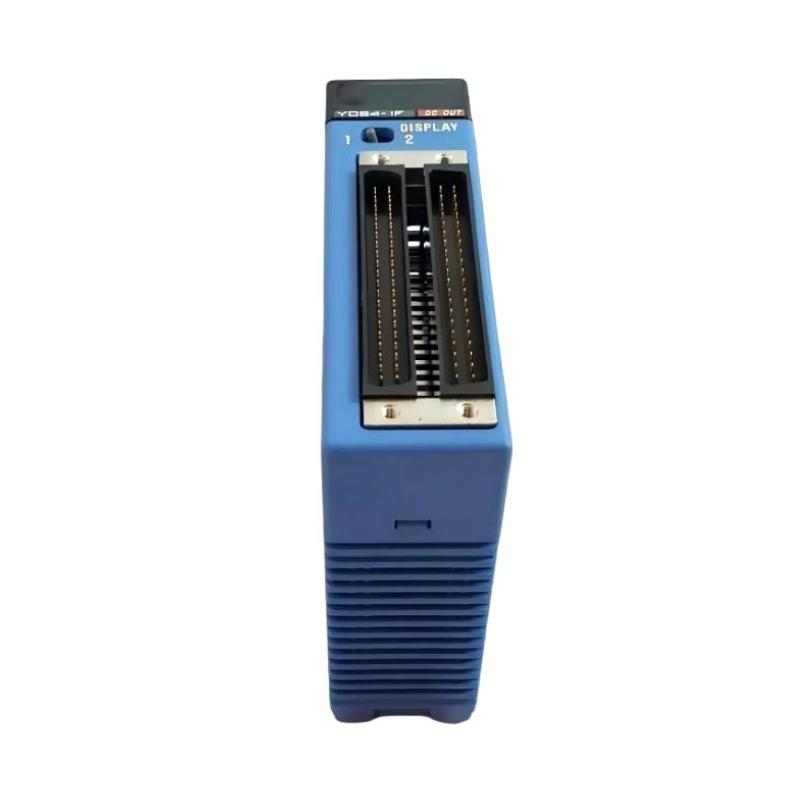

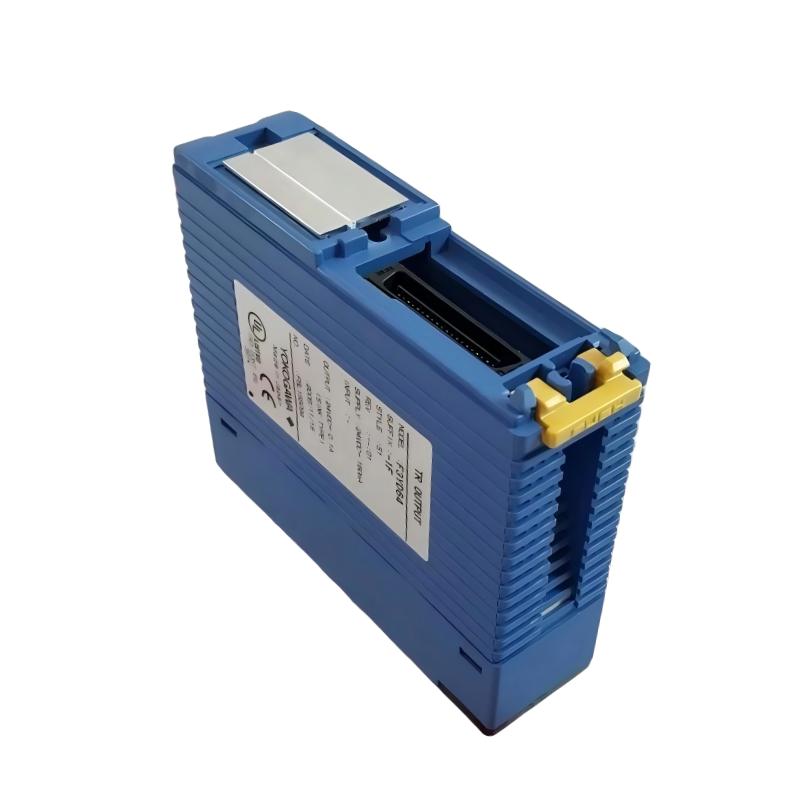

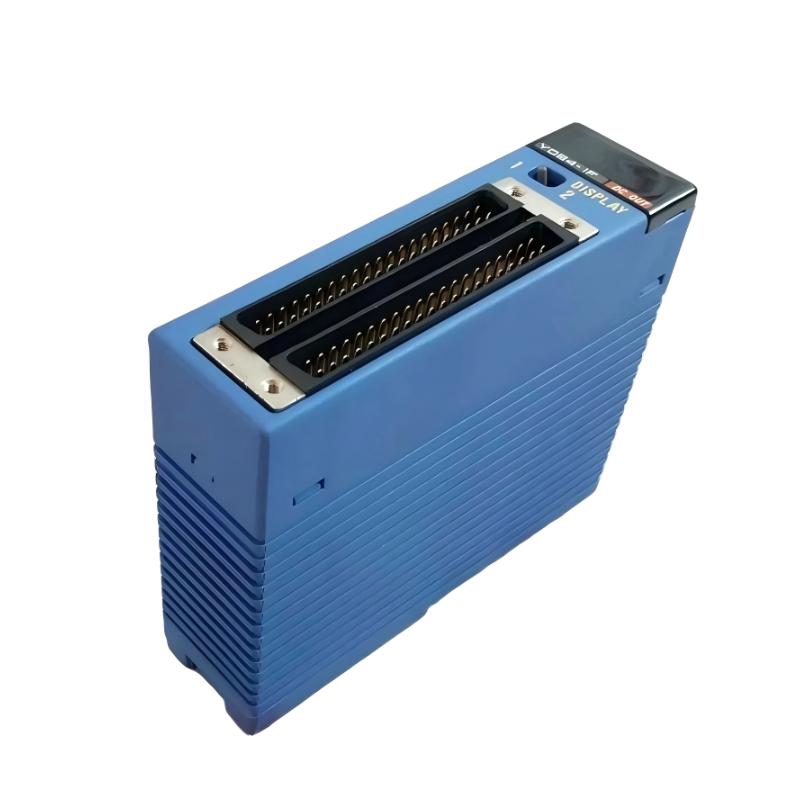

The Yokogawa F3YD64-1F Output Module is a high-performance transistor output unit designed for the FA-M3 PLC platform. Engineered for sink-type DC control, it delivers ultra-fast switching across 64 channels, making it ideal for large-scale, time-critical automation systems. Its compact architecture supports high I/O density while maintaining signal stability, electrical isolation, and reliable operation in continuous industrial environments.
This module is particularly valued in modern control systems where space efficiency, speed, and synchronized output performance are essential.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model | F3YD64-1F |
| Module Type | High-Density Transistor Output Module |
| Output Type | Sink Type (DC Transistor) |
| Output Channels | 64 |
| Common Configuration | 8 points / common |
| Rated Load Voltage | 24 V DC (20.4 – 26.4 V DC) |
| Maximum Load Current | 0.1 A per point / 0.4 A per common |
| Response Time | ≤ 1 ms (ON/OFF) |
| Isolation Method | Photocoupler Isolation |
| Surge Protection | Zener diode protection |
| Leakage Current | ≤ 0.1 mA |
| ON Voltage Drop | ≤ 0.5 V DC |
| External Power Supply | 24 V DC (approx. 150 mA) |
| Internal Consumption | Approx. 275 mA @ 5 V DC |
| Output Indicator | LED (32-point group switching display) |
| Connection Type | Dual 40-pin connectors |
| Operating Temperature | 0°C to 55°C |
| Withstand Voltage | 1500 V AC (1 minute, internal/external) |
| Dimensions (H×W×D) | Approx. 110 × 80 × 20 mm |
| Weight | Approx. 0.11–0.16 kg |
Industrial Applications
The F3YD64-1F is widely used in high-density automation environments requiring fast and synchronized output control. Common applications include packaging machinery, semiconductor manufacturing equipment, conveyor systems, and large-scale machine automation.
Its ability to handle multiple output signals simultaneously makes it especially suitable for systems where timing precision and compact control design are critical.
Key Advantages and Engineering Value
One of the most significant strengths of this module is its 64-channel high-density architecture, which reduces cabinet space while increasing control capability. The 1 ms fast switching response ensures accurate real-time operation, supporting high-speed industrial processes.
Photocoupler isolation improves noise immunity and protects the PLC system from field-side disturbances, while built-in surge protection enhances durability when driving inductive loads. LED status indicators grouped in 32-point segments simplify diagnostics and maintenance.
Overall, it offers a strong balance of scalability, speed, and reliability for advanced automation systems.
Technical FAQs
-
How many output channels does it provide?
It provides 64 transistor output channels.
-
What type of output is used?
Sink-type DC transistor output.
-
What is the switching speed?
Approximately 1 ms ON/OFF response time.
-
What voltage range does it support?
24 V DC (20.4–26.4 V DC operating range).
-
Does it support electrical isolation?
Yes, photocoupler isolation is implemented.
-
What is the maximum load current?
0.1 A per point, 0.4 A per common group.
-
Does it include surge protection?
Yes, Zener diode protection is included.
-
How is output status displayed?
LED indicators with 32-point grouped display.
-
What connector type is used?
Dual 40-pin industrial connectors.
-
What industries commonly use this module?
High-speed manufacturing, packaging, and automated production lines.
