High-Density Fast Switching Output for Advanced PLC Systems

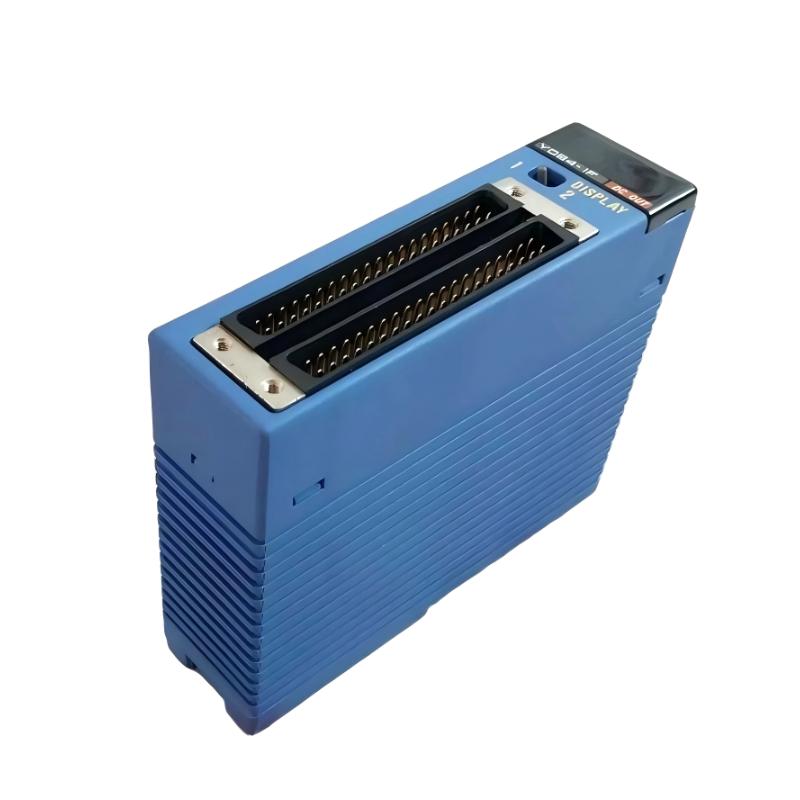

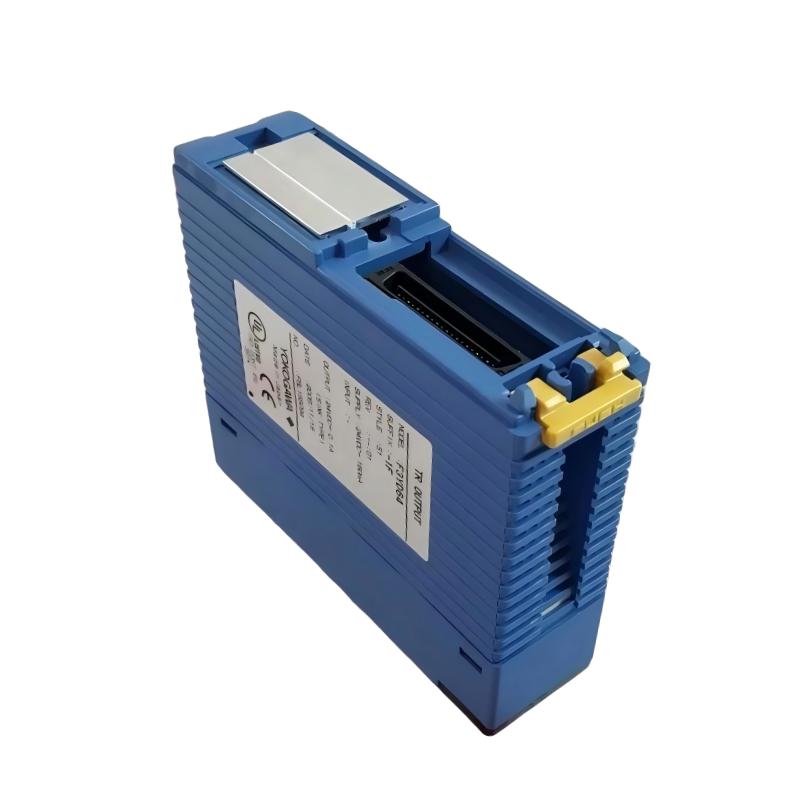

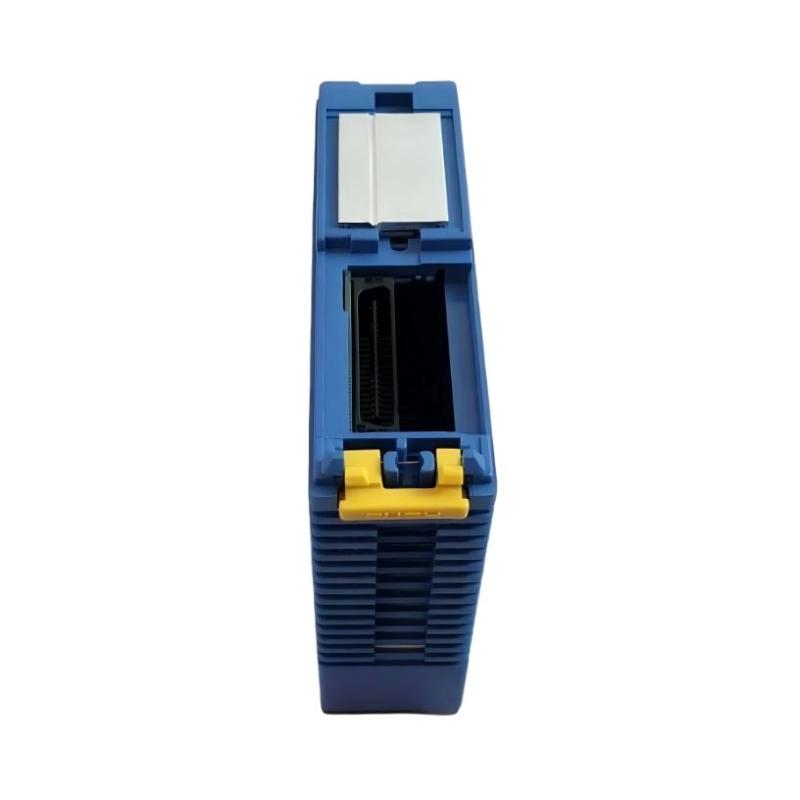

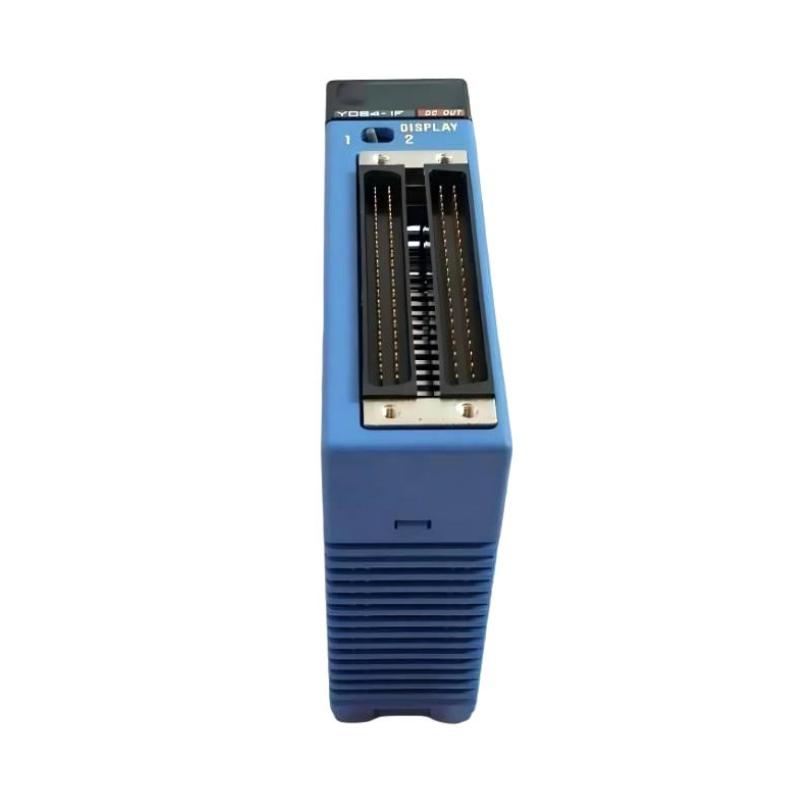

The Yokogawa F3YD64-1F Output Module is a high-channel-density transistor output unit designed for the FA-M3 PLC platform. Built for sink-type DC output control, it delivers fast, stable, and synchronized switching across 64 points, making it ideal for large-scale automation systems that demand both precision and compactness.
Engineered for industrial reliability, this module is widely used in applications where fast response, high channel integration, and electrical isolation are essential for efficient system design.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model | F3YD64-1F |
| Module Type | High-Density Transistor Output Module |
| Output Type | Sink Type |
| Output Channels | 64 |
| Common Configuration | 8 points / common |
| Rated Load Voltage | 12–24 V DC |
| Operating Voltage Range | 10.2–26.4 V DC |
| Maximum Load Current | 0.1 A per point / 0.4 A per common |
| Response Time | ≤ 1 ms (ON/OFF) |
| Isolation Method | Photocoupler Isolation |
| Surge Protection | Zener diode protection |
| Leakage Current | ≤ 0.1 mA |
| ON Voltage Drop | ≤ 0.5 V DC |
| External Power Supply | 24 V DC (approx. 150 mA) |
| Internal Consumption | Approx. 275 mA @ 5 V DC |
| Output Indicator | LED (32-point grouped display) |
| Connection Type | Dual 40-pin connectors |
| Operating Temperature | 0°C to 55°C |
| Dimensions (H×W×D) | Approx. 110 × 80 × 20 mm |
| Weight | Approx. 0.11–0.16 kg |
Industrial Applications
The F3YD64-1F is widely used in high-density automation systems where synchronized control of multiple devices is required. Typical applications include packaging machinery, electronic assembly systems, conveyor line control, and multi-axis sequencing systems.
Its fast switching capability and compact design make it especially suitable for equipment requiring large-scale output coordination in limited cabinet space.
Key Advantages and Engineering Value
One of the most significant strengths of this module is its 64-channel high-density design, which reduces overall system footprint while increasing control capacity. The fast 1 ms response time ensures accurate real-time switching, supporting high-speed automation tasks.
Photocoupler isolation enhances system stability by protecting the PLC from electrical noise and field-side disturbances. Built-in surge protection improves durability when driving inductive loads, while LED indicators simplify maintenance and troubleshooting.
Overall, it delivers an efficient balance of scalability, speed, and reliability for modern industrial automation architectures.
Technical FAQs
-
How many output channels does the F3YD64-1F provide?
It provides 64 transistor output channels.
-
What type of output is used?
Sink-type DC transistor output.
-
What is the switching speed?
Approximately 1 ms for ON/OFF response.
-
What voltage range does it support?
12–24 V DC operating range.
-
Is electrical isolation included?
Yes, photocoupler isolation is implemented.
-
What is the maximum load current?
0.1 A per channel, 0.4 A per common group.
-
Does it include surge protection?
Yes, Zener diode-based protection is included.
-
How is output status indicated?
LED indicators are used (grouped display).
-
What connector type is used?
Dual 40-pin industrial connectors.
-
What applications is it best suited for?
High-density, high-speed industrial automation systems.
