High-Speed Precision Output for Dynamic Control Systems

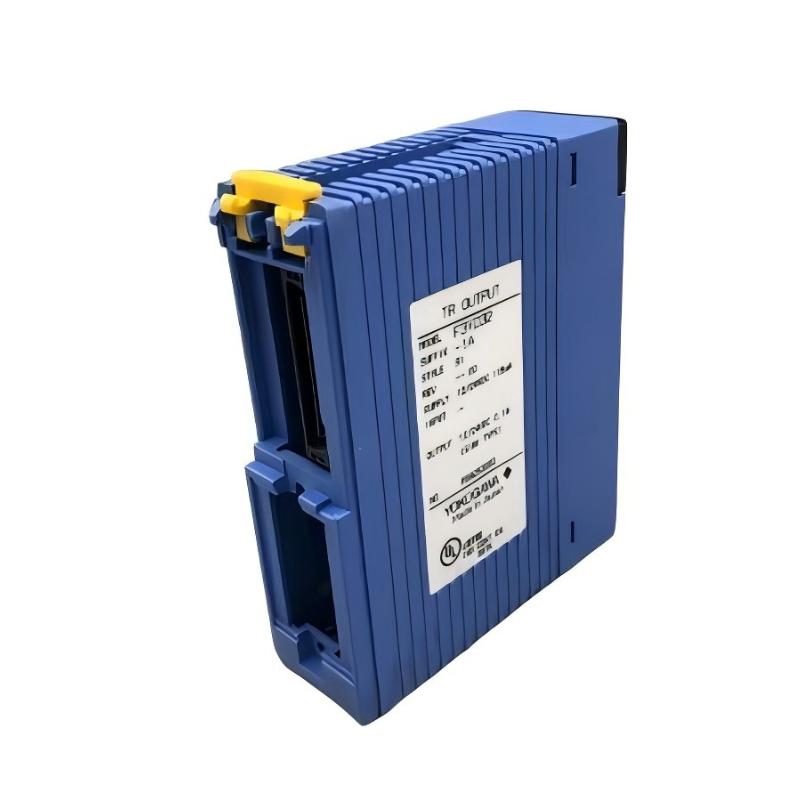

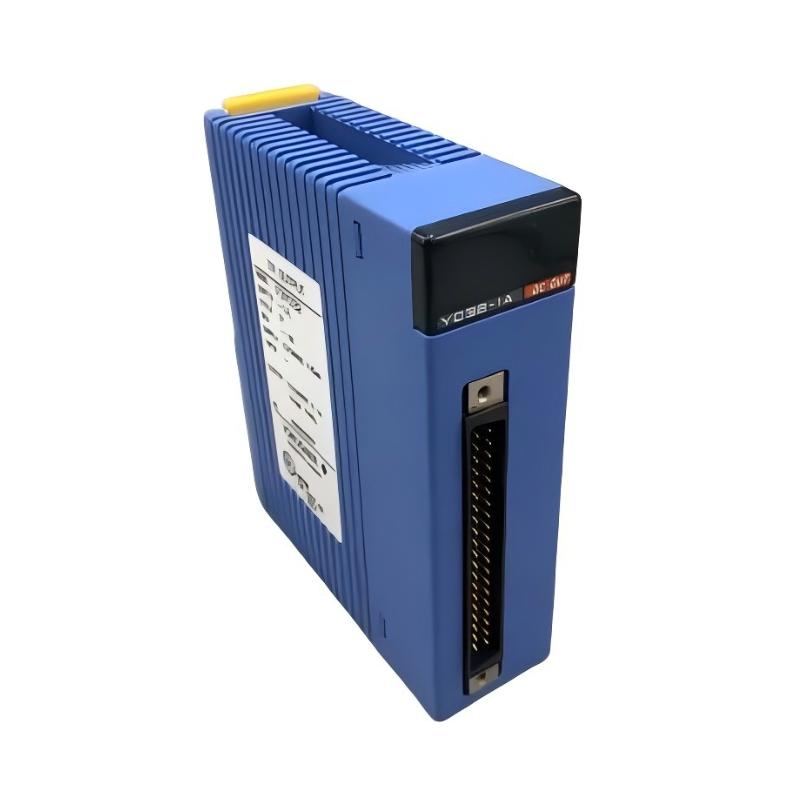

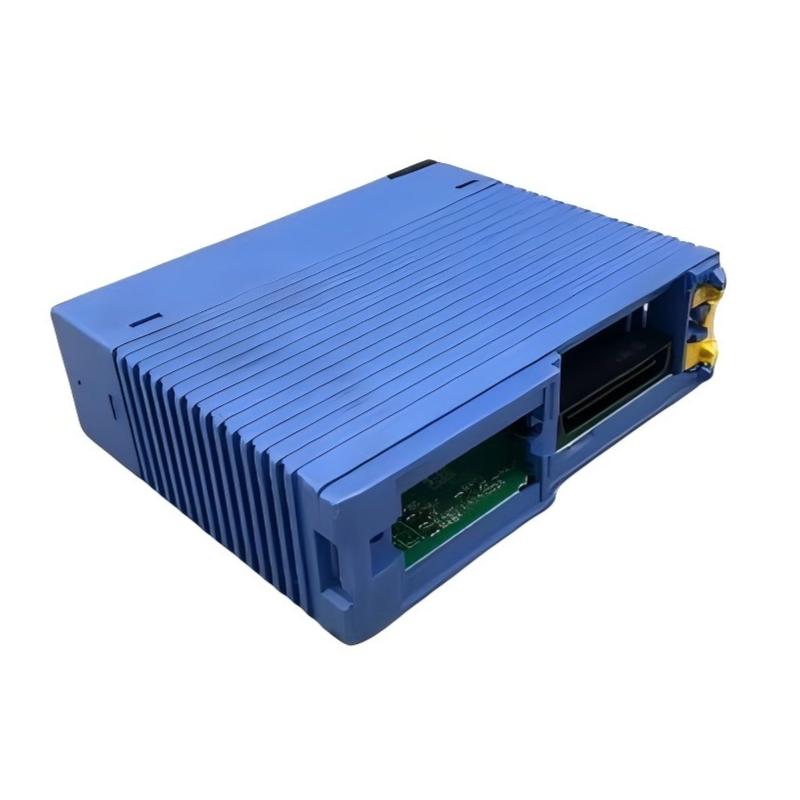

The Yokogawa F3YD32-1H High-Speed Output Module is a performance-focused transistor output unit designed for the FA-M3 PLC platform. Built for ultra-fast switching applications, it delivers precise, synchronized output control for demanding automation environments. With 32 channels of high-speed sink-type transistor outputs, this module is optimized for pulse control, sequencing operations, and high-response industrial machinery where timing accuracy is critical.
Its combination of speed, protection features, and high channel density makes it a strong fit for modern automated production systems requiring both reliability and responsiveness.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model | F3YD32-1H |
| Module Type | High-Speed Transistor Output Module |
| Output Type | Sink Type |
| Output Channels | 32 |
| Common Configuration | 8 points / common |
| Rated Load Voltage | 12–24 V DC |
| Operating Voltage Range | 10.2–26.4 V DC |
| Maximum Load Current | 0.1 A per point / 0.5 A per common |
| Response Time | ≤ 0.1 ms (ultra-high-speed switching) |
| Isolation Method | Photocoupler Isolation |
| Protection Features | Short-circuit & overheat protection |
| Surge Protection | Active clamp circuit |
| Output Indicator | LED (ON status display) |
| External Power Supply | 12–24 V DC |
| Power Consumption | Approx. 165 mA @ 5 V DC |
| Connection Type | 40-pin connector |
| Operating Temperature | 0°C to 55°C |
| Dimensions (H×W×D) | Approx. 110 × 80 × 20 mm |
| Weight | Approx. 0.11 kg |
Industrial Applications
The F3YD32-1H is widely used in automation systems where timing precision and rapid switching are essential. Typical applications include high-speed packaging lines, servo-driven machinery, electronic assembly equipment, and synchronized multi-axis control systems. It is also suitable for pulse-driven operations requiring accurate timing coordination across multiple output channels.
Key Advantages and Engineering Value
One of the standout strengths of this module is its ultra-fast response capability, enabling precise control in high-frequency switching environments. The photocoupler isolation ensures stable signal integrity while protecting the PLC system from electrical noise.
Built-in short-circuit and thermal protection enhances operational safety and reduces downtime risks, especially in continuous production environments. The compact 32-channel design allows high-density installation, reducing cabinet space requirements without sacrificing performance.
Its optimized architecture for pulse output applications makes it particularly valuable in motion control and high-speed sequencing systems.
Technical FAQs
-
What makes the F3YD32-1H a “high-speed” module?
It supports switching speeds as fast as 0.1 ms for precise timing control.
-
How many output channels does it have?
It provides 32 transistor output channels.
-
What type of output does it use?
Sink-type transistor outputs.
-
What voltage does it support?
12–24 V DC operating range.
-
Is it suitable for pulse control applications?
Yes, it is specifically designed for multi-channel pulse output systems.
-
Does it include protection features?
Yes, it includes short-circuit and overheat protection.
-
What is the maximum current per output?
0.1 A per channel.
-
How is electrical isolation handled?
Through photocoupler isolation.
-
What is the connector type?
A 40-pin industrial connector.
-
Where is it commonly used?
High-speed automation, synchronized machinery, and precision control systems.
