Precision Transistor Output Control for Modern Automation Systems

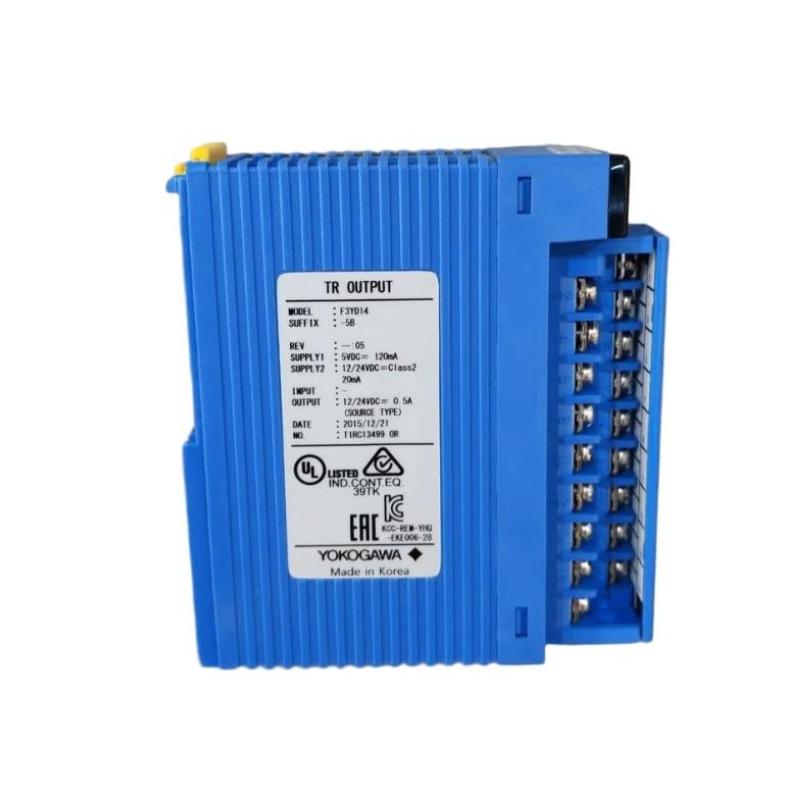

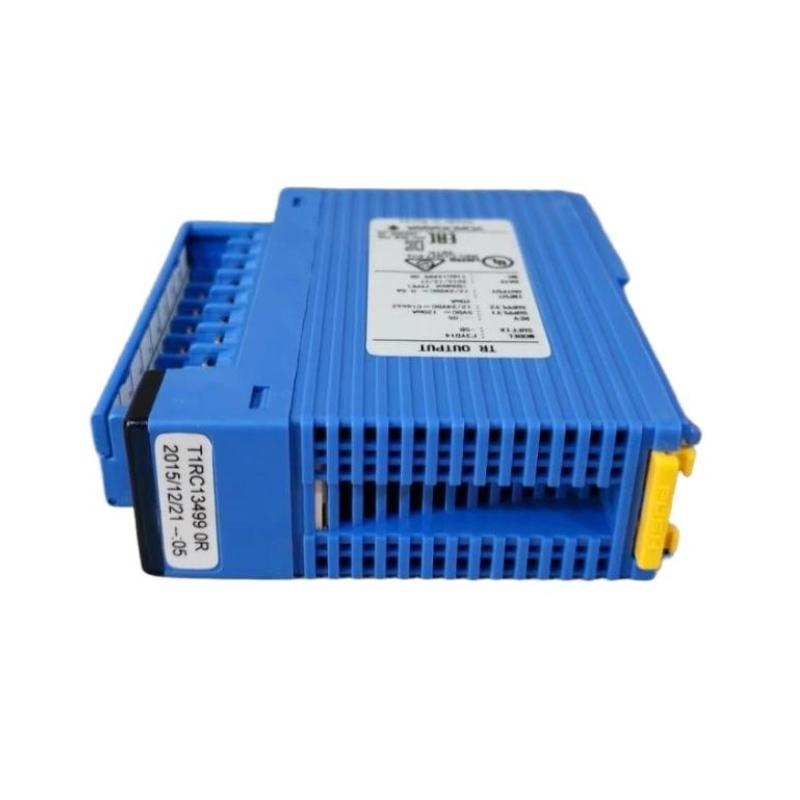

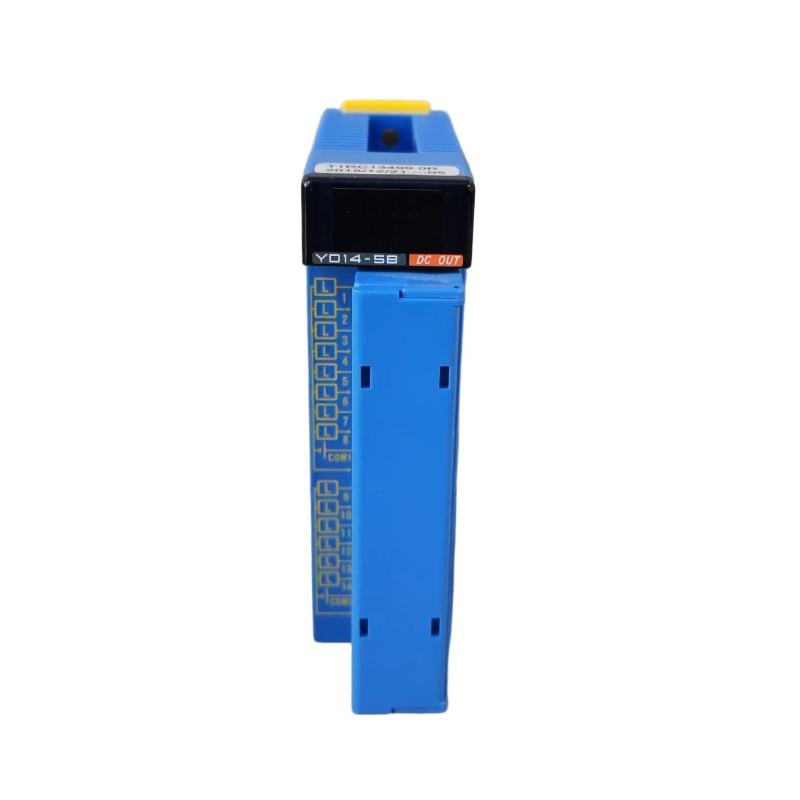

The Yokogawa F3YD14-5B Output Module is a high-reliability transistor-based output unit designed for the FA-M3 PLC platform. Engineered for source-type DC output control, it delivers fast, stable, and accurate switching performance for a wide range of industrial field devices. Its 14-channel configuration makes it a compact yet powerful solution for applications requiring dense output control without sacrificing signal integrity or system safety.
Built with Yokogawa’s focus on long-term operational stability, this module is well-suited for automation environments where consistent performance and electrical protection are essential.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model | F3YD14-5B |
| Module Type | Transistor Output Module |
| Output Type | Source Type |
| Output Channels | 14 |
| Common Configuration | 8 points / 6 points per common group |
| Rated Load Voltage | 12–24 V DC |
| Operating Voltage Range | 10.2–26.4 V DC |
| Maximum Load Current | 0.5 A per point / 2 A per common |
| Response Time | ≤ 1 ms (ON/OFF) |
| Isolation Method | Photocoupler Isolation |
| Output Protection | Active clamp surge protection |
| Leakage Current | ≤ 0.1 mA |
| ON Voltage Drop | ≤ 0.5 V DC |
| External Power Supply | 12–24 V DC (low current support) |
| Power Consumption | Approx. 120 mA @ 5 V DC |
| Connection Type | 18-point terminal block (M3.5 screw) |
| Operating Temperature | 0°C to 55°C |
| Dimensions (H×W×D) | Approx. 110 × 80 × 20 mm |
| Weight | Approx. 0.16–0.20 kg |
Industrial Applications
The F3YD14-5B is commonly used in automation systems that require precise control of DC-driven devices. Typical applications include solenoid valve control, relay driving, indicator lamps, small motor control, and general machine automation. It is especially effective in environments where compact I/O design and fast switching response are critical.
Its source-type output configuration makes it suitable for systems requiring positive voltage output control, offering flexibility in modern control panel design.
Engineering Advantages and Value
One of the key strengths of this module is its fast switching performance, enabling real-time control in dynamic industrial processes. The photocoupler isolation ensures strong electrical separation between field devices and control logic, reducing noise interference and improving system stability.
The active clamp protection design enhances durability by protecting output circuits from voltage surges, extending operational life. Its compact structure also supports high-density PLC installations, helping reduce cabinet space while maintaining full functionality.
Overall, it delivers a strong balance of speed, safety, and system integration flexibility.
Technical FAQs
-
What type of output does this module provide?
It provides transistor-based source-type DC outputs.
-
How many output channels are available?
The module supports 14 output points.
-
What is the output voltage range?
It operates within 12–24 V DC systems.
-
Is electrical isolation included?
Yes, photocoupler isolation is used for all channels.
-
What is the switching speed?
The response time is typically 1 ms or less.
-
Can it handle inductive loads?
Yes, with proper external protection depending on load type.
-
What is the maximum current per output?
0.5 A per point, with shared common limits.
-
Does it require external power?
It uses system power with a low external supply requirement.
-
What protection features are included?
Active clamp surge protection is built in.
-
Is it suitable for high-density PLC systems?
Yes, its compact design is optimized for dense industrial layouts.
